Model
GE GTY17GBCBRWW
Refrigerator

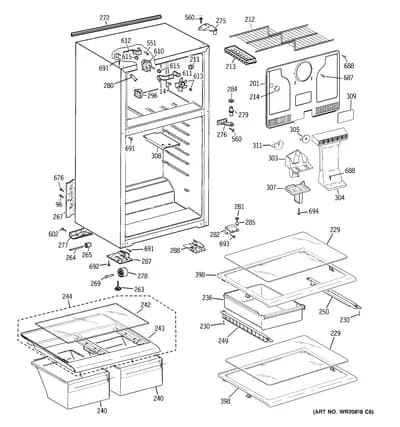

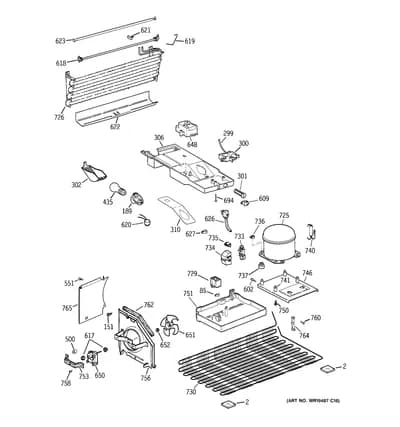

Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GTY17GBCBRWWRefrigerator
3 diagrams125 parts
Parts Sections (3)
Diagram

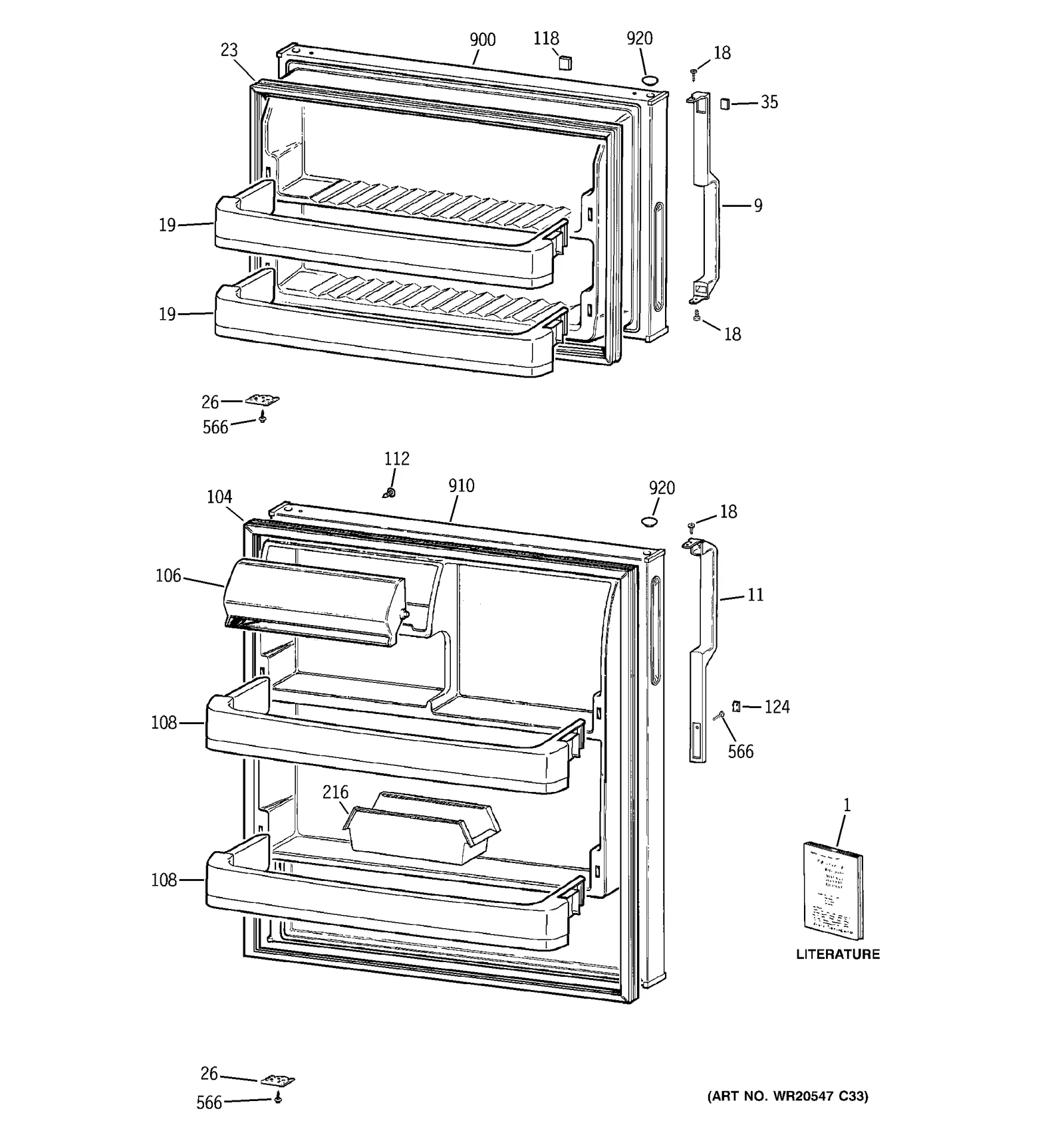

DOORS
Parts in DOORS
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-46253 PM MINI MANUAL WIRING | - |
| 1 | – | 49-60641 PM GUIDE OWNERS | - |
| 9 |  | HANDLE DOOR ASSY FZ WHITE | $18.43 Part Advantage |
| 11 |  | WR12X10107replaces WR12X10710 HANDLE DOOR FF WH | $13.79 Part Advantage |
| 18 |  | WR1X1726Dreplaces WR01X1726 SCR 10-16 AB 3/4 SS | $23.52 Part Advantage |
| 19 |  | SHELF FIXED FZ | $10.36 Part Advantage |
| 23 |  | GASKET DOOR FZ | $61.90 Part Advantage |
| 26 |  | WR02X13134NLA STOP DOOR | Discontinued |
| 35 | | LENS NAMEPLATE | - |
| 104 |  | GASKET DOOR FF | $53.37 Part Advantage |
| 106 |  | DOOR DAIRY | $26.61 Part Advantage |
| 108 |  | WR17X11889replaces WR17X12916 SHELF FIXED FF | $13.56 Part Advantage |
| 112 |  | WR01X21159replaces WR02X8693 BEAUTY BUTTON-WHT | $5.09 Part Advantage |
| 118 | | LENS NAMEPLATE | - |
| 124 | | PLUG BUTTON INSERT | Discontinued |
| 216 |  | BUCKET EGG ASSY | - |
| 566 |  | SCR 10-16 AB PNT20 1/2 S | $5.09 Part Advantage |
| 900 | – | WR78X12415 DOOR ASM FOAM FZ WH | - |
| 910 | | WR78X21051replaces WR78X12408 DOOR ASM FOAM FF | - |
| 920 |  | WR2X8233replaces WR02X8233 PLUG BUTTON THIMBLE WH | $14.95 ApplianceParts Pro |
