Model
GE GTY18INWARBB
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GTY18INWARBBRefrigerator
3 diagrams128 parts
Parts Sections (3)
Diagram

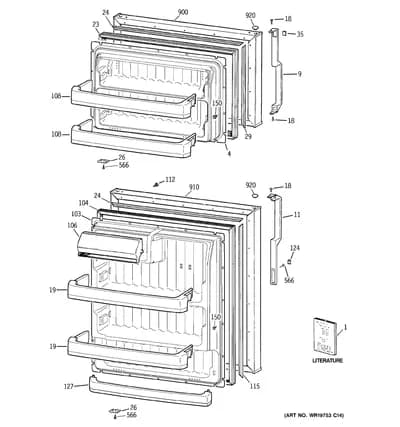

DOORS
Parts in DOORS
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-46099 PM INSTRUCTION CARE LOGO | - |
| 1 | – | 31-51620 PM MINI MANUAL WIRING | - |
| 1 | – | 49-60512 PM GUIDE OWNERS | - |
| 4 |  | DOOR INNER FZ | - |
| 9 |  | HANDLE DOOR ASM FZ | $31.20 Parts Dr |
| 11 |  | HANDLE DOOR FF | $25.70 Parts Dr |
| 18 |  | WR1X1726Dreplaces WR01X1726 SCR 10-16 AB 3/4 SS | $23.52 Part Advantage |
| 19 |  | SHELF FIXED FF | $13.56 Part Advantage |
| 23 |  | GASKET DOOR FZ | $71.13 Part Advantage |
| 24 | – | WR02X8235 RETAINER STRIP H | - |
| 26 | | STOP DOOR | - |
| 29 | | RETAINER STRIP V | Discontinued |
| 35 | | LENS NAMEPLATE BLACK | - |
| 103 | | DOOR INNER FF | - |
| 104 |  | GASKET DOOR FF | $63.35 Part Advantage |
| 106 |  | DOOR DAIRY | $26.61 Part Advantage |
| 108 |  | SHELF FIXED FZ | $10.36 Part Advantage |
| 112 |  | WR01X21159replaces WR02X8693 BEAUTY BUTTON-WHT | $5.09 Part Advantage |
| 115 | | WR2X9221replaces WR02X9221 RETAINER STRIP V | - |
| 124 | | WR12X0564NLA PLUG BUTTON INSERT BK | Discontinued |
| 127 |  | SHELF FIXED FF | $20.79 Part Advantage |
| 150 |  | SCR 8-16 GX FLP 9/16 S | $12.95 ApplianceParts Pro |
| 566 |  | SCR 10-16 AB PNT20 1/2 S | $5.09 Part Advantage |
| 900 | | DOOR FOAM ASM FZ | - |
| 910 | | WR78X24552replaces WR78X11882 DOOR FOAM ASM FF | - |
| 920 |  | PLUG BUTTON THIMBLE | $14.95 ApplianceParts Pro |
