Model
GE GTY22IBBJRWW
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GTY22IBBJRWWRefrigerator
8 diagrams171 parts
Parts Sections (8)
Diagram

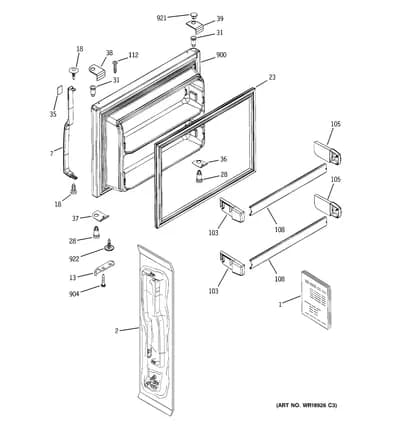

FREEZER DOOR
Parts in FREEZER DOOR
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-45967 PM MINI MANUAL WIRING | - |
| 1 | – | 49-60347 PM GUIDE OWNERS | - |
| 2 |  | PK HANDLE SMALL ASSY WHITE | - |
| 7 | | WR12X10460replaces WR12X10726 HANDLE DOOR ASM FZ | - |
| 13 | | STOP DOOR FF/FZ WHITE | - |
| 18 |  | WR1X1726Dreplaces WR01X1726 SCR 10-16 AB 3/4 SS | $23.52 Part Advantage |
| 23 |  | GASKET LTM FZ DOOR | $165.50 ApplianceParts Pro |
| 28 | | THIMBLE DOOR BTM WHITE | - |
| 31 | | THIMBLE DOOR TOP WHITE | - |
| 35 | | LENS NAMEPLATE | - |
| 36 | | CAP DOOR BOTTOM WHITE | - |
| 37 | | CAP DOOR BOTTOM WHITE | - |
| 38 | | CAP CORNER TOP WHITE | - |
| 39 | | CAP CORNER TOP WHITE | - |
| 103 | | CAP SHELF FRONT FZ | - |
| 105 | | CAP SHELF FRONT FZ | - |
| 108 | | WR71X10327NLA SHELF FRONT DOOR FZ | Discontinued |
| 112 |  | WR01X21159replaces WR02X8693 BEAUTY BUTTON-WHT | $5.09 Part Advantage |
| 900 | | DOOR FOAM ASM FZ FIX 22 | - |
| 904 |  | WR01X10611replaces WR01X10582 SCR 10-16 | $3.47 RepairClinic |
| 921 |  | PLUG BUTTON THIMBLE WHITE | $6.72 ApplianceParts Pro |
| 922 | | PLUG COVER | - |
