Model
GE GTY22LBBJRWW
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GTY22LBBJRWWRefrigerator
8 diagrams176 parts
Parts Sections (8)
Diagram

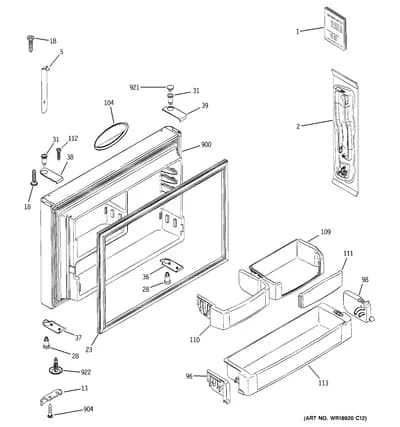

FREEZER DOOR
Parts in FREEZER DOOR
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-45969 PM MINI WIRING MANUAL | - |
| 1 | – | 49-60347 PM GUIDE OWNERS | - |
| 2 |  | WR12X10460replaces WR12X10826 PK HANDLE LARGE ASM | - |
| 5 | | TRIM HANDLE FZ | - |
| 13 | | STOP DOOR FF/FZ WHITE | - |
| 18 |  | WR1X1726Dreplaces WR01X1726 SCR 10-16 AB 3/4 SS | $23.52 Part Advantage |
| 23 |  | GASKET LTM FZ DOOR | $165.50 ApplianceParts Pro |
| 28 | | THIMBLE DOOR BTM WHITE | - |
| 31 | | THIMBLE DOOR TOP WHITE | - |
| 36 | | CAP DOOR BOTTOM WHITE | - |
| 37 | | CAP DOOR BOTTOM WHITE | - |
| 38 | | CAP CORNER TOP WHITE | - |
| 39 | | CAP CORNER TOP WHITE | - |
| 96 | | END CAP | - |
| 98 |  | END CAP TILT ASSY | $32.23 ApplianceParts Pro |
| 104 | | NAMEPLATE WH | - |
| 109 | | MODULE SHELF FF | $94.21 ApplianceParts Pro |
| 110 | | MOD SHELF FIXED ASM FZ | $55.09 ApplianceParts Pro |
| 111 | | MODULE SHELF INSERT | - |
| 112 |  | WR01X21159replaces WR02X8693 BEAUTY BUTTON-WHT | $5.09 Part Advantage |
| 900 | | DOOR FOAM ASM FZ MOD 22 | - |
| 904 |  | WR01X10611replaces WR01X10582 SCR 10-16 | $3.47 RepairClinic |
| 921 |  | PLUG BUTTON THIMBLE WHITE | $6.72 ApplianceParts Pro |
| 922 | | PLUG COVER | - |
