Model
GE GTY25LBBJRWW
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GTY25LBBJRWWRefrigerator
8 diagrams177 parts
Parts Sections (8)
Diagram

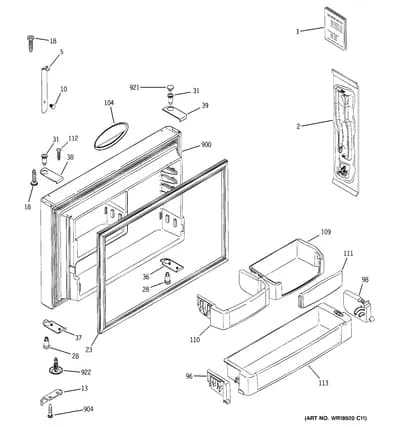

FREEZER DOOR
Parts in FREEZER DOOR
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-45970 PM MINI MANUAL WIRING | - |
| 1 | – | 49-60347 PM GUIDE OWNERS | - |
| 5 |  | TRIM HANDLE FZ | - |
| 10 | | SCR 8-18 PL FLP 5/16 S | $25.95 ApplianceParts Pro |
| 13 | | STOP DOOR FF/FZ WHITE | - |
| 18 |  | WR1X1726Dreplaces WR01X1726 SCR 10-16 AB 3/4 SS | $23.52 Part Advantage |
| 23 | | WR24X10087NLA GASKET LTM FZ DOOR WH | Discontinued |
| 28 | | THIMBLE DOOR BTM WHITE | - |
| 31 | | THIMBLE DOOR TOP WHITE | - |
| 36 | | CAP DOOR BOTTOM WHITE | - |
| 37 | | CAP DOOR BOTTOM WHITE | - |
| 38 | | CAP CORNER TOP WHITE | - |
| 39 | | CAP CORNER TOP WHITE | - |
| 96 | | END CAP | - |
| 98 |  | END CAP TILT ASSY | $32.23 ApplianceParts Pro |
| 104 | | NAMEPLATE WH | - |
| 109 | | MODULE SHELF FF & FZ | - |
| 110 | | MODULE SHELF FIXED ASM | - |
| 111 | | MODULE SHELF INSERT | - |
| 112 |  | WR01X21159replaces WR02X8693 BEAUTY BUTTON-WHT | $5.09 Part Advantage |
| 113 | | MODULE & INSERT ASM 25 | - |
| 900 | | DOOR FOAM ASM FZ MOD 25 | - |
| 904 |  | WR01X10611replaces WR01X10582 SCR 10-16 | $3.47 RepairClinic |
| 921 |  | PLUG BUTTON THIMBLE WHITE | $6.72 ApplianceParts Pro |
| 922 | | PLUG COVER | - |
