Model
GE GTY25SBBJRSS
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GTY25SBBJRSSRefrigerator
8 diagrams165 parts
Parts Sections (8)
Diagram

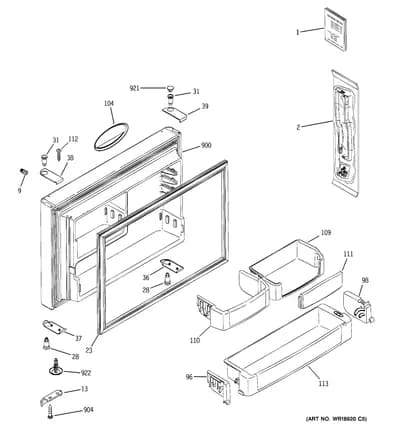

FREEZER DOOR
Parts in FREEZER DOOR
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-45970 PM MINI MANUAL WIRING | - |
| 1 | – | 49-60347 PM GUIDE OWNERS | - |
| 2 |  | PK HANDLE LARGE ASM | - |
| 9 |  | FASTENER HANDLE SS | $18.06 Parts Dr |
| 13 | | WR02X10930NLA STOP DOOR FF/FZ BLACK | Discontinued |
| 23 | | GASKET LTM FZ DOOR BK | - |
| 28 | | WR02X10931NLA THIMBLE DOOR PLASTIC BLACK | Discontinued |
| 31 | | THIMBLE DOOR PLASTIC BLACK | - |
| 36 | | CAP DOOR BOTTOM BLACK | - |
| 37 | | CAP DOOR BOTTOM BLACK | - |
| 38 | | CAP CORNER TOP BLACK | - |
| 39 | | CAP CORNER TOP BLACK | - |
| 104 |  | WR04X10129replaces WR04X10148 LENS NAMEPLATE | - |
| 112 |  | WR02X21195replaces WR02X8701 PLUG DOOR RVSBL BK | $3.48 RepairClinic |
| 900 | | DOOR FOAM ASM FZ 25-SS | - |
| 904 |  | WR01X10611replaces WR01X10582 SCR 10-16 | $3.47 RepairClinic |
| 921 |  | PLUG BUTTON THIMBLE BLACK | - |
| 922 |  | PLUG COVER BLK | - |
