ModelGE

JHP56*V8Range With Microwave Combo

3 diagrams337 parts

Parts Sections (3)

Diagram

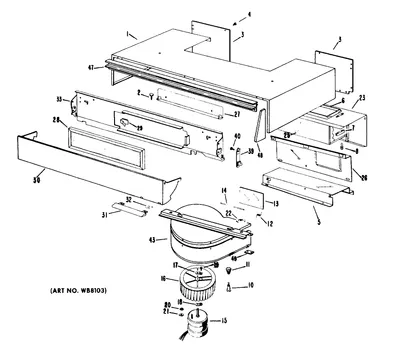

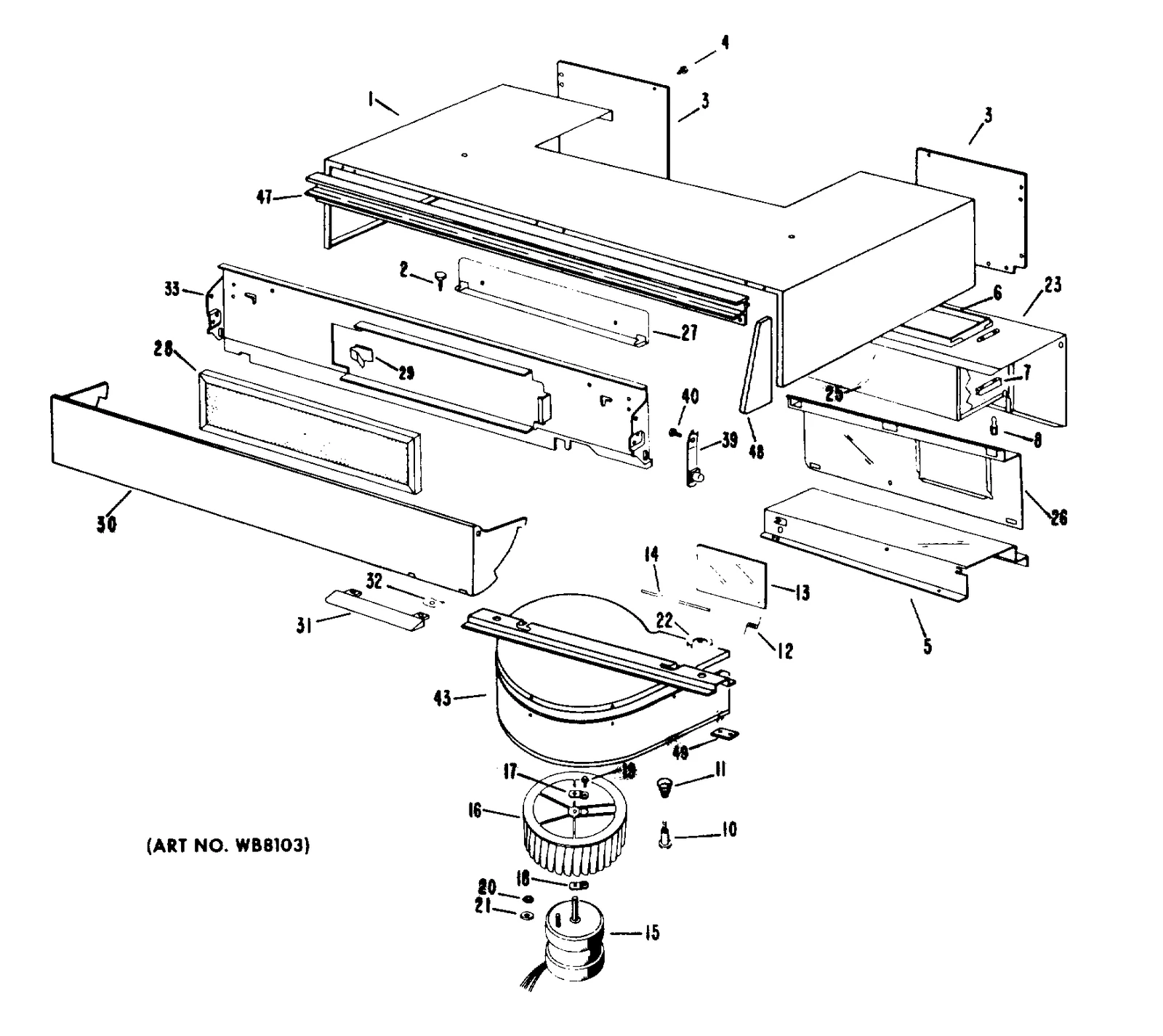

BLOWER PARTS ONLY

Parts in BLOWER PARTS ONLY

67 parts

Parts list for BLOWER PARTS ONLY
Ref	Image	Part / Description	Best Price
1	–	WB62X1499 HOOD BODY WH	-
1	–	WB62X1500 HOOD BODY CF	-
1	–	WB62X1501 HOOD BODY FA	-
1	–	WB62X1502 HOOD BODY HA	-
1	–	WB62X1503 HOOD BODY AD	-
2		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
3	–	WB02X2017 COVER BACK	-
4		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
5	–	WB49X0181 SUPPORT SLIDE	-
6	–	WB49X0182 EXHAUST ASM	-
7	–	WB02X2016 RECEIVER STUD	-
7	–	WZ04X0289 SCR 8-18 AB HX 1/4 S	-
8	–	WB01X0277 SCREW MTG. BALL	-
8	–	WB01X0426 STUD BALL	-
10	–	WB01X0427 SCREW MT. BLOWER	-
11	–	WB09X0073 SPRING BLOWER MOUNT	-
12	–	WB09X0072 SPRING DAMPER	-
13	–	WB02X2235 DAMPER	-
14	–	WB02X1581 WIRE	-
15	–	WB26X0027 MOTOR BLOWER	-
16	–	WB02X3456 WHEEL BLOWER	-
17	–	WB02X3457 CLAMP	-
18	–	WB02X3458 CLAMP	-
19	–	WZ04X0419 SCR 10-16 AB HXW 5/8 S	-
20	–	WZ07X0030 NUT	-
21	–	WZ10X0114 LOCKWASHER	-
22	–	WB02X2015 RETAINER	-
23	–	WB49X0184 COVER ASM	-
25	–	WB49X0183 GUIDE AIR	-
26	–	WB49X0218 COVER INNER	-
27	–	WB49X0180 DEFLECTOR AIR	-
28	–	WB02X6731 FILTER GREASE	-
29	–	WB02X1583 CLIP HOOD FILTER	-
30	–	WB56X0923 HOOD PANEL	-
31		WB15X0109NLA HOOD PANEL HANDLE	Discontinued
31	–	WZ05X0187 SCREW 8-32 X 1/2" PAN	-
32	–	WB02X2630 CLIP	-
33	–	WB02X2629 PLATE FILTER	-
33		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
39	–	WB02X3131 SPRING PIN ASM	-
40		WB1X500Dreplaces WZ04X0304 SCREW DUCT	$7.64 RepairClinic
43	–	WB49X0216 HOUSING BLOWER TOP	-
43	–	WB49X0217 HOUSING BLOWER BOTTOM	-
43		WZ4X345Dreplaces WZ04X0232 SCR 8-18 AB HXS 3/8 S	-
47		WB07X0772NLA TRIM HOOD	Discontinued
47		WZ4X345Dreplaces WZ04X0232 SCR 8-18 AB HXS 3/8 S	-
48	–	WB02X3431 PAD (CUT TO SIZE)	-
48	–	WB07X0770 END CAP-RT	-
48	–	WB07X0771 END CAP-LT	-
48	–	WZ04X0217 SCR 6-20 B HXW 1/4 S	-
49	–	WB02X3239 STRAP	-
90	–	WB56X5791 WB56X6082	-
91	–	WB02X1658 FRICTION PLATE	-
92	–	WB01X0400 SCREW	-
93	–	WB01X0365 SPEEDNUT	-
93	–	WB01X0401 WASHER	-
93	–	WZ05X0120 SCREW	-
94		WB01X0529NLA HINGE PIN	Discontinued
95		WB15X5165replaces WB15X0126 HANDLE	-
96	–	WZ05X0120 SCREW	-
97	–	WB01X5508 WASHER	-
98	–	WB02X1570 CATCH SPRING	-
130	–	WB39X5011 GUIDE DRAWER RH	-
130		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
259	–	WB02X3001 SPACER - POST	-
284		WB1X5355replaces WB01X5355 SCREW RECEPT TERMINAL	-
284		WB30X219replaces WB30X0219 SURFACE UNIT, 8"	$37.88 Part Advantage
