Model
GE JHP56*VA
Range With Microwave Combo
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP56*VARange With Microwave Combo
2 diagrams299 parts

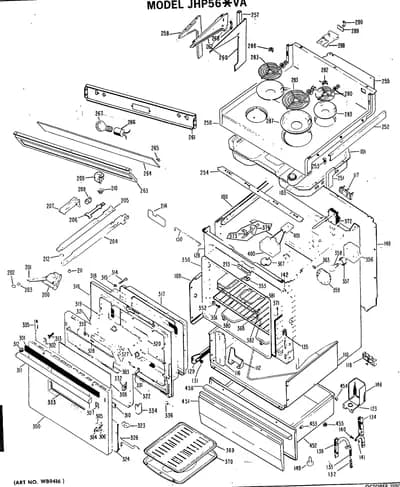

Parts Sections (2)
Diagram

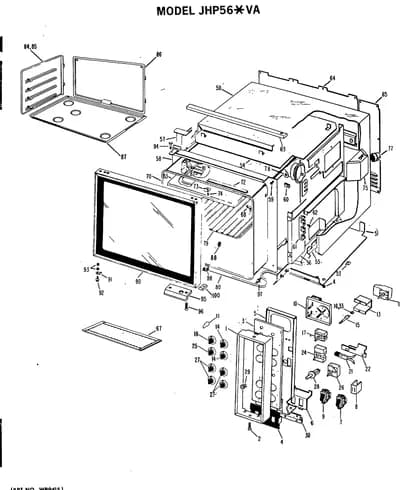

CONTROL PARTS
Parts in CONTROL PARTS
125 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB01X0358 NUT SHEET METAL | - |
| 1 | – | WB07X1223 CONTROL TRIM | - |
| 2 | – | WZ05X0120 SCREW | - |
| 3 | – | WB36X5369 WB36X5488 | - |
| 4 | – | WB07X0985 SWITCH TRIM | - |
| 5 | – | WB02X3196 INSTRUMENT BRACKET | - |
| 6 | – | WB02X2996 SWITCH BRACKET | - |
| 6 |  | WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE | - |
| 7 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 7 | – | WB24X0177 SWITCH, LAMPS | - |
| 8 | – | WB02X3008 BARRIER - SWITCH | - |
| 9 | – | WB24X0178 SWITCH, FAN | - |
| 10 | – | WB01X0540 NUT | - |
| 10 | – | WB19X0123 TIMER | - |
| 11 |  | KNOB TIMER | Discontinued |
| 12 | – | WB21X0177 THERMOSTAT, OVEN L.O. | - |
| 12 | – | WZ06X0116 SCREW MTG. BRACKET | - |
| 13 | – | WB02X2657 BRACKET THERMO UPPER | - |
| 13 | – | WZ06X0116 SCREW MTG. BRACKET | - |
| 14 |  | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 14 | – | WB03X0470 KNOB THERMOSTAT | - |
| 15 | – | WB02X2470 SHAFT EXTENSION-UPPER OV | - |
| 15 | | SPACER-UPPER | Discontinued |
| 15 | – | WB02X3219 SHAFT EXTENSION-LOWER OV | - |
| 17 | – | WB22X0079 SWITCH, OVEN | - |
| 18 | | WB3X465replaces WB03X0469 KNOB OVEN SWITCH | - |
| 21 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 22 | – | WB02X3243 BRACKET LAMP | - |
| 22 | | WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE | - |
| 23 | – | WB03X0466 KNOB - LOWER THERMOSTAT | - |
| 24 | – | WB22X5093 SWITCH, OVEN | - |
| 24 | – | WZ02X0528 SCR 8-32 M PHR 3/16 S | - |
| 25 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 25 | | WB02X1609NLA LAMP CLEAN | Discontinued |
| 25 | | WB3X465replaces WB03X0465 KNOB OVEN SWITCH | - |
| 26 |  | WB21X36771replaces WB21X0228 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 26 | – | WZ02X0528 SCR 8-32 M PHR 3/16 S | - |
| 27 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 27 | | WB03X0464NLA KNOB SURFACE UNIT | Discontinued |
| 28 | – | WB24X0108 SWITCH LATCH RELEASE | - |
| 29 | – | WB02X6497 PLUG BUTTON | - |
| 30 | – | WB14X0039 HINGE | - |
| 30 | | WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE | - |
| 30 | – | WZ05X0120 SCREW | - |
| 32 | – | WB02X6274 SLEEVE | - |
| 32 | – | WB02X6455 THERMOSTAT BRACKET-LOWER | - |
| 32 | – | WB24X0184 THERMOSTAT, DUAL | - |
| 32 | – | WZ06X0116 SCREW MTG. BRACKET | - |
| 33 | | SPACER-UPPER | Discontinued |
| 50 | – | WB02X2999 ANGLE BRACE | - |
| 50 | – | WB56X1456 CASE SIDE RH WH | - |
| 50 | – | WB56X1457 CASE SIDE RH CF | - |
| 50 | – | WB56X1458 CASE SIDE RH FA | - |
| 50 | – | WB56X1459 CASE SIDE RH HA | - |
| 50 | – | WB56X1460 CASE SIDE RH AD | - |
| 50 | – | WB56X1461 CASE SIDE LH WH | - |
| 50 | – | WB56X1462 CASE SIDE LH CF | - |
| 50 | – | WB56X1463 CASE SIDE LH FA | - |
| 50 | – | WB56X1464 CASE SIDE LH HA | - |
| 50 | – | WB56X1465 CASE SIDE LH AD | - |
| 50 | | WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE | - |
| 51 | – | WB55X0421 CASE BOTTOM | - |
| 51 |  | WZ4X245Dreplaces WZ04X0245 SCR 8-18 AB PHR 5/8 S | $24.32 ApplianceParts Pro |
| 53 | | WB02X1659NLA SPEEDNUT | Discontinued |
| 54 | – | WB02X1561 STRAIN RELIEF | - |
| 54 | – | WB55X0287 INSULATION GUARD & TOP | - |
| 55 | – | WB55X0198 GUARD INSULATION LOWER | - |
| 55 | | WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE | - |
| 57 | – | WB49X0179 DUCT AIR | - |
| 58 | | WB56X5768NLA FRAME ASM | Discontinued |
| 59 | – | WZ05X0120 SCREW | - |
| 60 | – | WB01X0365 SPEEDNUT | - |
| 61 | – | WB17X0167 BLOCK TERM DISTRIBUTION | - |
| 62 | – | WZ04X0344 SCREW | - |
| 63 | – | WB01X0528 SPEEDNUT | - |
| 63 | – | WB07X0776 DEFLECTOR | - |
| 63 | | WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE | - |
| 64 | – | WB49X0300 COVER BACK | - |
| 65 | – | WB49X0301 INSTRUMENT COVER | - |
| 65 | | WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE | - |
| 67 | | WB2X1665replaces WB02X1665 CLIP FILTER | - |
| 67 | | WB02X1666NLA FILTER | Discontinued |
| 68 | | WB02X0596NLA CLIP CAP TUBE | Discontinued |
| 70 | – | WB02X1511 INSULATION | - |
| 70 | – | WB53X5078 OVEN LINER | - |
| 72 | | WB02X2957NLA GASKET SILICONE UP OVEN | Discontinued |
| 73 | | WB2X6209replaces WB02X6209 CLIP TRIM | - |
| 74 | – | WB01X5471 SCR 8-18 AB T 15/32 S | - |
| 75 | | WB2X1520replaces WB02X1520 SHIELD-MT. LAMP | - |
| 76 | – | WB36X0126 OV LAMP LENS | - |
| 77 | | WB08X0191NLA RECEPTACLE | Discontinued |
| 78 |  | WB1X119Dreplaces WB01X0119 CONTOURED WASHER | $9.23 Part Advantage |
| 78 | | WZ4X245Dreplaces WZ04X0245 SCR 8-18 AB PHR 5/8 S | $24.32 ApplianceParts Pro |
| 79 | | WB48X0090NLA OVEN RACK-UPPER | Discontinued |
| 80 |  | WB44X195replaces WB44X0195 BAKE UNIT UPPER OVEN | $95.95 ApplianceParts Pro |
| 80 | | WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE | - |
| 81 | | BROIL UNIT-3000W-236V | Discontinued |
| 82 | | WB02X1509NLA BROIL UNIT SUPPORT | Discontinued |
| 82 | | WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE | - |
| 83 | | WB49X5464replaces WB49X0139 REFLECTOR BROIL UNIT | - |
| 84 | – | WB56X1046 PANEL - LH | - |
| 85 | – | WB56X1282 PANEL ASM RH | - |
| 86 | – | WB56X1048 PANEL REAR | - |
| 87 | – | WB56X1049 PANEL BOTTOM | - |
| 88 | | WB2X1126replaces WB02X1126 PLUG BUTTON | $2.95 ApplianceParts Pro |
| 90 | – | WB56X5791 WB56X6082 | - |
| 91 | – | WB02X1658 FRICTION PLATE | - |
| 92 | – | WB01X0400 SCREW | - |
| 93 | – | WB01X0365 SPEEDNUT | - |
| 93 | – | WB01X0401 WASHER | - |
| 93 | – | WZ05X0120 SCREW | - |
| 94 | | WB01X0529NLA HINGE PIN | Discontinued |
| 95 | | WB15X5165replaces WB15X0126 HANDLE | - |
| 96 | – | WZ05X0120 SCREW | - |
| 97 | – | WB01X5508 WASHER | - |
| 98 | – | WB02X1570 CATCH SPRING | - |
| 100 | – | WB01X0488 SCREW, MTG. GUIDE | - |
| 100 | – | WB02X1742 CLAMP HARNESS | - |
| 100 | | WB2X2785replaces WB02X2785 GUIDE DOOR | - |
| 100 | – | WB02X3229 BARRIER BAKEUNIT OPENING | - |
| 130 | – | WB39X5011 GUIDE DRAWER RH | - |
| 130 | | WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE | - |
| 259 | – | WB02X3001 SPACER - POST | - |
| 284 | | WB1X5355replaces WB01X5355 SCREW RECEPT TERMINAL | - |
| 284 |  | WB30X219replaces WB30X0219 SURFACE UNIT, 8" | $37.88 Part Advantage |
