Model
GE JHP56G*D1
Range With Microwave Combo
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP56G*D1Range With Microwave Combo
3 diagrams292 parts
Parts Sections (3)
Diagram
Parts List
Parts in Parts List
50 parts

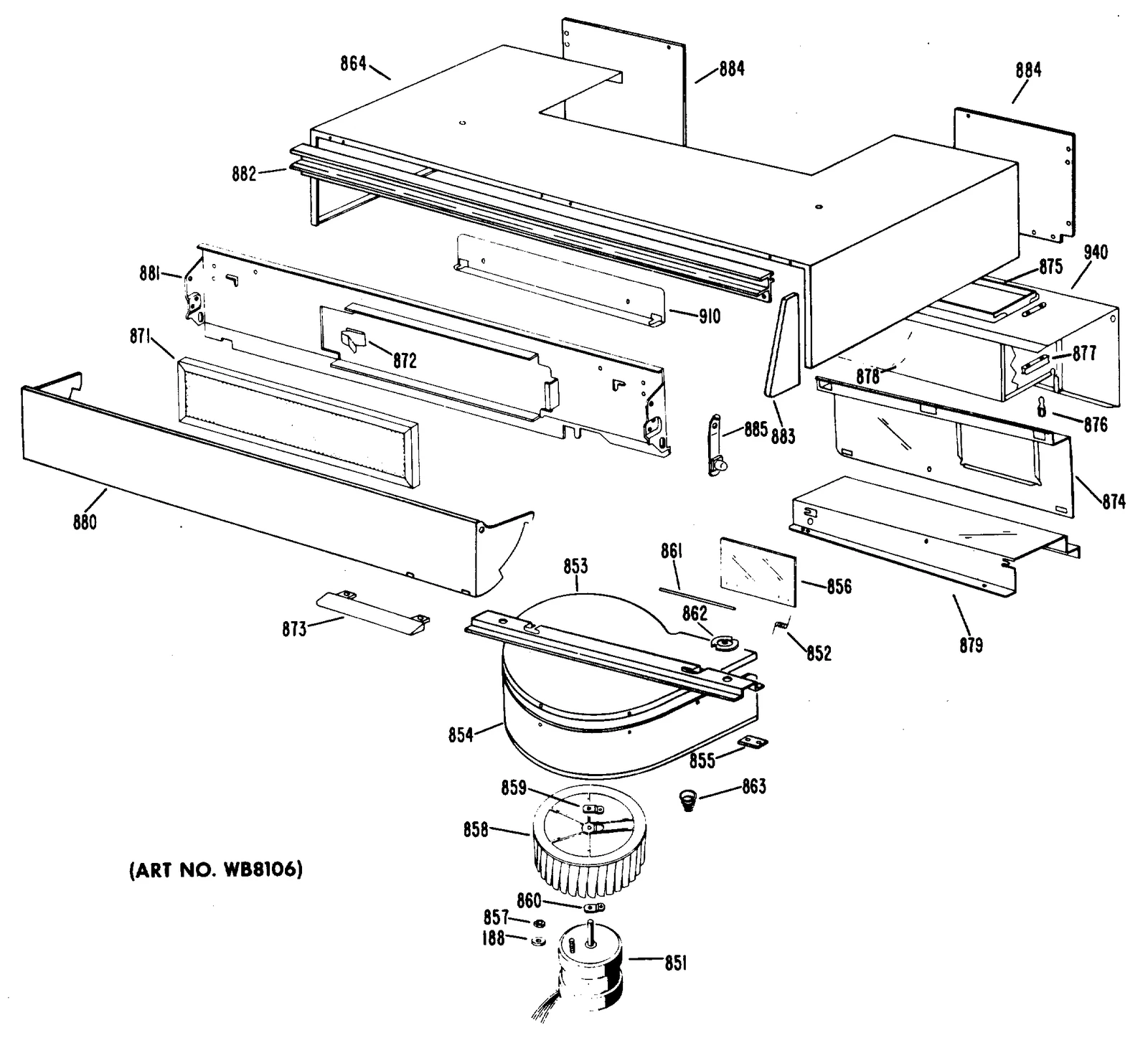

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 21 | – | WB49X5181 COVER BACK | - |
| 103 | – | WB01X0528 SPEEDNUT | - |
| 188 | – | WZ10X0114 LOCKWASHER | - |
| 248 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 303 |  | WB36X192replaces WB36X0389 OVEN LAMP LENS | $9.75 Part Advantage |
| 396 | – | WB02X7189 REFLECTOR PANEL | - |
| 396 | – | WB56X5678 PANEL DOOR | - |
| 851 | – | WB26X0027 MOTOR BLOWER | - |
| 852 | – | WB09X0072 SPRING DAMPER | - |
| 853 | – | WB49X0216 HOUSING BLOWER TOP | - |
| 854 | – | WB49X0217 HOUSING BLOWER BOTTOM | - |
| 855 | – | WB02X3239 STRAP | - |
| 856 | – | WB02X2235 DAMPER | - |
| 857 | – | WZ07X0030 NUT | - |
| 858 | – | WB02X3456 WHEEL BLOWER | - |
| 859 | – | WB02X3457 CLAMP | - |
| 860 | – | WB02X3458 CLAMP | - |
| 861 | – | WB02X1581 WIRE | - |
| 862 | – | WB02X2015 RETAINER | - |
| 863 | – | WB09X0073 SPRING BLOWER MOUNT | - |
| 864 | – | WB62X1499 HOOD BODY WH | - |
| 864 | – | WB62X1500 HOOD BODY CF | - |
| 864 | – | WB62X1501 HOOD BODY FA | - |
| 864 | – | WB62X1502 HOOD BODY HA | - |
| 864 | – | WB62X1503 HOOD BODY AD | - |
| 871 | – | WB02X6731 FILTER GREASE | - |
| 872 | – | WB02X1583 CLIP HOOD FILTER | - |
| 873 |  | WB15X0109NLA HOOD PANEL HANDLE | Discontinued |
| 874 | – | WB49X0218 COVER INNER | - |
| 875 | – | WB49X0182 EXHAUST ASM | - |
| 876 | – | WB01X0426 STUD BALL | - |
| 876 | – | WZ02X0529 SCREW 6-32 X 1/4" HEX | - |
| 877 | – | WB02X2016 RECEIVER STUD | - |
| 878 | – | WB49X0183 GUIDE AIR | - |
| 879 | – | WB49X0181 SUPPORT SLIDE | - |
| 880 | – | WB56X0923 HOOD PANEL | - |
| 881 | – | WB02X2629 PLATE FILTER | - |
| 882 | | WB07X0772NLA TRIM HOOD | Discontinued |
| 883 | – | WB02X3432 PAD | - |
| 883 | – | WB07X0770 END CAP-RT | - |
| 883 | – | WB07X0771 END CAP-LT | - |
| 884 | – | WB02X2017 COVER BACK | - |
| 885 | – | WB02X3131 SPRING PIN ASM | - |
| 910 | – | WB49X0180 DEFLECTOR AIR | - |
| 924 | – | WB02X6497 PLUG BUTTON | - |
| 934 | – | WB07X0983 LAMP HOUSING | - |
| 940 | – | WB49X0184 COVER ASM | - |
| 1458 | – | WB17X5065 TERMINAL BLK ASM (4 PIN) | - |
| 1673 | – | WB02X7094 CLIP WIRE | - |
| 9999 | – | 49-4537 MANUAL USERS | - |
