Model
GE JHP56G*D2
Range With Microwave Combo
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP56G*D2Range With Microwave Combo
3 diagrams333 parts
Parts Sections (3)

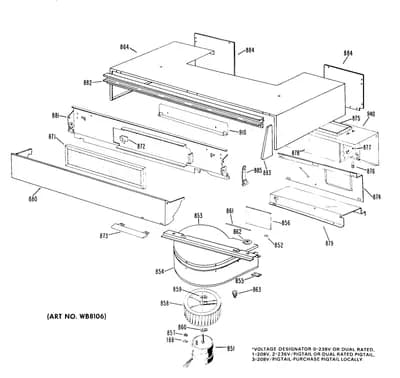

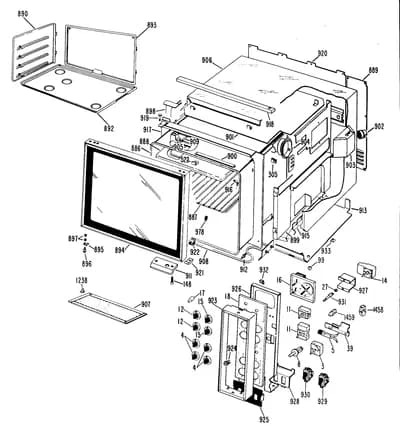

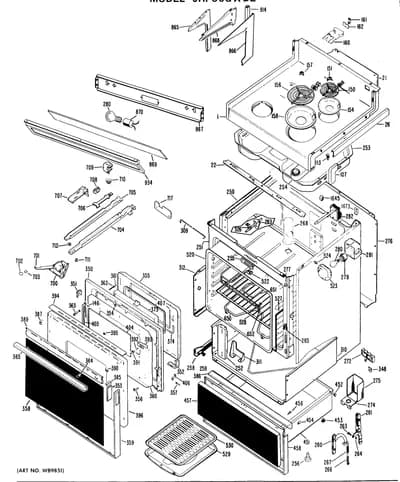

Diagram
Parts List
Parts in Parts List
100 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 18 | – | WB02X3232 PAD CRYSTAL | - |
| 148 | – | WZ04X0237 SCREW | - |
| 160 |  | WB17X5051replaces WB05X5026 SPRING CONTACT PKG | $7.73 Part Advantage |
| 188 | – | WZ10X0114 LOCKWASHER | - |
| 248 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 272 |  | BLOCK TERMINAL POWER | $69.99 Parts Dr |
| 282 | – | WB02X6215 CLAMP HARNESS | - |
| 283 | | WB02X3163NLA GASKET | Discontinued |
| 292 | – | WB01X0386 CLAMP HARNESS | - |
| 303 |  | WB36X192replaces WB36X0389 OVEN LAMP LENS | $9.75 Part Advantage |
| 309 | – | WB02X6767 HOOK WIRE | - |
| 397 | – | WZ04X0384 SCREW MTG END CAP | - |
| 456 | | WZ4X230Dreplaces WZ04X0209 HANDLE SCREW | - |
| 456 |  | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 459 |  | WB1X537replaces WB01X0537 SCREW | - |
| 654 | – | WZ10X0114 LOCKWASHER | - |
| 701 | – | WB15X5133 HANDLE LATCH | - |
| 828 | – | WZ04X0367 SCREW | - |
| 851 | – | WB26X0027 MOTOR BLOWER | - |
| 852 | – | WB09X0072 SPRING DAMPER | - |
| 853 | – | WB49X0216 HOUSING BLOWER TOP | - |
| 854 | – | WB49X0217 HOUSING BLOWER BOTTOM | - |
| 855 | – | WB02X3239 STRAP | - |
| 856 | – | WB02X2235 DAMPER | - |
| 858 | – | WB02X3456 WHEEL BLOWER | - |
| 859 | – | WB02X3457 CLAMP | - |
| 860 | – | WB02X3458 CLAMP | - |
| 861 | – | WB02X1581 WIRE | - |
| 862 | – | WB02X2015 RETAINER | - |
| 863 | – | WB09X0073 SPRING BLOWER MOUNT | - |
| 864 | – | WB62X1499 HOOD BODY WH | - |
| 864 | – | WB62X1500 HOOD BODY CF | - |
| 864 | – | WB62X1501 HOOD BODY FA | - |
| 864 | – | WB62X1502 HOOD BODY HA | - |
| 864 | – | WB62X1503 HOOD BODY AD | - |
| 871 | – | WB02X6731 FILTER GREASE | - |
| 872 | – | WB02X1583 CLIP HOOD FILTER | - |
| 873 | | WB15X0109NLA HOOD PANEL HANDLE | Discontinued |
| 874 | – | WB49X0218 COVER INNER | - |
| 875 | – | WB49X0182 EXHAUST ASM | - |
| 876 | – | WB01X0426 STUD BALL | - |
| 877 | – | WB02X2016 RECEIVER STUD | - |
| 878 | – | WB49X0183 GUIDE AIR | - |
| 879 | – | WB49X0181 SUPPORT SLIDE | - |
| 880 | – | WB56X0923 HOOD PANEL | - |
| 881 | – | WB02X2629 PLATE FILTER | - |
| 882 | | WB07X0772NLA TRIM HOOD | Discontinued |
| 883 | – | WB02X3432 PAD | - |
| 883 | – | WB07X0770 END CAP-RT | - |
| 883 | – | WB07X0771 END CAP-LT | - |
| 884 | – | WB02X2017 COVER BACK | - |
| 885 | – | WB02X3131 SPRING PIN ASM | - |
| 910 | – | WB49X0180 DEFLECTOR AIR | - |
| 940 | – | WB49X0184 COVER ASM | - |
| 1201 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 32767 | – | 31-0423 INSTALL INSTRUCTIONS | - |
| 32767 | | WB1X438replaces WB01X0438 SCREW & WASHER ASM | - |
| 32767 | | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 32767 | – | WB01X0528 SPEEDNUT | - |
| 32767 | – | WB01X5471 SCR 8-18 AB T 15/32 S | - |
| 32767 | – | WB01X5497 SCR 10-16 AB IHW 1/2 S | - |
| 32767 | – | WB01X5508 WASHER | - |
| 32767 | – | WB01X5508 WASHER | - |
| 32767 | – | WB01X5520 SPEEDNUT | - |
| 32767 | – | WB01X5552 WASHER | - |
| 32767 | | WB2X1222replaces WB02X1222 PAD GLASS (FELT) | - |
| 32767 | – | WB02X1511 INSULATION | - |
| 32767 | – | WB02X1579 PAD | - |
| 32767 | – | WB02X1662 PLATE HINGE | - |
| 32767 | – | WB02X1677 PLATE TIE | - |
| 32767 | – | WB02X2107 SLEEVE DETENT | - |
| 32767 | – | WB02X3152 PAD | - |
| 32767 | – | WB02X3238 PAD | - |
| 32767 | – | WB02X6274 SLEEVE | - |
| 32767 | – | WB02X6496 INSULATION | - |
| 32767 | – | WB02X6659 PAD | - |
| 32767 | | WB17X171replaces WB17X0171 TERMINAL MALE & FEMALE | - |
| 32767 | – | WZ02X0529 SCREW 6-32 X 1/4" HEX | - |
| 32767 | – | WZ02X0546 SCR 8-32 M PHR 1/2 S | - |
| 32767 | – | WZ04X0217 SCR 6-20 B HXW 1/4 S | - |
| 32767 | | WZ4X345Dreplaces WZ04X0232 SCR 8-18 AB HXS 3/8 S | - |
| 32767 |  | WZ4X245Dreplaces WZ04X0245 SCR 8-18 AB PHR 5/8 S | $24.32 ApplianceParts Pro |
| 32767 | – | WZ04X0255 SCR 8-18X1 AB OVR 1/2 S | - |
| 32767 | | WZ04X0288NLA SCREW 10-16 X 1/2" HEX | Discontinued |
| 32767 | – | WZ04X0289 SCR 8-18 AB HX 1/4 S | - |
| 32767 | | WZ4X345Dreplaces WZ04X0291 SCR 8-18 AB HXW 3/8 S | - |
| 32767 | | WZ4X336Dreplaces WZ04X0336 SCR 8-18 AB OVR 3/8 S#6H | - |
| 32767 | – | WZ04X0348 SCR 10-16 B SL 1-1/8 S | - |
| 32767 | | WZ4X248replaces WZ04X0361 SCREW MTG. TRIM LAMP | - |
| 32767 | – | WZ04X0396 SCR 10-16 B HXW 1/4 S | - |
| 32767 | – | WZ04X0397 SCR 6-32 C FLR 5/16 S | - |
| 32767 | – | WZ04X0413 SCREW | - |
| 32767 | – | WZ04X0419 SCR 10-16 AB HXW 5/8 S | - |
| 32767 | – | WZ05X0120 SCREW | - |
| 32767 |  | WZ5X158Dreplaces WZ05X0134 SCR 8-32 T HXW 3/8 S | $27.34 ApplianceParts Pro |
| 32767 | – | WZ06X0038 SCR 8-18 AB HXW 5/8 S | - |
| 32767 | – | WZ06X0082 SCR 8-18 B HXW 3/8 S | - |
| 32767 | – | WZ07X0030 NUT | - |
| 32767 | – | WZ10X0016 WASHER | - |
