Model
GE JHP56GN5AD
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP56GN5ADElectric Range
5 diagrams249 parts
Parts Sections (5)
Diagram
Parts List
Parts in Parts List
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 30 |  | CLOCK KNOB | Discontinued |

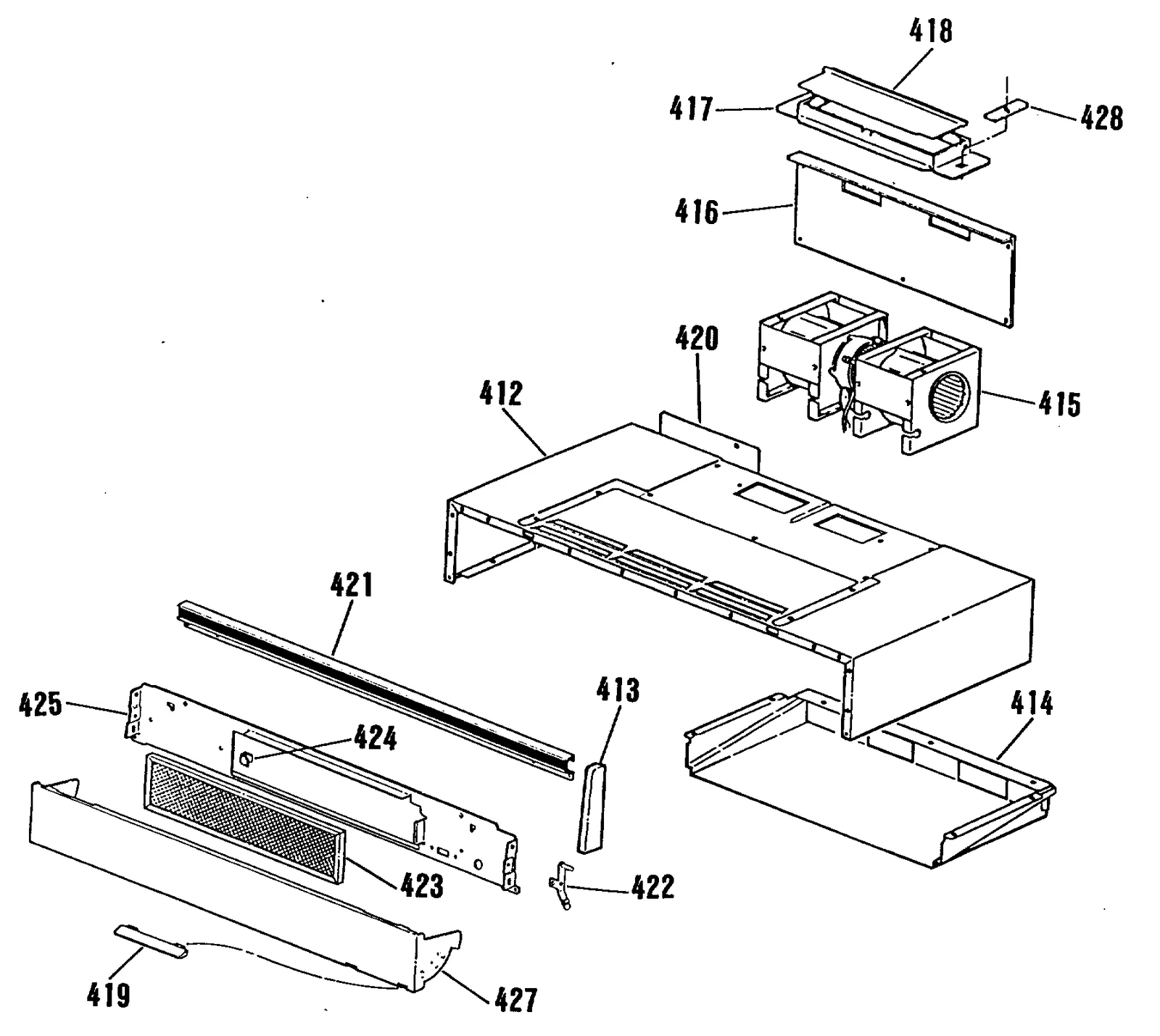

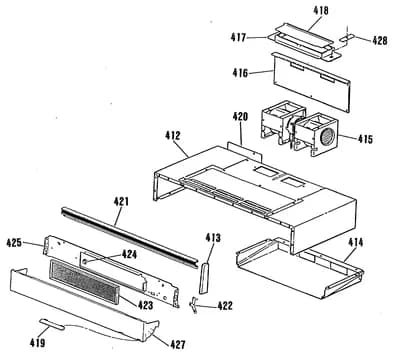

| 412 | – | WB38K5024 HOOD BODY-ALMOND | - |
| 413 | – | WB07X0770 END CAP-RT | - |
| 413 | – | WB07X0771 END CAP-LT | - |
| 414 | – | WB49X5470 PLENUM | - |
| 415 |  | BLOWER ASM | - |
| 416 | – | WB02X7900 HOUSING COVER | - |
| 417 | – | WB38K5025 EXHAUST ASM | - |
| 418 | – | WB02X7764 DAMPER | - |
| 419 | | WB15X0109NLA HOOD PANEL HANDLE | Discontinued |
| 420 | – | WB02X2017 COVER BACK | - |
| 421 | | WB07X6793NLA TRIM HOOD | Discontinued |
| 422 | – | WB02X3131 SPRING PIN ASM | - |
| 423 | | WB02X7758NLA FILTER GREASE | Discontinued |
| 424 | – | WB02X1583 CLIP HOOD FILTER | - |
| 425 | – | WB02X7776 FILTER PLATE | - |
| 427 | – | WB56X0923 HOOD PANEL | - |
| 428 | – | WB02X7765 PLATE | - |
| 906 |  | WB1K5119replaces WB01K5053 SCREW | $7.18 Parts Dr |
| 972 | – | WB01K5070 SPEED CLIP | - |
| 999 | – | 31-0998 INSTALLION INSTRUCTION | - |
| 999 | – | 31-13083 MINI MANAUL/WIRE DIAGRAM | - |
| 999 | – | 49-8113 OWNERS MANUAL | - |
| 999 | – | WB01K5013 SLEEVE-UPPER THERMO | - |
| 999 | | INF SWITCH W HARNESS | - |
| 999 | – | WB18K5150 THERMOSTAT W HARNESS | - |
| 999 | – | WB18K5154 IND LIGHT HARNESS-UPPER | - |
| 999 | – | WB18K5159 ROCKER SWITCH W HARNESS | - |
| 999 | – | WB18K5161 RELAY WIRE HARNESS | - |
| 999 | – | WB18K5393 MICRO SWITCH W HARNESS | - |
| 999 | | UPPER OVEN WIRE HARNESS | - |
| 999 | – | WB18K5396 IND LIGHT W HARNESS | - |
| 999 | – | WB18K5400 MAINTOP WIRE HARNESS | - |
