Model
GE JHP56GN6WH
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP56GN6WHElectric Range
5 diagrams261 parts
Parts Sections (5)
Diagram
Parts List
Parts in Parts List
79 parts

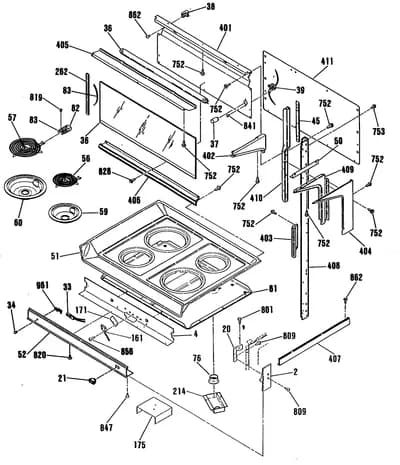

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 | – | WB36M0035 MT END CAP-RT | - |
| 2 | – | WB36M0036 MT END CAP-LT | - |
| 4 |  | CONTROL BACK | - |
| 20 | – | WB02K5105 BASE SUPPORT BRACKET-RT | - |
| 20 | – | WB02K5106 BASE SUPPORT BRACKET-LT | - |
| 20 | – | WB02K5107 END CAP BRACKET-RT | - |
| 20 | – | WB02K5108 END CAP BRACKET-LT | - |
| 21 | | SWITCH-OVEN LIGHT | Discontinued |
| 33 | | SURFACE LIGHT W HARNESS | - |
| 34 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 36 | | WB08M0002NLA FLUOR LAMP | Discontinued |
| 36 | – | WB57K5039 BACKSPLASH GLASS | - |
| 37 | | WB02X9390NLA STARTER BASE | Discontinued |
| 38 | – | WB08X0291 FLUOR LAMP HOLDER | - |
| 39 | – | WB08K5009 STARTER BASE | - |
| 45 | – | WB01X0540 NUT | - |
| 45 | – | WB02X3001 SPACER - POST | - |
| 50 | – | WB02K5158 BRACE ANGLE | - |
| 51 | | MAIN TOP-WHITE | - |
| 52 | | FRONT PANEL | - |
| 56 |  | WB30M1replaces WB30X5109 UNIT ASM 6 INCH PLUG IN | $32.76 Part Advantage |
| 57 |  | WB30M2replaces WB30K5027 8" SURFACE ELEMENT | $44.65 Part Advantage |
| 59 |  | WB31M20replaces WB31M0020 6" BURNER BOWL | $3.97 Part Advantage |
| 60 |  | WB31M19replaces WB31M0019 8" BURNER BOWL | $4.09 Part Advantage |
| 61 | – | WB64K5058 BURNER BOX BOTTOM | - |
| 76 | | VENT TUBE EXTENSION | - |
| 82 |  | WB17X210replaces WB17K5017 WB17X210 | $52.71 Part Advantage |
| 83 | | WB01K5128NLA TERMINAL BLOCK CLIP | Discontinued |
| 83 | – | WB09K5007 GLASS TRIM SPRING | - |
| 161 | | MICRO SWITCH | - |
| 171 | – | WB35K5083 SWITCH INSULATOR | - |
| 175 | – | WB34M0026 LATCH COVER | - |
| 214 | – | WB38K5045 VENT BOX | - |
| 262 | – | WB07K5029 BACKSPLASH GLASS TRIM | - |
| 401 | – | WB36K5081 LAMPHOLDER PANEL | - |
| 402 | – | WB36K5077 SUPPORT UP COVER-RT-WHT | - |
| 402 | – | WB36K5079 SUPPORT UP COVER-LT-WHT | - |
| 403 | – | WB36K5068 SUPT INN COVER-RT-WHITE | - |
| 403 | – | WB36K5070 SUPT INN COVER-LT WHITE | - |
| 404 | | SUPT OUT COVER-RT-WHITE | - |
| 404 | – | WB36K5074 SUPT OUT COVER-LT-WHITE | - |
| 405 | – | WB36K5082 CRYSTAL PANEL-UPPER-WHT | - |
| 406 | – | WB02K5109 LAMP GLASS REETAINER | - |
| 407 | – | WB07K5027 SIDE FILLER-RT | - |
| 407 | – | WB07K5028 SIDE FILLER-LT | - |
| 408 | – | WB02K5115 HI OVEN SUPPORT | - |
| 409 | – | WB02K5113 UPPER OVEN SUPPORT-RT | - |
| 409 | – | WB02K5114 UPPER OVEN SUPPORT-LT | - |
| 410 | – | WB02K5111 UPPER OVEN SUPPORT-RT | - |
| 410 | – | WB02K5112 UPPER OVEN SUPPORT-LT | - |
| 411 | – | WB36K5076 BACK COVER | - |
| 752 | – | WB00X6542 340531 | - |
| 752 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 753 | – | WB01K5052 SCREW | - |
| 769 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 801 |  | WB1M1replaces WB01M0001 SCREW | $7.64 RepairClinic |
| 809 |  | WB1X1137replaces WB01X1137 SCREW | $10.95 ApplianceParts Pro |
| 819 |  | WB1X1118replaces WB01X1158 SCREW-NICKEL | $7.18 RepairClinic |
| 820 |  | WB1X1424Dreplaces WB01X1424 SCREW, TRANSFORMER | - |
| 828 |  | WB1X1141replaces WB01X1141 SCREW | $7.37 ApplianceParts Pro |
| 841 | – | WB01X1171 SCREW TC6-32X.312RD CAD | - |
| 847 | | WB1X1118replaces WB01X1180 SCREW-BLACK | $7.18 RepairClinic |
| 856 | | WB01X1170NLA SCREW | Discontinued |
| 862 | – | WB01X1178 SCREW | - |
| 945 |  | WB1K5046replaces WB01K5046 LOCKWASHER | - |
| 961 | | WB02X1185NLA CLIP | Discontinued |
| 999 | – | 31-0998 INSTALLION INSTRUCTION | - |
| 999 | – | 31-13083 MINI MANAUL/WIRE DIAGRAM | - |
| 999 | – | 49-8113 OWNERS MANUAL | - |
| 999 | – | WB01K5013 SLEEVE-UPPER THERMO | - |
| 999 | | INF SWITCH W HARNESS | - |
| 999 | – | WB18K5150 THERMOSTAT W HARNESS | - |
| 999 | – | WB18K5154 IND LIGHT HARNESS-UPPER | - |
| 999 | – | WB18K5159 ROCKER SWITCH W HARNESS | - |
| 999 | – | WB18K5161 RELAY WIRE HARNESS | - |
| 999 | – | WB18K5393 MICRO SWITCH W HARNESS | - |
| 999 | | UPPER OVEN WIRE HARNESS | - |
| 999 | – | WB18K5396 IND LIGHT W HARNESS | - |
| 999 | – | WB18K5400 MAINTOP WIRE HARNESS | - |
