Model
GE JHP56N*K4
Range With Microwave Combo
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP56N*K4Range With Microwave Combo
3 diagrams259 parts
Parts Sections (3)
Diagram
Parts List
Parts in Parts List
158 parts

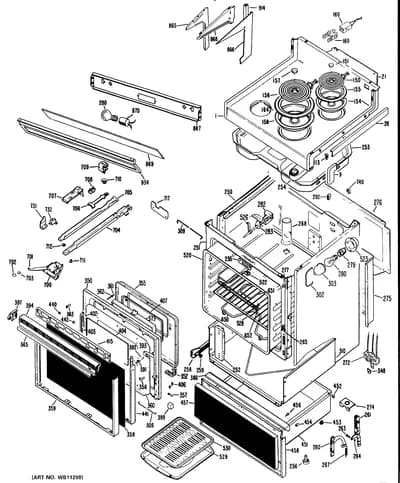

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB62X1504 COOKTOP WH | - |
| 1 | – | WB62X1507 COOKTOP HA | - |
| 1 | – | WB62X1508 COOKTOP AD | - |
| 9 | – | WB07X6676 END CAP - RH | - |
| 9 | – | WB07X6677 END CAP - LH | - |
| 21 | – | WB49X5181 COVER BACK | - |
| 26 | – | WB07X1012 TRIM COOKTOP - RH | - |
| 26 |  | WB7X1013replaces WB07X1013 TRIM COOKTOP - LH | - |
| 113 | – | WB02X2988 CLIP TRIM | - |
| 122 | – | WB02X1422 CLAMP HARNESS | - |
| 150 |  | WB30M1replaces WB30X5071 SURFACE UNIT, 6" | $32.76 Part Advantage |
| 151 | | WB32X0052NLA CENTER TRIM 6" UNIT | Discontinued |
| 154 | – | WB32X5051 PAN 6" PORC. GRAY | - |
| 154 | | PAN 6" PORC FROSTED | $17.90 RepairClinic |
| 155 |  | TRIM RING 6" | $3.45 Part Advantage |
| 156 |  | WB30M2replaces WB30X5072 SURFACE UNIT, 8" | $44.65 Part Advantage |
| 157 | | WB32X51replaces WB32X0051 CENTER TRIM 8" UNIT | $7.30 Parts Dr |
| 158 |  | WB32X5060replaces WB32X5052 PAN 8" PORC. GRAY | $11.80 RepairClinic |
| 158 | | PAN 8" PORC FROSTED | $11.80 RepairClinic |
| 160 |  | WB17X5113replaces WB17X5094 RECEPTACLE ASM | $20.05 Part Advantage |
| 164 |  | TRIM RING 8" | $14.08 Parts Dr |
| 180 | | WB17X5113replaces WB02X7618 BRACKET MTG RECEPTACLE | $20.05 Part Advantage |
| 250 | – | NOT AVAIL CAVITY | - |
| 251 | – | WB56X6054 FRAME FRONT | - |
| 252 | – | WB02X7864 PANEL FILLER | - |
| 253 | – | WB49X5465 UNKNOWN | - |
| 254 | | WB38X5039NLA BODY VENT | Discontinued |
| 255 | | WB7X7036replaces WB07X0552 TRIM LATCH | - |
| 256 | | WB1X5516replaces WB01X5516 LEVELING LEG | - |
| 258 | | GUIDE DRAWER LH | - |
| 258 | – | WB39X5011 GUIDE DRAWER RH | - |
| 259 | | WB02X0831NLA SLIDE GUIDE | Discontinued |
| 260 | | WB10X5092NLA HINGE LEVER ASM RH & LH | Discontinued |
| 261 | | WB10X5090NLA SUPPORT HINGE RH | Discontinued |
| 261 | | WB10X149replaces WB10X5091 SUPPORT HINGE LH | - |
| 263 | | WB02X6195NLA PIN HINGE DOOR | Discontinued |
| 264 | | WB2X1082replaces WB02X1082 RING RETAINING | - |
| 265 | – | WB02X6342 GUIDE HINGE LEVER | - |
| 267 | – | WB09X5073 SPRING DOOR | - |
| 268 | | SMOKE ELIM & TUBE ASM | - |
| 272 |  | BLOCK TERMINAL POWER | $69.99 Parts Dr |
| 274 | | WB2X1908replaces WB02X1908 KNOCKOUT PLATE | - |
| 275 | – | WB02X7774 GUARD TERMINAL | - |
| 276 | – | WB49X5398 COVER BACK | - |
| 277 | – | WB24X0105 SWITCH, OVEN LIGHT | - |
| 279 | | WB08X0191NLA RECEPTACLE | Discontinued |
| 279 |  | WB08T10026replaces WB08X5095 RECEPTACLE | $5.29 Part Advantage |
| 280 |  | 40A15replaces WX12X1510 40A15 | $8.96 Parts Dr |
| 282 | – | WB24X5138 SWITCH, THERMAL (TLS) | - |
| 283 | | WB02X3163NLA GASKET | Discontinued |
| 283 | – | WB02X3164 PLATE | - |
| 292 | – | WB01X0386 CLAMP HARNESS | - |
| 302 | | WB2X7694replaces WB02X7694 LIGHT LENS BAIL | - |
| 303 |  | WB36X192replaces WB36X0389 OVEN LAMP LENS | $9.75 Part Advantage |
| 309 | – | WB02X6767 HOOK WIRE | - |
| 310 | – | WB49X5156 GUARD LOWER | - |
| 348 | | WB2X646replaces WB02X0646 PLATE-GROUND | - |
| 350 | – | WB02X6546 INSULATION DOOR | - |
| 350 | – | WB55X5322 DOOR LINER | - |
| 352 |  | WB2X6547replaces WB02X6547 GASKET DOOR | $137.80 PartSelect |
| 355 | – | WB55X5331 UNKNOWN | - |
| 356 | – | WB02X6574 CLIP TRIM (4) | - |
| 357 |  | WB1X558Dreplaces WB01X0558 SCREW NAIL POINT | - |
| 358 | | GLASS BLACK | - |
| 360 | – | WB55X5325 GUARD INSULATION | - |
| 361 | – | WB01X5735 SCREW | - |
| 362 |  | WB02X32440replaces WB01X0119 CONTOURED WASHER | $9.20 ApplianceParts Pro |
| 363 | – | WB02X7616 SPACER PANEL | - |
| 365 | | WB15X5174NLA HANDLE DOOR | Discontinued |
| 373 | | WINDOW | - |
| 386 | | HANDLE DRAWER | - |
| 391 | | TOGGLE | - |
| 392 | – | WB02X5217 LINK CAM | - |
| 393 | – | WB09X5083 CAM SPRING | - |
| 394 | – | WB07X6889 TRIM TOP | - |
| 397 |  | WB15X5189replaces WB07X7015 END CAP LH-HANDLE | $59.73 RepairClinic |
| 397 | | WB15X5189replaces WB07X7016 END CAP RH-HANDLE | $59.73 RepairClinic |
| 397 | – | WZ04X0384 SCREW MTG END CAP | - |
| 399 | – | WB02X3285 PAD | - |
| 402 | – | WB01X0591 SPEEDNUT | - |
| 403 | – | WB02X7188 BRACKET WINDOW | - |
| 404 | – | WB36X5477 CRYSTAL WINDOW | - |
| 406 | – | WB02X6238 BRACKET DOOR | - |
| 407 | | WB07X6913NLA TRIM CRYSTAL | Discontinued |
| 415 | | WB02X7608NLA BRACE TOP | Discontinued |
| 440 |  | WB01K10093replaces WB01X5736 SPEEDNUT | $7.94 RepairClinic |
| 441 | | WB2X7609replaces WB02X7609 BRACE SIDE LH | - |
| 441 | | WB2X7610replaces WB02X7610 BRACE SIDE RH | - |
| 442 | – | WB01X5733 FASTENER | - |
| 451 | – | WB02X6740 BRACKET DRAWER | - |
| 451 | – | WB58X5005 DRAWER ASSEMBLY | - |
| 452 | | WB02X0840NLA SLIDE TOP | Discontinued |
| 453 | | WB02X0841NLA SLIDE BOTTOM | Discontinued |
| 454 | – | WB02X6208 BUMPER | - |
| 456 | | WZ4X230Dreplaces WZ04X0209 HANDLE SCREW | - |
| 456 |  | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 457 | – | WB56X5799 DRAWER PANEL BLK | - |
| 458 | – | WB07X5659 TRIM DRAWER | - |
| 459 |  | WB1X537replaces WB01X0537 SCREW | - |
| 461 |  | WB1X536replaces WB01X0593 SCREW - DOOR ASM (4 PER) | $16.81 Parts Dr |
| 520 | | WB02X3471NLA CLIP CAPILLARY TUBEOVEN | Discontinued |
| 520 | – | WB02X6496 INSULATION | - |
| 520 | – | WB53X5131 OVEN LINER | - |
| 522 | | WB2X6209replaces WB02X6209 CLIP TRIM | - |
| 523 | | WB02X7693NLA OVEN LIGHT CUP | Discontinued |
| 526 | | WB02X3165NLA HANGER-TLS | Discontinued |
| 528 | | WB48X5044NLA OVEN RACKS | Discontinued |
| 529 |  | WB48X10056replaces WB49X5380 BROIL PAN | $16.74 Part Advantage |
| 530 | | WB48X10056replaces WB48X5002 BROILER PAN RACK | $16.74 Part Advantage |
| 650 |  | BAKE UNIT 208/240V | $31.77 Part Advantage |
| 651 |  | WB44X173replaces WB44X0185 BROIL UNIT 208/240V L.O. | $22.62 Part Advantage |
| 652 | | WB02X1452NLA SUPPORT BROIL | Discontinued |
| 700 |  | WB14X5036NLA LATCH | Discontinued |
| 701 | – | WB15X5133 HANDLE LATCH | - |
| 702 | – | WB03X5681 KNOB LATCH | - |
| 703 | | WB02X2030NLA RETAINER KNOB | Discontinued |
| 704 | | WB02X7707NLA CHANNEL LATCH | Discontinued |
| 705 | | WB02X7710NLA CHANNEL LOCKING | Discontinued |
| 706 | | WB02X7708NLA PAWL LOCKING | Discontinued |
| 706 | | WB02X7746NLA LOCKING PAWL | Discontinued |
| 707 | – | WB02X7709 PLATE MOUNTING | - |
| 708 | – | WB24X0183 SWITCH, LATCH | - |
| 709 | | WB24X5097replaces WB24X0197 SOLENOID | - |
| 710 | | WB9X148replaces WB09X0148 SPRING-PLUNGER | - |
| 711 | – | WB02X6212 PIVOT STUD | - |
| 712 | – | WB02X1800 RETAINER RING | - |
| 717 | – | WB02X6911 BRACKET LATCH | - |
| 731 | | WB02X7711NLA BRACKET SWITCH | Discontinued |
| 732 | | WB24X5235NLA LATCH RELEASE SWITCH | Discontinued |
| 740 | – | WB02X7226 CLIP WIRE | - |
| 826 | – | WB02X3001 SPACER - POST | - |
| 827 | – | WB02X2999 ANGLE BRACE | - |
| 828 | – | WZ04X0367 SCREW | - |
| 829 | – | WB02X0190 CLIP SPRING | - |
| 830 | – | WB02X3463 SPACER "D" RING | - |
| 865 | – | WB02X6736 SUPPORT RH | - |
| 865 | – | WB02X6737 SUPPORT LH | - |
| 866 | – | WB07X1169 COVER SUPPORT RH WH | - |
| 866 | – | WB07X1172 COVER, SUPPORT RH, HA | - |
| 866 | – | WB07X1173 COVER, SUPPORT RH, AD | - |
| 866 | – | WB07X1174 COVER, SUPPORT LH, WH | - |
| 866 | – | WB07X1177 COVER SUPPORT LH HA | - |
| 866 | – | WB07X1178 COVER, SUPPORT LH, AD | - |
| 867 | – | WB49X0347 PANEL LAMP | - |
| 868 | – | WB07X1159 PANEL CRYSTAL RH - WH | - |
| 868 | – | WB07X1162 PANEL CRYSTAL RH - HA | - |
| 868 | – | WB07X1163 PANEL CRYSTAL RH - AD | - |
| 868 | – | WB07X1164 PANEL CRYSTAL LH WH | - |
| 868 | – | WB07X1167 PANEL CRYSTAL LH - HA | - |
| 868 | – | WB07X1168 PANEL CRYSTAL LH - AD | - |
| 869 | – | WB36X0433 CRYSTAL | - |
| 870 | – | WB08X0160 SOCKET LAMP | - |
| 914 | – | WB02X7218 POST RH | - |
| 914 | – | WB02X7219 POST LH | - |
| 934 | – | WB07X0983 LAMP HOUSING | - |
| 1201 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 32767 | – | 31-0632 INSTALL INSTRUCTIONS | - |
| 32767 | – | 49-4801 MANUAL USERS | - |
