Model
GE JHP56V*K1
Range With Microwave Combo
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP56V*K1Range With Microwave Combo
3 diagrams296 parts

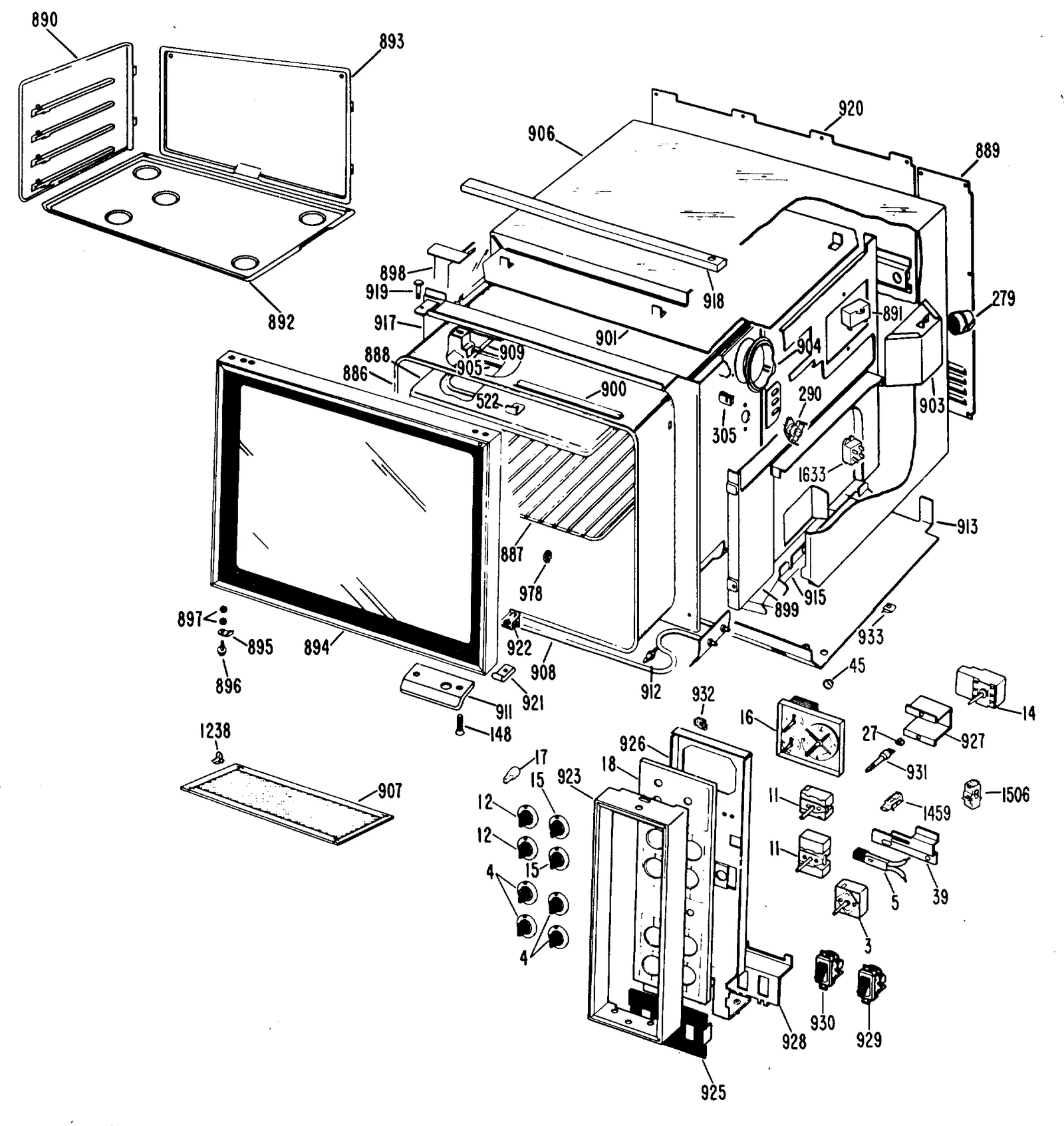

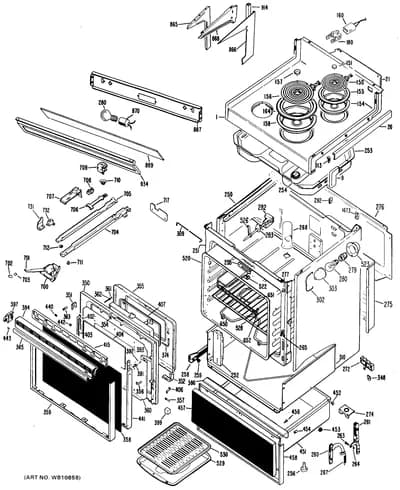

Parts Sections (3)
Diagram
Parts List
Parts in Parts List
141 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 4 |  | WB03X5677NLA KNOB SURFACE UNIT | Discontinued |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 5 | | WB02X3468NLA NEON LAMP 240V | Discontinued |
| 11 | – | WB22X0079 SWITCH, OVEN | - |
| 11 | – | WB22X5103 SWITCH, OVEN L.O. | - |
| 12 | – | WB03X5678 OVEN SWITCH KNOB | - |
| 12 | | WB03X5683NLA OVEN SWITCH KNOB-LO | Discontinued |
| 14 | – | WB02X6274 SLEEVE | - |
| 14 | | THERMOSTAT, OVEN L.O. | - |
| 14 | – | WB24X0184 THERMOSTAT, DUAL | - |
| 15 | – | WB03X5685 KNOB THERMOSTAT | - |
| 15 | | WB3X5686replaces WB03X5686 THERMOSTAT KNOB | - |
| 16 | – | WB19X0123 TIMER | - |
| 17 |  | KNOB TIMER | Discontinued |
| 18 | – | WB02X3232 PAD CRYSTAL | - |
| 18 | – | WB02X6240 PAD CRYSTAL (2) | - |
| 18 | | CRYSTAL | - |
| 27 | | SPACER-UPPER | Discontinued |
| 39 | – | WB02X3243 BRACKET LAMP | - |
| 45 | – | WB01X0540 NUT | - |
| 148 |  | WB1X536replaces WB01X5763 SCREW | $16.81 Parts Dr |
| 148 | – | WZ04X0237 SCREW | - |
| 272 |  | BLOCK TERMINAL POWER | $69.99 Parts Dr |
| 279 | | WB08X0191NLA RECEPTACLE | Discontinued |
| 279 |  | WB08T10026replaces WB08X5095 RECEPTACLE | $5.29 Part Advantage |
| 290 | | SWITCH, THERMAL FAN | - |
| 305 | – | WB02X6653 SPEEDNUT | - |
| 456 | | WZ4X230Dreplaces WZ04X0209 HANDLE SCREW | - |
| 459 |  | WB1X537replaces WB01X0537 SCREW | - |
| 520 | | WB02X3471NLA CLIP CAPILLARY TUBEOVEN | Discontinued |
| 522 | | WB2X6209replaces WB02X6209 CLIP TRIM | - |
| 701 | – | WB15X5133 HANDLE LATCH | - |
| 706 | | WB02X7708NLA PAWL LOCKING | Discontinued |
| 740 | – | WB02X7226 CLIP WIRE | - |
| 763 | | WB2X1665replaces WB02X1665 CLIP FILTER | - |
| 782 |  | TERMINAL BLOCK ASSY (2 P | - |
| 788 | – | WB17X5064 HOUSING SOCKET PKG 4 P1N | - |
| 789 | | RELAY | - |
| 827 | – | WB02X2999 ANGLE BRACE | - |
| 828 | – | WZ04X0367 SCREW | - |
| 829 | – | WB02X0190 CLIP SPRING | - |
| 870 | – | WB08X0160 SOCKET LAMP | - |
| 886 | – | WB02X1511 INSULATION | - |
| 886 | – | WB53X5109 UNKNOWN | - |
| 887 | | WB48X0090NLA OVEN RACK-UPPER | Discontinued |
| 888 | | WB49X5464replaces WB49X0139 REFLECTOR BROIL UNIT | - |
| 889 | – | WB49X0301 INSTRUMENT COVER | - |
| 890 | – | WB56X6056 SIDE PANEL-LT | - |
| 890 | – | WB56X6057 UNKNOWN | - |
| 891 |  | WR62X51replaces WB27X5414 CAPACITOR | $75.95 ApplianceParts Pro |
| 892 | – | WB56X6058 BOTTOM PANEL | - |
| 893 | – | WB56X6059 REAR PANEL | - |
| 894 | – | WB56X6024 DOOR OVEN | - |
| 895 | – | WB02X1658 FRICTION PLATE | - |
| 896 | – | WB01X0400 SCREW | - |
| 897 | – | WB01X0401 WASHER | - |
| 898 | – | WB49X0179 DUCT AIR | - |
| 899 | – | WB55X5323 INSULATION GUARD | - |
| 900 | | WB02X2957NLA GASKET SILICONE UP OVEN | Discontinued |
| 901 | – | WB55X5324 UNKNOWN | - |
| 903 | | WB2X1520replaces WB02X1520 SHIELD-MT. LAMP | - |
| 904 | – | WB36X0126 OV LAMP LENS | - |
| 905 | | WB02X1509NLA BROIL UNIT SUPPORT | Discontinued |
| 906 | – | WB56X1456 CASE SIDE RH WH | - |
| 906 | – | WB56X1459 CASE SIDE RH HA | - |
| 906 | – | WB56X1460 CASE SIDE RH AD | - |
| 906 | – | WB56X1461 CASE SIDE LH WH | - |
| 906 | – | WB56X1464 CASE SIDE LH HA | - |
| 906 | – | WB56X1465 CASE SIDE LH AD | - |
| 907 | | WB02X1666NLA FILTER | Discontinued |
| 908 |  | WB44X195replaces WB44X0195 BAKE UNIT UPPER OVEN | $95.95 ApplianceParts Pro |
| 909 | | BROIL UNIT-3000W-236V | Discontinued |
| 911 | | HANDLE | - |
| 912 | – | WB01X5508 WASHER | - |
| 913 | – | WB55X0421 CASE BOTTOM | - |
| 915 | – | WB55X0198 GUARD INSULATION LOWER | - |
| 917 | | WB56X5768NLA FRAME ASM | Discontinued |
| 918 | – | WB07X0776 DEFLECTOR | - |
| 919 | | WB01X0529NLA HINGE PIN | Discontinued |
| 920 | – | WB49X0300 COVER BACK | - |
| 921 | | WB2X2785replaces WB02X2785 GUIDE DOOR | - |
| 922 | – | WB02X1570 CATCH SPRING | - |
| 923 | – | WB07X1223 CONTROL TRIM | - |
| 925 | – | WB07X0985 SWITCH TRIM | - |
| 926 | – | WB02X3196 INSTRUMENT BRACKET | - |
| 927 | – | WB02X2657 BRACKET THERMO UPPER | - |
| 927 | – | WB02X6455 THERMOSTAT BRACKET-LOWER | - |
| 928 | – | WB02X2996 SWITCH BRACKET | - |
| 929 | – | WB24X0177 SWITCH, LAMPS | - |
| 930 | – | WB24X0178 SWITCH, FAN | - |
| 931 | – | WB02X2470 SHAFT EXTENSION-UPPER OV | - |
| 931 | – | WB02X3219 SHAFT EXTENSION-LOWER OV | - |
| 932 | – | WB01X0358 NUT SHEET METAL | - |
| 933 | – | WB02X1667 CLIP, CRYSTAL | - |
| 978 | | WB2X1126replaces WB02X1126 PLUG BUTTON | $2.95 ApplianceParts Pro |
| 1201 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 32767 | – | 31-0632 INSTALL INSTRUCTIONS | - |
| 32767 | – | 49-4801 MANUAL USERS | - |
| 32767 | | WB1X438replaces WB01X0438 SCREW & WASHER ASM | - |
| 32767 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 32767 | – | WB01X0528 SPEEDNUT | - |
| 32767 | | WB1X536replaces WB01X0536 SCREW | $16.81 Parts Dr |
| 32767 | – | WB01X5471 SCR 8-18 AB T 15/32 S | - |
| 32767 | – | WB01X5497 SCR 10-16 AB IHW 1/2 S | - |
| 32767 | – | WB01X5508 WASHER | - |
| 32767 | – | WB01X5508 WASHER | - |
| 32767 | – | WB01X5520 SPEEDNUT | - |
| 32767 | – | WB01X5550 SCR 8/32 TF FLR 1/4 S | - |
| 32767 | – | WB01X5552 WASHER | - |
| 32767 | | WB2X1222replaces WB02X1222 PAD GLASS (FELT) | - |
| 32767 | – | WB02X1511 INSULATION | - |
| 32767 | – | WB02X1579 PAD | - |
| 32767 | | WB02X1659NLA SPEEDNUT | Discontinued |
| 32767 | – | WB02X1662 PLATE HINGE | - |
| 32767 | – | WB02X1677 PLATE TIE | - |
| 32767 | – | WB02X2107 SLEEVE DETENT | - |
| 32767 | – | WB02X3152 PAD | - |
| 32767 | – | WB02X6274 SLEEVE | - |
| 32767 | | WB17X171replaces WB17X0171 TERMINAL MALE & FEMALE | - |
| 32767 | – | WZ02X0546 SCR 8-32 M PHR 1/2 S | - |
| 32767 | – | WZ04X0217 SCR 6-20 B HXW 1/4 S | - |
| 32767 |  | WZ4X345Dreplaces WZ04X0232 SCR 8-18 AB HXS 3/8 S | - |
| 32767 |  | WZ4X245Dreplaces WZ04X0245 SCR 8-18 AB PHR 5/8 S | $24.32 ApplianceParts Pro |
| 32767 | | WZ04X0288NLA SCREW 10-16 X 1/2" HEX | Discontinued |
| 32767 | | WZ4X345Dreplaces WZ04X0291 SCR 8-18 AB HXW 3/8 S | - |
| 32767 | | WZ4X336Dreplaces WZ04X0336 SCR 8-18 AB OVR 3/8 S#6H | - |
| 32767 | | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 32767 | – | WZ04X0348 SCR 10-16 B SL 1-1/8 S | - |
| 32767 | | WZ4X248replaces WZ04X0361 SCREW MTG. TRIM LAMP | - |
| 32767 | – | WZ04X0396 SCR 10-16 B HXW 1/4 S | - |
| 32767 | – | WZ04X0397 SCR 6-32 C FLR 5/16 S | - |
| 32767 | – | WZ04X0413 SCREW | - |
| 32767 | | WZ4X421Dreplaces WZ04X0421 SCR 8-18 B HXW 3/8 S | - |
| 32767 | – | WZ05X0120 SCREW | - |
| 32767 | | WZ5X124Dreplaces WZ05X0124 SCREW SWITCH 5/8 S | - |
| 32767 |  | WZ5X158Dreplaces WZ05X0134 SCR 8-32 T HXW 3/8 S | $27.34 ApplianceParts Pro |
| 32767 | – | WZ06X0038 SCR 8-18 AB HXW 5/8 S | - |
| 32767 | – | WZ06X0082 SCR 8-18 B HXW 3/8 S | - |
| 32767 | – | WZ07X0030 NUT | - |
| 32767 | – | WZ10X0016 WASHER | - |
