Model
GE JHP61G*J1
Range With Microwave Combo
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP61G*J1Range With Microwave Combo
3 diagrams388 parts
Parts Sections (3)
Diagram
Parts List
Parts in Parts List
129 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 148 |  | WB1X536replaces WB01X5763 SCREW | $16.81 Parts Dr |
| 148 | – | WZ04X0237 SCREW | - |
| 188 | – | WZ10X0114 LOCKWASHER | - |
| 272 |  | BLOCK TERMINAL POWER | $69.99 Parts Dr |
| 303 |  | WB36X192replaces WB36X0389 OVEN LAMP LENS | $9.75 Part Advantage |
| 305 | – | WB02X6653 SPEEDNUT | - |
| 456 |  | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 459 |  | WB1X537replaces WB01X0537 SCREW | - |
| 461 | | WB1X536replaces WB01X0593 SCREW - DOOR ASM (4 PER) | $16.81 Parts Dr |
| 701 | – | WB15X5133 HANDLE LATCH | - |
| 796 | – | WB02X6654 SPEEDNUT U TYPE | - |

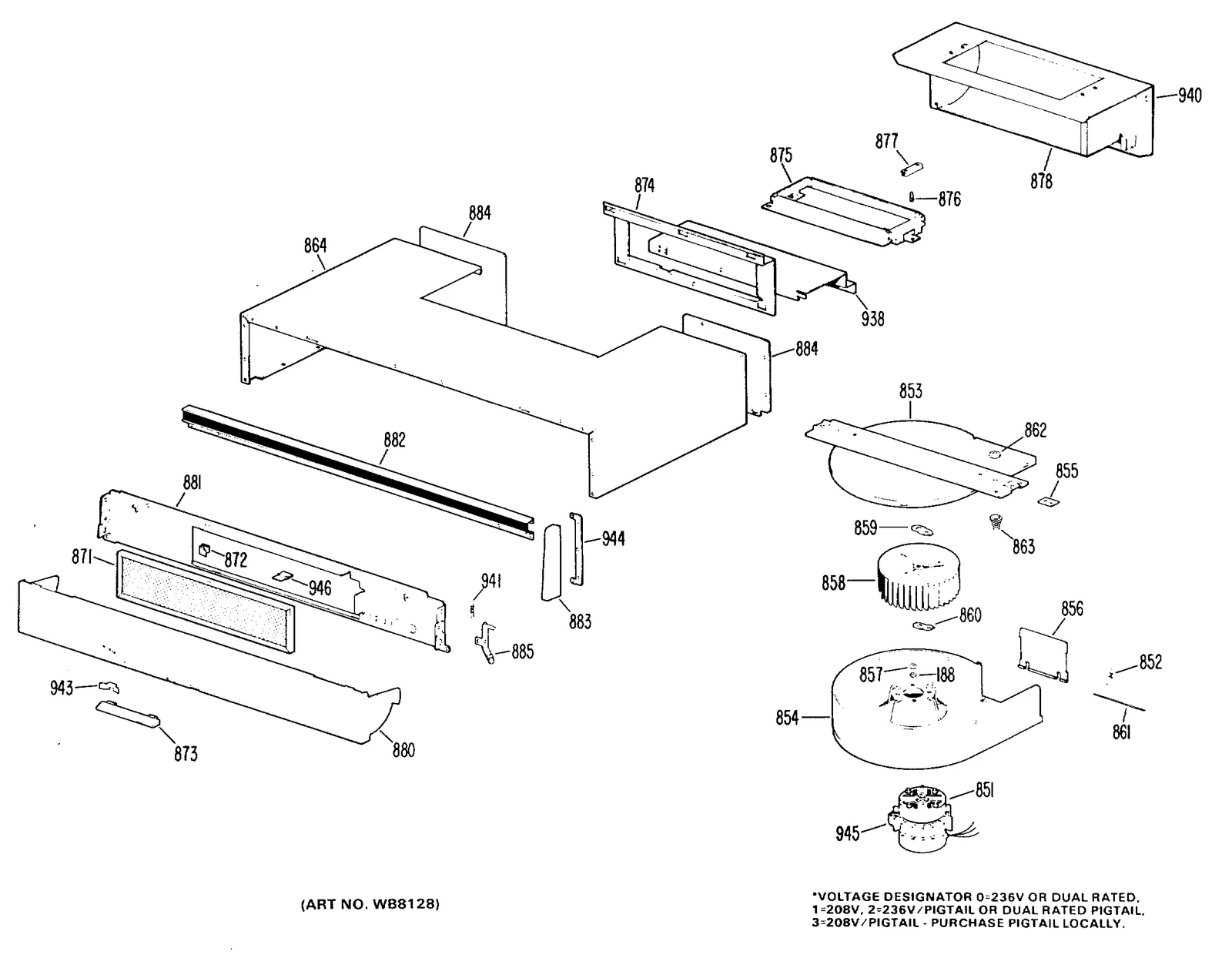

| 851 | – | WB26X0027 MOTOR BLOWER | - |
| 852 | – | WB09X0072 SPRING DAMPER | - |
| 853 | – | WB49X0216 HOUSING BLOWER TOP | - |
| 854 | – | WB49X0217 HOUSING BLOWER BOTTOM | - |
| 855 | – | WB02X3239 STRAP | - |
| 856 | – | WB02X2235 DAMPER | - |
| 858 | – | WB02X3456 WHEEL BLOWER | - |
| 859 | – | WB02X3457 CLAMP | - |
| 860 | – | WB02X3458 CLAMP | - |
| 861 | – | WB02X1581 WIRE | - |
| 862 | – | WB02X2015 RETAINER | - |
| 863 | – | WB09X0073 SPRING BLOWER MOUNT | - |
| 864 | – | WB62X1499 HOOD BODY WH | - |
| 864 | – | WB62X1502 HOOD BODY HA | - |
| 864 | – | WB62X1503 HOOD BODY AD | - |
| 871 | – | WB02X6731 FILTER GREASE | - |
| 872 | – | WB02X1583 CLIP HOOD FILTER | - |
| 873 |  | HANDLE HOOD PANEL | - |
| 874 | – | WB49X0218 COVER INNER | - |
| 875 | – | WB49X0182 EXHAUST ASM | - |
| 876 | – | WB01X0426 STUD BALL | - |
| 877 | – | WB02X2016 RECEIVER STUD | - |
| 878 | – | WB49X0183 GUIDE AIR | - |
| 880 | | WB56X6084replaces WB56X5896 PANEL HOOD | - |
| 881 | – | WB56X6040 PLATE FILTER | - |
| 882 | | WB07X6793NLA TRIM HOOD | Discontinued |
| 883 | – | WB07X6791 END CAP RH | - |
| 883 | – | WB07X6792 END CAP LH | - |
| 884 | – | WB02X2017 COVER BACK | - |
| 885 | – | WB02X7216 SPRING & PIN ASM | - |
| 938 | – | WB49X5190 SUPPORT SLIDE | - |
| 940 | – | WB49X0184 COVER ASM | - |
| 941 | | WB9X5099replaces WB09X5099 SPRING | - |
| 943 | – | WB02X7217 RETAINER CLIP | - |
| 944 | – | WB02X3461 BRACKET MOUNTING | - |
| 945 | – | WB02X3145 FINS MOTOR | - |
| 945 | – | WB02X3146 CLIP MOTOR FINS | - |
| 946 | – | WB02X6734 CLIP FILTER | - |
| 1201 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 1428 | – | WB18X5048 HI VOLTAGE WIRE | - |
| 1812 | – | WB01X5541 SCREW MTG COVER | - |
| 32767 | – | 31-0376 PM MANUAL MINI | - |
| 32767 | – | 31-0391 PM MANUAL MINI | - |
| 32767 | – | 31-0440 INSTALL INSTRUCTIONS | - |
| 32767 | – | 31-0476 PM INSTRUCTION INSTL | - |
| 32767 | – | 49-4662 COOKBOOK | - |
| 32767 | – | 49-4722 MANUAL USERS | - |
| 32767 | | WB1X438replaces WB01X0438 SCREW & WASHER ASM | - |
| 32767 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 32767 | – | WB01X5431 WASHER | - |
| 32767 | – | WB01X5471 SCR 8-18 AB T 15/32 S | - |
| 32767 | – | WB01X5497 SCR 10-16 AB IHW 1/2 S | - |
| 32767 | – | WB01X5520 SPEEDNUT | - |
| 32767 | – | WB01X5552 WASHER | - |
| 32767 | – | WB01X5577 SPEEDNUT | - |
| 32767 | – | WB01X5582 SCREW MTG HANDLE | - |
| 32767 | | WB2X1222replaces WB02X1222 PAD GLASS (FELT) | - |
| 32767 | – | WB02X2107 SLEEVE DETENT | - |
| 32767 | – | WB02X3191 GASKET | - |
| 32767 | – | WB02X3238 PAD | - |
| 32767 | – | WB02X6496 INSULATION | - |
| 32767 | – | WB02X6659 PAD | - |
| 32767 | – | WB07X5645 TRIM COOKTOP FRONT | - |
| 32767 | | WB17X171replaces WB17X0171 TERMINAL MALE & FEMALE | - |
| 32767 | – | WB19X5271 TIMER | - |
| 32767 | | WB20X5045NLA PROBE | Discontinued |
| 32767 | – | WB24X0183 SWITCH, LATCH | - |
| 32767 | – | WB24X0201 SWITCH, FAN | - |
| 32767 | | WB24X5093NLA SWITCH, "F" LAMP | Discontinued |
| 32767 | | SWITCH, MONITOR | - |
| 32767 | | SWITCH, DOOR | - |
| 32767 | – | WB26X5060 MOTOR, BLOWER | - |
| 32767 | | WB26X5071NLA MOTOR, STIRRER | Discontinued |
| 32767 |  | WB27X7replaces WB27X0007 FUSE | $7.92 Parts Dr |
| 32767 | | RECTIFIER | - |
| 32767 |  | WB27X10249replaces WB27X5142 MAGNETRON | $263.32 PartSelect |
| 32767 | | WB27X5212NLA CAPACITOR | Discontinued |
| 32767 | | THERMOSTAT | - |
| 32767 | – | WB27X5308 SMART BOARD & DISPLAY | - |
| 32767 | | CONTROL, POWER MODULE | - |
| 32767 | | TRANSFORMER, HI-VOLTAGE | - |
| 32767 | – | WB56X6002 COVER SUPPORT RH DS | - |
| 32767 | – | WB56X6003 COVER SUPPORT RH SL | - |
| 32767 | – | WB56X6004 COVER SUPPORT LH DS | - |
| 32767 | – | WB56X6005 COVER SUPPORT LH SL | - |
| 32767 | – | WB56X6006 PANEL CRYSTAL RH DS | - |
| 32767 | – | WB56X6007 PANEL CRYSTAL RH SL | - |
| 32767 | – | WB56X6008 PANEL CRYSTAL LH DS | - |
| 32767 | – | WB56X6009 PANEL CRYSTAL LH SL | - |
| 32767 | – | WB62X5324 HOOD BODY DS | - |
| 32767 | – | WB62X5325 HOOD BODY SL | - |
| 32767 | – | WB62X5326 COOKTOP DS | - |
| 32767 | – | WB62X5327 COOKTOP SL | - |
| 32767 | – | WZ02X0529 SCREW 6-32 X 1/4" HEX | - |
| 32767 | – | WZ02X0546 SCR 8-32 M PHR 1/2 S | - |
| 32767 | – | WZ04X0217 SCR 6-20 B HXW 1/4 S | - |
| 32767 | – | WZ04X0218 SCR 6-20 AB PH 3/8 S | - |
| 32767 | | WZ4X345Dreplaces WZ04X0232 SCR 8-18 AB HXS 3/8 S | - |
| 32767 | – | WZ04X0255 SCR 8-18X1 AB OVR 1/2 S | - |
| 32767 | | WZ04X0288NLA SCREW 10-16 X 1/2" HEX | Discontinued |
| 32767 | – | WZ04X0289 SCR 8-18 AB HX 1/4 S | - |
| 32767 | | WZ4X345Dreplaces WZ04X0291 SCR 8-18 AB HXW 3/8 S | - |
| 32767 | – | WZ04X0314 SCR 8-18 AB HXS 1/4 S | - |
| 32767 | | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 32767 | – | WZ04X0348 SCR 10-16 B SL 1-1/8 S | - |
| 32767 | | WZ4X248replaces WZ04X0361 SCREW MTG. TRIM LAMP | - |
| 32767 | – | WZ04X0396 SCR 10-16 B HXW 1/4 S | - |
| 32767 | – | WZ04X0397 SCR 6-32 C FLR 5/16 S | - |
| 32767 | – | WZ04X0413 SCREW | - |
| 32767 | – | WZ04X0419 SCR 10-16 AB HXW 5/8 S | - |
| 32767 | | WZ4X421Dreplaces WZ04X0421 SCR 8-18 B HXW 3/8 S | - |
| 32767 |  | WZ5X158Dreplaces WZ05X0134 SCR 8-32 T HXW 3/8 S | $27.34 ApplianceParts Pro |
| 32767 | | WZ5X234replaces WZ05X0234 SCREW MT SWITCH | - |
| 32767 | – | WZ06X0038 SCR 8-18 AB HXW 5/8 S | - |
| 32767 | – | WZ06X0082 SCR 8-18 B HXW 3/8 S | - |
| 32767 | – | WZ07X0030 NUT | - |
| 32767 | – | WZ10X0114 LOCKWASHER | - |
