Model
GE JHP62GN1
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP62GN1Electric Range
5 diagrams300 parts

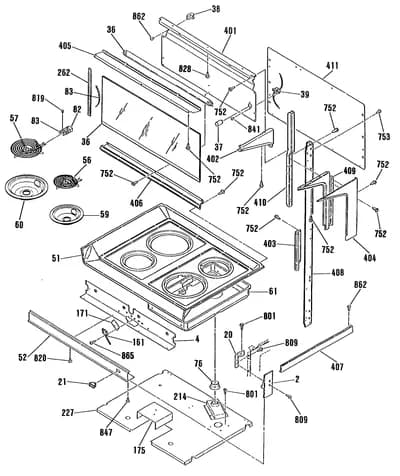

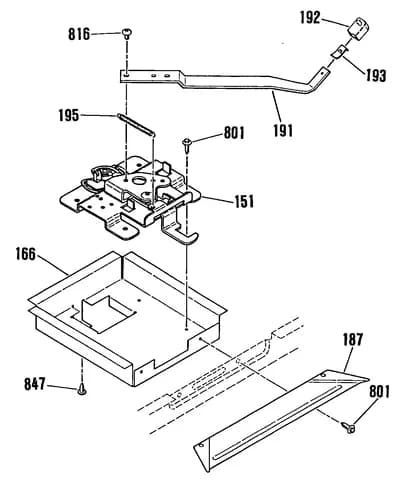

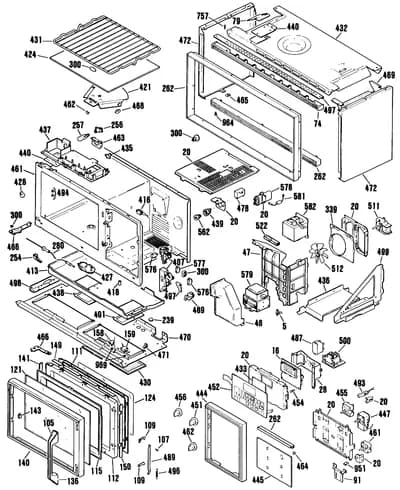

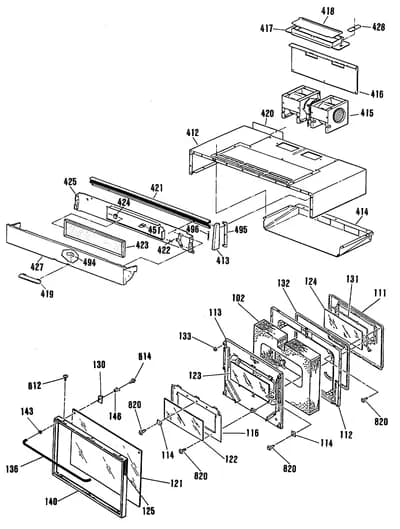

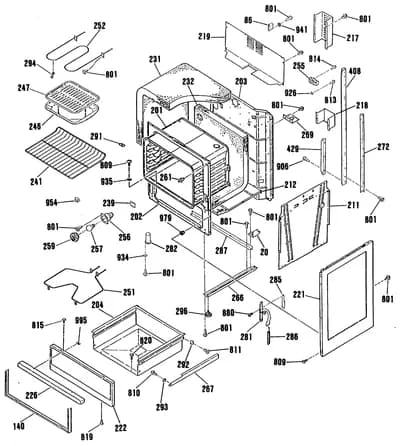

Parts Sections (5)
Diagram
Parts List
Parts in Parts List
157 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 5 |  | THERMOSTAT | - |
| 16 | | SMART BOARD & DISPLAY | - |
| 20 | – | WB02K5105 BASE SUPPORT BRACKET-RT | - |
| 20 | – | WB02K5106 BASE SUPPORT BRACKET-LT | - |
| 20 | – | WB02K5107 END CAP BRACKET-RT | - |
| 20 | – | WB02K5108 END CAP BRACKET-LT | - |
| 20 | – | WB02K7778 INSTRUMENT BRACKET | - |
| 20 | – | WB02X6239 BRACKET LAMP | - |
| 20 | – | WB02X7726 FUSTAT BRACKET | - |
| 20 | – | WB02X7731 HV CAPACITOR BRACKET | - |
| 20 | – | WB02X7733 BRACKET | - |
| 20 | – | WB02X7751 BULB HOLDER BRACKET | - |
| 20 | – | WB02X7754 BRACKET-TOUCH CONTROL | - |
| 20 | – | WB02X7777 MOUNTING BRACKET | - |
| 28 | – | WB02X7755 BRACKET | - |
| 47 | – | WB02X7724 AIR GUIDE | - |
| 48 | – | WB02X7635 AIR GUIDE | - |
| 74 | – | WB07X7005 GRILLE | - |
| 91 | – | WB02X7729 CONTROL PANEL HINGE | - |
| 105 | | WB07X6900NLA TRIM HANDLE | Discontinued |
| 107 | | WB02X7559NLA PIN KEY LEVER | Discontinued |
| 109 | | DOOR KEY PACKAGE | - |
| 111 | – | WB55M0010 OV DR LINING PLUG | - |
| 111 | – | WB55X5286 FRAME INNER | - |
| 112 | – | WB55X5285 LINER & CHOKE ASM. | - |
| 112 | – | WB56K5026 OV DR LINING | - |
| 115 | | DOOR INNER-M/W | - |
| 121 | – | WB36X5637 DOOR SCREEN-M/W | - |
| 121 | | OV DR GLASS W/REFLECTOR | - |
| 124 | – | WB02X7647 FILM | - |
| 124 | | WB57M0001NLA OV DR INNER GLASS | Discontinued |
| 136 | – | WB15M0004 UNKNOWN | - |
| 136 | | HANDLE DOOR | - |
| 140 | | WB07X7011NLA DOOR TRIM-M/W | Discontinued |
| 140 | – | WB56K5027 OV DR FRAME W/OVERLAY | - |
| 140 | – | WB56M0012 LOWER FRONT PNL FRAME | - |
| 141 | – | WB02X7857 DOOR SASH RUBBER | - |
| 143 | – | WB02M0044 UNKNOWN | - |
| 143 | – | WB02X7735 SASH | - |
| 158 | | SWITCH, FAN | - |
| 159 | | WB24K5023NLA LIGHT SWITCH | Discontinued |
| 239 | – | WB02X7762 BUTTON PLUG | - |
| 239 | | WB2X9189replaces WB02X9189 PLUG BUTTON-RECTANGULAR | - |
| 254 | – | WB02X7660 HOLDER PROBE | - |
| 256 | | OV LAMP HOLDER | Discontinued |
| 256 | | WB8X5096replaces WB08X5096 SOCKET LAMP | - |
| 256 |  | WB17X5095replaces WB17M0005 POWER RING HOUSING | $69.99 Parts Dr |
| 257 | – | BUY LOCAL BULB OVEN LI | - |
| 257 | – | WB02X7560 LAMP OVEN | - |
| 262 | – | WB07K5031 BACKSPLASH GLASS TRIM | - |
| 262 | – | WB07X6951 TRIM CRYSTAL | - |
| 262 | – | WB07X6952 MICROWAVE DOOR TRIM | - |
| 262 | – | WB07X7006 TRIM LOWER | - |
| 280 | | PROBE | - |
| 285 | – | WB02K5143 HINGE SHIM | - |
| 300 | | WB2X7103replaces WB02X7103 SPACER-HINGE | - |
| 300 | – | WB02X7510 SPACER RACK | - |
| 300 | – | WB02X7552 SPACER | - |
| 300 | – | WB02X7770 SPACER | - |
| 339 | | WB2X7728replaces WB02X7728 ORIFICE | - |
| 401 | – | WB36K5081 LAMPHOLDER PANEL | - |
| 401 | – | WB49X5387 BOTTOM WINDOW | - |
| 407 | – | WB07K5027 SIDE FILLER-RT | - |
| 407 | – | WB07K5028 SIDE FILLER-LT | - |
| 407 | – | WB10X5165 DOOR HOOK UPPER | - |
| 407 | | DOOR HOOK LOWER | - |
| 413 | – | WB07X6791 END CAP RH | - |
| 413 | – | WB07X6792 END CAP LH | - |
| 413 | – | WB49X5386 BASE | - |
| 416 | – | WB20X5053 RECEPTACLE PROBE | - |
| 418 | – | WB02X7761 UNKNOWN | - |
| 418 | – | WB02X7764 DAMPER | - |
| 421 | | WB2X7626replaces WB02X7626 ANTENNA | - |
| 421 | | WB07X6793NLA TRIM HOOD | Discontinued |
| 424 | – | WB02X1583 CLIP HOOD FILTER | - |
| 424 | | SHELF | - |
| 427 | | MOTOR, STIRRER | - |
| 427 | | HOOD PANEL | - |
| 428 | | WB02X7640NLA SUPPORT RACK | Discontinued |
| 428 | – | WB02X7765 PLATE | - |
| 429 | – | WB02K5104 BACK ANGLE | - |
| 430 | | WB02X1666NLA FILTER | Discontinued |
| 431 | – | WB48X5088 RACK | - |
| 432 | – | WB56X6077 TOP CASE | - |
| 433 | – | WB36X5605 CRYSTAL | - |
| 435 | | THERMAL CUTOUT | - |
| 436 | – | WB02K5116 STIFFENER | - |
| 437 | – | WB02X7727 EXHAUST GUIDE | - |
| 438 | – | WB02X7723 BOTTOM WINDOW | - |
| 439 | – | WB08X5097 RECEPTACLE, FUSTAT | - |
| 440 | – | WB02X7730 SHIELD LAMP | - |
| 440 | – | WB49X5394 LAMP COVER | - |
| 444 | – | WB07X7012 TRIM CONTROL-M/W | - |
| 445 | – | WB36X5617 CRYSTAL | - |
| 447 | – | WB20K5013 DUAL RANGE THERMO | - |
| 451 | – | WB02X6734 CLIP FILTER | - |
| 451 | | WB3X5761replaces WB03X5761 KNOB OVEN SWITCH | - |
| 452 | – | WB27X5412 KEY PANEL ASM-M/W | - |
| 454 | – | WB02X7769 HOLDER | - |
| 455 | – | WB22X5103 SWITCH, OVEN L.O. | - |
| 456 | | WB3X5761replaces WB03X5760 KNOB THERMOSTAT | - |
| 461 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 461 | – | WB53X5130 UNKNOWN | - |
| 462 | – | WB02X7625 STOPPER | - |
| 462 | | WB03X5762NLA KNOB SURFACE UNIT | Discontinued |
| 463 | – | WB02X7753 BRACKET | - |
| 464 | – | WB02X6654 SPEEDNUT U TYPE | - |
| 465 | – | WB02X6653 SPEEDNUT | - |
| 466 | – | WB10X5179 HINGE UPPER | - |
| 466 | | HINGE LOWER | - |
| 468 | – | WB02X7624 STOPPER | - |
| 469 | – | WB49X5292 SIDE DUCT | - |
| 470 | – | WB49X5392 BOTTOM CASE | - |
| 471 | | WB2X1665replaces WB02X1665 CLIP FILTER | - |
| 472 | – | WB56X6030 CASE SIDE-LT-WHITE | - |
| 472 | – | WB56X6032 CASE SIDE-LT-ALMOND | - |
| 472 | – | WB56X6035 CASE SIDE-RT-WHITE | - |
| 472 | – | WB56X6037 CASE SIDE-RT-ALMOND | - |
| 478 | – | WB08K5010 CAPACITOR | - |
| 487 | | RELAY, POWER | - |
| 489 | | HOOK SPACER | - |
| 494 | – | WB02X7217 RETAINER CLIP | - |
| 494 | – | WB02X7544 CLIP MTG EXHAUST GUIDE | - |
| 496 | | WB9X5099replaces WB09X5099 SPRING | - |
| 496 | – | WB09X5112 SPRING DOOR KEY | - |
| 497 | – | WB02X7234 GRILLE COVER | - |
| 497 | – | WB02X7628 HOOK SPACER | - |
| 498 | – | WB02X7230 BRACE ANGLE | - |
| 499 | – | WB02X7231 BRACE OVEN | - |
| 500 | | WB27X5407NLA POWER SUPPLY ASM | Discontinued |
| 511 | | MOTOR, BLOWER | - |
| 512 | – | WB02X4114 BLADE FAN | - |
| 522 | – | WB02X7734 CUSHION | - |
| 562 | – | WB08K5011 FUSTAT 15AMP TYPE S-M/W | - |
| 576 | | WB24X0352NLA SWITCH, DOOR | Discontinued |
| 577 | | WB24X353replaces WB24X0353 SWITCH, MONITOR | - |
| 578 |  | WB27X10073replaces WB27X0254 CAPACITOR | $87.26 Parts Dr |
| 579 |  | WB27X10249replaces WB27X5410 MAGNETRON | $263.32 PartSelect |
| 581 |  | WB27X1160replaces WB27X0336 RECTIFIER | $79.64 Part Advantage |
| 582 | | WB27X5447NLA TRANSFORMER, HI-VOLTAGE | Discontinued |
| 757 | – | WB01X5578 SCREW MTG TRIM | - |
| 910 | – | WB01X1347 RIVET ACCORDIAN | - |
| 951 | – | WB01X5750 CRYSTAL CLIP | - |
| 969 | | WB1X246replaces WB01X0546 SWITCH NUT | - |
| 999 | – | 31-1105 INSTALLATION INSTRUCTION | - |
| 999 | – | 31-13002 M/W MINI MAN W/WIRE D | - |
| 999 | – | 31-13022 MINI MANUAL/WIRE DIAGRAM | - |
| 999 | – | 49-8115 OWNERS MANUAL | - |
| 999 | – | WB18K5140 MAINTOP WIRE HARNESS-LT | - |
| 999 | – | WB18K5141 MAINTOP WIRE HARNESS-RT | - |
| 999 | | SURFACE LIGHT W HARNESS | - |
| 999 | – | WB18K5178 MAIN WIRE HARNESS | - |
| 999 | – | WB18K5179 MICRO SWITCH W HARNESS | - |
| 999 | – | WB18K5180 IND LIGHT WIRE HARNESS | - |
| 999 | | LIGHT SWITCH W HARNESS | - |
| 999 | – | WB18K5182 UPPER OVEN WIRE HARNESS | - |
| 999 | – | WB18K5185 THERMOSTAT WIRE HARNESS | - |
