Model
GE JHP62GN2
Range With Microwave Combo
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP62GN2Range With Microwave Combo
5 diagrams301 parts
Parts Sections (5)
Diagram
Parts List
Parts in Parts List
59 parts

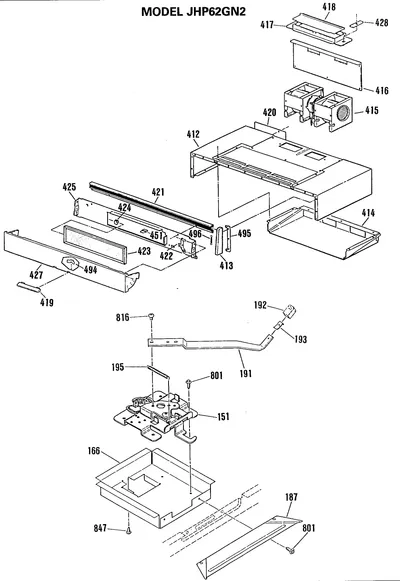

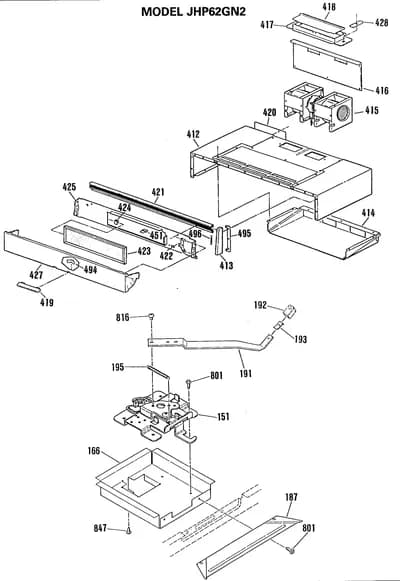

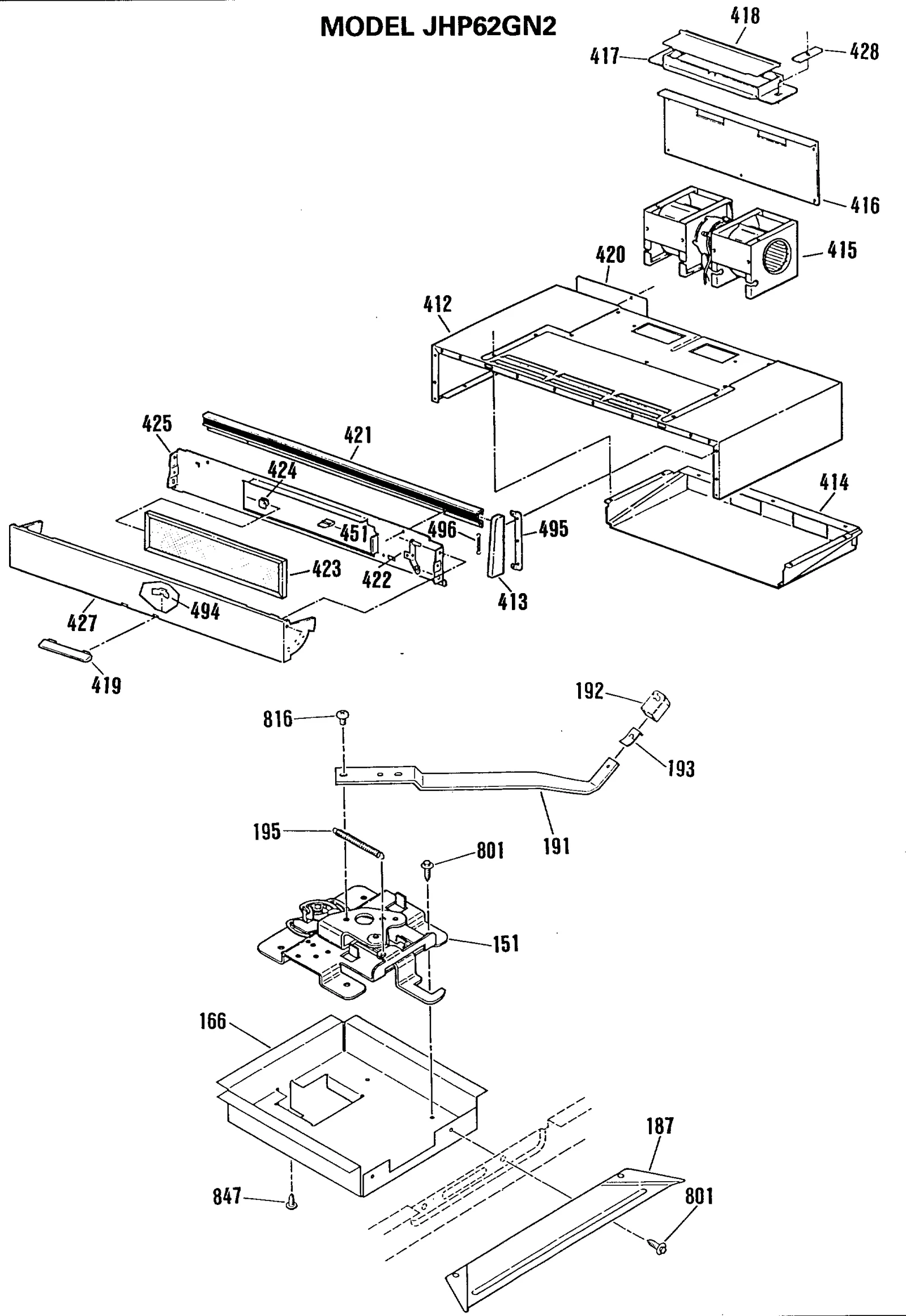

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 111 | – | WB55M0010 OV DR LINING PLUG | - |
| 151 | – | WB10X0268 LATCH ASM | - |
| 166 | – | WB58M0002 LATCH MOUNTING BOX | - |
| 187 | – | WB34M0033 MOISTURE SHIELD | - |
| 191 | – | WB15M0006 LOCK HANDLE | - |
| 192 | – | WB03X0782 KNOB-LOCK | - |
| 193 | – | WB02X9404 KNOB CUP | - |
| 195 | – | WB09X0251 SPRING | - |
| 218 | – | WB02X9426 WIRE SHIELD-LOWER | - |
| 412 | – | WB38K5023 HOOD BODY-WHITE | - |
| 412 | – | WB38K5024 HOOD BODY-ALMOND | - |
| 413 | – | WB07X6791 END CAP RH | - |
| 413 | – | WB07X6792 END CAP LH | - |
| 413 | – | WB49X5386 BASE | - |
| 414 | – | WB49X5470 PLENUM | - |
| 415 |  | BLOWER ASM | - |
| 416 | – | WB20X5053 RECEPTACLE PROBE | - |
| 417 | – | WB38K5025 EXHAUST ASM | - |
| 418 | – | WB02X7764 DAMPER | - |
| 419 | – | WB05X5138 HOOD PANEL HANDLE | - |
| 420 | – | WB02X2017 COVER BACK | - |
| 421 | | WB2X7626replaces WB02X7626 ANTENNA | - |
| 421 | | WB07X6793NLA TRIM HOOD | Discontinued |
| 422 | – | WB02X7216 SPRING & PIN ASM | - |
| 423 | | WB02X7758NLA FILTER GREASE | Discontinued |
| 424 | – | WB02X1583 CLIP HOOD FILTER | - |
| 424 | | SHELF | - |
| 425 | – | WB49X5390 PLATE FILTER | - |
| 427 | | MOTOR, STIRRER | - |
| 427 | | HOOD PANEL | - |
| 428 | | WB02X7640NLA SUPPORT RACK | Discontinued |
| 428 | – | WB02X7765 PLATE | - |
| 451 | – | WB02X6734 CLIP FILTER | - |
| 451 | | WB3X5761replaces WB03X5761 KNOB OVEN SWITCH | - |
| 494 | – | WB02X7217 RETAINER CLIP | - |
| 494 | – | WB02X7544 CLIP MTG EXHAUST GUIDE | - |
| 495 | – | WB02X3461 BRACKET MOUNTING | - |
| 496 | | WB9X5099replaces WB09X5099 SPRING | - |
| 496 | – | WB09X5112 SPRING DOOR KEY | - |
| 801 |  | WB1M1replaces WB01M0001 SCREW | $7.64 RepairClinic |
| 815 |  | WB1X1176replaces WB01X1176 SCREW-BLACK | - |
| 816 | | WB1K12replaces WB01X1125 SCREW | $6.38 RepairClinic |
| 847 |  | WB1X1118replaces WB01X1180 SCREW-BLACK | $7.18 RepairClinic |
| 880 |  | WB1K5191replaces WB01M0019 SCREW | $7.95 ApplianceParts Pro |
| 910 | – | WB01X1347 RIVET ACCORDIAN | - |
| 995 | – | WB01M0040 FLAT NUT | - |
| 999 | – | 31-1105 INSTALLATION INSTRUCTION | - |
| 999 | – | 31-13002 M/W MINI MAN W/WIRE D | - |
| 999 | – | 31-13003 MINI MANUAL/WIRE DIAGRAM | - |
| 999 | – | 49-8115 OWNERS MANUAL | - |
| 999 | – | WB18K5140 MAINTOP WIRE HARNESS-LT | - |
| 999 | – | WB18K5141 MAINTOP WIRE HARNESS-RT | - |
| 999 | | SURFACE LIGHT W HARNESS | - |
| 999 | – | WB18K5180 IND LIGHT WIRE HARNESS | - |
| 999 | | LIGHT SWITCH W HARNESS | - |
| 999 | – | WB18K5182 UPPER OVEN WIRE HARNESS | - |
| 999 | – | WB18K5185 THERMOSTAT WIRE HARNESS | - |
| 999 | – | WB18K5277 MAIN WIRE HARNESS | - |
| 999 | – | WB18K5278 MICRO SWITCH W HARNESS | - |
