Model
GE JHP62GN3WH
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP62GN3WHElectric Range
5 diagrams167 parts
Parts Sections (5)

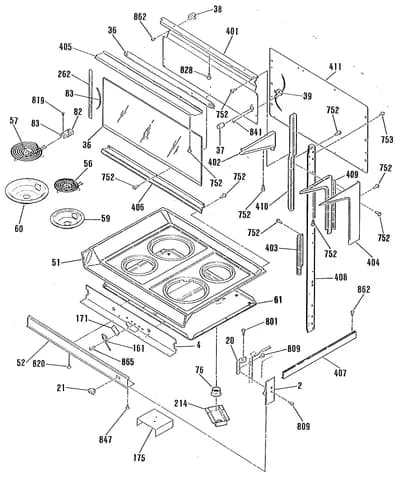

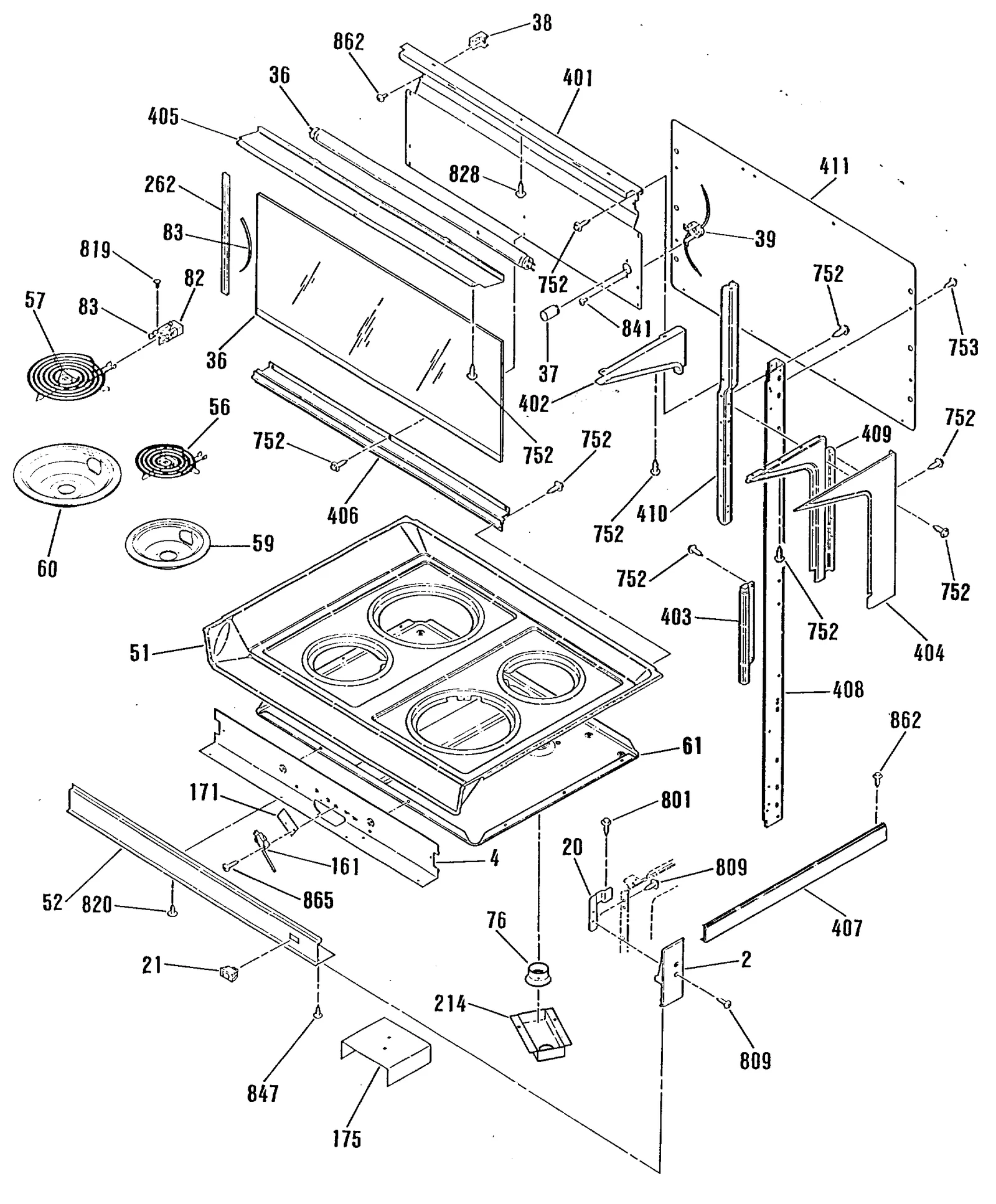

Diagram
Parts List
Parts in Parts List
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 20 | – | WB02K5105 BASE SUPPORT BRACKET-RT | - |
| 20 | – | WB02K5106 BASE SUPPORT BRACKET-LT | - |
| 20 | – | WB02K5108 END CAP BRACKET-LT | - |
| 20 | – | WB02X6239 BRACKET LAMP | - |
| 20 | – | WB02X7731 HV CAPACITOR BRACKET | - |
| 20 | – | WB02X7733 BRACKET | - |
| 20 | – | WB02X7751 BULB HOLDER BRACKET | - |
| 20 | – | WB02X7754 BRACKET-TOUCH CONTROL | - |
| 20 | – | WB02X7777 MOUNTING BRACKET | - |
| 21 |  | SWITCH-OVEN LIGHT | Discontinued |
| 37 | | WB02X9390NLA STARTER BASE | Discontinued |
| 38 | – | WB08X0291 FLUOR LAMP HOLDER | - |
| 39 | – | WB08K5009 STARTER BASE | - |
| 52 | – | WB36K5100 FRONT PANEL | - |
| 76 | | VENT TUBE EXTENSION | - |
| 82 | – | WB17X0210 TERMINAL BLOCK | - |
| 171 | – | WB02X9129 SWITCH INSULATOR | - |
| 171 | – | WB35K5083 SWITCH INSULATOR | - |
| 262 | – | WB07X6951 TRIM CRYSTAL | - |
| 262 | – | WB07X6952 MICROWAVE DOOR TRIM | - |
| 401 | – | WB36K5081 LAMPHOLDER PANEL | - |
| 401 | – | WB49X5387 BOTTOM WINDOW | - |
| 402 | – | WB36K5077 SUPPORT UP COVER-RT-WHT | - |
| 402 | – | WB36K5079 SUPPORT UP COVER-LT-WHT | - |
| 407 | – | WB10X5165 DOOR HOOK UPPER | - |
| 407 | | DOOR HOOK LOWER | - |
| 410 | – | WB02K5112 UPPER OVEN SUPPORT-LT | - |
| 752 |  | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 753 | – | WB01K5052 SCREW | - |
| 755 | – | WZ04X0237 SCREW | - |
| 801 |  | WB1M1replaces WB01M0001 SCREW | $7.64 RepairClinic |
| 819 |  | WB1X1118replaces WB01X1158 SCREW-NICKEL | $7.18 RepairClinic |
| 841 | – | WB01X1171 SCREW TC6-32X.312RD CAD | - |
| 847 | | WB1X1118replaces WB01X1180 SCREW-BLACK | $7.18 RepairClinic |
| 865 | – | WB01X1423 SCREW | - |
| 995 | – | WB01M0040 FLAT NUT | - |
| 999 | – | 31-13082 MINI MANUAL/WIRE DIAGRAM | - |
