Model
GE JHP62GN4AD
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP62GN4ADElectric Range
5 diagrams290 parts

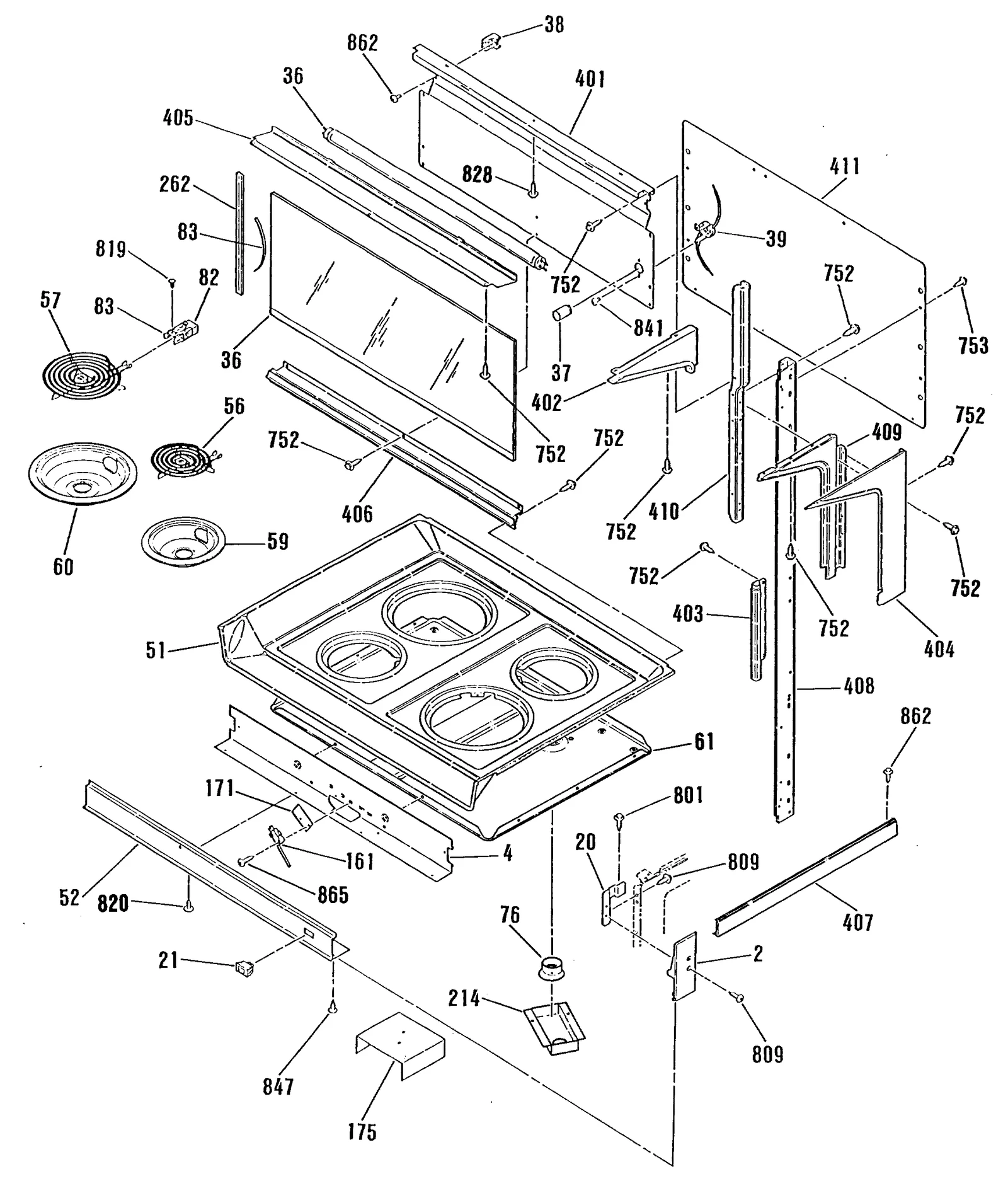

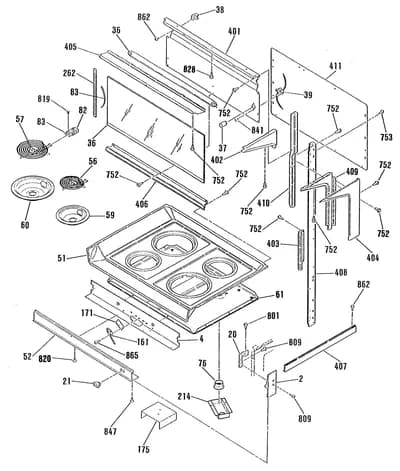

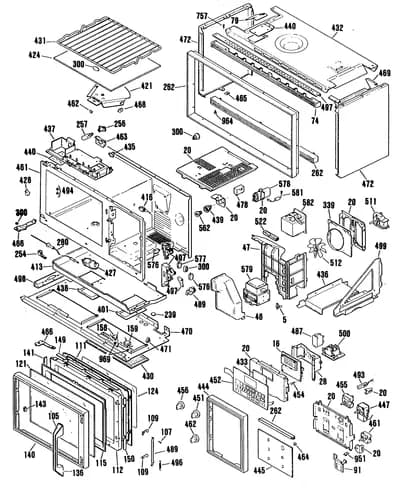

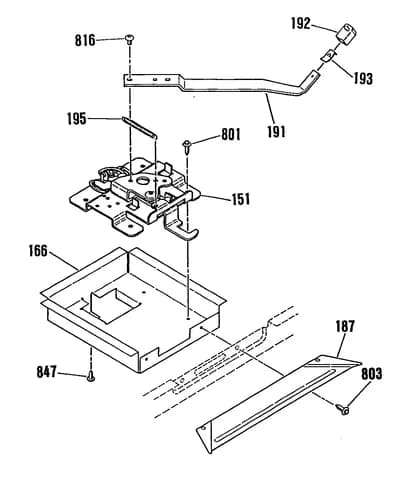

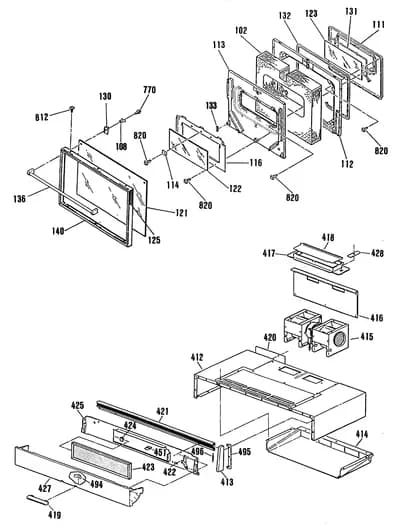

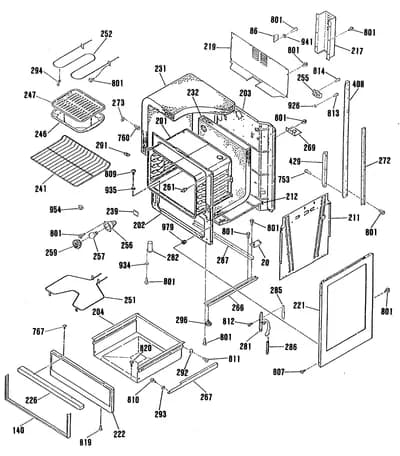

Parts Sections (5)
Diagram
Parts List
Parts in Parts List
85 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 | – | WB36M0035 MT END CAP-RT | - |
| 2 | – | WB36M0036 MT END CAP-LT | - |
| 4 |  | CONTROL BACK | - |
| 20 | – | WB02K5105 BASE SUPPORT BRACKET-RT | - |
| 20 | – | WB02K5106 BASE SUPPORT BRACKET-LT | - |
| 20 | – | WB02K5107 END CAP BRACKET-RT | - |
| 20 | – | WB02K5108 END CAP BRACKET-LT | - |
| 20 | – | WB02X6239 BRACKET LAMP | - |
| 20 | – | WB02X7726 FUSTAT BRACKET | - |
| 20 | – | WB02X7731 HV CAPACITOR BRACKET | - |
| 20 | – | WB02X7733 BRACKET | - |
| 20 | – | WB02X7751 BULB HOLDER BRACKET | - |
| 20 | – | WB02X7754 BRACKET-TOUCH CONTROL | - |
| 20 | – | WB02X7777 MOUNTING BRACKET | - |
| 20 | – | WB02X7778 BRACKET INSTRUMENT | - |
| 21 | | SWITCH-OVEN LIGHT | Discontinued |
| 36 | | WB08M0002NLA FLUOR LAMP | Discontinued |
| 36 | | BACKSPLASH GLASS | - |
| 37 | | WB02X9390NLA STARTER BASE | Discontinued |
| 38 | – | WB08X0291 FLUOR LAMP HOLDER | - |
| 39 | – | WB08K5009 STARTER BASE | - |
| 51 | – | WB62K5033 MAIN TOP-ALMOND | - |
| 52 | – | WB36K5100 FRONT PANEL | - |
| 56 |  | WB30M1replaces WB30M0001 6" SURF ELEM | $32.76 Part Advantage |
| 57 |  | WB30M2replaces WB30M0002 8" SURF ELEM | $44.65 Part Advantage |
| 59 |  | WB31M20replaces WB31M0020 6" BURNER BOWL | $3.97 Part Advantage |
| 60 |  | WB31M19replaces WB31M0019 8" BURNER BOWL | $4.09 Part Advantage |
| 61 | – | WB64K5058 BURNER BOX BOTTOM | - |
| 76 | | VENT TUBE EXTENSION | - |
| 82 |  | WB17X210replaces WB17K5017 WB17X210 | $52.71 Part Advantage |
| 83 | | WB01K5128NLA TERMINAL BLOCK CLIP | Discontinued |
| 83 | – | WB09K5007 GLASS TRIM SPRING | - |
| 148 |  | WZ4X345Dreplaces WZ04X0232 SCR 8-18 AB HXS 3/8 S | - |
| 161 | | MICRO SW-LOGIC-2 TERM | - |
| 161 | | MICRO SWITCH | - |
| 171 | – | WB02X9129 SWITCH INSULATOR | - |
| 171 | – | WB35K5083 SWITCH INSULATOR | - |
| 175 | – | WB34M0026 LATCH COVER | - |
| 214 | – | WB38K5045 VENT BOX | - |
| 262 | – | WB07K5031 BACKSPLASH GLASS TRIM | - |
| 262 | – | WB07X6951 TRIM CRYSTAL | - |
| 262 | – | WB07X6952 MICROWAVE DOOR TRIM | - |
| 262 | – | WB07X7006 TRIM LOWER | - |
| 401 | – | WB36K5081 LAMPHOLDER PANEL | - |
| 401 | – | WB49X5387 BOTTOM WINDOW | - |
| 402 | | SUPPORT UP COVER-RT-ALM | - |
| 402 | – | WB36K5080 SUPPORT UP COVER-LT-ALM | - |
| 403 | – | WB36K5090 SUPPORT IN COVER-RT-ALM | - |
| 403 | – | WB36K5092 SUPPORT IN COVER-LT-ALM | - |
| 404 | – | WB36K5094 SUPPORT OUT COVER-RT-ALM | - |
| 404 | – | WB36K5096 SUPPORT OUT COVER-LT-ALM | - |
| 405 | – | WB36K5083 CRYSTAL PANEL-UPPER-ALM | - |
| 406 | – | WB02K5109 LAMP GLASS REETAINER | - |
| 407 | – | WB07K5027 SIDE FILLER-RT | - |
| 407 | – | WB07K5028 SIDE FILLER-LT | - |
| 407 | – | WB10X5165 DOOR HOOK UPPER | - |
| 407 | | DOOR HOOK LOWER | - |
| 408 | – | WB02K5115 HI OVEN SUPPORT | - |
| 409 | – | WB02K5117 UPPER OVEN SUPPORT-RT | - |
| 409 | – | WB02K5118 UPPER OVEN SUPPORT-LT | - |
| 410 | – | WB02K5111 UPPER OVEN SUPPORT-RT | - |
| 410 | – | WB02K5112 UPPER OVEN SUPPORT-LT | - |
| 411 | | BACK COVER | - |
| 752 | | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 753 | – | WB01K5052 SCREW | - |
| 801 |  | WB1M1replaces WB01M0001 SCREW | $7.64 RepairClinic |
| 809 |  | WB1X1137replaces WB01X1137 SCREW | $10.95 ApplianceParts Pro |
| 819 |  | WB1X1118replaces WB01X1158 SCREW-NICKEL | $7.18 RepairClinic |
| 820 |  | WB1X1424Dreplaces WB01X1424 SCREW, TRANSFORMER | - |
| 828 |  | WB1X1141replaces WB01X1141 SCREW | $7.37 ApplianceParts Pro |
| 841 | – | WB01X1171 SCREW TC6-32X.312RD CAD | - |
| 847 | | WB1X1118replaces WB01X1180 SCREW-BLACK | $7.18 RepairClinic |
| 862 | – | WB01X1178 SCREW | - |
| 865 | – | WB01X1423 SCREW | - |
| 906 |  | WB1K5119replaces WB01K5053 SCREW | $7.18 Parts Dr |
| 999 | – | 31-1105 INSTALLATION INSTRUCTION | - |
| 999 | – | 31-13002 M/W MINI MAN W/WIRE D | - |
| 999 | – | 31-13082 MINI MANUAL/WIRE DIAGRAM | - |
| 999 | – | 49-8115 OWNERS MANUAL | - |
| 999 | – | WB18K5180 IND LIGHT WIRE HARNESS | - |
| 999 | | LIGHT SWITCH W HARNESS | - |
| 999 | – | WB18K5182 UPPER OVEN WIRE HARNESS | - |
| 999 | – | WB18K5398 MICRO-SWITCH WIRE HARN. | - |
| 999 | – | WB18K5399 MAIN WIRE HARNESS | - |
| 999 | – | WB18K5400 MAINTOP WIRE HARNESS | - |
