Model
GE JHP62GN5WH
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP62GN5WHElectric Range
5 diagrams291 parts
Parts Sections (5)

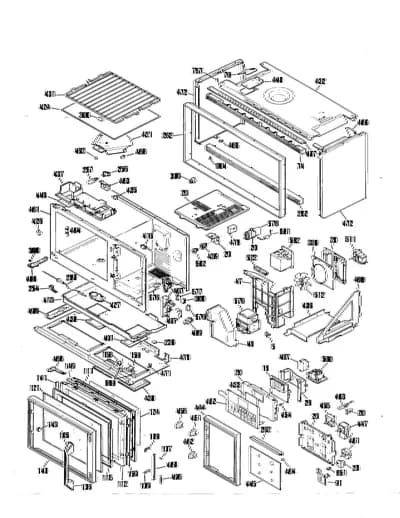

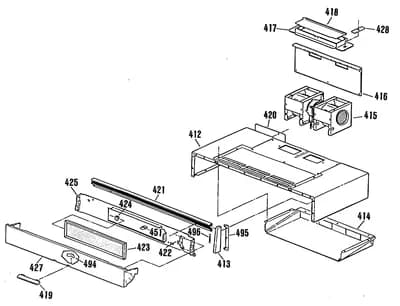

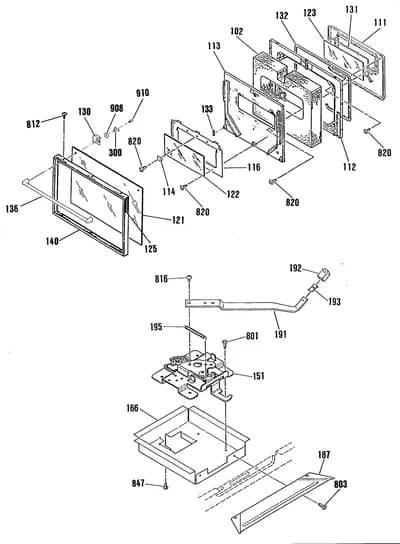

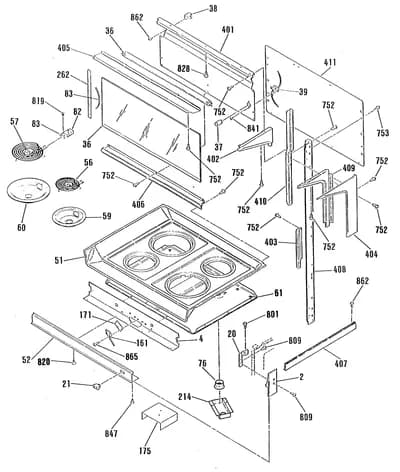

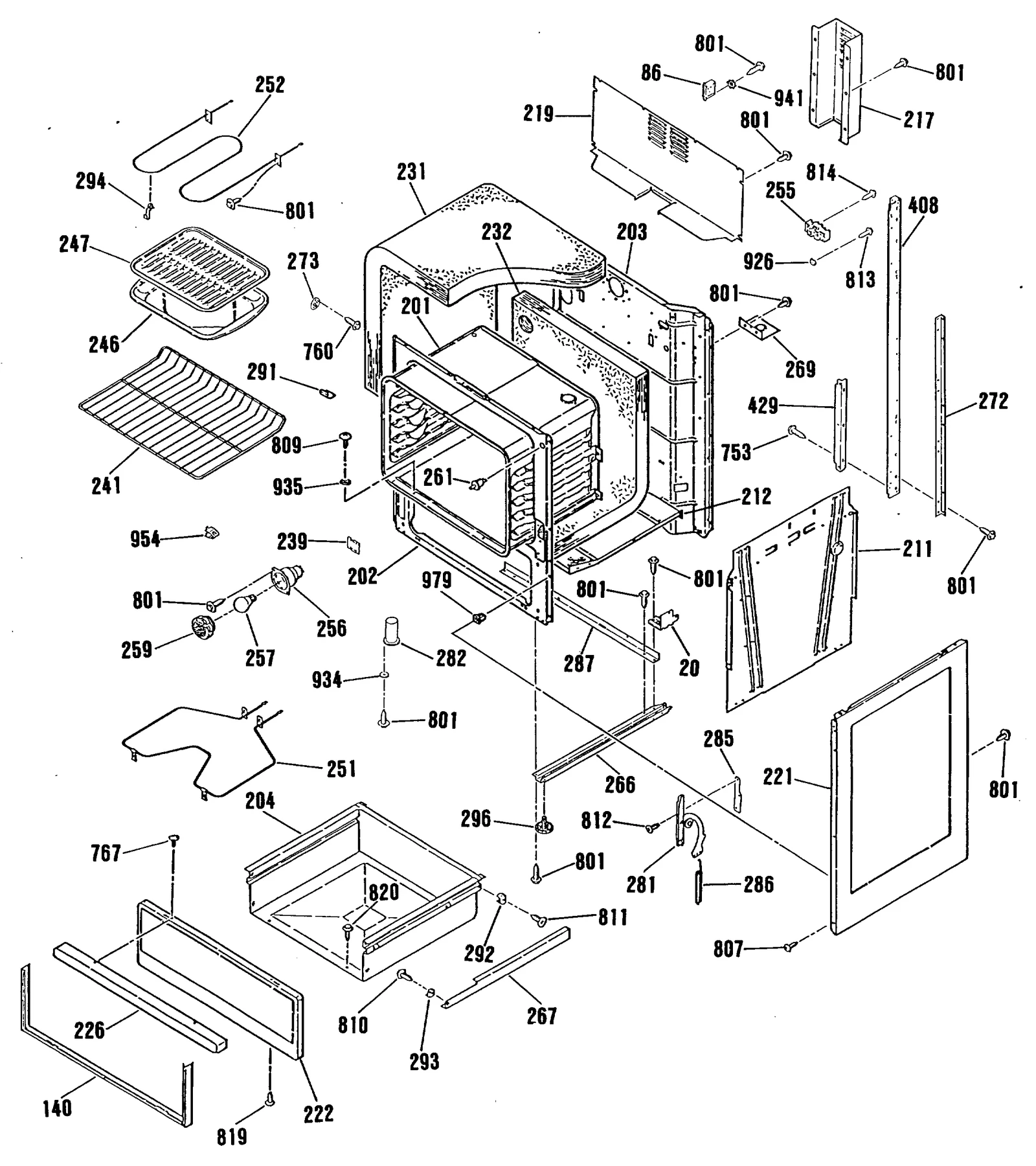

Diagram
Parts List
Parts in Parts List
94 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 5 |  | THERMOSTAT | - |
| 20 | – | WB02K5105 BASE SUPPORT BRACKET-RT | - |
| 20 | – | WB02K5106 BASE SUPPORT BRACKET-LT | - |
| 20 | – | WB02K5107 END CAP BRACKET-RT | - |
| 20 | – | WB02K5108 END CAP BRACKET-LT | - |
| 20 | – | WB02X6239 BRACKET LAMP | - |
| 20 | – | WB02X7726 FUSTAT BRACKET | - |
| 20 | – | WB02X7731 HV CAPACITOR BRACKET | - |
| 20 | – | WB02X7733 BRACKET | - |
| 20 | – | WB02X7751 BULB HOLDER BRACKET | - |
| 20 | – | WB02X7754 BRACKET-TOUCH CONTROL | - |
| 20 | – | WB02X7777 MOUNTING BRACKET | - |
| 20 | – | WB02X7778 BRACKET INSTRUMENT | - |
| 37 | | WB02X9390NLA STARTER BASE | Discontinued |
| 38 | – | WB08X0291 FLUOR LAMP HOLDER | - |
| 86 | – | WB20X0116 BALLAST | - |
| 140 | | WB07X7011NLA DOOR TRIM-M/W | Discontinued |
| 140 | – | WB56K5027 OV DR FRAME W/OVERLAY | - |
| 140 | – | WB56M0012 LOWER FRONT PNL FRAME | - |
| 148 |  | WZ4X345Dreplaces WZ04X0232 SCR 8-18 AB HXS 3/8 S | - |
| 201 | | OVEN BODY | - |
| 202 | – | WB63K5073 FRONT FRAME | - |
| 203 | – | WB63K5180 MAIN BACK | - |
| 204 | – | WB58X0065 STORAGE DRAWER | - |
| 211 | – | WB02K5254 SIDE INS RETAINER | - |
| 212 | – | WB02M0068 INSULATION BTTM RETAINER | - |
| 217 | | WIRE COVER | - |
| 219 | – | WB34K5059 WIRE SHIELD-UPPER | - |
| 221 | – | WB63K5069 BODY SIDE-WHITE | - |
| 222 | | PANEL FRT LWR ASM | - |
| 226 | | WB15M0008NLA STORAGE DRAWER HANDLE | Discontinued |
| 231 | – | WB02X9631 INSULATION-TOP & SIDES | - |
| 232 | | WB35K5113replaces WB02X9144 INSULATION OV BTM & BACK | - |
| 239 | – | WB02X7762 BUTTON PLUG | - |
| 239 | | WB2X9189replaces WB02X9189 PLUG BUTTON-RECTANGULAR | - |
| 241 | – | WB48X0208 OVEN RACK | - |
| 246 |  | WB48X10056replaces WB48M0003 BROILER PAN | $16.74 Part Advantage |
| 247 | | WB48X10056replaces WB49X0627 BROILER PAN GRID | $16.74 Part Advantage |
| 251 |  | BAKE ELEMENT | $24.53 Part Advantage |
| 252 |  | WB44X232replaces WB44X0232 BROIL ELEMENT 240V | $66.77 Part Advantage |
| 256 | | OV LAMP HOLDER | Discontinued |
| 256 | | WB8X5096replaces WB08X5096 SOCKET LAMP | - |
| 257 | – | BUY LOCAL BULB OVEN LI | - |
| 257 | – | WB02X7560 LAMP OVEN | - |
| 259 | | OV LAMP LENS | Discontinued |
| 261 | – | WB24K5030 JAMB SWITCH | - |
| 266 | – | WB63K5072 BASE ASM | - |
| 267 | | WB56M0003NLA DRAWER SUPPORT | Discontinued |
| 269 | – | WB02X9427 RANGE SERVICE MTG PLATE | - |
| 272 | – | WB02K5103 BODY SIDE SUPPORT | - |
| 273 | | WB2X3230replaces WB02X3230 COVER PLATE-JACK | - |
| 281 |  | WB14X103replaces WB14X0103 HINGE ASM-LT | $46.64 Part Advantage |
| 281 |  | WB14X104replaces WB14X0104 HINGE ASM-RT | $42.20 Part Advantage |
| 282 | – | WB38K5021 VENT TUBE ASM | - |
| 285 | – | WB02K5143 HINGE SHIM | - |
| 286 | | WB09M0004NLA OV DR SPRING | Discontinued |
| 287 | – | WB63K5068 MAIN BACK & BASE STRAP | - |
| 291 | | WB2X9152replaces WB02X9152 COVER | $11.94 RepairClinic |
| 292 | – | WB02X9146 SLIDE BLOCK-REAR | - |
| 293 | – | WB02X9148 SLIDE BLOCK FRONT | - |
| 294 |  | WB2X9719replaces WB02X9719 BROIL ELEMENT SUPPORT | $6.89 Part Advantage |
| 296 | | WB1X5516replaces WB01X5516 LEVELING LEG | - |
| 408 | – | WB02K5115 HI OVEN SUPPORT | - |
| 429 | – | WB02K5104 BACK ANGLE | - |
| 753 | – | WB01K5052 SCREW | - |
| 760 |  | WB1X536replaces WB01K5028 SCREW | $16.81 Parts Dr |
| 767 | – | WB01K5136 SCREW-BLACK | - |
| 801 |  | WB1M1replaces WB01M0001 SCREW | $7.64 RepairClinic |
| 807 |  | WB01X32746replaces WB01X1174 SCREW-NICKLE | $3.47 RepairClinic |
| 809 |  | WB1X1137replaces WB01X1137 SCREW | $10.95 ApplianceParts Pro |
| 810 |  | WB1X1130replaces WB01X1253 SCREW | $7.22 Parts Dr |
| 811 | – | WB01X1172 SCREW | - |
| 812 |  | WB1K5191replaces WB01X1133 SCREW | $7.95 ApplianceParts Pro |
| 813 |  | WB1X1261replaces WB01X1261 SCREW GROUND | $7.94 RepairClinic |
| 814 |  | WB1X1258replaces WB01X1258 SCREW | - |
| 819 |  | WB1X1118replaces WB01X1158 SCREW-NICKEL | $7.18 RepairClinic |
| 820 |  | WB1X1424Dreplaces WB01X1424 SCREW, TRANSFORMER | - |
| 906 |  | WB1K5119replaces WB01K5053 SCREW | $7.18 Parts Dr |
| 926 | | WB1X1260replaces WB01X1260 GROUND WASHER | - |
| 934 | – | WB01K5054 WASHER | - |
| 935 | – | WB01X1201 WASHER | - |
| 941 | – | WB01X1399 LOCKWASHER | - |
| 954 | | WB02X9105NLA RETAINER CLIP | Discontinued |
| 979 | – | WB01X1177 SPACER | - |
| 999 | – | 31-1105 INSTALLATION INSTRUCTION | - |
| 999 | – | 31-13002 M/W MINI MAN W/WIRE D | - |
| 999 | – | 31-13082 MINI MANUAL/WIRE DIAGRAM | - |
| 999 | – | 49-8115 OWNERS MANUAL | - |
| 999 | – | WB18K5180 IND LIGHT WIRE HARNESS | - |
| 999 | | LIGHT SWITCH W HARNESS | - |
| 999 | – | WB18K5182 UPPER OVEN WIRE HARNESS | - |
| 999 | – | WB18K5398 MICRO-SWITCH WIRE HARN. | - |
| 999 | – | WB18K5399 MAIN WIRE HARNESS | - |
| 999 | – | WB18K5400 MAINTOP WIRE HARNESS | - |
