Model
GE JHP62N*K2
Range With Microwave Combo
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP62N*K2Range With Microwave Combo
3 diagrams359 parts
Parts Sections (3)

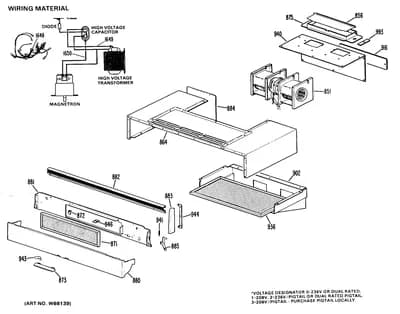

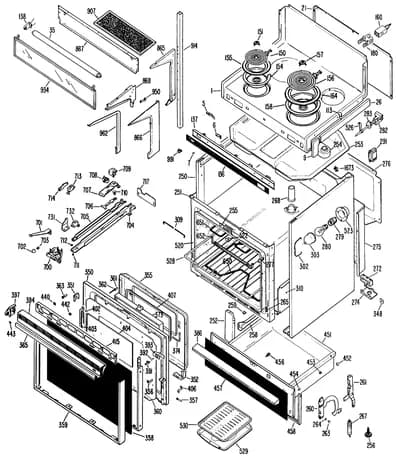

Diagram
Parts List
Parts in Parts List
201 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 4 |  | WB03X5629NLA KNOB SURFACE UNIT | Discontinued |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 5 | | WB02X3468NLA NEON LAMP 240V | Discontinued |
| 11 | – | WB22X5103 SWITCH, OVEN L.O. | - |
| 12 | – | WB03X5627 KNOB OVEN SWITCH | - |
| 14 | – | WB02X6274 SLEEVE | - |
| 14 | | WB02X6454NLA SLEEVE | Discontinued |
| 14 | | WB02X6494NLA BARRIER | Discontinued |
| 14 | – | WB24X0184 THERMOSTAT, DUAL | - |
| 15 | | WB3X5761replaces WB03X5696 KNOB THERMOSTAT | - |
| 18 | – | WB36X5617 CRYSTAL | - |
| 34 | | WB8X5096replaces WB08X5096 SOCKET LAMP | - |
| 39 | – | WB02X6239 BRACKET LAMP | - |
| 145 | | WB1X246replaces WB01X0246 SWITCH NUT | - |
| 148 |  | WB1X536replaces WB01X5763 SCREW | $16.81 Parts Dr |
| 272 |  | BLOCK TERMINAL POWER | $69.99 Parts Dr |
| 280 | – | WB02X7560 LAMP OVEN | - |
| 280 |  | 40A15replaces WX12X1510 40A15 | $8.96 Parts Dr |
| 305 | – | WB02X6653 SPEEDNUT | - |
| 399 | – | WB02X3285 PAD | - |
| 441 | | WB2X7609replaces WB02X7609 BRACE SIDE LH | - |
| 441 | | WB2X7610replaces WB02X7610 BRACE SIDE RH | - |
| 454 | – | WB02X6208 BUMPER | - |
| 459 |  | WB1X537replaces WB01X0537 SCREW | - |
| 461 | | WB1X536replaces WB01X0593 SCREW - DOOR ASM (4 PER) | $16.81 Parts Dr |
| 701 | – | WB15X5133 HANDLE LATCH | - |
| 706 | | WB02X7708NLA PAWL LOCKING | Discontinued |
| 715 | – | WB01X5751 CANOE CLIP | - |
| 733 | – | WB02X7750 BRACKET TRIM | - |
| 734 | – | WB02X7755 BRACKET | - |
| 735 | | WB24X5093NLA SWITCH, "F" LAMP | Discontinued |
| 737 | – | WB02X7766 BRACKET SUPPORT | - |
| 737 | | WB27X5407NLA POWER SUPPLY ASM | Discontinued |
| 739 | – | WB08X5097 RECEPTACLE, FUSTAT | - |
| 742 | | RELAY, POWER | - |
| 746 | – | WB02X7777 MOUNTING BRACKET | - |
| 748 | | SMART BOARD & DISPLAY | - |
| 749 | – | WB01X5578 SCREW MTG TRIM | - |
| 750 | – | WB02X7726 FUSTAT BRACKET | - |
| 752 | | HINGE LOWER | - |
| 753 | | WB2X7103replaces WB02X7103 SPACER-HINGE | - |
| 755 | – | WB02X7753 BRACKET | - |
| 756 | – | WB02X7733 BRACKET | - |
| 757 | – | WB02X7734 CUSHION | - |
| 758 | – | WB02X7660 HOLDER PROBE | - |
| 759 | – | WB02X7751 BULB HOLDER BRACKET | - |
| 760 | – | WB02X7625 STOPPER | - |
| 761 | – | WB02X7752 BRACKET | - |
| 762 | – | WB02X7761 UNKNOWN | - |
| 763 | | WB2X1665replaces WB02X1665 CLIP FILTER | - |
| 764 | – | WB49X5392 BOTTOM CASE | - |
| 766 | | MOTOR, STIRRER | - |
| 768 | | MOTOR, BLOWER | - |
| 769 |  | WB27X10249replaces WB27X5410 MAGNETRON | $263.32 PartSelect |
| 770 | | THERMOSTAT | - |
| 772 | – | WB02X7731 HV CAPACITOR BRACKET | - |
| 773 |  | WB27X10073replaces WB27X0254 CAPACITOR | $87.26 Parts Dr |
| 774 |  | WB27X1160replaces WB27X5333 RECTIFIER | $79.64 Part Advantage |
| 775 | | WB24X353replaces WB24X0353 SWITCH, MONITOR | - |
| 776 | | WB24X0352NLA SWITCH, DOOR | Discontinued |
| 777 | | PROBE | - |
| 778 | | SHELF | - |
| 779 | – | WB01X5588 NUT RECEPTACLE | - |
| 779 | – | WB02X7552 SPACER | - |
| 779 | – | WB20X5053 RECEPTACLE PROBE | - |
| 782 |  | TERMINAL BLOCK ASSY (2 P | - |
| 786 | – | WB02X4114 BLADE FAN | - |
| 787 | | WB02X7640NLA SUPPORT RACK | Discontinued |
| 788 | – | WB17X5064 HOUSING SOCKET PKG 4 P1N | - |
| 788 | – | WB17X5079 HOUSING SOCKET PKG 6 PIN | - |
| 789 | | RELAY | - |
| 791 | – | WB48X5088 RACK | - |
| 792 | | THERMAL CUTOUT | - |
| 793 | – | WB07X6952 MICROWAVE DOOR TRIM | - |
| 794 | – | WB02X7770 SPACER | - |
| 795 | – | WB07X6951 TRIM CRYSTAL | - |
| 796 | – | WB02X6654 SPEEDNUT U TYPE | - |
| 797 | – | WB36X5604 CRYSTAL | - |
| 798 | – | WB02X7754 BRACKET-TOUCH CONTROL | - |
| 799 | – | WB02X7769 HOLDER | - |
| 809 | | HANDLE DOOR | - |
| 811 | – | WB55X5285 LINER & CHOKE ASM. | - |
| 814 | – | WB02X7647 FILM | - |
| 815 | | WB2X7642replaces WB02X7642 FERRITE RUBBER TOP & BTM | - |
| 815 | – | WB02X7643 FERRITE TOP & BOTTOM | - |
| 817 | | DOOR KEY PACKAGE | - |
| 818 | | WB07X6900NLA TRIM HANDLE | Discontinued |
| 820 | | HOOK SPACER | - |
| 821 | – | WB10X5179 HINGE UPPER | - |
| 822 | – | WB02X7735 SASH | - |
| 824 | | WB02X7559NLA PIN KEY LEVER | Discontinued |
| 825 | – | WB02X7857 DOOR SASH RUBBER | - |
| 882 | | WB07X6793NLA TRIM HOOD | Discontinued |
| 891 |  | WR62X51replaces WB27X5414 CAPACITOR | $75.95 ApplianceParts Pro |
| 906 | – | WB02X6930 GROMMET STRIP | - |
| 906 | – | WB56X6030 CASE SIDE-LT-WHITE | - |
| 906 | – | WB56X6031 CASE SIDE RH HA | - |
| 906 | – | WB56X6032 CASE SIDE-LT-ALMOND | - |
| 906 | – | WB56X6035 CASE SIDE-RT-WHITE | - |
| 906 | – | WB56X6036 CASE SIDE LH HA | - |
| 906 | – | WB56X6037 CASE SIDE-RT-ALMOND | - |
| 923 | | WB7X6948replaces WB07X6948 TRIM CONTROL | - |
| 924 | – | WB49X5387 BOTTOM WINDOW | - |
| 926 | – | WB02X7778 BRACKET INSTRUMENT | - |
| 952 | – | WB49X5292 SIDE DUCT | - |
| 954 | – | WB56X6077 TOP CASE | - |
| 957 | – | WB02X7231 BRACE OVEN | - |
| 958 | – | WB49X5393 BAFFLE | - |
| 959 | – | WB10X5165 DOOR HOOK UPPER | - |
| 959 | | DOOR HOOK LOWER | - |
| 961 | – | WB01X5750 CRYSTAL CLIP | - |
| 963 | – | WB02X7729 CONTROL PANEL HINGE | - |
| 964 | – | WB02X7230 BRACE ANGLE | - |
| 966 | – | WB02X7234 GRILLE COVER | - |
| 967 | – | WB07X6953 UNKNOWN | - |
| 969 | – | WB49X5394 LAMP COVER | - |
| 992 | – | WB02X7762 BUTTON PLUG | - |
| 994 | – | WB02X7723 BOTTOM WINDOW | - |
| 996 | – | WB02X7624 STOPPER | - |
| 997 | – | WB02X7580 SPACER | - |
| 998 | – | WB02X7628 HOOK SPACER | - |
| 1201 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 1202 | – | WB49X5386 BASE | - |
| 1208 | – | WB02X7724 AIR GUIDE | - |
| 1216 | – | WB02X7727 EXHAUST GUIDE | - |
| 1220 | – | WB02X7635 AIR GUIDE | - |
| 1401 | – | WB53X5130 UNKNOWN | - |
| 1419 | | WB2X7626replaces WB02X7626 ANTENNA | - |
| 1433 | – | WB27X5398 TRANSFORMER, HI-VOLTAGE | - |
| 1462 | – | WB02X7544 CLIP MTG EXHAUST GUIDE | - |
| 1485 | – | WB02X7730 SHIELD LAMP | - |
| 1491 | | WB2X7728replaces WB02X7728 ORIFICE | - |
| 1622 | – | WB24X0201 SWITCH, FAN | - |
| 1654 | | KEY PANEL ASM | - |
| 1803 | | WB07X6925NLA TRIM DOOR | Discontinued |
| 1805 | | FRAME INNER | - |
| 1806 | | DOOR INNER-M/W | - |
| 1815 | – | WB09X5112 SPRING DOOR KEY | - |
| 1822 | – | WB36X5602 WINDOW OUTER | - |
| 2101 | – | WB07X6954 TRIM LOWER | - |
| 32767 | – | 31-0557 PM MANUAL MINI | - |
| 32767 | – | 31-0565 PM MANUAL MINI | - |
| 32767 | – | 31-0649 INSTALL INSTR | - |
| 32767 | – | 49-4706 COOKBOOK | - |
| 32767 | – | 49-4794 MANUAL USERS | - |
| 32767 | | WB1X438replaces WB01X0438 SCREW & WASHER ASM | - |
| 32767 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 32767 | | WB1X536replaces WB01X0536 SCREW | $16.81 Parts Dr |
| 32767 | – | WB01X5471 SCR 8-18 AB T 15/32 S | - |
| 32767 | – | WB01X5497 SCR 10-16 AB IHW 1/2 S | - |
| 32767 | – | WB01X5520 SPEEDNUT | - |
| 32767 | – | WB01X5552 WASHER | - |
| 32767 | | WB2X1222replaces WB02X1222 PAD GLASS (FELT) | - |
| 32767 | – | WB02X1579 PAD | - |
| 32767 | | WB02X1659NLA SPEEDNUT | Discontinued |
| 32767 | – | WB02X2107 SLEEVE DETENT | - |
| 32767 | – | WB02X3191 GASKET | - |
| 32767 | – | WB02X3238 PAD | - |
| 32767 | – | WB02X6857 PAD | - |
| 32767 | | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 32767 | – | WB22X5103 SWITCH, OVEN L.O. | - |
| 32767 | – | WB24X0105 SWITCH, OVEN LIGHT | - |
| 32767 | – | WB24X0184 THERMOSTAT, DUAL | - |
| 32767 | – | WB24X0201 SWITCH, FAN | - |
| 32767 | | WB24X5093NLA SWITCH, "F" LAMP | Discontinued |
| 32767 | – | WB24X5138 SWITCH, THERMAL (TLS) | - |
| 32767 |  | WB30M1replaces WB30X5071 SURFACE UNIT, 6" | $32.76 Part Advantage |
| 32767 |  | WB30M2replaces WB30X5072 SURFACE UNIT, 8" | $44.65 Part Advantage |
| 32767 |  | WB44X173replaces WB44X0185 BROIL UNIT 208/240V L.O. | $22.62 Part Advantage |
| 32767 |  | BAKE UNIT 208/240V | $31.77 Part Advantage |
| 32767 | – | WB56X6002 COVER SUPPORT RH DS | - |
| 32767 | – | WB56X6003 COVER SUPPORT RH SL | - |
| 32767 | – | WB56X6004 COVER SUPPORT LH DS | - |
| 32767 | – | WB56X6005 COVER SUPPORT LH SL | - |
| 32767 | – | WB56X6006 PANEL CRYSTAL RH DS | - |
| 32767 | – | WB56X6007 PANEL CRYSTAL RH SL | - |
| 32767 | – | WB56X6008 PANEL CRYSTAL LH DS | - |
| 32767 | – | WB56X6009 PANEL CRYSTAL LH SL | - |
| 32767 | – | WB56X6033 CASE SIDE RH DS | - |
| 32767 | – | WB56X6034 CASE SIDE RH SL | - |
| 32767 | – | WB56X6038 CASE SIDE LH DS | - |
| 32767 | – | WB56X6039 CASE SIDE LH SL | - |
| 32767 | – | WZ02X0546 SCR 8-32 M PHR 1/2 S | - |
| 32767 | – | WZ04X0217 SCR 6-20 B HXW 1/4 S | - |
| 32767 | – | WZ04X0218 SCR 6-20 AB PH 3/8 S | - |
| 32767 |  | WZ4X345Dreplaces WZ04X0232 SCR 8-18 AB HXS 3/8 S | - |
| 32767 | | WZ04X0288NLA SCREW 10-16 X 1/2" HEX | Discontinued |
| 32767 | | WZ4X345Dreplaces WZ04X0291 SCR 8-18 AB HXW 3/8 S | - |
| 32767 | – | WZ04X0314 SCR 8-18 AB HXS 1/4 S | - |
| 32767 | | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 32767 | – | WZ04X0348 SCR 10-16 B SL 1-1/8 S | - |
| 32767 | | WZ4X248replaces WZ04X0361 SCREW MTG. TRIM LAMP | - |
| 32767 | – | WZ04X0396 SCR 10-16 B HXW 1/4 S | - |
| 32767 | – | WZ04X0397 SCR 6-32 C FLR 5/16 S | - |
| 32767 | – | WZ04X0413 SCREW | - |
| 32767 | | WZ4X421Dreplaces WZ04X0421 SCR 8-18 B HXW 3/8 S | - |
| 32767 | | WZ5X124Dreplaces WZ05X0124 SCREW SWITCH 5/8 S | - |
| 32767 |  | WZ5X158Dreplaces WZ05X0134 SCR 8-32 T HXW 3/8 S | $27.34 ApplianceParts Pro |
| 32767 | – | WZ06X0038 SCR 8-18 AB HXW 5/8 S | - |
| 32767 | – | WZ06X0082 SCR 8-18 B HXW 3/8 S | - |
