Model
GE JHP62N*K3
Range With Microwave Combo
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP62N*K3Range With Microwave Combo
3 diagrams314 parts
Parts Sections (3)

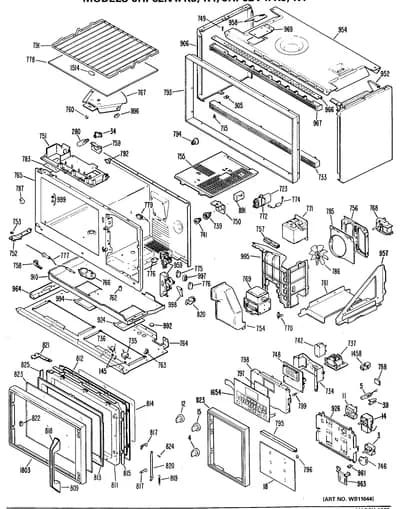

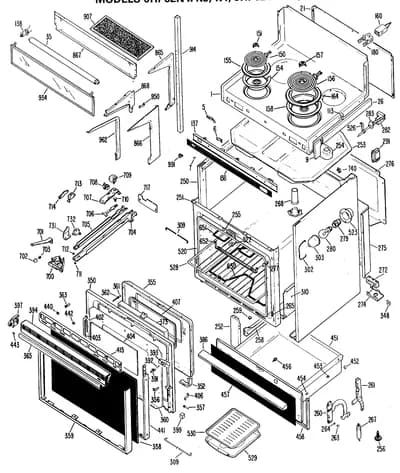

Diagram

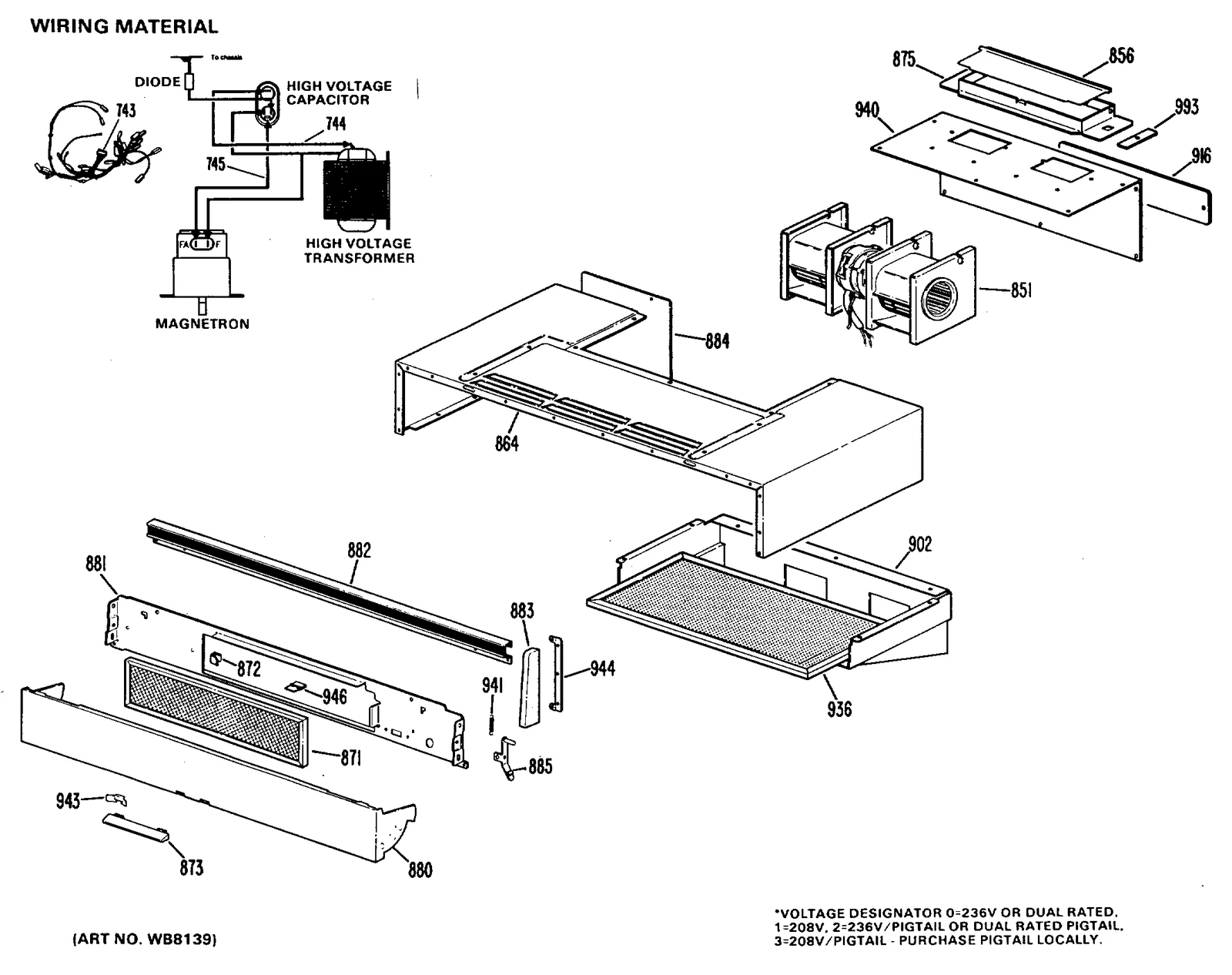

WIRING MATERIAL
Parts in WIRING MATERIAL
48 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 7 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 148 |  | WB1X536replaces WB01X5763 SCREW | $16.81 Parts Dr |
| 459 |  | WB1X537replaces WB01X0537 SCREW | - |
| 461 | | WB1X536replaces WB01X0593 SCREW - DOOR ASM (4 PER) | $16.81 Parts Dr |
| 743 | – | WB18X5098 WIRE HARNESS | - |
| 744 | – | WB18X5096 LEAD WIRE | - |
| 745 | – | WB18X5097 LEAD WIRE | - |
| 773 |  | WB27X10073replaces WB27X0254 CAPACITOR | $87.26 Parts Dr |
| 782 |  | TERMINAL BLOCK ASSY (2 P | - |
| 851 | – | WB26X5083 BLOWER MOTOR | - |
| 864 | – | WB56X6074 HOOD BODY WH | - |
| 864 | – | WB56X6075 HOOD BODY HA | - |
| 864 | – | WB56X6076 HOOD BODY AD | - |
| 871 |  | WB02X7758NLA FILTER GREASE | Discontinued |
| 872 | – | WB02X1583 CLIP HOOD FILTER | - |
| 873 | | HANDLE HOOD PANEL | - |
| 880 | | WB56X6084replaces WB56X5896 PANEL HOOD | - |
| 881 | – | WB49X5390 PLATE FILTER | - |
| 882 | | WB07X6793NLA TRIM HOOD | Discontinued |
| 883 | – | WB07X6791 END CAP RH | - |
| 883 | – | WB07X6792 END CAP LH | - |
| 884 | – | WB02X2017 COVER BACK | - |
| 885 | – | WB02X7216 SPRING & PIN ASM | - |
| 902 | – | WB49X5391 PLENUM AIR | - |
| 916 | – | WB02X7759 COVER | - |
| 936 | – | WB02X7692 FILTER COMBINATION | - |
| 940 | – | WB02X7760 COVER HOUSING | - |
| 941 | | WB9X5099replaces WB09X5099 SPRING | - |
| 943 | – | WB02X7217 RETAINER CLIP | - |
| 944 | – | WB02X3461 BRACKET MOUNTING | - |
| 946 | – | WB02X6734 CLIP FILTER | - |
| 989 | – | WB01X0425 SCREW | - |
| 1201 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 32767 | – | 31-0638 INSTALL INSTRUCTIONS | - |
| 32767 | – | 31-0649 INSTALL INSTR | - |
| 32767 | – | 49-4706 COOKBOOK | - |
| 32767 | – | 49-4824 USERS MANUAL | - |
| 32767 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 32767 | – | WB22X5103 SWITCH, OVEN L.O. | - |
| 32767 | – | WB24X0105 SWITCH, OVEN LIGHT | - |
| 32767 | – | WB24X0184 THERMOSTAT, DUAL | - |
| 32767 | | WB24X5093NLA SWITCH, "F" LAMP | Discontinued |
| 32767 | – | WB24X5138 SWITCH, THERMAL (TLS) | - |
| 32767 | | SWITCH, FAN | - |
| 32767 |  | WB30M1replaces WB30X5071 SURFACE UNIT, 6" | $32.76 Part Advantage |
| 32767 |  | WB30M2replaces WB30X5072 SURFACE UNIT, 8" | $44.65 Part Advantage |
| 32767 |  | WB44X173replaces WB44X0185 BROIL UNIT 208/240V L.O. | $22.62 Part Advantage |
| 32767 |  | BAKE UNIT 208/240V | $31.77 Part Advantage |
