Model
GE JHP63GN1
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP63GN1Electric Range
5 diagrams292 parts

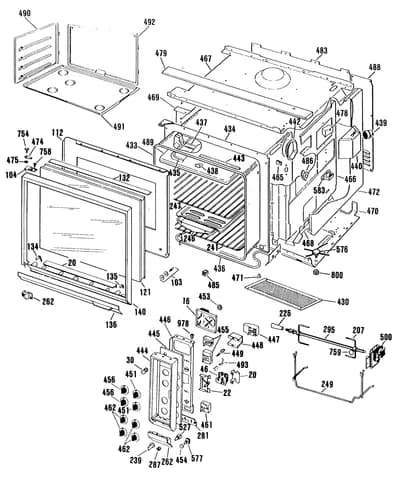

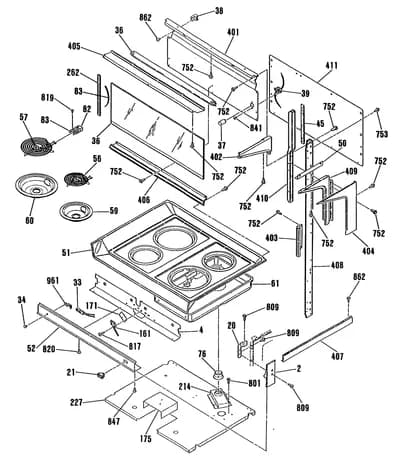

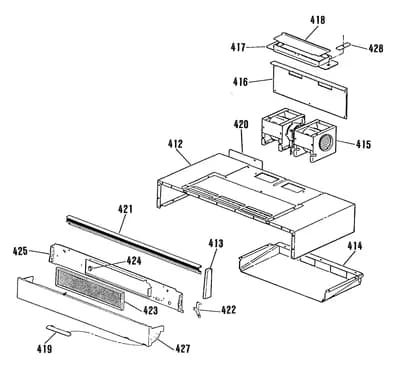

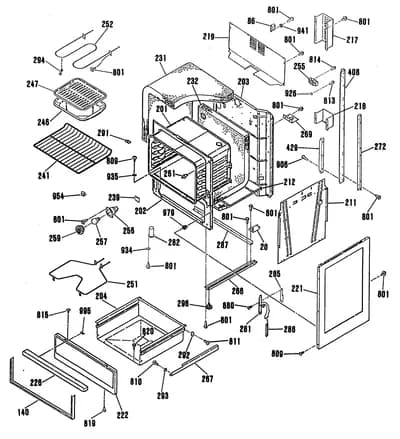

Parts Sections (5)

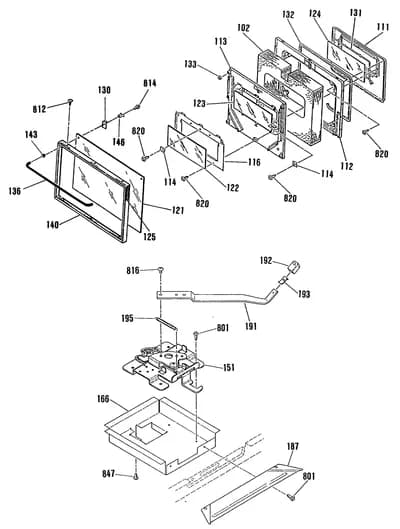

Diagram
Parts List
Parts in Parts List
61 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 14 | – | WB02X7300 COVER | - |
| 102 |  | WB35K5113replaces WB02X9144 INSULATION OV BTM & BACK | - |
| 111 | – | WB55M0010 OV DR LINING PLUG | - |
| 112 | – | WB55X0289 DOOR LANER | - |
| 112 | – | WB56K5026 OV DR LINING | - |
| 113 | – | WB02M0056 OV DR INS RETAINER | - |
| 116 | – | WB02X9178 GLASS MTG PLATE | - |
| 121 | | WB36X5620NLA WINDOW-UPPER OVEN | Discontinued |
| 121 | | OV DR GLASS W/REFLECTOR | - |
| 122 | – | WB56X1906 GLASS-INTERMEDIATE | - |
| 123 | – | WB56X1907 INNER GLASS | - |
| 124 | | WB57M0001NLA OV DR INNER GLASS | Discontinued |
| 125 | – | WB07X1771 UNKNOWN | - |
| 130 | – | WB02M0045 UNKNOWN | - |

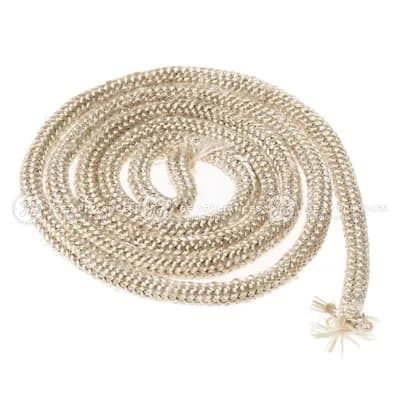

| 131 |  | WB2X9168replaces WB02X9381 SEAL-INNER | $13.80 Parts Dr |
| 132 | – | WB02X2823 GASKET | - |
| 132 |  | WB2X9373replaces WB02X9373 OV DR GASKET | $73.95 ApplianceParts Pro |
| 133 | – | WB01X1159 WASHER | - |
| 136 | – | WB15M0004 UNKNOWN | - |
| 136 | – | WB15X0111 HANDLE DOOR | - |
| 140 | – | WB07X7048 OVEN DOOR FRAME-UPPER | - |
| 140 | – | WB56K5027 OV DR FRAME W/OVERLAY | - |
| 140 | – | WB56M0012 LOWER FRONT PNL FRAME | - |
| 143 | – | WB02M0044 UNKNOWN | - |
| 146 | | WB2M46replaces WB02M0046 SPACER | - |
| 151 | – | WB10X0268 LATCH ASM | - |
| 166 | – | WB58M0002 LATCH MOUNTING BOX | - |
| 187 | – | WB34M0033 MOISTURE SHIELD | - |
| 191 | – | WB15M0006 LOCK HANDLE | - |
| 192 | – | WB03X0782 KNOB-LOCK | - |
| 193 | – | WB02X9404 KNOB CUP | - |
| 195 | – | WB09X0251 SPRING | - |
| 254 | – | WB08K5008 RECEPTACLE JACK | - |
| 255 |  | WB17X5095replaces WB17M0005 POWER RING HOUSING | $69.99 Parts Dr |
| 280 |  | WB20T10024replaces WB20X5058 MEAT PROBE | $43.70 Part Advantage |
| 801 |  | WB1M1replaces WB01M0001 SCREW | $7.64 RepairClinic |
| 812 |  | WB1K5191replaces WB01X1133 SCREW | $7.95 ApplianceParts Pro |
| 814 |  | WB1X1258replaces WB01X1258 SCREW | - |
| 816 | | WB1K12replaces WB01X1125 SCREW | $6.38 RepairClinic |
| 820 |  | WB1X1424Dreplaces WB01X1424 SCREW, TRANSFORMER | - |
| 847 |  | WB1X1118replaces WB01X1180 SCREW-BLACK | $7.18 RepairClinic |
| 942 | | WB1X5573replaces WB01X5573 WASHER | - |
| 998 |  | WB1X5572replaces WB01X5572 NUT MEAT PROBE | - |
| 999 | – | 31-0998 INSTALLION INSTRUCTION | - |
| 999 | – | 31-13047 MINI MANUAL/WIRE DIAGRAM | - |
| 999 | – | 49-8114 OWNERS MANUAL | - |
| 999 | – | WB01K5013 SLEEVE-UPPER THERMO | - |
| 999 | – | WB18K5139 MAIN WIRE HARNESS | - |
| 999 | – | WB18K5140 MAINTOP WIRE HARNESS-LT | - |
| 999 | – | WB18K5141 MAINTOP WIRE HARNESS-RT | - |
| 999 | – | WB18K5142 MICRO SWITCH W HARNESS | - |
| 999 | – | WB18K5143 PROBE WIRE HARNESS | - |
| 999 | – | WB18K5144 OV LITE SWITCH W HARNESS | - |
| 999 | – | WB18K5145 UPPER OV WIRE HARNESS | - |
| 999 | | INF SWITCH W HARNESS | - |
| 999 | – | WB18K5147 FAN SWITCH W HARNESS | - |
| 999 | – | WB18K5148 BAKE ELEM WIRE HARNESS | - |
| 999 | – | WB18K5149 BROIL ELEM WIRE HARNESS | - |
| 999 | – | WB18K5150 THERMOSTAT W HARNESS | - |
| 999 | – | WB18K5151 THERMOSTAT WIRE HARNESS | - |
| 999 | – | WB18K5156 W HAR-LO OV CYC/UP OV ON | - |
