Model
GE JHP63GN3WH
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP63GN3WHElectric Range
5 diagrams295 parts
Parts Sections (5)
Diagram
Parts List
Parts in Parts List
58 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 5 |  | THERMOSTAT | - |
| 16 | | SMART BOARD & DISPLAY | - |
| 20 | – | WB02X7726 FUSTAT BRACKET | - |
| 20 | – | WB02X7731 HV CAPACITOR BRACKET | - |
| 20 | – | WB02X7751 BULB HOLDER BRACKET | - |
| 20 | – | WB02X7754 BRACKET-TOUCH CONTROL | - |
| 20 | – | WB02X7778 BRACKET INSTRUMENT | - |
| 28 | – | WB02X7755 BRACKET | - |
| 47 | – | WB02X7724 AIR GUIDE | - |
| 48 | – | WB02X7635 AIR GUIDE | - |
| 79 | – | WB10X5165 DOOR HOOK UPPER | - |
| 91 | – | WB02X7729 CONTROL PANEL HINGE | - |
| 105 | | WB07X6900NLA TRIM HANDLE | Discontinued |
| 107 | | WB02X7559NLA PIN KEY LEVER | Discontinued |
| 109 | | DOOR KEY PACKAGE | - |
| 111 | – | WB55X5286 FRAME INNER | - |
| 112 | – | WB55X5285 LINER & CHOKE ASM. | - |
| 115 | | DOOR INNER-M/W | - |
| 121 | – | WB36X5637 DOOR SCREEN-M/W | - |

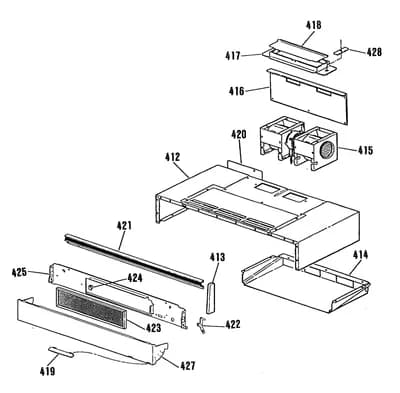

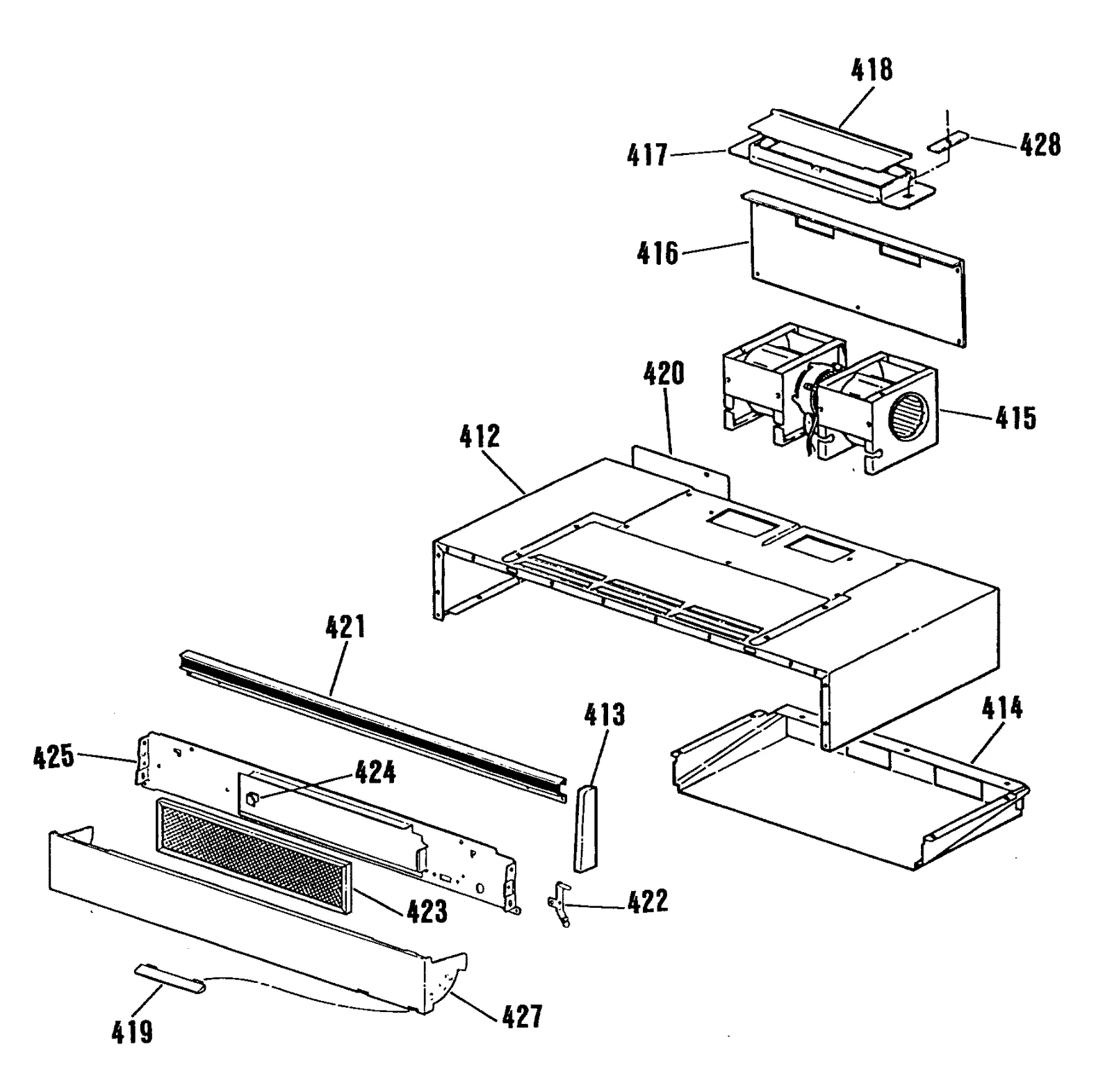

| 412 | – | WB38K5023 HOOD BODY-WHITE | - |
| 413 | – | WB07X0770 END CAP-RT | - |
| 413 | – | WB07X0771 END CAP-LT | - |
| 414 | – | WB49X5470 PLENUM | - |
| 415 | | BLOWER ASM | - |
| 416 | – | WB02X7900 HOUSING COVER | - |
| 417 | – | WB38K5025 EXHAUST ASM | - |
| 418 | – | WB02X7764 DAMPER | - |
| 419 | | WB15X0109NLA HOOD PANEL HANDLE | Discontinued |
| 420 | – | WB02X2017 COVER BACK | - |
| 421 | | WB07X6793NLA TRIM HOOD | Discontinued |
| 422 | – | WB02X3131 SPRING PIN ASM | - |
| 423 | | WB02X7758NLA FILTER GREASE | Discontinued |
| 424 | – | WB02X1583 CLIP HOOD FILTER | - |
| 425 | – | WB02X7776 FILTER PLATE | - |
| 427 | – | 346640 HOOD PANEL | - |
| 428 | – | WB02X7765 PLATE | - |
| 442 | – | WB36X0126 OV LAMP LENS | - |
| 455 | – | WB22X0035 SWITCH, UPPER OV | - |
| 455 | – | WB22X5102 SWITCH, LOWER OV | - |
| 927 |  | WB1X119Dreplaces WB01X1254 WASHER | $9.23 Part Advantage |
| 964 | – | WB01X5751 CANOE CLIP | - |
| 973 | – | WB01X1399 LOCKWASHER | - |
| 999 | – | 31-0998 INSTALLION INSTRUCTION | - |
| 999 | – | 31-13085 MINI MANUAL/WIRE DIAGRAM | - |
| 999 | – | 49-8114 OWNERS MANUAL | - |
| 999 | – | WB01K5013 SLEEVE-UPPER THERMO | - |
| 999 | – | WB18K5143 PROBE WIRE HARNESS | - |
| 999 | – | WB18K5144 OV LITE SWITCH W HARNESS | - |
| 999 | | INF SWITCH W HARNESS | - |
| 999 | – | WB18K5147 FAN SWITCH W HARNESS | - |
| 999 | – | WB18K5150 THERMOSTAT W HARNESS | - |
| 999 | – | WB18K5151 THERMOSTAT WIRE HARNESS | - |
| 999 | – | WB18K5180 IND LIGHT WIRE HARNESS | - |
| 999 | – | WB18K5393 MICRO SWITCH W HARNESS | - |
| 999 | – | WB18K5394 MAIN W HARN W/HSG RING | - |
| 999 | – | WB18K5396 IND LIGHT W HARNESS | - |
| 999 | – | WB18K5400 MAINTOP WIRE HARNESS | - |
| 999 | – | WB18K5403 UPPER OVEN W HARNESS | - |
