Model
GE JHP63GN5WH
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP63GN5WHElectric Range
5 diagrams277 parts
Parts Sections (5)

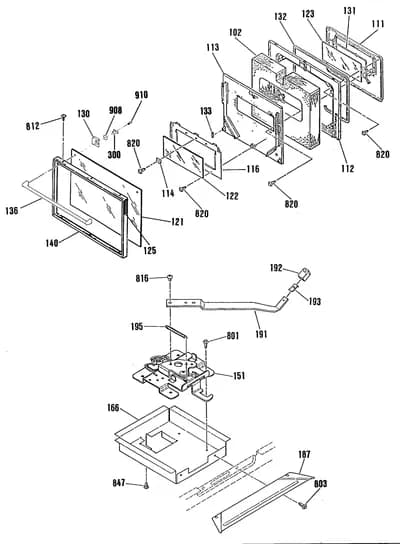

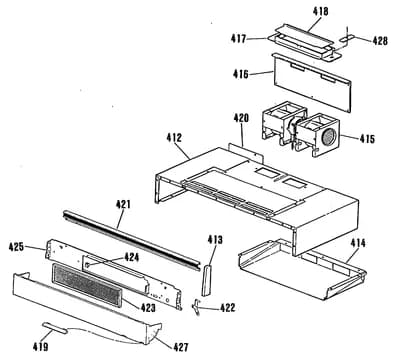

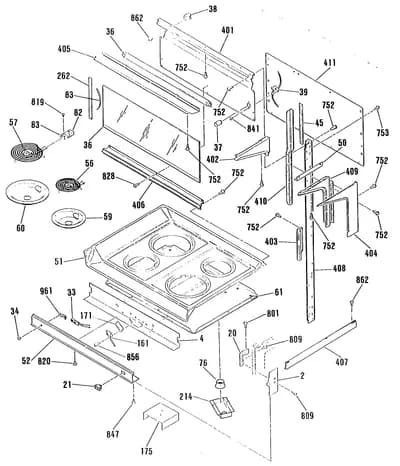

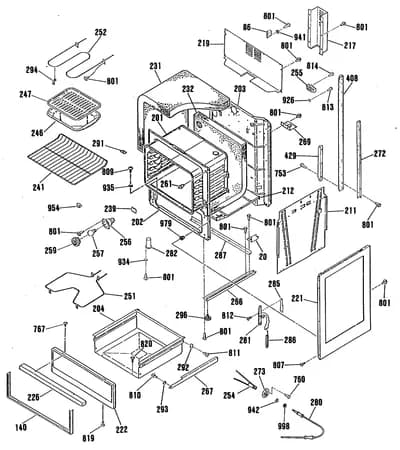

Diagram
Parts List
Parts in Parts List
132 parts

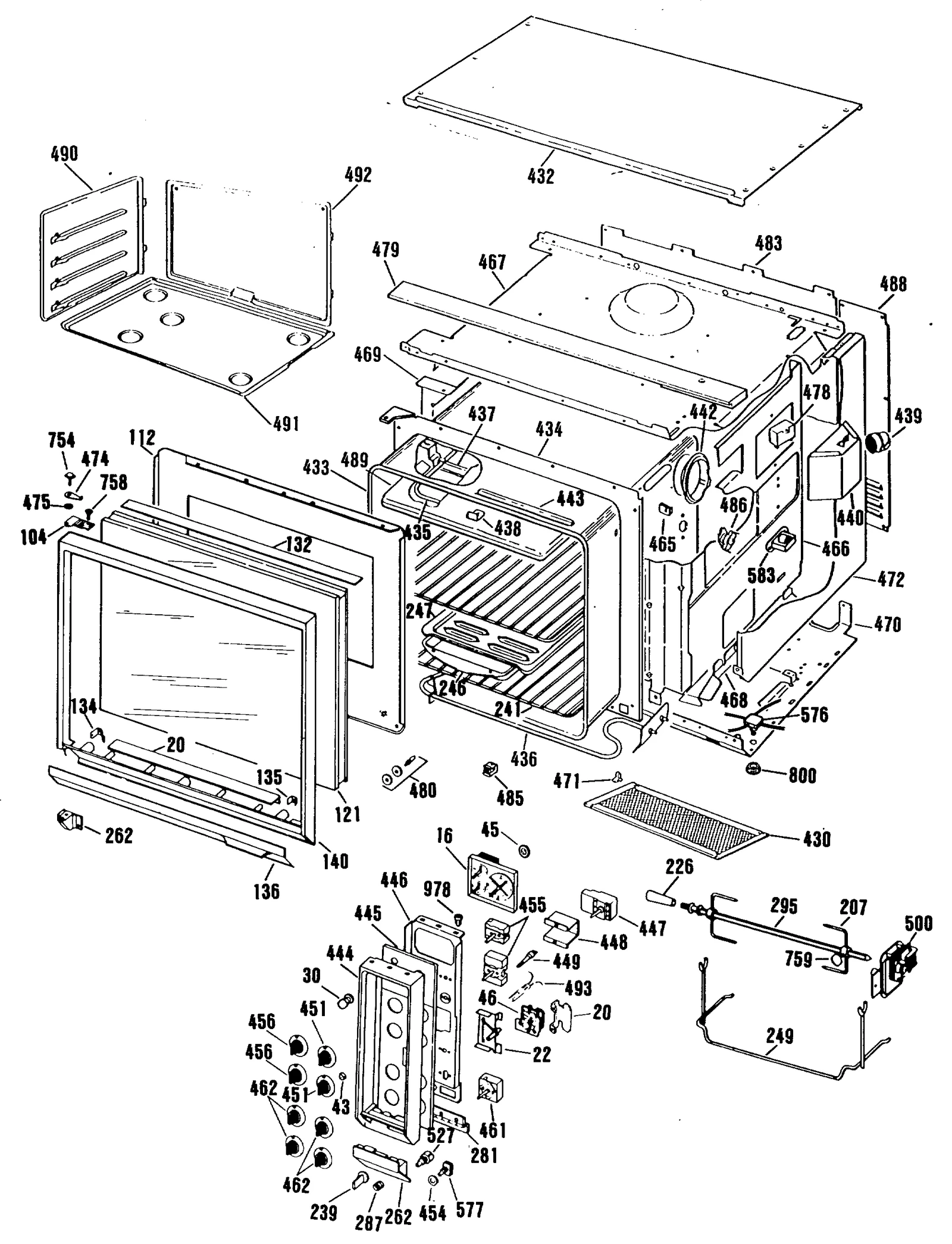

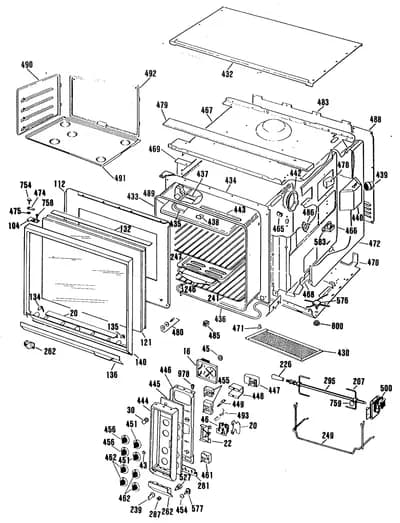

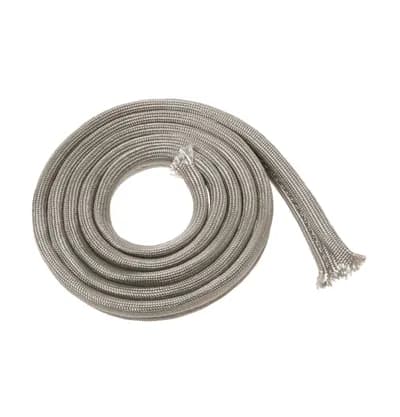

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 16 | – | WB19X0123 TIMER | - |
| 20 | – | WB02K5105 BASE SUPPORT BRACKET-RT | - |
| 20 | – | WB02K5106 BASE SUPPORT BRACKET-LT | - |
| 20 | – | WB02K5107 END CAP BRACKET-RT | - |
| 20 | – | WB02K5108 END CAP BRACKET-LT | - |
| 20 | – | WB02X2651 BRACKET WINDOW | - |
| 20 | – | WB02X3148 BRACKET CIRCUIT BOARD | - |
| 22 | – | WB07X0981 FACE PLATE ASM. | - |
| 30 |  | WB3X5485replaces WB03X5485 KNOB-METER & TIMER | - |
| 43 | | SPACER-UPPER | Discontinued |
| 43 | – | WB02X3463 SPACER "D" RING | - |
| 45 | – | WB01X0540 NUT | - |
| 45 | – | WB02X3001 SPACER - POST | - |
| 46 | – | WB20X0052 CIRCUIT BOARD ASM-THERMO | - |
| 104 | – | WB02X2654 PLATE-HINGE | - |
| 112 | – | WB55K5033 OVEN DOOR LINING | - |
| 112 | – | WB55X0289 DOOR LANER | - |
| 121 | | WB36X5620NLA WINDOW-UPPER OVEN | Discontinued |
| 121 | – | WB57K5091 OV DR OUTER GLASS | - |
| 132 |  | WB2K5319replaces WB02K5221 UNKNOWN | $112.43 Part Advantage |
| 132 | – | WB02X2823 GASKET | - |
| 134 | – | WB02X2653 CLIP SPRING HANDLE | - |
| 135 | – | WB02X2652 CLIP HANDLE | - |
| 136 | – | WB15K5059 UNKNOWN | - |
| 136 | – | WB15X0111 HANDLE DOOR | - |
| 140 | – | WB07X7048 OVEN DOOR FRAME-UPPER | - |
| 140 | – | WB56K5027 OV DR FRAME W/OVERLAY | - |
| 140 | – | WB56M0012 LOWER FRONT PNL FRAME | - |
| 207 | | WB2X1167replaces WB02X1167 SKEWER ASM | - |
| 226 | | WB15M0008NLA STORAGE DRAWER HANDLE | Discontinued |
| 226 | – | WB15X0080 HANDLE-BLADE | - |
| 239 | – | WB02X2658 PUSHBUTTON | - |
| 239 | | WB2X9189replaces WB02X9189 PLUG BUTTON-RECTANGULAR | - |
| 241 | | WB48X0090NLA OVEN RACK-UPPER | Discontinued |
| 241 | – | WB48X0208 OVEN RACK | - |
| 246 |  | WB48X10056replaces WB48M0003 BROILER PAN | $16.74 Part Advantage |
| 246 | | WB49X5379NLA BROIL PAN SMALL | Discontinued |
| 247 |  | WB48K10016replaces WB48K5017 BROILER PAN GRID-SMALL | $17.58 Part Advantage |
| 247 | | WB48X10056replaces WB49X0627 BROILER PAN GRID | $16.74 Part Advantage |
| 249 | – | WB48X0062 SUPPORT SPIT | - |
| 262 | – | WB07K5026 PUSH BUTTON TRIM | - |
| 262 | – | WB07K5029 BACKSPLASH GLASS TRIM | - |
| 262 | – | WB07X0777 TRIM HINGE | - |
| 281 | – | WB14X0038 HINGE | - |
| 281 |  | WB14X103replaces WB14X0103 HINGE ASM-LT | $46.64 Part Advantage |
| 281 |  | WB14X104replaces WB14X0104 HINGE ASM-RT | $42.20 Part Advantage |
| 287 | – | WB09X0117 SPRING-SWITCHES | - |
| 287 | – | WB63K5068 MAIN BACK & BASE STRAP | - |
| 295 | – | WB02X1529 SPIT BLADE | - |
| 428 | – | WB02X7765 PLATE | - |
| 430 | | WB02X1666NLA FILTER | Discontinued |
| 433 | – | WB63K5152 OVEN BODY | - |
| 434 | – | WB56X5802 FRAME | - |
| 435 | | BROIL ELEMENT-UPPER | - |
| 436 | | BAKE ELEMENT-UPPER | - |
| 437 | | WB02X1509NLA BROIL UNIT SUPPORT | Discontinued |
| 438 | | WB2X6209replaces WB02X6209 CLIP TRIM | - |
| 439 |  | WB8K5029replaces WB08K5029 RECEPTACLE | - |
| 440 | | WB2X1520replaces WB02X1520 SHIELD-MT. LAMP | - |
| 442 | – | WB36X0126 OV LAMP LENS | - |
| 443 | | WB02X2957NLA GASKET SILICONE UP OVEN | Discontinued |
| 444 | – | WB07X7049 CONTROL TRIM | - |
| 445 | – | WB36X5621 CRYSTAL | - |
| 446 | – | WB02X3197 BRACKET-INSTRUMENT | - |
| 447 | – | WB20K5012 THERMO-LOWER OVEN | - |
| 447 | | THERMOSTAT, OVEN L.O. | - |
| 448 | – | WB02X2657 BRACKET THERMO UPPER | - |
| 448 | – | WB02X6455 THERMOSTAT BRACKET-LOWER | - |
| 449 | – | WB02X3219 SHAFT EXTENSION-LOWER OV | - |
| 449 | – | WB02X3464 EXTENSION SHAFT | - |
| 451 | – | WB03X0463 KNOB-THERMOSTAT | - |
| 451 | – | WB03X0495 KNOB-THERMOSTAT-UPPER | - |
| 454 | – | WB01X0245 NUT MTG LIGHT SWITCH | - |
| 455 | – | WB22X0035 SWITCH, UPPER OV | - |
| 455 | – | WB22X5102 SWITCH, LOWER OV | - |
| 456 | | WB3X481replaces WB03X0462 KNOB-OVEN SWITCH | - |
| 456 | | WB3X494replaces WB03X0494 KNOB-SWITCH UPPER | - |
| 459 |  | WB1X537replaces WB01X0537 SCREW | - |
| 461 |  | WB21X36771replaces WB21X5243 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 462 | | KNOB SURFACE UNIT | Discontinued |
| 465 | – | WB02X6653 SPEEDNUT | - |
| 466 | – | WB55X5323 INSULATION GUARD | - |
| 467 | – | WB55X5346 INSULATION GUARD-TOP | - |
| 468 | – | WB55X0198 GUARD INSULATION LOWER | - |
| 469 | – | WB49X0179 DUCT AIR | - |
| 470 | – | WB55X0396 BOTTOM CASE | - |
| 471 | | WB2X1665replaces WB02X1665 CLIP FILTER | - |
| 472 | – | WB56X1456 CASE SIDE RH WH | - |
| 472 | – | WB56X1461 CASE SIDE LH WH | - |
| 474 | – | WB02X2655 FRICTION PLATE | - |
| 475 | – | WB01X0517 WASHER | - |
| 478 | – | WB08K5010 CAPACITOR | - |
| 479 | – | WB07X0776 DEFLECTOR | - |
| 480 | – | WB01X5508 WASHER | - |
| 483 | – | WB49X5463 BACK COVER | - |
| 485 | – | WB02X1570 CATCH SPRING | - |
| 486 | | SWITCH, THERMAL FAN | - |
| 488 | – | WB49X0301 INSTRUMENT COVER | - |
| 489 | | BROILER REFLECTOR | - |
| 490 | – | WB56X6056 SIDE PANEL-LT | - |
| 490 | – | WB56X6060 PANEL ASM RH | - |
| 491 | – | WB56X6058 BOTTOM PANEL | - |
| 492 | – | WB56X6059 REAR PANEL | - |
| 500 | | MOTOR ROTISSERIE | - |
| 527 | | SWITCH, FAN | - |
| 576 | | LIGHT SWITCH-OVEN LIGHT | - |
| 577 | | WB24K5023NLA LIGHT SWITCH | Discontinued |
| 583 | – | WB20X0057 TRANSFORMER | - |
| 754 | – | WB01X0400 SCREW | - |
| 800 | | WB1X246replaces WB01X0246 SWITCH NUT | - |
| 817 | – | WB01X1346 SCREW | - |
| 841 | – | WB01X1171 SCREW TC6-32X.312RD CAD | - |
| 906 |  | WB1K5119replaces WB01K5053 SCREW | $7.18 Parts Dr |
| 967 | – | WB02X1422 CLAMP HARNESS | - |
| 978 | – | WB01X0519 NUT EXPANSION | - |
| 999 | – | 31-0998 INSTALLION INSTRUCTION | - |
| 999 | – | 31-13085 MINI MANUAL/WIRE DIAGRAM | - |
| 999 | – | 49-8114 OWNERS MANUAL | - |
| 999 | – | WB01K5013 SLEEVE-UPPER THERMO | - |
| 999 | – | WB18K5143 PROBE WIRE HARNESS | - |
| 999 | – | WB18K5144 OV LITE SWITCH W HARNESS | - |
| 999 | | INF SWITCH W HARNESS | - |
| 999 | – | WB18K5147 FAN SWITCH W HARNESS | - |
| 999 | – | WB18K5150 THERMOSTAT W HARNESS | - |
| 999 | – | WB18K5151 THERMOSTAT WIRE HARNESS | - |
| 999 | – | WB18K5154 IND LIGHT HARNESS-UPPER | - |
| 999 | – | WB18K5180 IND LIGHT WIRE HARNESS | - |
| 999 | – | WB18K5393 MICRO SWITCH W HARNESS | - |
| 999 | – | WB18K5394 MAIN W HARN W/HSG RING | - |
| 999 | – | WB18K5396 IND LIGHT W HARNESS | - |
| 999 | – | WB18K5400 MAINTOP WIRE HARNESS | - |
| 999 | – | WB18K5403 UPPER OVEN W HARNESS | - |
