Model
GE JHP63V*K1
Range With Microwave Combo
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP63V*K1Range With Microwave Combo
3 diagrams332 parts

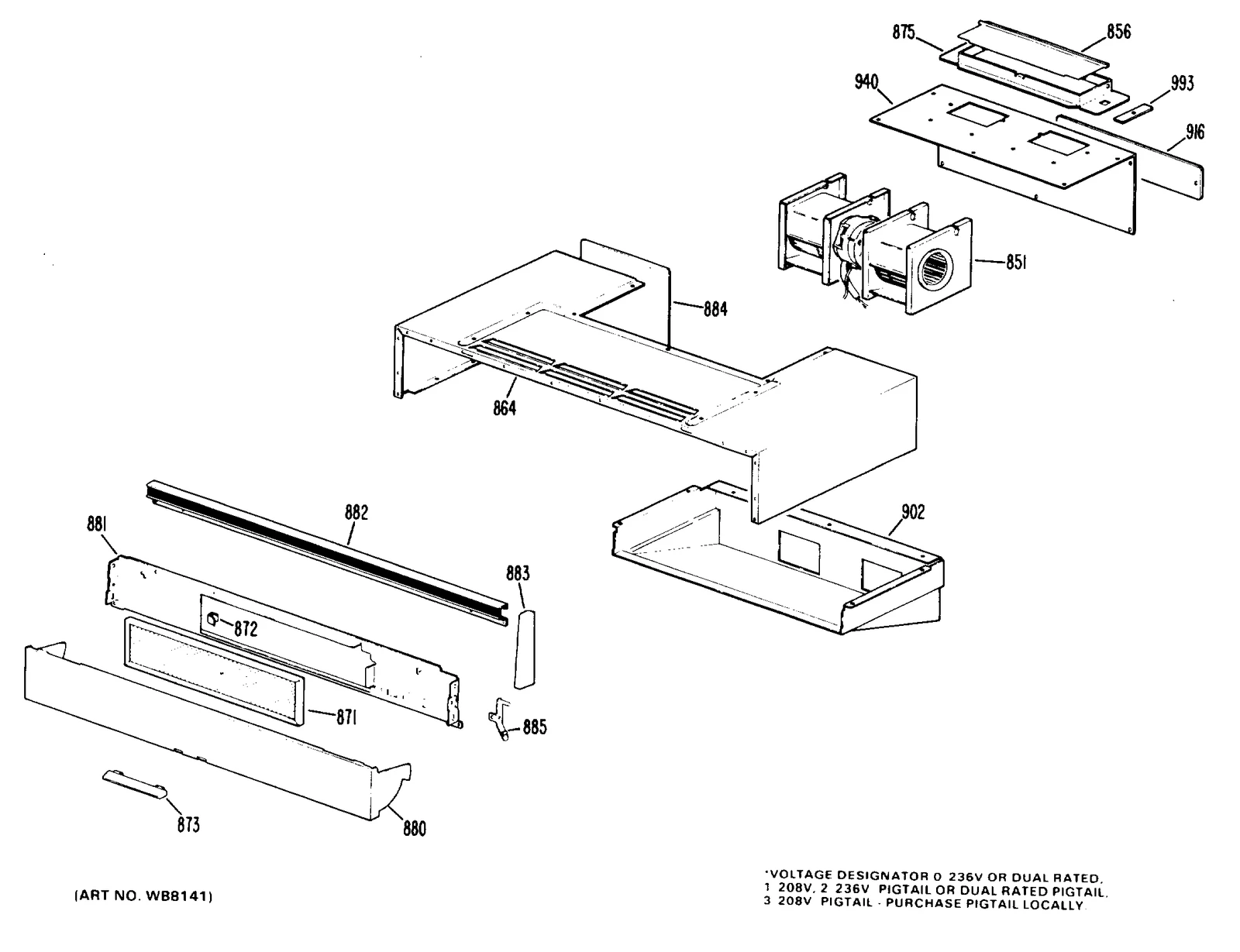

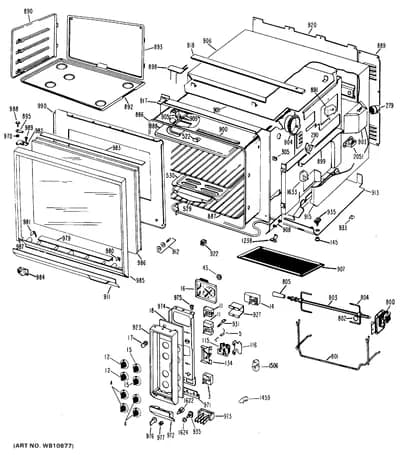

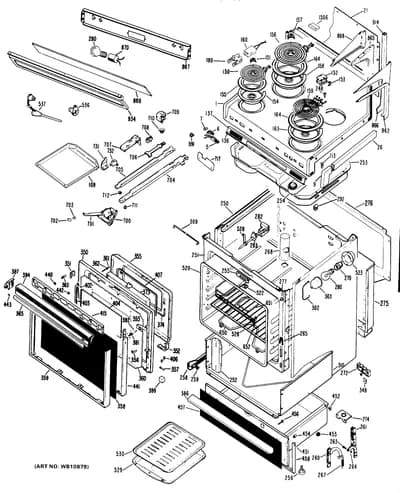

Parts Sections (3)
Diagram
Parts List
Parts in Parts List
98 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 14 | – | WB02X6274 SLEEVE | - |
| 18 | – | WB36X5563 CRYSTAL | - |
| 45 | – | WB01X0540 NUT | - |
| 138 | – | WB08X0164 SOCKET - LAMP | - |
| 148 |  | WB1X536replaces WB01X5763 SCREW | $16.81 Parts Dr |
| 148 | – | WZ04X0237 SCREW | - |
| 272 |  | BLOCK TERMINAL POWER | $69.99 Parts Dr |
| 291 | – | WB02X1546 BALLAST | - |
| 458 | – | WB07X5659 TRIM DRAWER | - |
| 459 |  | WB1X537replaces WB01X0537 SCREW | - |
| 537 |  | WB20X0054NLA PROBE | Discontinued |
| 701 | – | WB15X5133 HANDLE LATCH | - |
| 706 | | WB02X7708NLA PAWL LOCKING | Discontinued |
| 735 | | WB24X5093NLA SWITCH, "F" LAMP | Discontinued |
| 740 | – | WB02X7226 CLIP WIRE | - |
| 851 | – | WB26X5083 BLOWER MOTOR | - |
| 856 | – | WB02X7764 DAMPER | - |
| 864 | – | WB56X6074 HOOD BODY WH | - |
| 864 | – | WB56X6075 HOOD BODY HA | - |
| 864 | – | WB56X6076 HOOD BODY AD | - |
| 868 | – | WB07X1179 PANEL CRYSTAL RH WH | - |
| 868 | – | WB07X1182 PANEL CRYSTAL RH HA | - |
| 868 | – | WB07X1183 PANEL CRYSTAL RH AD | - |
| 868 | – | WB07X1184 PANEL CRYSTAL LH WH | - |
| 868 | – | WB07X1187 PANEL CRYSTAL LH HA | - |
| 868 | – | WB07X1188 PANEL CRYSTAL LH AD | - |
| 871 | | WB02X7758NLA FILTER GREASE | Discontinued |
| 872 | – | WB02X1583 CLIP HOOD FILTER | - |
| 873 | | WB15X0109NLA HOOD PANEL HANDLE | Discontinued |
| 875 | – | WB49X5935 EXHAUST ASM | - |
| 880 | – | WB56X0923 HOOD PANEL | - |
| 881 | – | WB02X7776 FILTER PLATE | - |
| 882 | | WB07X0772NLA TRIM HOOD | Discontinued |
| 883 | – | WB02X3432 PAD | - |
| 883 | – | WB07X0770 END CAP-RT | - |
| 883 | – | WB07X0771 END CAP-LT | - |
| 884 | – | WB02X2017 COVER BACK | - |
| 885 | – | WB02X3131 SPRING PIN ASM | - |
| 898 | – | WB49X0179 DUCT AIR | - |
| 902 | – | WB49X5391 PLENUM AIR | - |
| 904 | – | WB36X0126 OV LAMP LENS | - |
| 916 | – | WB02X7759 COVER | - |
| 934 | – | WB36X0435 CRYSTAL & TRIM ASM | - |
| 935 | – | WB24X0169 SWITCH LIGHT | - |
| 940 | – | WB02X7760 COVER HOUSING | - |
| 950 | – | WB09X0137 SPRING LATCH | - |
| 986 | – | WB36X5552 WINDOW | - |
| 993 | – | WB02X7765 PLATE | - |
| 1201 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 1622 | – | WB24X0201 SWITCH, FAN | - |
| 1622 | | WB24X5093NLA SWITCH, "F" LAMP | Discontinued |
| 2051 | – | WB20X0057 TRANSFORMER | - |
| 32767 | – | 31-0632 INSTALL INSTRUCTIONS | - |
| 32767 | – | 49-4818 MANUAL USERS | - |
| 32767 | | WB1X438replaces WB01X0438 SCREW & WASHER ASM | - |
| 32767 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 32767 | | WB1X536replaces WB01X0536 SCREW | $16.81 Parts Dr |
| 32767 | – | WB01X5471 SCR 8-18 AB T 15/32 S | - |
| 32767 | – | WB01X5497 SCR 10-16 AB IHW 1/2 S | - |
| 32767 | – | WB01X5508 WASHER | - |
| 32767 | – | WB01X5508 WASHER | - |
| 32767 | – | WB01X5520 SPEEDNUT | - |
| 32767 | – | WB01X5552 WASHER | - |
| 32767 | | WB2X1222replaces WB02X1222 PAD GLASS (FELT) | - |
| 32767 | – | WB02X1511 INSULATION | - |
| 32767 | – | WB02X1579 PAD | - |
| 32767 | | WB02X1659NLA SPEEDNUT | Discontinued |
| 32767 | – | WB02X2107 SLEEVE DETENT | - |
| 32767 | – | WB02X3152 PAD | - |
| 32767 | – | WB02X6274 SLEEVE | - |
| 32767 | | WB17X171replaces WB17X0171 TERMINAL MALE & FEMALE | - |
| 32767 | – | WB56X5998 CASE SIDE RH DS | - |
| 32767 | – | WB56X5999 CASE SIDE RH SL | - |
| 32767 | – | WB56X6000 CASE SIDE LH DS | - |
| 32767 | – | WB56X6001 CASE SIDE LH SL | - |
| 32767 | – | WZ02X0546 SCR 8-32 M PHR 1/2 S | - |
| 32767 | – | WZ04X0217 SCR 6-20 B HXW 1/4 S | - |
| 32767 |  | WZ4X245Dreplaces WZ04X0245 SCR 8-18 AB PHR 5/8 S | $24.32 ApplianceParts Pro |
| 32767 | | WZ04X0288NLA SCREW 10-16 X 1/2" HEX | Discontinued |
| 32767 |  | WZ4X345Dreplaces WZ04X0291 SCR 8-18 AB HXW 3/8 S | - |
| 32767 | | WZ4X336Dreplaces WZ04X0336 SCR 8-18 AB OVR 3/8 S#6H | - |
| 32767 | | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 32767 | – | WZ04X0348 SCR 10-16 B SL 1-1/8 S | - |
| 32767 | | WZ4X248replaces WZ04X0361 SCREW MTG. TRIM LAMP | - |
| 32767 | – | WZ04X0396 SCR 10-16 B HXW 1/4 S | - |
| 32767 | – | WZ04X0397 SCR 6-32 C FLR 5/16 S | - |
| 32767 | – | WZ04X0413 SCREW | - |
| 32767 | | WZ4X421Dreplaces WZ04X0421 SCR 8-18 B HXW 3/8 S | - |
| 32767 | – | WZ05X0120 SCREW | - |
| 32767 | | WZ5X124Dreplaces WZ05X0124 SCREW SWITCH 5/8 S | - |
| 32767 |  | WZ5X158Dreplaces WZ05X0134 SCR 8-32 T HXW 3/8 S | $27.34 ApplianceParts Pro |
| 32767 | – | WZ05X0184 SCR 6-20 BT PHR 3/8 S | - |
| 32767 | – | WZ05X0187 SCREW 8-32 X 1/2" PAN | - |
| 32767 | – | WZ05X0188 SCR 6-20 BT FLR 1/2 S | - |
| 32767 | – | WZ06X0038 SCR 8-18 AB HXW 5/8 S | - |
| 32767 | – | WZ06X0082 SCR 8-18 B HXW 3/8 S | - |
| 32767 | – | WZ06X0092 SCR 8-18 AB HX 1/2 S | - |
| 32767 | – | WZ07X0030 NUT | - |
