Model
GE JHP63V*K5
Range With Microwave Combo
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP63V*K5Range With Microwave Combo
3 diagrams290 parts
Parts Sections (3)

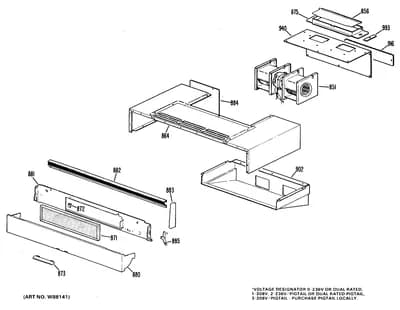

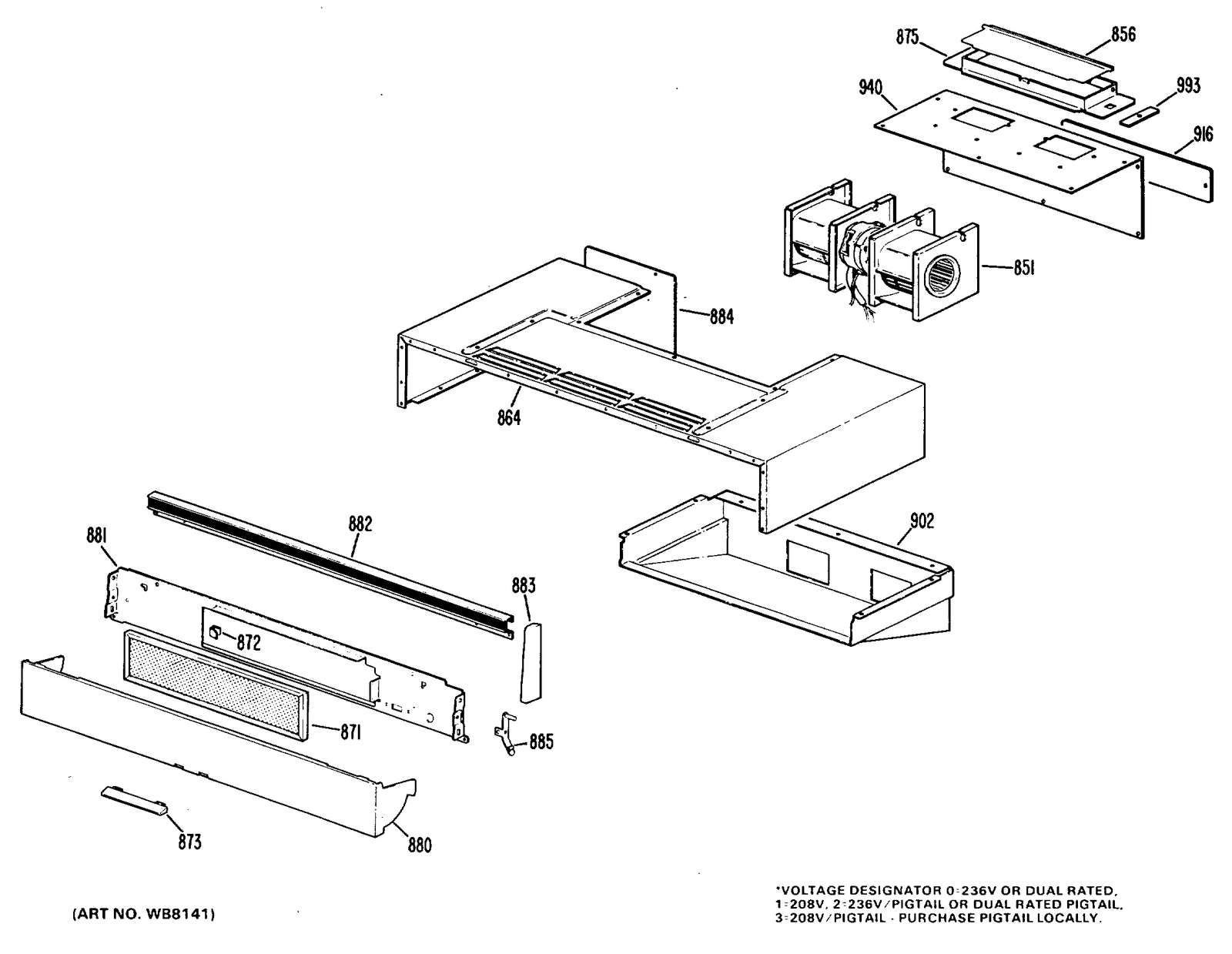

Diagram
Parts List
Parts in Parts List
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 122 | – | WB02X1422 CLAMP HARNESS | - |
| 148 |  | WB1X536replaces WB01X5763 SCREW | $16.81 Parts Dr |
| 148 | – | WZ04X0237 SCREW | - |
| 359 |  | TRIM DOOR | - |
| 402 | – | WB01X0591 SPEEDNUT | - |
| 403 | – | WB02X7188 BRACKET WINDOW | - |
| 459 |  | WB1X537replaces WB01X0537 SCREW | - |
| 461 | | WB1X536replaces WB01X0593 SCREW - DOOR ASM (4 PER) | $16.81 Parts Dr |
| 537 | | WB20X0054NLA PROBE | Discontinued |
| 826 | – | WB02X3001 SPACER - POST | - |
| 827 | – | WB02X2999 ANGLE BRACE | - |
| 829 | – | WB02X0190 CLIP SPRING | - |
| 851 | – | WB26X5083 BLOWER MOTOR | - |
| 856 | – | WB02X7764 DAMPER | - |
| 864 | – | WB56X6074 HOOD BODY WH | - |
| 864 | – | WB56X6075 HOOD BODY HA | - |
| 864 | – | WB56X6076 HOOD BODY AD | - |
| 871 | | WB02X7758NLA FILTER GREASE | Discontinued |
| 872 | – | WB02X1583 CLIP HOOD FILTER | - |
| 873 | | WB15X0109NLA HOOD PANEL HANDLE | Discontinued |
| 875 | – | WB49X5935 EXHAUST ASM | - |
| 880 | – | WB56X0923 HOOD PANEL | - |
| 881 | – | WB02X7776 FILTER PLATE | - |
| 882 | | WB07X6793NLA TRIM HOOD | Discontinued |
| 883 | – | WB02X3432 PAD | - |
| 883 | – | WB07X0770 END CAP-RT | - |
| 883 | – | WB07X0771 END CAP-LT | - |
| 884 | – | WB02X2017 COVER BACK | - |
| 885 | – | WB02X3131 SPRING PIN ASM | - |
| 902 | – | WB49X5391 PLENUM AIR | - |
| 916 | – | WB02X7759 COVER | - |
| 940 | – | WB02X7760 COVER HOUSING | - |
| 993 | – | WB02X7765 PLATE | - |
| 1201 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 32767 | – | 49-4818 MANUAL USERS | - |
