Model
GE JHP66G*01
Range With Microwave Combo
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP66G*01Range With Microwave Combo
2 diagrams343 parts
Parts Sections (2)

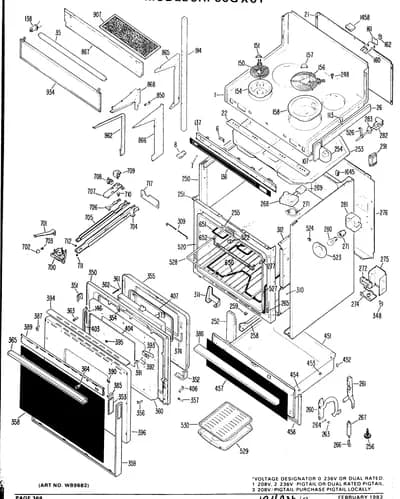

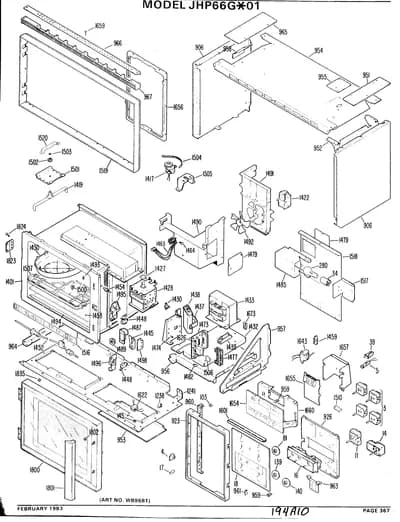

Diagram
Parts List
Parts in Parts List
203 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB62X5247 COOKTOP CF | - |
| 3 |  | WB21X36771replaces WB21X5219 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 4 |  | WB03X5618NLA KNOB | Discontinued |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 5 | | WB02X3468NLA NEON LAMP 240V | Discontinued |
| 11 | – | WB22X5118 SWITCH, OVEN L.O. | - |
| 14 | – | WB02X6274 SLEEVE | - |
| 14 | | WB02X6454NLA SLEEVE | Discontinued |
| 14 | – | WB24X5182 THERMOSTAT, DUAL | - |
| 16 | – | WB19X5271 TIMER | - |
| 17 | – | WB03X5630 KNOB TIMER | - |
| 18 | – | WB36X5511 CRYSTAL | - |
| 34 | | WB08X5086NLA SOCKET LAMP | Discontinued |
| 39 | – | WB02X6239 BRACKET LAMP | - |
| 81 | | WB4X82replaces WB04X0082 SURFACE UNIT DIAL | - |
| 139 | – | WB04X5107 DIAL OVEN | - |
| 140 | – | WB04X5104 THERMOSTAT SWITCH DIAL | - |
| 145 | | WB1X246replaces WB01X0246 SWITCH NUT | - |
| 148 |  | WB1X536replaces WB01X5763 SCREW | $16.81 Parts Dr |
| 148 | – | WZ04X0237 SCREW | - |
| 253 | – | WB49X5149 BOX COOKTOP | - |
| 272 |  | BLOCK TERMINAL POWER | $69.99 Parts Dr |
| 279 | | WB08X0191NLA RECEPTACLE | Discontinued |
| 280 |  | 40A15replaces WX12X1510 40A15 | $8.96 Parts Dr |
| 282 | – | WB02X6215 CLAMP HARNESS | - |
| 303 |  | WB36X192replaces WB36X0389 OVEN LAMP LENS | $9.75 Part Advantage |
| 305 | – | WB02X6653 SPEEDNUT | - |
| 397 | – | WZ04X0384 SCREW MTG END CAP | - |
| 456 | | WZ4X230Dreplaces WZ04X0209 HANDLE SCREW | - |
| 456 |  | WZ4X345Dreplaces WZ04X0345 SCREW 8-18X5/8 HXW | - |
| 459 |  | WB1X537replaces WB01X0537 SCREW | - |
| 461 | | WB1X536replaces WB01X0593 SCREW - DOOR ASM (4 PER) | $16.81 Parts Dr |
| 526 | | WB02X3165NLA HANGER-TLS | Discontinued |
| 654 | – | WZ10X0114 LOCKWASHER | - |
| 701 | – | WB15X5133 HANDLE LATCH | - |
| 705 | – | WB02X3175 CHANNEL LOCKING | - |
| 740 | – | WB02X7066 CLIP WIRE | - |
| 740 | – | WB02X7226 CLIP WIRE | - |
| 749 | – | WB01X5578 SCREW MTG TRIM | - |
| 763 | | WB2X1665replaces WB02X1665 CLIP FILTER | - |
| 782 |  | TERMINAL BLOCK ASSY (2 P | - |
| 796 | – | WB02X6654 SPEEDNUT U TYPE | - |
| 906 | – | WB02X6930 GROMMET STRIP | - |
| 906 | – | WB56X5897 CASE SIDE RH WH | - |
| 906 | – | WB56X5898 CASE SIDE RH FA | - |
| 906 | – | WB56X5899 CASE SIDE RH HA | - |
| 906 | – | WB56X5900 CASE SIDE RH AD | - |
| 906 | – | WB56X5901 CASE SIDE LH WH | - |
| 906 | – | WB56X5902 CASE SIDE LH FA | - |
| 906 | – | WB56X5903 CASE SIDE LH HA | - |
| 906 | – | WB56X5904 CASE SIDE LH AD | - |
| 907 | | WB02X1666NLA FILTER | Discontinued |
| 923 | – | WB07X6800 TRIM CONTROL | - |
| 926 | – | WB02X7243 BRACKET INSTRUMENT | - |
| 951 | – | WB56X5924 CASE TOP COVER-RT | - |
| 952 | – | WB49X5292 SIDE DUCT | - |
| 953 | – | WB02X6840 FILLER FILTER OPENING | - |
| 954 | – | WB56X5926 CASE TOP WH | - |
| 954 | – | WB56X5927 CASE TOP FA | - |
| 954 | – | WB56X5928 CASE TOP HA | - |
| 954 | – | WB56X5929 CASE TOP AD | - |
| 955 | – | WB02X6727 COVER | - |
| 956 | – | WB49X5294 DUCT BOTTOM | - |
| 957 | – | WB02X7231 BRACE OVEN | - |
| 958 | – | WB49X5296 BAFFLE | - |
| 959 | – | WB02X7238 CLIP MTG TRIM | - |
| 960 | – | WB02X7239 SUPPORT SIDE L H | - |
| 960 | – | WB02X7240 SUPPORT SIDE R H | - |
| 961 | – | WB01X5628 SCREW MTG CRYSTAL | - |
| 961 | – | WB02X7241 CLIP | - |
| 963 | – | WB02X7223 HINGE CONTROL PANEL | - |
| 964 | – | WB02X7230 BRACE ANGLE | - |
| 965 | – | WB02X7513 COVER CASE TOP | - |
| 966 | – | WB02X7234 GRILLE COVER | - |
| 967 | – | WB07X6797 GRILLE | - |
| 991 | – | WB02X3006 CLIP TUBULAR | - |
| 1201 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 1241 | – | WB55X5248 BOTTOM CASE | - |
| 1401 | – | WB02X7237 BARRIER | - |
| 1401 | – | WB53X5085 CAVITY & FRAME ASM | - |
| 1415 |  | WB1X1173replaces WB01X5627 FASTENER | - |
| 1417 | – | WB26X5066 MOTOR, FAN | - |
| 1419 | – | WB02X7214 ANTENNA ASM | - |
| 1422 | – | WB26X5060 MOTOR, BLOWER | - |
| 1427 | – | WB02X6046 R.F. GASKET | - |
| 1428 | – | WB18X5048 HI VOLTAGE WIRE | - |
| 1428 |  | WB27X10249replaces WB27X5142 MAGNETRON | $263.32 PartSelect |
| 1430 | | THERMOSTAT | - |
| 1432 | – | WB02X7225 PLATE COMPONENT | - |
| 1433 | – | WB02X7202 BARRIER | - |
| 1433 | | TRANSFORMER, HI-VOLTAGE | - |
| 1437 | – | WB02X7061 STRAP CAPACITOR | - |
| 1438 | | WB27X5212NLA CAPACITOR | Discontinued |
| 1439 | | RECTIFIER | - |
| 1445 | | SWITCH, MONITOR | - |
| 1448 | | SWITCH, DOOR | - |
| 1450 | – | WB56X5882 COVER STIRRER | - |
| 1451 | | WB01X5453NLA FASTENER | Discontinued |
| 1452 | | WB20X5045NLA PROBE | Discontinued |
| 1453 | | SHELF OVEN | - |
| 1454 | – | WB20X5042 RECEPTACLE PROBE | - |
| 1458 | | TERMINAL BLK ASM (3 PIN) | - |
| 1458 | | TERMINAL BLK ASM (1 PIN) | - |
| 1463 | – | WB27X5165 SENSOR ASM | - |
| 1464 | | WB1X5761replaces WB01X5543 CLIP MTG SENSOR | - |
| 1472 | – | WB02X7060 BRACKET CAPACITOR | - |
| 1473 | – | WB27X5246 CONTROL, POWER MODULE | - |
| 1474 | – | WB02X7062 SPACER | - |
| 1477 | – | WB02X7065 SHIELD | - |
| 1479 | – | WB02X7068 COVER | - |
| 1485 | – | WB02X6855 SHIELD (FILM) | - |
| 1485 | – | WB02X7233 SHIELD LAMP | - |
| 1489 | – | WB10X5138 RECEPTACLE PRONG | - |
| 1490 | – | WB49X5297 PLENUM AIR | - |
| 1491 | – | WB02X7236 HOUSING FAN | - |
| 1492 | – | WB02X7079 BLADE FAN | - |
| 1494 | | WB2X7652replaces WB02X7080 SIDE SUPPORT RH | - |
| 1494 | | WB2X7652replaces WB02X7081 SIDE SUPPORT LH | - |
| 1494 | | WB2X7652replaces WB02X7082 SUPPORT SHELF (FRONT) | - |
| 1494 | | WB2X7652replaces WB02X7098 SUPPORT SHELF (REAR) | - |
| 1495 | – | WB02X7083 SUPPORT SWITCH TOP | - |
| 1496 | – | WB02X7084 SUPPORT SWITCH BOTTOM | - |
| 1497 | – | WB02X7085 SUPPORT SWITCH | - |
| 1498 | – | WB02X7086 BARRIER | - |
| 1500 | – | WB02X7087 SUPPORT RACK | - |
| 1501 | – | WB02X7089 SUPPORT STIRRER | - |
| 1502 | – | WB02X7090 PULLEY | - |
| 1503 | – | WB01X5586 RETAINER O RING | - |
| 1504 | – | WB02X7091 BELT STIRRER | - |
| 1505 | – | WB02X7092 BRACKET MOTOR | - |
| 1506 | – | WB17X5077 HOUSING SOCKET PKG 7 PIN | - |
| 1506 | – | WB17X5078 HOUSING SOCKET PKG 5 PIN | - |
| 1507 | | RACK | - |
| 1510 | – | WB17X5076 CONN BLK SMART BD (9PIN) | - |
| 1516 | – | WB07X6801 LABEL MENU CODE | - |
| 1517 | – | WB02X7232 BRACKET MOUNTING | - |
| 1518 | – | WB49X5295 COVER BACK | - |
| 1519 | – | WB07X6799 TRIM | - |
| 1520 | – | WB02X7242 BRACKET STOP | - |
| 1601 | – | WB07X6796 TRIM CRYSTAL | - |
| 1622 | | WB24X5093NLA SWITCH, "F" LAMP | Discontinued |
| 1626 | – | WB02X7224 BARRIER FUSE | - |
| 1626 |  | WB27X7replaces WB27X0007 FUSE | $7.92 Parts Dr |
| 1643 | – | WB27X5235 TRANSFORMER | - |
| 1654 | – | WB27X5238 KEY PANEL ASM | - |
| 1655 | – | WB27X5239 SMART BOARD & DISPLAY | - |
| 1656 | – | WB02X7235 EXTENSION FRAME | - |
| 1657 | – | WB02X7229 COVER | - |
| 1660 | – | WB02X7227 BRACKET TOUCH BOARD | - |
| 1800 | – | WB56X5925 DOOR ASM | - |
| 1801 | – | WB15X5139 HANDLE | - |
| 1802 | – | WB01X5580 SCREW MTG HANDLE | - |
| 1823 | – | WB10X5133 SUPPORT HINGE | - |
| 1824 | – | WB01X5581 SCREW TORX | - |
| 1835 | – | WB01X5584 SCREW MTG HINGE | - |
| 32767 | | WB1X438replaces WB01X0438 SCREW & WASHER ASM | - |
| 32767 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 32767 | – | WB01X0528 SPEEDNUT | - |
| 32767 | – | WB01X5471 SCR 8-18 AB T 15/32 S | - |
| 32767 | – | WB01X5497 SCR 10-16 AB IHW 1/2 S | - |
| 32767 | – | WB01X5520 SPEEDNUT | - |
| 32767 | – | WB01X5552 WASHER | - |
| 32767 | – | WB01X5577 SPEEDNUT | - |
| 32767 | – | WB01X5582 SCREW MTG HANDLE | - |
| 32767 | | WB2X1222replaces WB02X1222 PAD GLASS (FELT) | - |
| 32767 | – | WB02X6496 INSULATION | - |
| 32767 | – | WB02X7058 GROMMET | - |
| 32767 | – | WB07X5645 TRIM COOKTOP FRONT | - |
| 32767 | | WB17X171replaces WB17X0171 TERMINAL MALE & FEMALE | - |
| 32767 | – | WB19X5271 TIMER | - |
| 32767 | | WB20X5045NLA PROBE | Discontinued |
| 32767 | – | WB24X0183 SWITCH, LATCH | - |
| 32767 | | WB24X5093NLA SWITCH, "F" LAMP | Discontinued |
| 32767 | | SWITCH, MONITOR | - |
| 32767 | | SWITCH, DOOR | - |
| 32767 | – | WB26X5060 MOTOR, BLOWER | - |
| 32767 | – | WB26X5066 MOTOR, FAN | - |
| 32767 | | WB27X7replaces WB27X0007 FUSE | $7.92 Parts Dr |
| 32767 | | RECTIFIER | - |
| 32767 | | WB27X10249replaces WB27X5142 MAGNETRON | $263.32 PartSelect |
| 32767 | | WB27X5212NLA CAPACITOR | Discontinued |
| 32767 | | TRANSFORMER, HI-VOLTAGE | - |
| 32767 | | THERMOSTAT | - |
| 32767 | | WB27X5230NLA VARISTOR | Discontinued |
| 32767 | – | WB27X5239 SMART BOARD & DISPLAY | - |
| 32767 | – | WZ02X0546 SCR 8-32 M PHR 1/2 S | - |
| 32767 | – | WZ04X0217 SCR 6-20 B HXW 1/4 S | - |
| 32767 | – | WZ04X0218 SCR 6-20 AB PH 3/8 S | - |
| 32767 | | WZ4X345Dreplaces WZ04X0232 SCR 8-18 AB HXS 3/8 S | - |
| 32767 | | WZ04X0288NLA SCREW 10-16 X 1/2" HEX | Discontinued |
| 32767 | | WZ4X345Dreplaces WZ04X0291 SCR 8-18 AB HXW 3/8 S | - |
| 32767 | – | WZ04X0314 SCR 8-18 AB HXS 1/4 S | - |
| 32767 | – | WZ04X0348 SCR 10-16 B SL 1-1/8 S | - |
| 32767 | | WZ4X248replaces WZ04X0361 SCREW MTG. TRIM LAMP | - |
| 32767 | – | WZ04X0372 SCR 6-20 AB HXW 3/8 S | - |
| 32767 | – | WZ04X0396 SCR 10-16 B HXW 1/4 S | - |
| 32767 | – | WZ04X0397 SCR 6-32 C FLR 5/16 S | - |
| 32767 | – | WZ04X0413 SCREW | - |
| 32767 | | WZ4X421Dreplaces WZ04X0421 SCR 8-18 B HXW 3/8 S | - |
| 32767 | | WZ5X234replaces WZ05X0234 SCREW MT SWITCH | - |
| 32767 | – | WZ06X0038 SCR 8-18 AB HXW 5/8 S | - |
| 32767 | – | WZ06X0082 SCR 8-18 B HXW 3/8 S | - |
| 32767 | – | WZ10X0114 LOCKWASHER | - |
