Model
GE JHP67G*V5
Range With Microwave Combo
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP67G*V5Range With Microwave Combo
3 diagrams384 parts
Parts Sections (3)

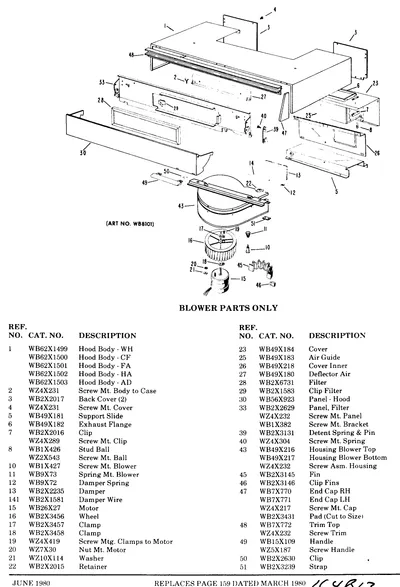

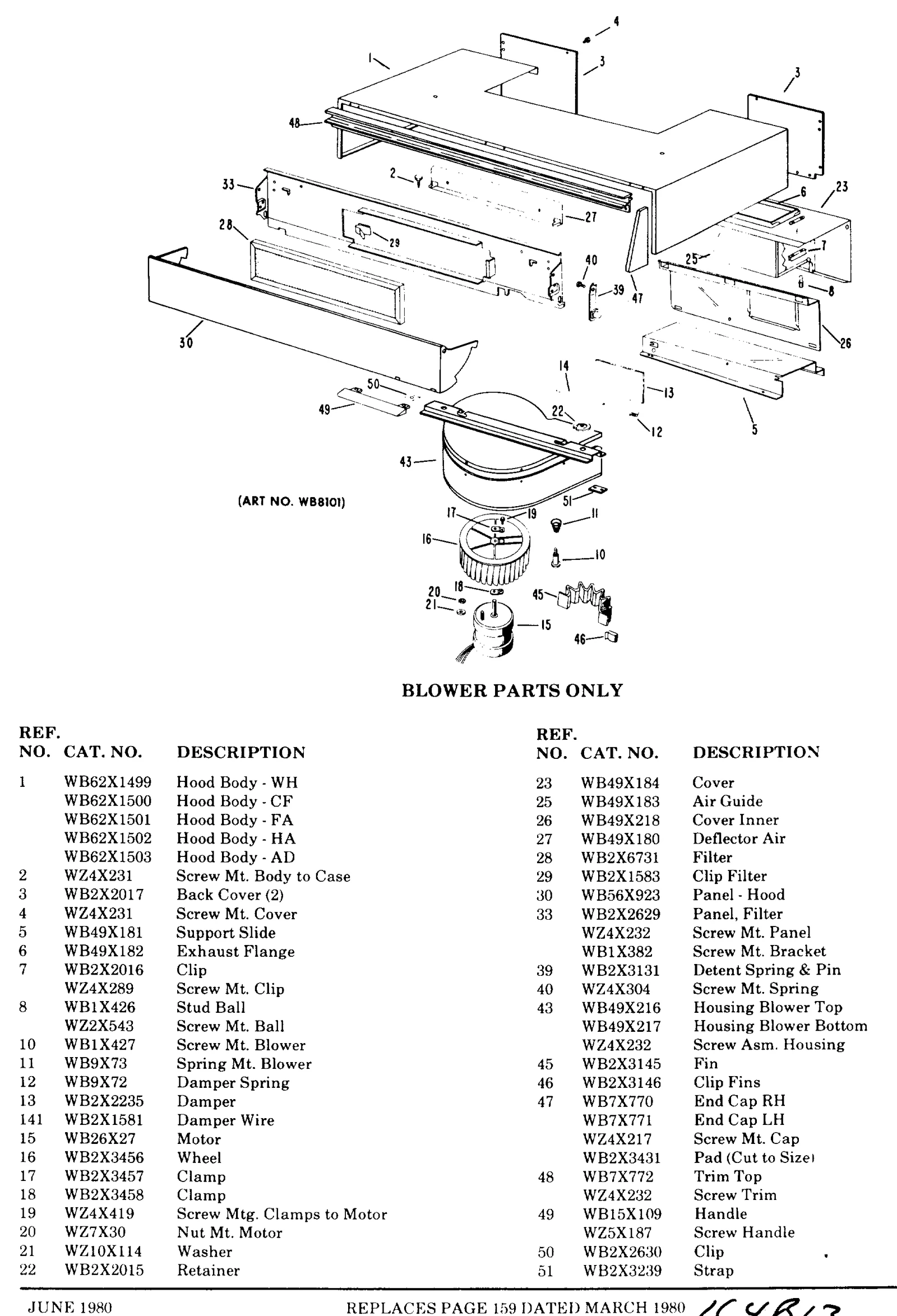

Diagram
Parts List
Parts in Parts List
69 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB62X1499 HOOD BODY WH | - |
| 1 | – | WB62X1500 HOOD BODY CF | - |
| 1 | – | WB62X1501 HOOD BODY FA | - |
| 1 | – | WB62X1502 HOOD BODY HA | - |
| 1 | – | WB62X1503 HOOD BODY AD | - |
| 2 |  | WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE | - |
| 3 | – | WB02X2017 COVER BACK | - |
| 4 | | WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE | - |
| 5 | – | WB49X0181 SUPPORT SLIDE | - |
| 6 | – | WB49X0182 EXHAUST ASM | - |
| 7 | – | WB02X2016 RECEIVER STUD | - |
| 7 | – | WZ04X0289 SCR 8-18 AB HX 1/4 S | - |
| 8 | – | WB01X0426 STUD BALL | - |
| 8 | – | WZ02X0543 SCREW MT. BALL | - |
| 10 | – | WB01X0427 SCREW MT. BLOWER | - |
| 11 | – | WB09X0073 SPRING BLOWER MOUNT | - |
| 12 | – | WB09X0072 SPRING DAMPER | - |
| 13 | – | WB02X2235 DAMPER | - |
| 15 | – | WB26X0027 MOTOR BLOWER | - |
| 16 | – | WB02X3456 WHEEL BLOWER | - |
| 17 | – | WB02X3457 CLAMP | - |
| 18 | – | WB02X3458 CLAMP | - |
| 19 | – | WZ04X0419 SCR 10-16 AB HXW 5/8 S | - |
| 20 | – | WZ07X0030 NUT | - |
| 21 | – | WZ10X0114 LOCKWASHER | - |
| 22 | – | WB02X2015 RETAINER | - |
| 23 | – | WB49X0184 COVER ASM | - |
| 25 | – | WB49X0183 GUIDE AIR | - |
| 26 | – | WB49X0218 COVER INNER | - |
| 27 | – | WB49X0180 DEFLECTOR AIR | - |
| 28 | – | WB02X6731 FILTER GREASE | - |
| 29 | – | WB02X1583 CLIP HOOD FILTER | - |
| 30 | – | WB56X0923 HOOD PANEL | - |
| 33 | – | WB01X0382 SCREW MT. BRACKET | - |
| 33 | – | WB02X2629 PLATE FILTER | - |
| 33 | | WZ4X345Dreplaces WZ04X0232 SCR 8-18 AB HXS 3/8 S | - |
| 39 | – | WB02X3131 SPRING PIN ASM | - |
| 40 |  | WB1X500Dreplaces WZ04X0304 SCREW DUCT | $7.64 RepairClinic |
| 43 | – | WB49X0216 HOUSING BLOWER TOP | - |
| 43 | – | WB49X0217 HOUSING BLOWER BOTTOM | - |
| 43 | | WZ4X345Dreplaces WZ04X0232 SCR 8-18 AB HXS 3/8 S | - |
| 45 | – | WB02X3145 FINS MOTOR | - |
| 46 | – | WB02X3146 CLIP MOTOR FINS | - |
| 47 | – | WB02X3431 PAD (CUT TO SIZE) | - |
| 47 | – | WB07X0770 END CAP-RT | - |
| 47 | – | WB07X0771 END CAP-LT | - |
| 47 | – | WZ04X0217 SCR 6-20 B HXW 1/4 S | - |
| 48 |  | WB07X0772NLA TRIM HOOD | Discontinued |
| 48 | | WZ4X345Dreplaces WZ04X0232 SCR 8-18 AB HXS 3/8 S | - |
| 49 | | WB15X0109NLA HOOD PANEL HANDLE | Discontinued |
| 49 | – | WZ05X0187 SCREW 8-32 X 1/2" PAN | - |
| 50 | – | WB02X2630 CLIP | - |
| 51 | – | WB02X3239 STRAP | - |
| 141 | – | WB02X1581 WIRE | - |
| 166 | – | WB02X3001 SPACER - POST | - |
| 169 | – | WB49X0304 PANEL - LAMP | - |
| 314 | – | WB02X1800 RETAINER RING | - |
| 332 | – | WB07X5623 TRIM DOOR | - |
| 354 | – | WB09X0128 SPRING - GUARD | - |
| 418 |  | WB48X10056replaces WB48X5002 BROILER PAN RACK | $16.74 Part Advantage |
| 419 | | WB48X10056replaces WB49X0088 BROIL PAN | $16.74 Part Advantage |
| 500 | – | WB02X1944 CLIP MOTOR | - |
| 500 | | WB26X5054replaces WB26X0032 ROTISSERIE MOTOR | - |
| 501 | – | WZ06X0092 SCR 8-18 AB HX 1/2 S | - |
| 502 | – | WB48X0062 SUPPORT SPIT | - |
| 503 | | WB2X1167replaces WB02X1167 SKEWER ASM | - |
| 504 | – | WB01X0272 SCREW THUMB | - |
| 505 | – | WB15X0080 HANDLE-BLADE | - |
| 506 | – | WB02X1529 SPIT BLADE | - |
