Model
GE JHP70GN2
Range With Microwave Combo
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP70GN2Range With Microwave Combo
5 diagrams300 parts
Parts Sections (5)

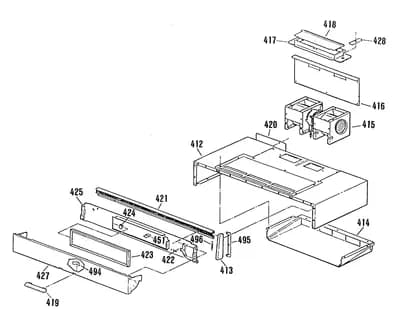

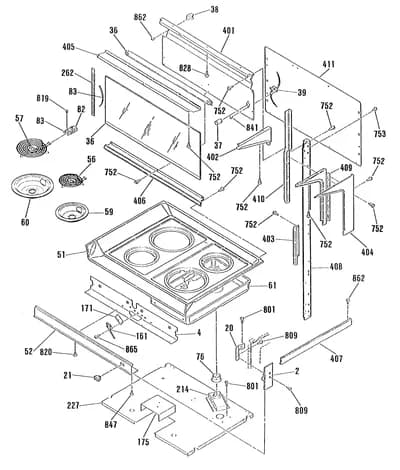

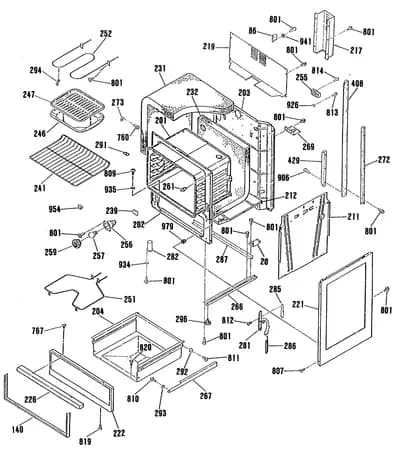

Diagram
Parts List
Parts in Parts List
57 parts

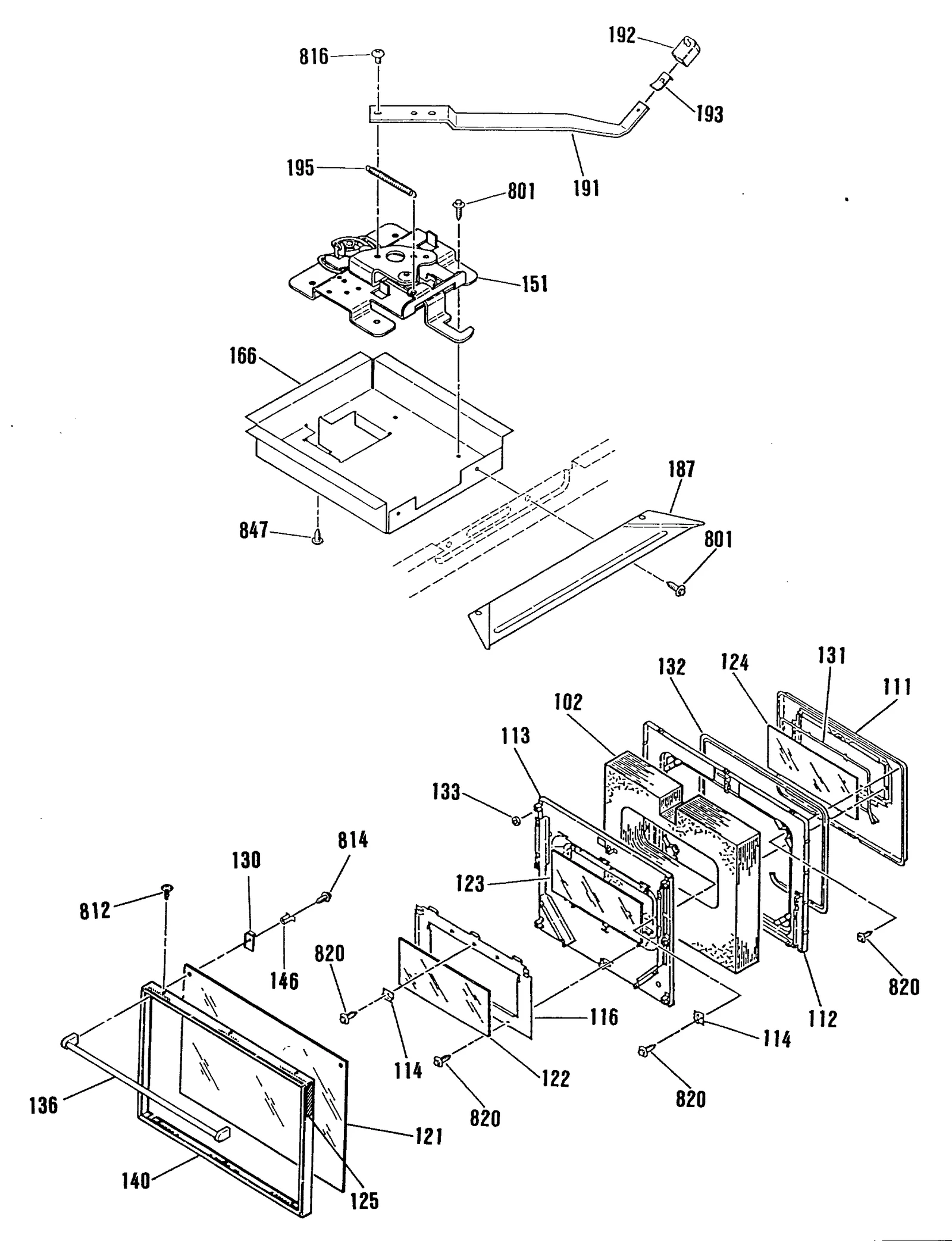

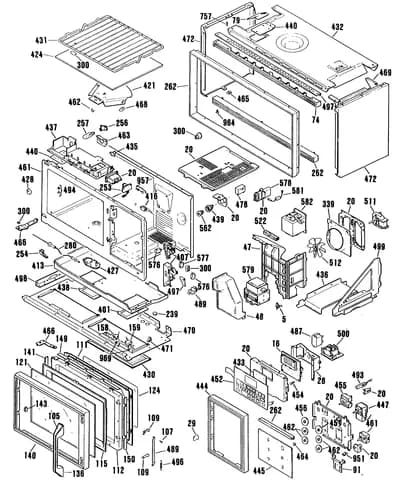

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 102 |  | WB35K5113replaces WB02X9144 INSULATION OV BTM & BACK | - |
| 111 | – | WB55M0010 OV DR LINING PLUG | - |
| 111 | – | WB55X5286 FRAME INNER | - |
| 112 | – | WB55X5285 LINER & CHOKE ASM. | - |
| 112 | – | WB56K5026 OV DR LINING | - |
| 113 | – | WB02M0056 OV DR INS RETAINER | - |
| 114 | | WB2M1replaces WB02M0001 OV DR GLASS RETAINER | - |
| 116 | – | WB02X9178 GLASS MTG PLATE | - |
| 121 | – | WB57K5091 OV DR OUTER GLASS | - |
| 121 | – | WB57K5146 OUTER WINDOW-M/W | - |
| 122 | – | WB56M1906 OV DR INTERMEDIATE GLASS | - |
| 123 | – | WB56X1907 INNER GLASS | - |
| 124 | – | WB02X7647 FILM | - |
| 124 | | WB57M0001NLA OV DR INNER GLASS | Discontinued |
| 125 | – | WB35K5031 UNKNOWN | - |
| 130 | – | WB02K5150 HANDLE SUPPORT | - |
| 131 |  | WB2X9168replaces WB02X9381 SEAL-INNER | $13.80 Parts Dr |
| 132 |  | WB2X9373replaces WB02X9383 OV DR GASKET | $73.95 ApplianceParts Pro |
| 133 | – | WB01X1159 WASHER | - |
| 136 | | HANDLE DOOR | - |
| 140 | | WB07K5189NLA OV DR FRAME-M/W | Discontinued |
| 140 | – | WB56K5027 OV DR FRAME W/OVERLAY | - |
| 140 | – | WB56M0012 LOWER FRONT PNL FRAME | - |
| 146 | | WB2M46replaces WB02M0046 SPACER | - |
| 151 | – | WB10X0268 LATCH ASM | - |
| 166 | – | WB58M0002 LATCH MOUNTING BOX | - |
| 187 | – | WB34M0033 MOISTURE SHIELD | - |
| 191 | – | WB15M0006 LOCK HANDLE | - |
| 192 | – | WB03X0782 KNOB-LOCK | - |
| 193 | – | WB02X9404 KNOB CUP | - |
| 195 | – | WB02X0251 LOCK SPRING | - |
| 218 | – | WB02X9426 WIRE SHIELD-LOWER | - |
| 253 | – | WB27X5406 SENSOR ASM | - |
| 452 | – | WB27X5460 KEY PANEL ASM | - |
| 801 |  | WB1M1replaces WB01M0001 SCREW | $7.64 RepairClinic |
| 812 |  | WB1K5191replaces WB01X1133 SCREW | $7.95 ApplianceParts Pro |
| 814 |  | WB1X1258replaces WB01X1258 SCREW | - |
| 815 |  | WB1X1176replaces WB01X1176 SCREW-BLACK | - |
| 816 | | WB1K12replaces WB01X1125 SCREW | $6.38 RepairClinic |
| 820 |  | WB1X1424Dreplaces WB01X1424 SCREW, TRANSFORMER | - |
| 847 |  | WB1X1118replaces WB01X1180 SCREW-BLACK | $7.18 RepairClinic |
| 880 | | WB1K5191replaces WB01M0019 SCREW | $7.95 ApplianceParts Pro |
| 910 | – | WB01X1347 RIVET ACCORDIAN | - |
| 995 | – | WB01M0040 FLAT NUT | - |
| 999 | – | 31-1105 INSTALLATION INSTRUCTION | - |
| 999 | – | 31-13003 MINI MANUAL/WIRE DIAGRAM | - |
| 999 | – | 31-13009 MINI MAN/WIRE DIAG-M/W | - |
| 999 | – | 49-8117 OWNERS MANUAL | - |
| 999 | – | WB18K5140 MAINTOP WIRE HARNESS-LT | - |
| 999 | – | WB18K5141 MAINTOP WIRE HARNESS-RT | - |
| 999 | | SURFACE LIGHT W HARNESS | - |
| 999 | – | WB18K5180 IND LIGHT WIRE HARNESS | - |
| 999 | | LIGHT SWITCH W HARNESS | - |
| 999 | – | WB18K5182 UPPER OVEN WIRE HARNESS | - |
| 999 | – | WB18K5185 THERMOSTAT WIRE HARNESS | - |
| 999 | – | WB18K5277 MAIN WIRE HARNESS | - |
| 999 | – | WB18K5278 MICRO SWITCH W HARNESS | - |
