Model
GE JHP70GN4AD
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP70GN4ADElectric Range
5 diagrams296 parts
Parts Sections (5)
Diagram
Parts List
Parts in Parts List
45 parts

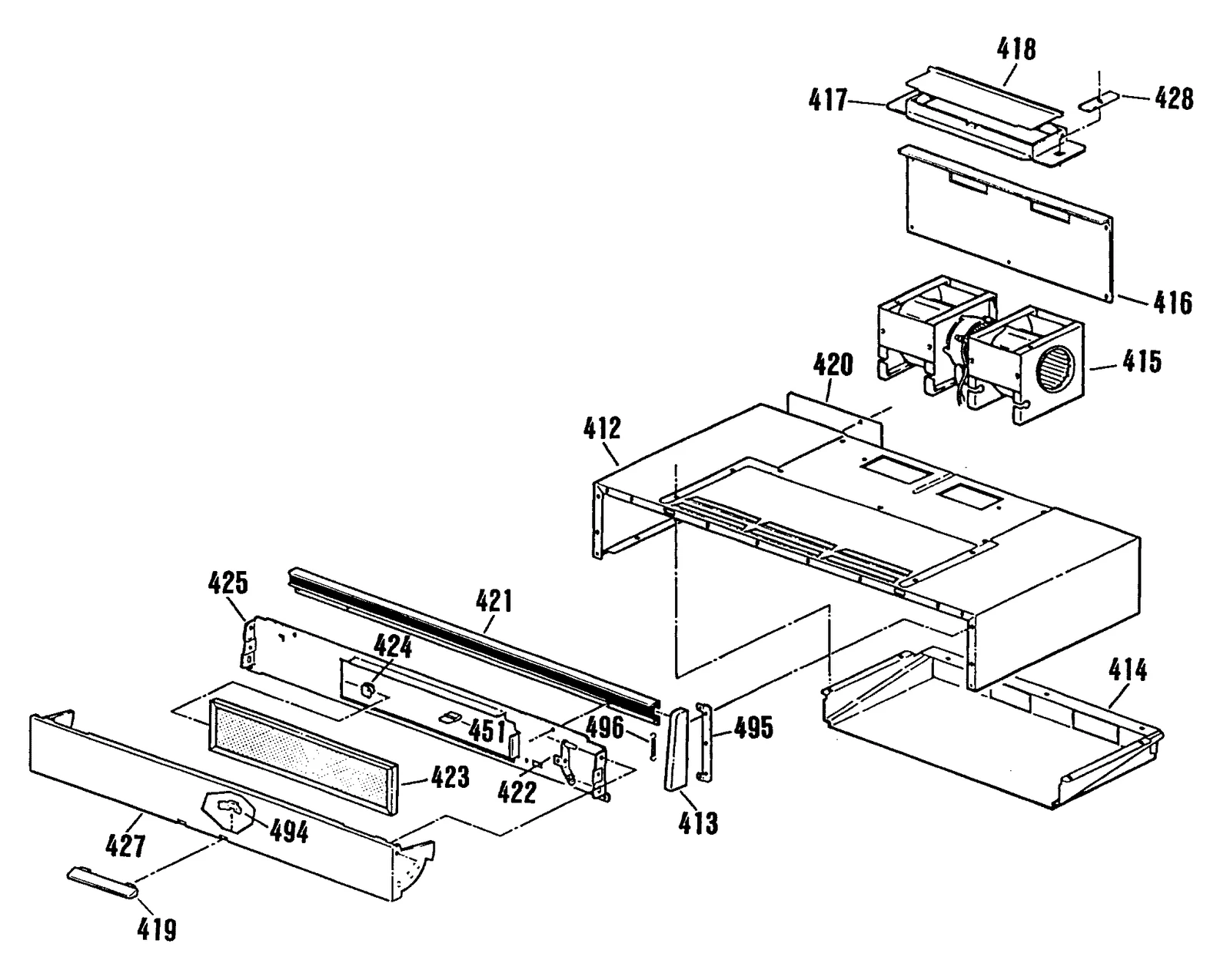

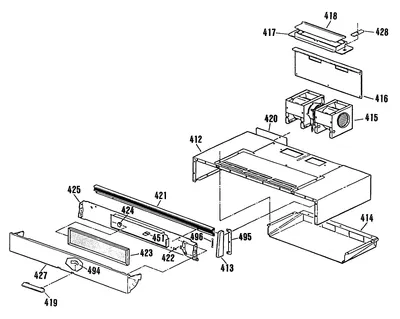

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 412 | – | WB38K5024 HOOD BODY-ALMOND | - |
| 413 | – | WB07X6791 END CAP RH | - |
| 413 | – | WB07X6792 END CAP LH | - |
| 413 | – | WB49X5382 UNKNOWN | - |
| 414 | – | WB49X5470 PLENUM | - |
| 415 |  | BLOWER ASM | - |
| 416 | – | WB02X7900 HOUSING COVER | - |
| 416 | – | WB20X5053 RECEPTACLE PROBE | - |
| 417 | – | WB38K5025 EXHAUST ASM | - |
| 418 | – | WB02X7764 DAMPER | - |
| 419 | | HANDLE HOOD PANEL | - |
| 420 | – | WB02X2017 COVER BACK | - |
| 421 | | WB2X7626replaces WB02X7626 ANTENNA | - |
| 421 | | WB07X6793NLA TRIM HOOD | Discontinued |
| 422 | – | WB02X7216 SPRING & PIN ASM | - |
| 423 | | WB02X7758NLA FILTER GREASE | Discontinued |
| 424 | – | WB02X1583 CLIP HOOD FILTER | - |
| 424 | | SHELF | - |
| 425 | – | WB49X5390 PLATE FILTER | - |
| 427 | | MOTOR, STIRRER | - |
| 427 | | HOOD PANEL | - |
| 428 | | WB02X7640NLA SUPPORT RACK | Discontinued |
| 428 | – | WB02X7765 PLATE | - |
| 451 | – | WB02X6734 CLIP FILTER | - |
| 494 | – | WB02X7217 RETAINER CLIP | - |
| 494 | – | WB02X7544 CLIP MTG EXHAUST GUIDE | - |
| 495 | – | WB02X3461 BRACKET MOUNTING | - |
| 496 | | WB9X5099replaces WB09X5099 SPRING | - |
| 496 | – | WB09X5112 SPRING DOOR KEY | - |
| 805 | | WB01X1113NLA SCREW | Discontinued |
| 849 | | WB1K5122replaces WB01X1252 SCREW | $7.00 ApplianceParts Pro |
| 906 |  | WB1K5119replaces WB01K5053 SCREW | $7.18 Parts Dr |
| 931 | – | WB01M0030 LOCK WASHER | - |
| 999 | – | 31-1105 INSTALLATION INSTRUCTION | - |
| 999 | – | 31-13009 MINI MAN/WIRE DIAG-M/W | - |
| 999 | – | 31-13082 MINI MANUAL/WIRE DIAGRAM | - |
| 999 | – | 49-4706 COOKBOOK | - |
| 999 | – | 49-8117 OWNERS MANUAL | - |
| 999 | – | WB18K5180 IND LIGHT WIRE HARNESS | - |
| 999 | | LIGHT SWITCH W HARNESS | - |
| 999 | – | WB18K5182 UPPER OVEN WIRE HARNESS | - |
| 999 | – | WB18K5398 MICRO-SWITCH WIRE HARN. | - |
| 999 | – | WB18K5399 MAIN WIRE HARNESS | - |
| 999 | – | WB18K5400 MAINTOP WIRE HARNESS | - |
| 999 | – | WB18X5098 WIRE HARNESS | - |
