Model
GE JHP70GN5AD
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JHP70GN5ADElectric Range
5 diagrams298 parts
Parts Sections (5)

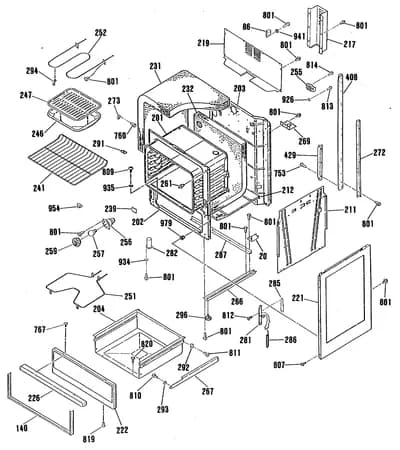

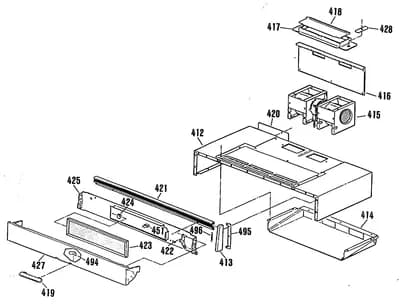

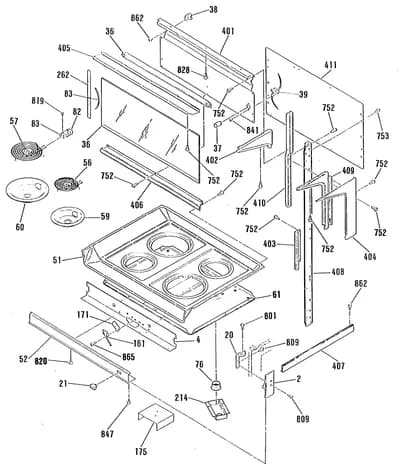

Diagram
Parts List
Parts in Parts List

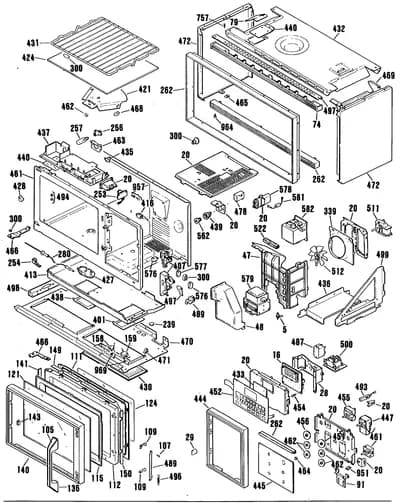

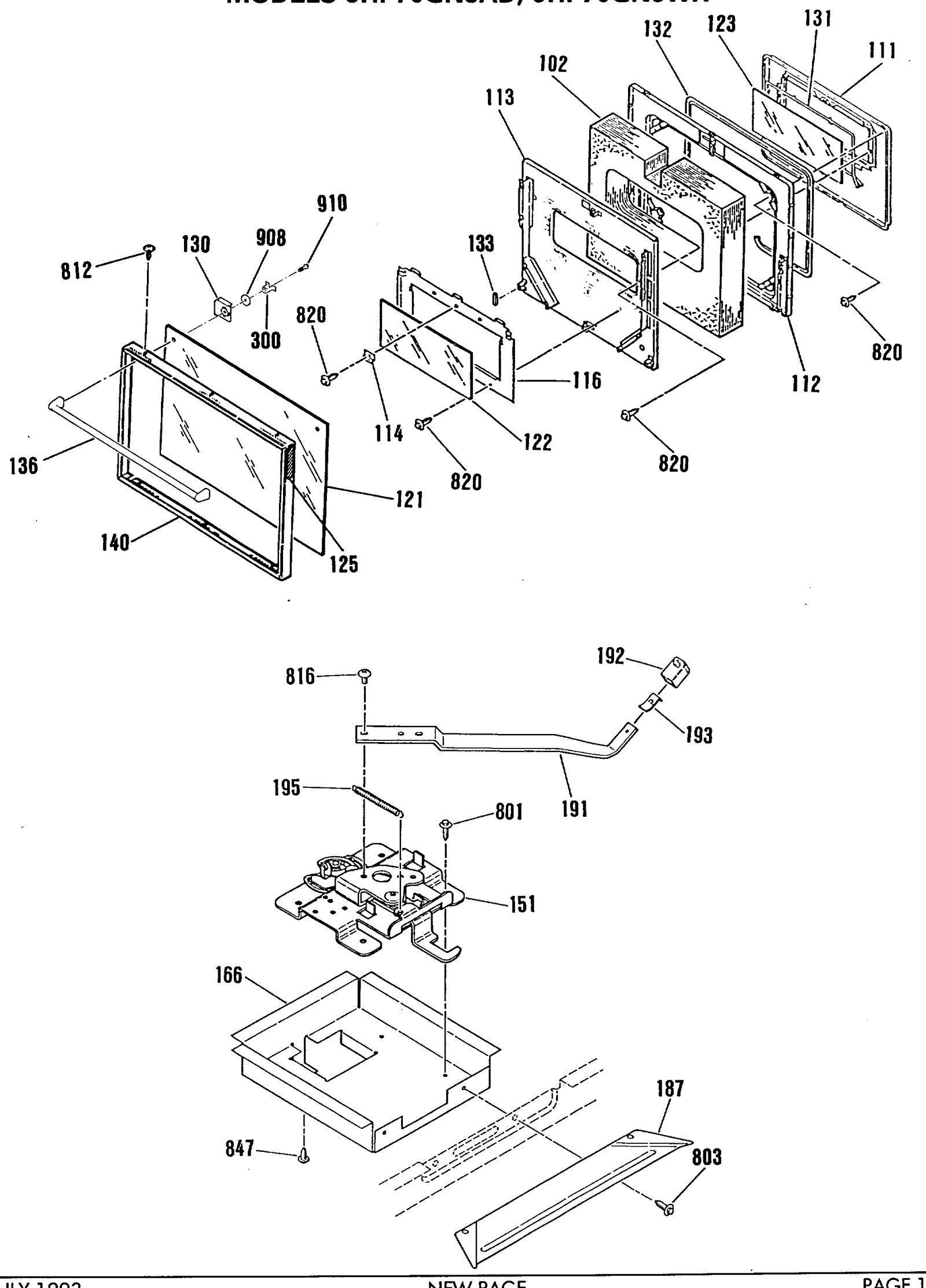

60 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 102 | – | WB35K5082 OVEN DOOR INSULATION | - |
| 111 | – | WB55M0010 OV DR LINING PLUG | - |
| 111 | – | WB55X5286 FRAME INNER | - |
| 112 | – | WB55K5033 OVEN DOOR LINING | - |
| 112 | – | WB55X5285 LINER & CHOKE ASM. | - |
| 113 | – | WB02M0056 OV DR INS RETAINER | - |
| 114 |  | WB2M1replaces WB02M0001 OV DR GLASS RETAINER | - |
| 116 | – | WB02X9178 GLASS MTG PLATE | - |
| 121 | – | WB36X5602 WINDOW OUTER | - |
| 121 | – | WB57K5091 OV DR OUTER GLASS | - |
| 122 | | OV DR INTERMED GLASS | - |
| 123 | – | WB56X1907 INNER GLASS | - |
| 125 | – | WB35K5031 UNKNOWN | - |
| 130 | | WB02K5276NLA UNKNOWN | Discontinued |
| 131 |  | WB2X9168replaces WB02X9168 SEAL GLASS OV DR INNER | $13.80 Parts Dr |
| 132 |  | WB2K5319replaces WB02K5221 UNKNOWN | $112.43 Part Advantage |
| 133 | | WB01K5115NLA FELT PAD | Discontinued |
| 136 | – | WB15K5059 UNKNOWN | - |
| 136 | | HANDLE DOOR | - |
| 140 | | WB07X6925NLA TRIM DOOR | Discontinued |
| 140 | – | WB56K5027 OV DR FRAME W/OVERLAY | - |
| 140 | – | WB56M0012 LOWER FRONT PNL FRAME | - |
| 151 | – | WB10X0268 LATCH ASM | - |
| 166 | – | WB58M0002 LATCH MOUNTING BOX | - |
| 187 | – | WB34M0033 MOISTURE SHIELD | - |
| 191 | – | WB15M0006 LOCK HANDLE | - |
| 192 | | WB03K5154NLA LOCK KNOB-BLACK | Discontinued |
| 193 | – | WB02X9404 KNOB CUP | - |
| 195 | – | WB09X0251 SPRING | - |
| 300 | | WB2X7103replaces WB02X7103 SPACER-HINGE | - |
| 300 | – | WB02X7510 SPACER RACK | - |
| 300 | – | WB02X7552 SPACER | - |
| 300 | – | WB02X7580 SPACER | - |
| 300 | – | WB02X7770 SPACER | - |
| 300 | – | WB02X9896 SPACER | - |
| 451 | – | WB04X5104 THERMOSTAT SWITCH DIAL | - |
| 801 |  | WB1M1replaces WB01M0001 SCREW | $7.64 RepairClinic |
| 803 |  | WB1X1149replaces WB01X1149 SCREW-BRIGHT NICKEL | - |
| 805 | | WB01X1113NLA SCREW | Discontinued |
| 812 |  | WB1K5191replaces WB01X1133 SCREW | $7.95 ApplianceParts Pro |
| 816 | | WB1K12replaces WB01X1125 SCREW | $6.38 RepairClinic |
| 820 |  | WB1X1424Dreplaces WB01X1424 SCREW, TRANSFORMER | - |
| 847 |  | WB1X1118replaces WB01X1180 SCREW-BLACK | $7.18 RepairClinic |
| 849 | | WB1K5122replaces WB01X1252 SCREW | $7.00 ApplianceParts Pro |
| 906 |  | WB1K5119replaces WB01K5053 SCREW | $7.18 Parts Dr |
| 908 | – | WB01K5143 WASHER | - |
| 910 |  | WB1X5731Dreplaces WB01K5142 SCREW | $25.74 ApplianceParts Pro |
| 931 | – | WB01M0030 LOCK WASHER | - |
| 999 | – | 31-1105 INSTALLATION INSTRUCTION | - |
| 999 | – | 31-13009 MINI MAN/WIRE DIAG-M/W | - |
| 999 | – | 31-13082 MINI MANUAL/WIRE DIAGRAM | - |
| 999 | – | 49-4706 COOKBOOK | - |
| 999 | – | 49-8117 OWNERS MANUAL | - |
| 999 | – | WB18K5180 IND LIGHT WIRE HARNESS | - |
| 999 | | LIGHT SWITCH W HARNESS | - |
| 999 | – | WB18K5182 UPPER OVEN WIRE HARNESS | - |
| 999 | – | WB18K5398 MICRO-SWITCH WIRE HARN. | - |
| 999 | – | WB18K5399 MAIN WIRE HARNESS | - |
| 999 | – | WB18K5400 MAINTOP WIRE HARNESS | - |
| 999 | – | WB18X5098 WIRE HARNESS | - |
