GE JHP75G*03

Name: GE JHP75G*03
Brand: GE
Availability: InStock

Range With Microwave Combo

Parts Sections (2)

How to find your part

Find part on diagram

Zoom in & tap a highlighted area

Tap "Parts" tab

Switch to the parts list view

See details & prices

Your selected part is highlighted

ModelGE

JHP75G*03Range With Microwave Combo

2 diagrams434 parts

Parts Sections (2)

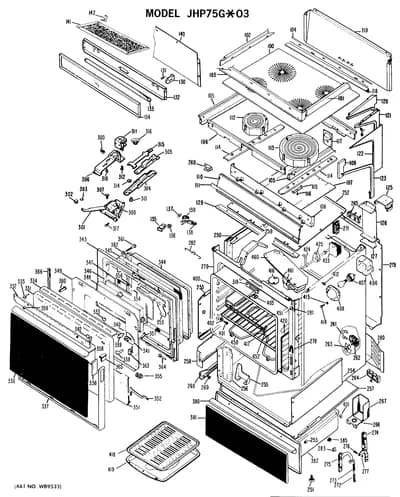

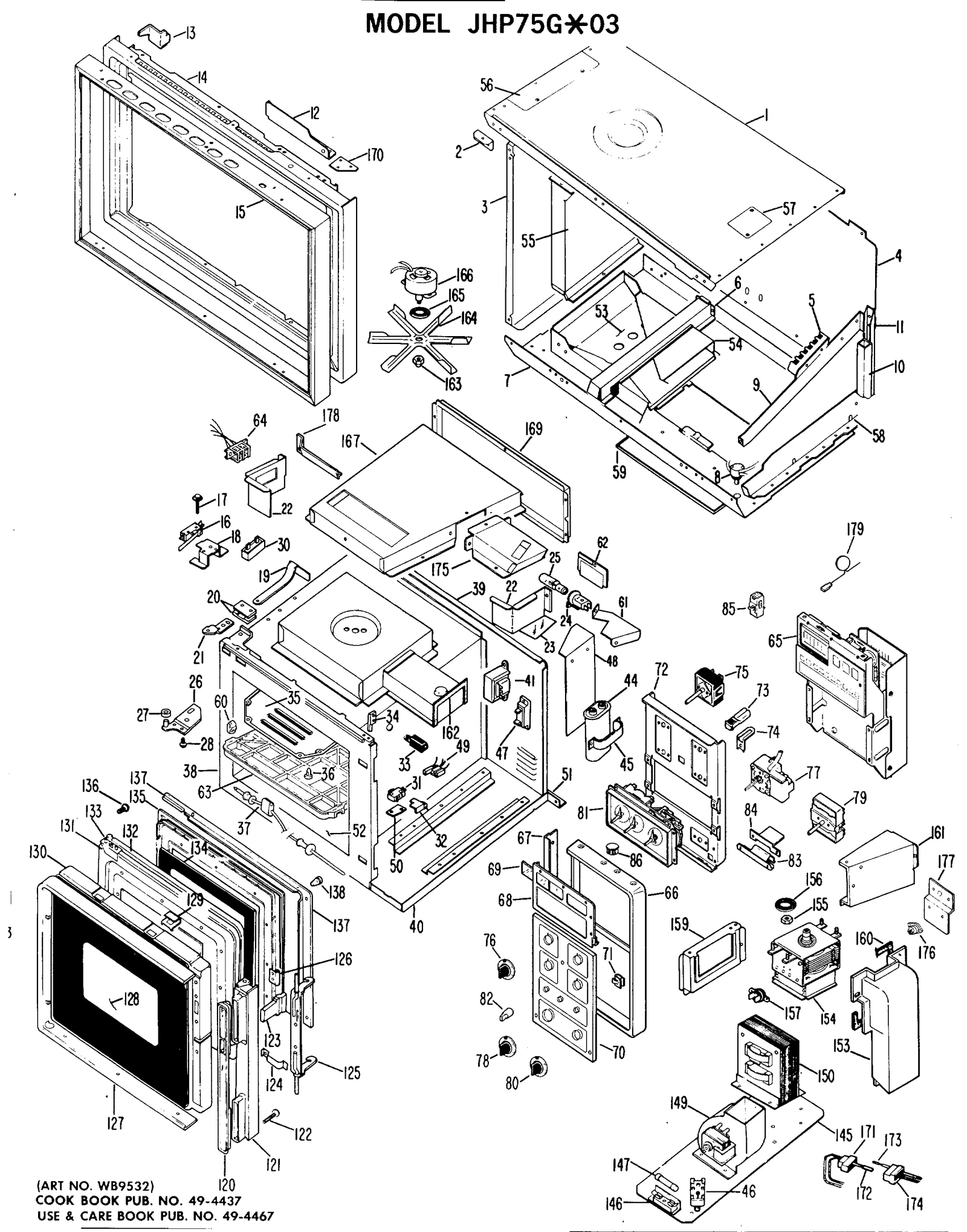

Diagram

Parts List

Parts in Parts List

282 parts

Parts list for Parts List
Ref	Image	Part / Description	Best Price
1	–	WB56X5845 CASE TOP WH	-
1	–	WB56X5846 CASE TOP CF	-
1	–	WB56X5847 CASE TOP FA	-
1	–	WB56X5848 CASE TOP HA	-
1	–	WB56X5849 CASE TOP AD	-
1		WZ4X336Dreplaces WZ04X0336 SCR 8-18 AB OVR 3/8 S#6H	-
2	–	WB02X6621 BRACKET MT. TOP AND FRAM	-
2	–	WB02X6653 SPEEDNUT	-
3	–	WB01X0365 SPEEDNUT	-
3	–	WB56X5692 CASE SIDE LH - WH	-
3	–	WB56X5693 CASE SIDE LH - CF	-
3	–	WB56X5694 CASE SIDE LH - FA	-
3	–	WB56X5695 CASE SIDE LH - HA	-
3	–	WB56X5696 CASE SIDE LH - AD	-
3	–	WB56X5793 CASE SIDE RH - WH	-
3	–	WB56X5794 CASE SIDE RH - CF	-
3	–	WB56X5795 CASE SIDE RH - FA	-
3	–	WB56X5796 CASE SIDE RH	-
3	–	WB56X5797 CASE SIDE RH	-
3	–	WZ02X6642 ANGLE BRACE	-
3		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
4	–	WB56X5684 BACK COVER	-
4		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
5	–	WB17X0167 BLOCK TERM DISTRIBUTION	-
5	–	WZ04X0384 SCREW MTG END CAP	-
6	–	WB02X6834 SLIDE OVEN	-
6		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
7	–	WB02X6621 BRACKET MT. TOP AND FRAM	-
7	–	WB55X5231 BOTTOM, CASE	-
8		WB1X246replaces WB01X0246 SWITCH NUT	-
8		WB24X5093NLA SWITCH, "F" LAMP	Discontinued
9	–	WB02X6842 BRACE OVEN	-
10	–	WB02X6619 POST - RH	-
10	–	WB02X6620 POST - LH	-
11	–	WB02X3001 SPACER - POST	-
11		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
12	–	WB02X6922 GUARD - RH	-
13	–	WB02X6923 BARRIER, LH	-
13	–	WB02X6924 BARRIER RH	-
14	–	WB56X5850 FRAME,ASMBY	-
15	–	WB07X6711 TRIM, FRAME	-
15	–	WZ04X0322 SCR 8 A IHW 3/8 S	-
16	–	WB02X6557 BARRIER	-
16		WB24X5102 SWITCH MONITOR	-
17		WZ5X234replaces WZ05X0234 SCREW MT SWITCH	-
18		WB1X536replaces WB01X0536 SCREW	$16.81 Parts Dr
18	–	WB02X6697 BRACKET, DOOR SWITCH	-
19	–	WB10X5122 LEVER DOOR	-
20	–	WB10X5117 862A164P001	-
20	–	WB10X5123 GUIDE, LEVER	-
20	–	WZ05X0139 SCR 8-32 T HXW 7/8 S	-
21		WB1X438replaces WB01X0438 SCREW & WASHER ASM	-
21	–	WB10X5110 HINGE ARM	-
22	–	WB02X6918 BAFFLE	-
23	–	WB02X6855 SHIELD (FILM)	-
24	–	WB08X5084 SOCKET, LAMP	-
26	–	WB01X5471 SCR 8-18 AB T 15/32 S	-
26	–	WB10X5113 BRACKET, HINGE LOWER	-
27	–	WB02X6473 WASHER	-
28	–	WB01X5471 SCR 8-18 AB T 15/32 S	-
30		WB01X0455NLA SPEEDNUT, CLAMP	Discontinued
30	–	WB02X6609 CLAMP HARNESS	-
30	–	WB27X5071 RESISTOR	-
30		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
31	–	WB24X5101 SWITCH LATCH UPPER	-
31	–	WB24X5109 SWITCH, LATCH LOWER	-
31	–	WZ05X0240 SCR 4-40 D HXW 3/4 S	-
32	–	WB02X6698 COVER, SWITCH (2 EACH)	-
33	–	WB02X2954 SLEEVE	-
33	–	WB20X5042 RECEPTACLE PROBE	-
34		WB10X5121 STRIKE LATCH	-
34		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
35		WB56X5639 COVER SITBR	-
36		WB01X5453NLA FASTENER	Discontinued
37	–	WB20X5041 PROBE	-
38	–	WB53X5081 CAVITY AND FACEPLATE (WI	-
39	–	WB02X6486 PAD (CUT TO SIZE)MOUNTS	-
39	–	WB49X5217 BACK ASSEMBLY, CASE	-
39		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
40	–	WB49X5151 BASE ASSEMBLY	-
41	–	WB01X0358 NUT SHEET METAL	-
41		WB1X536replaces WB01X0536 SCREW	$16.81 Parts Dr
41	–	WB17X5063 651B534G007	-
41	–	WB27X5164 TRANSFORMER, FILAMENT	-
44	–	WB27X5120 CAPACITOR	-
45	–	WB02X6393 STRAP, CAPACITOR	-
46		WB27X5108 RELAY	-
46	–	WZ04X0218 SCR 6-20 AB PH 3/8 S	-
47	–	WB02X6524 SLEEVE	-
47		WB27X5070 RECTIFIER	-
47		WZ4X338Dreplaces WZ04X0238 SCR 8-18 AB HX 1/2 S	-
48	–	WB02X6612 BRACKET, MT. RELAY-CAPAC	-
48		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
49	–	WB18X5053 HOUSING TERMINAL	-
50	–	WB02X6699 BARRIER SWITCH	-
51	–	WB02X6658 ANGLE STOP	-
52	–	WB48X5056 SHELF OVEN	-
53	–	WB49X5209 BAFFLE DUCT	-
54	–	WB02X6755 GASKET (CUT TO SIZE)	-
54	–	WB49X5211 DUCT BOTTOM	-
55	–	WB49X5210 DUCT SIDE	-
56	–	WB02X6835 COVER WH	-
56	–	WB02X6836 COVER CF	-
56	–	WB02X6837 COVER FA	-
56	–	WB02X6838 COVER HA	-
56	–	WB02X6839 COVER AD	-
57		WB1X5364replaces WB01X5364 SCREW (CR)	$5.09 Part Advantage
57	–	WB02X6724 RECEP. COVER WH	-
57	–	WB02X6725 RECEP. COVER CF	-
57	–	WB02X6726 RECEP. COVER FA	-
57	–	WB02X6727 COVER	-
57	–	WB02X6728 RECEP. COVER AD	-
58	–	WB02X6841 BRACE ANGLE	-
59	–	WB02X6840 FILLER FILTER OPENING	-
60	–	WB02X6827 SUPPORT RACK	-
61	–	WB02X6859 BRACKET, SOCKET LAMP	-
62	–	WB02X6856 COVER	-
63	–	WB48X5058 RACK MEAL	-
64	–	WB27X5165 SENSOR ASM	-
65	–	WB17X5063 651B534G007	-
65	–	WB27X5191 CONTROL, TOUCH	-
66		WB1X580replaces WB01X0580NLA SPEEDNUT	Discontinued
66	–	WB02X6634 PAD, CONTROL TRIM (BOTTO	-
66	–	WB02X6653 SPEEDNUT	-
66	–	WB07X6726 TRIM CONTROL PANEL	-
66	–	WZ04X0237 SCREW	-
67	–	WB01X5547 SCR 8/32 TF FLR 5/16 S	-
67	–	WB07X6727 TRIM CRYSTAL	-
68	–	WB02X6656 SPEEDNUT, MT. INSERT	-
68	–	WB07X6728 INSERT CONTROL PANEL	-
69	–	WB36X5436 CRYST.FILTER	-
70	–	WB36X5435 393D634P001	-
71	–	WB02X6654 SPEEDNUT U TYPE	-
72	–	WB02X6933 BRACKET INSTRUMENT	-
73		WB02X1608NLA INDICATOR LAMP	Discontinued
73		WB02X1609NLA LAMP CLEAN	Discontinued
74	–	WB02X6624 BRACKET LAMP NEON	-
75		WB21X36771replaces WB21X0228 SWITCH, INF SURFACE UNIT	$35.64 Part Advantage
75		WB21X36771replaces WB21X0241 INF. HT. SW. 120V SMALL	$35.64 Part Advantage
75	–	WZ02X0528 SCR 8-32 M PHR 3/16 S	-
76	–	WB03X5608 KNOB S.U.	-
77		WB02X6454NLA SLEEVE	Discontinued
77	–	WB24X0184 THERMOSTAT, DUAL	-
77	–	WZ02X0528 SCR 8-32 M PHR 3/16 S	-
78	–	WB03X5605 KNOB THERMO.	-
79	–	WB22X5093 SWITCH, OVEN	-
79	–	WZ02X0528 SCR 8-32 M PHR 3/16 S	-
80	–	WB03X5607 KNOB OVEN SWITCH	-
81	–	WB19X5253 TIMER	-
81	–	WZ04X0372 SCR 6-20 AB HXW 3/8 S	-
82		WB3X459replaces WB03X0459NLA KNOB TIMER	Discontinued
83	–	WB02X6623 CATCH, CONTROL PANEL	-
84	–	WB02X6633 BARRIER	-
85		WB17X5061 TERMINAL BLK ASM (3 PIN)	-
85	–	WB17X5064 HOUSING SOCKET PKG 4 P1N	-
85	–	WB17X5065 TERMINAL BLK ASM (4 PIN)	-
86	–	WB02X7011 PLUG BUTTON	-
120	–	WB07X1179 PANEL CRYSTAL RH WH	-
120	–	WB07X1180 PANEL - CRYSTAL RH - CF	-
120	–	WB07X1181 PANEL - CRYSTAL RH - FA	-
120	–	WB07X1182 PANEL CRYSTAL RH HA	-
120	–	WB07X1183 PANEL CRYSTAL RH AD	-
120	–	WB07X1184 PANEL CRYSTAL LH WH	-
120	–	WB07X1185 PANEL - CRYSTAL LH - CF	-
120	–	WB07X1186 PANEL - CRYSTAL LH - FA	-
120	–	WB07X1187 PANEL CRYSTAL LH HA	-
120	–	WB07X1188 PANEL CRYSTAL LH AD	-
120	–	WB15X5113 HANDLE	-
121	–	WB02X6736 SUPPORT RH	-
121	–	WB02X6737 SUPPORT LH	-
121	–	WB07X5635 TRIM HANDLE	-
122	–	WB01X5462 SCREW MTG. HANDLE - TRIM	-
122	–	WB07X1169 COVER SUPPORT RH WH	-
122	–	WB07X1170 COVER, SUPPORT RH, CF	-
122	–	WB07X1171 COVER, SUPPORT RH, FA	-
122	–	WB07X1172 COVER, SUPPORT RH, HA	-
122	–	WB07X1173 COVER, SUPPORT RH, AD	-
122	–	WB07X1174 COVER, SUPPORT LH, WH	-
122	–	WB07X1175 COVER SUPPORT LH CF	-
122	–	WB07X1176 COVER SUPPORT LH FA	-
122	–	WB07X1177 COVER SUPPORT LH HA	-
122	–	WB07X1178 COVER, SUPPORT LH, AD	-
123	–	WB03X5583 BUTTON LATCH	-
123	–	WB07X5657 TRIM SUPPORT RH	-
123	–	WB07X5658 TRIM SUPPORT LH	-
123		WZ4X336Dreplaces WZ04X0336 SCR 8-18 AB OVR 3/8 S#6H	-
124	–	WB02X6644 SPRING LATCH	-
124	–	WB09X0137 SPRING LATCH	-
125	–	WB02X6738 GASKET COVER TO PANEL	-
125	–	WB10X5112 LATCH BAR AS	-
125	–	WB38X5056 COVER VENT	-
126	–	WB01X0523 RIVET PUSH MTG. GASKET	-
126	–	WB02X6580 SHIM	-
126	–	WB02X6739 GASKET VENT TO COVER	-
126	–	WB10X5111 HINGE LATCH	-
126	–	WB38X5057 VENT ASSEMBLY	-
126		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
127		WB1X5364replaces WB01X5364 SCREW (CR)	$5.09 Part Advantage
127	–	WB01X5505 SPEEDNUT	-
127	–	WB02X3223 SEAL VENT	-
127	–	WB07X5634 TRIM, DOOR	-
128	–	WB36X5374 CRYSTAL DOOR	-
129	–	WB02X6643 CLIP, WINDOW	-
129	–	WB07X1100 DETECTOR	-
129		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
130	–	WB08X0164 SOCKET - LAMP	-
130	–	WB56X5686 PANEL DOOR	-
131		WB55X5227 LINR CHOKE A	-
131	–	WZ05X0184 SCR 6-20 BT PHR 3/8 S	-
132		WB2X6700replaces WB02X6700 GASKET DOOR OUTER	-
132	–	WB49X0347 PANEL LAMP	-
132		WZ4X230Dreplaces WZ04X0209 HANDLE SCREW	-
133		F20T12/CWNLA FLOURESCENT BULB	Discontinued
133	–	WB02X6476 GASKET - SMALL	-
134	–	WB02X6474 PAD. WINDOW (4 EA)(CUT T	-
134	–	WB36X0435 CRYSTAL & TRIM ASM	-
134		WB36X5415 CRYSTAL INNR	-
135		WB1X246replaces WB01X0246 SWITCH NUT	-
135	–	WB24X0174 SWITCH LATCH RELEASE	-
135	–	WB55X5232 CHOKE COVER	-
136	–	WB01X5518 SCR 8-16 AB PLT 11/64 S	-
136	–	WB02X3006 CLIP TUBULAR	-
137		WB1X5364replaces WB01X5364 SCREW (CR)	$5.09 Part Advantage
137	–	WB01X5505 SPEEDNUT	-
137	–	WB07X5643 TRIM FILLER, INNER DOOR	-
137		WB25X65replaces WB25X0065 JEWEL	$19.30 RepairClinic
138		WB02X1608NLA INDICATOR LAMP	Discontinued
138		WB02X1609NLA LAMP CLEAN	Discontinued
138	–	WB02X6909 BUMPER	-
145	–	WB02X7049 PLATE MTG. COMPONENTS	-
146	–	WB02X6616 BARRIER, FUSE	-
146	–	WB27X0091 BLOCK FUSE	-
146	–	WZ05X0184 SCR 6-20 BT PHR 3/8 S	-
147		WB27X7replaces WB27X0007 FUSE	$7.92 Parts Dr
149	–	WB26X5035 MOTOR, BLOWER	-
149		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
150	–	WB01X0453 SCREW, MTG. TRANSFORMER	-
150		WB27X5096NLA TRANSFORMER	Discontinued
153	–	WB02X6921 DUCT BLOWER	-
154	–	WB18X5048 HI VOLTAGE WIRE	-
154	–	WB27X5144 MAGNETRON	-
155	–	WB01X5271 NUT, MTG. MAGNETRON	-
156	–	WB02X6046 R.F. GASKET	-
157	–	WB27X5117 THERMOSTAT	-
158	–	WB01X5347 SCREW, MT. THERMOSTAT	-
159	–	WB02X6756 DUCT FRONT	-
160	–	WB02X6755 GASKET (CUT TO SIZE)	-
161	–	WB02X6757 DUCT, REAR	-
162	–	WB02X6491 GASKET (CUT TO SIZE)	-
163	–	WB01X0586 SPEEDNUT MTG. STIRRER	-
163	–	WB01X5450 NUT, CAP MT. STIRRER	-
164	–	WB02X6479 STIRRER MODE	-
165	–	WB02X6480 GASKET	-
166	–	WB01X5497 SCR 10-16 AB IHW 1/2 S	-
166		WB26X5039 MOTOR STIRRER	-
167	–	WB02X6919 PAD (CUT TO SIZE)	-
167	–	WB49X5231 DUCT EXHAUST	-
169	–	WB49X5233 DUCT REAR	-
169		WB1X500Dreplaces WZ04X0304 SCREW DUCT	$7.64 RepairClinic
170	–	WB02X6614 PLATE TRIM, TOP	-
170		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
171	–	WB17X0160 SOCKET HOOD - OVEN	-
172		WB17X0145NLA TERMINAL FOR WB17X0147	Discontinued
173	–	WB17X0146 TERMINAL HOOD - OVEN	-
174	–	WB17X0159 SOCKET HOOD - OVEN	-
175	–	WB02X6659 PAD	-
175	–	WB02X6919 PAD (CUT TO SIZE)	-
175	–	WB49X5232 EXTENSION DUCT EXHAUST	-
176	–	WB02X6524 SLEEVE	-
176		WB27X5085 TRIAC	-
177	–	WB01X5510 SCR 8-18 B T 11/16 S	-
177	–	WB02X6829 BRACKET MT TRIAC	-
178	–	WB02X6935 DEFLECTOR, EXHAUST	-
179	–	WB27X5089 VARISTOR	-
268	–	WB39X5011 GUIDE DRAWER RH	-
268	–	WB39X5101 DRAWER GUIDE LH	-
268		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
308	–	WB02X6912 BARRIER LATCH SW LOW OV	-
308	–	WB24X0183 SWITCH, LATCH	-
383	–	WB02X6208 BUMPER	-
384		WB02X0840NLA SLIDE TOP	Discontinued
413		WZ4X248replaces WZ04X0361 SCREW MTG. TRIM LAMP	-
