Model

GE JHP97G*Y6

Name: GE JHP97G*Y6
Brand: GE
Availability: InStock

Range With Microwave Combo

Parts Sections (2)

How to find your part

Find part on diagram

Zoom in & tap a highlighted area

Tap "Parts" tab

Switch to the parts list view

See details & prices

Your selected part is highlighted

ModelGE

JHP97G*Y6Range With Microwave Combo

2 diagrams417 parts

Parts Sections (2)

Diagram

Parts List

Parts in Parts List

237 parts

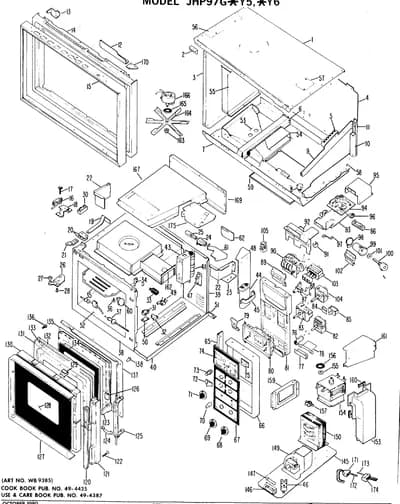

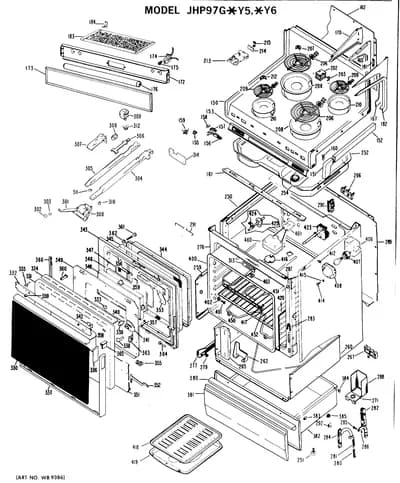

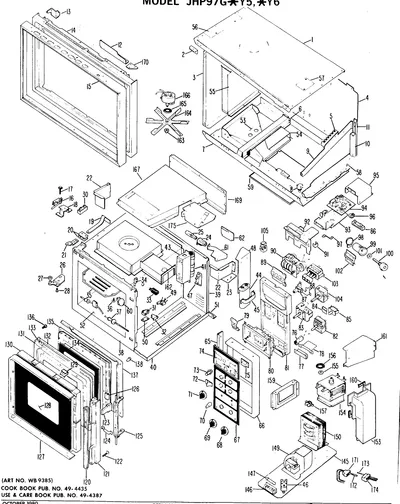

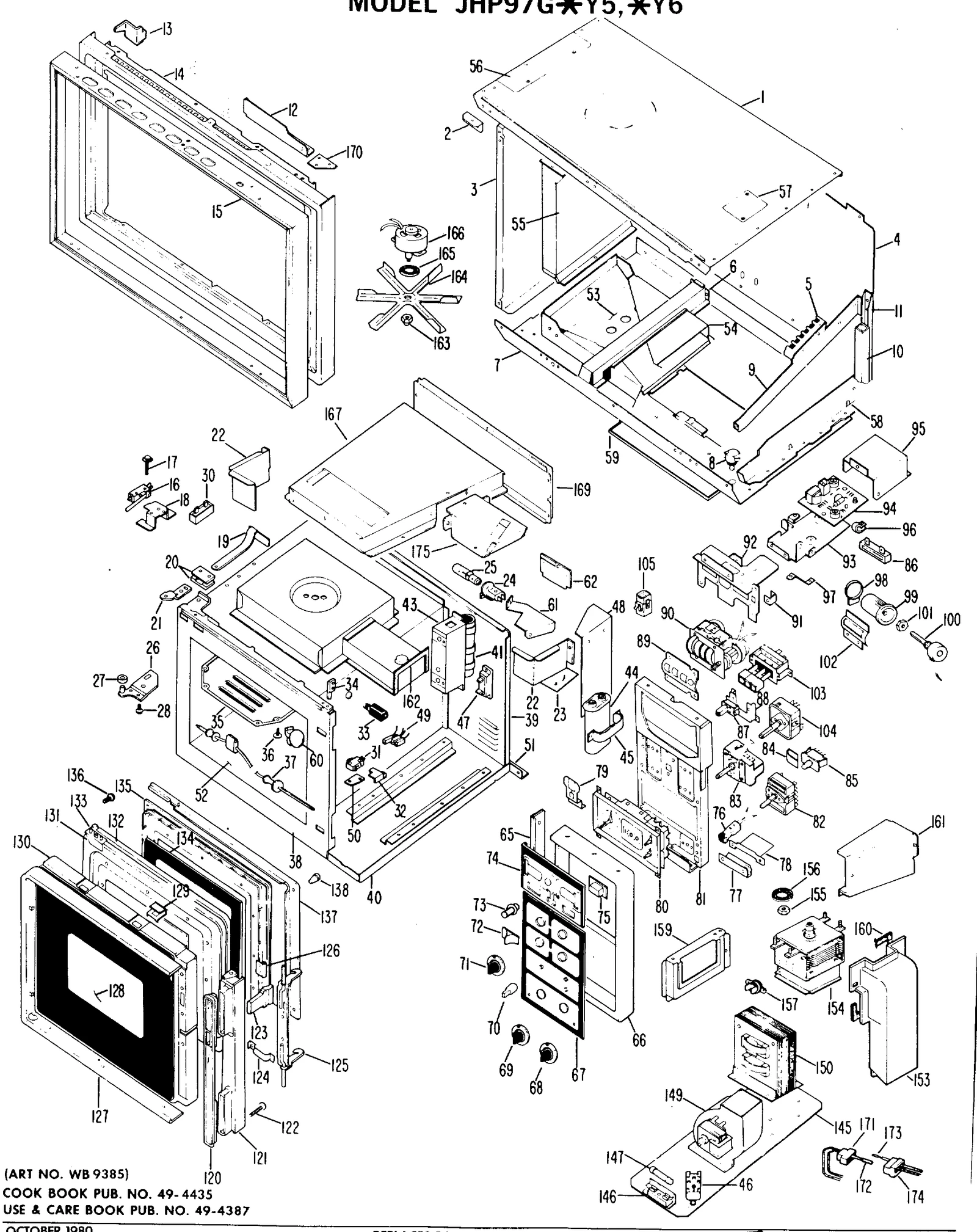

Parts list for Parts List
Ref	Image	Part / Description	Best Price
1	–	WB56X5845 CASE TOP WH	-
1	–	WB56X5846 CASE TOP CF	-
1	–	WB56X5847 CASE TOP FA	-
1	–	WB56X5848 CASE TOP HA	-
1	–	WB56X5849 CASE TOP AD	-
1		WZ4X336Dreplaces WZ04X0336 SCR 8-18 AB OVR 3/8 S#6H	-
2	–	WB02X6621 BRACKET MT. TOP AND FRAM	-
2	–	WB02X6653 SPEEDNUT	-
3	–	WB01X0365 SPEEDNUT	-
3	–	WB02X6642 ANGLE BRACE	-
3	–	WB56X5692 CASE SIDE LH - WH	-
3	–	WB56X5693 CASE SIDE LH - CF	-
3	–	WB56X5694 CASE SIDE LH - FA	-
3	–	WB56X5695 CASE SIDE LH - HA	-
3	–	WB56X5696 CASE SIDE LH - AD	-
3	–	WB56X5793 CASE SIDE RH - WH	-
3	–	WB56X5794 CASE SIDE RH - CF	-
3	–	WB56X5795 CASE SIDE RH - FA	-
3	–	WB56X5796 CASE SIDE RH	-
3	–	WB56X5797 CASE SIDE RH	-
3		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
4	–	WB56X5684 BACK COVER	-
4		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
5	–	WB17X0167 BLOCK TERM DISTRIBUTION	-
5	–	WZ04X0384 SCREW MTG END CAP	-
6	–	WB02X6834 SLIDE OVEN	-
6		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
7	–	WB02X6621 BRACKET MT. TOP AND FRAM	-
7	–	WB55X5231 BOTTOM, CASE	-
8		WB1X246replaces WB01X0246 SWITCH NUT	-
8		WB24X5093NLA SWITCH, "F" LAMP	Discontinued
9	–	WB02X6842 BRACE OVEN	-
10	–	WB02X6619 POST - RH	-
10	–	WB02X6620 POST - LH	-
11	–	WB02X3001 SPACER - POST	-
11		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
12	–	WB02X6922 GUARD - RH	-
12		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
13	–	WB02X6923 BARRIER, LH	-
13	–	WB02X6924 BARRIER RH	-
14	–	WB56X5850 FRAME,ASMBY	-
15	–	WB07X6711 TRIM, FRAME	-
15	–	WZ04X0322 SCR 8 A IHW 3/8 S	-
16	–	WB02X6557 BARRIER	-
16		WB24X5102 SWITCH MONITOR	-
17		WZ5X234replaces WZ05X0234 SCREW MT SWITCH	-
18		WB1X536replaces WB01X0536 SCREW	$16.81 Parts Dr
18	–	WB02X6697 BRACKET, DOOR SWITCH	-
19	–	WB10X5122 LEVER DOOR	-
20	–	WB10X5117 862A164P001	-
20	–	WB10X5123 GUIDE, LEVER	-
20	–	WZ05X0139 SCR 8-32 T HXW 7/8 S	-
21		WB1X438replaces WB01X0438 SCREW & WASHER ASM	-
21	–	WB10X5110 HINGE ARM	-
22	–	WB02X6853 BAFFLE	-
23	–	WB02X6855 SHIELD (FILM)	-
24	–	WB08X5084 SOCKET, LAMP	-
25	–	WZ12X0085 OVEN LAMP(GE 25T8DC 120V	-
26	–	WB01X5471 SCR 8-18 AB T 15/32 S	-
26	–	WB10X5113 BRACKET, HINGE LOWER	-
27	–	WB02X6473 WASHER	-
28	–	WB01X5471 SCR 8-18 AB T 15/32 S	-
30		WB01X0455NLA SPEEDNUT, CLAMP	Discontinued
30	–	WB02X6609 CLAMP HARNESS	-
30	–	WB27X5071 RESISTOR	-
30		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
31	–	WB24X5101 SWITCH LATCH UPPER	-
31	–	WZ05X0240 SCR 4-40 D HXW 3/4 S	-
32	–	WB02X6698 COVER, SWITCH (2 EACH)	-
33	–	WB02X2954 SLEEVE	-
33	–	WB20X5042 RECEPTACLE PROBE	-
34		WB10X5121 STRIKE LATCH	-
34		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
35		WB56X5639 COVER SITBR	-
36		WB01X5453NLA FASTENER	Discontinued
37	–	WB20X5041 PROBE	-
38	–	WB53X5081 CAVITY AND FACEPLATE (WI	-
39	–	WB02X6486 PAD (CUT TO SIZE)MOUNTS	-
39	–	WB49X5217 BACK ASSEMBLY, CASE	-
39		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
40	–	WB49X5151 BASE ASSEMBLY	-
41		WB27X5094 RESISTOR	-
43		WB1X536replaces WB01X0536 SCREW	$16.81 Parts Dr
43	–	WB02X6746 BRACKET ASSEMBLY, RESIST	-
44	–	WB27X5120 CAPACITOR	-
45	–	WB02X6393 STRAP, CAPACITOR	-
46		WB27X5056 RELAY, POWER	-
46	–	WZ04X0218 SCR 6-20 AB PH 3/8 S	-
47	–	WB02X6524 SLEEVE	-
47		WB27X5070 RECTIFIER	-
47		WZ4X338Dreplaces WZ04X0238 SCR 8-18 AB HX 1/2 S	-
48	–	WB02X6612 BRACKET, MT. RELAY-CAPAC	-
48		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
49	–	WB18X5053 HOUSING TERMINAL	-
50	–	WB02X6699 BARRIER SWITCH	-
51	–	WB02X6658 ANGLE STOP	-
52	–	WB48X5056 SHELF OVEN	-
53	–	WB49X5209 BAFFLE DUCT	-
54	–	WB02X6755 GASKET (CUT TO SIZE)	-
54	–	WB49X5211 DUCT BOTTOM	-
55	–	WB49X5210 DUCT SIDE	-
56	–	WB02X6835 COVER WH	-
56	–	WB02X6836 COVER CF	-
56	–	WB02X6837 COVER FA	-
56	–	WB02X6838 COVER HA	-
56	–	WB02X6839 COVER AD	-
57		WB1X5364replaces WB01X5364 SCREW (CR)	$5.09 Part Advantage
57	–	WB02X6724 RECEP. COVER WH	-
57	–	WB02X6725 RECEP. COVER CF	-
57	–	WB02X6726 RECEP. COVER FA	-
57	–	WB02X6727 COVER	-
57	–	WB02X6728 RECEP. COVER AD	-
58	–	WB02X6841 BRACE ANGLE	-
59	–	WB02X6840 FILLER FILTER OPENING	-
60	–	WB02X6852 PLUG HOLE	-
61	–	WB02X6859 BRACKET, SOCKET LAMP	-
62	–	WB02X6856 COVER	-
65	–	WB02X6636 TRIM CRYSTAL	-
65	–	WZ04X0237 SCREW	-
66		WB1X580replaces WB01X0580NLA SPEEDNUT	Discontinued
66	–	WB02X6634 PAD, CONTROL TRIM (BOTTO	-
66	–	WB02X6635 TRIM, CONTROL PANEL	-
66	–	WB02X6653 SPEEDNUT	-
66	–	WZ04X0237 SCREW	-
67	–	WB02X6654 SPEEDNUT U TYPE	-
67	–	WB36X5370 CRYSTAL	-
68		WB3X481replaces WB03X0479 KNOB OVEN SWITCH	-
69	–	WB03X0485 KNOB, THERMOSTAT	-
70		WB3X459replaces WB03X0459NLA KNOB TIMER	Discontinued
71		WB03X0480NLA KNOB SURFACE UNIT	Discontinued
72	–	WB03X5578 KNOB SWITCH SLIDE	-
73	–	WB03X5562 KNOB, TIMER SET	-
74	–	WB02X6656 SPEEDNUT, MT. INSERT	-
74	–	WB36X5372 INSERT	-
75	–	WB03X5579 BUTTON, PUSH SWITCH, STA	-
76		WB02X1608NLA INDICATOR LAMP	Discontinued
76	–	WB02X6624 BRACKET LAMP NEON	-
76		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
77	–	WB02X6623 CATCH, CONTROL PANEL	-
78	–	WB02X6633 BARRIER	-
79	–	WB02X6632 SLIDE INDICATOR, COLOR	-
80	–	WB19X5239 TIMER	-
80		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
81	–	WB02X6631 BRACKET, CONTROL MOUNT	-
82	–	WB22X5093 SWITCH, OVEN	-
82	–	WZ02X0528 SCR 8-32 M PHR 3/16 S	-
83		WB02X6454NLA SLEEVE	Discontinued
83	–	WB24X0184 THERMOSTAT, DUAL	-
83	–	WZ02X0528 SCR 8-32 M PHR 3/16 S	-
84	–	WB02X6630 SPACER, PUSH BUTTON	-
85		WB24X5083 SWITCH, START	-
86	–	WB27X5147 RESISTOR	-
87		WB24X5073 SWITCH SLIDE	-
87	–	WZ04X0279 SCR 6-20 AB HXW 1/4 S	-
88	–	WB02X6629 BRACKET, SLIDE SW.	-
89	–	WB02X6510 MASK, TIMER	-
90	–	WB27X5052 SMART BOARD & DISPLAY	-
90		WZ4X230Dreplaces WZ04X0209 HANDLE SCREW	-
91	–	WB02X6628 SPACER BRACKET	-
91		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
92	–	WB02X6625 INSTRUMENT BR.	-
93	–	WB02X6637 BRACKET, MT. CIRCUIT BOA	-
94		WB24X5088NLA CIRCUIT BOARD	Discontinued
94	–	WZ04X0314 SCR 8-18 AB HXS 1/4 S	-
95	–	WB02X6514 COVER, CIRCUIT BOARD	-
95	–	WZ04X0314 SCR 8-18 AB HXS 1/4 S	-
96	–	WB02X3415 CLAMP, WIRING	-
96		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
97	–	WB02X6703 SUPPORT, CIRCUIT BOARD	-
97		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
98	–	WB02X6640 GUIDE, DRUM	-
98		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
99	–	WB01X5475 CLIP, DRUM TO POT. SHAFT	-
99	–	WB02X6638 DRUM, TEMPERATURE	-
100	–	WB24X5092 POTENTIOMETER	-
101	–	WB01X0443 NUT	-
102	–	WB02X6639 MASK, DRUM	-
102		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
103		WB24X5119 SWITCH, POWER LEVEL	-
103	–	WZ02X0528 SCR 8-32 M PHR 3/16 S	-
104		WB02X6494NLA BARRIER	Discontinued
104		WB21X36771replaces WB21X0228 SWITCH, INF SURFACE UNIT	$35.64 Part Advantage
104	–	WZ02X0528 SCR 8-32 M PHR 3/16 S	-
105	–	WB17X5062 TERMINAL BLK ASM (12PIN)	-
120	–	WB15X5113 HANDLE	-
121	–	WB07X5635 TRIM HANDLE	-
122	–	WB01X5462 SCREW MTG. HANDLE - TRIM	-
123	–	WB03X5583 BUTTON LATCH	-
124	–	WB02X6644 SPRING LATCH	-
125	–	WB10X5112 LATCH BAR AS	-
126	–	WB02X6580 SHIM	-
126	–	WB10X5111 HINGE LATCH	-
126		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
127		WB1X5364replaces WB01X5364 SCREW (CR)	$5.09 Part Advantage
127	–	WB01X5505 SPEEDNUT	-
127	–	WB07X5634 TRIM, DOOR	-
128	–	WB36X5374 CRYSTAL DOOR	-
145	–	WB02X6920 PLATE MTG. COMPONENTS	-
146	–	WB02X6616 BARRIER, FUSE	-
146	–	WB27X0091 BLOCK FUSE	-
146	–	WZ05X0184 SCR 6-20 BT PHR 3/8 S	-
147		WB27X7replaces WB27X0007 FUSE	$7.92 Parts Dr
149	–	WB26X5035 MOTOR, BLOWER	-
149		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
150	–	WB01X0453 SCREW, MTG. TRANSFORMER	-
150		WB27X5096NLA TRANSFORMER	Discontinued
153	–	WB02X6921 DUCT BLOWER	-
154	–	WB18X5048 HI VOLTAGE WIRE	-
154	–	WB27X5144 MAGNETRON	-
155	–	WB01X5271 NUT, MTG. MAGNETRON	-
156	–	WB02X6046 R.F. GASKET	-
157	–	WB01X5347 SCREW, MT. THERMOSTAT	-
157	–	WB27X5117 THERMOSTAT	-
159	–	WB02X6756 DUCT FRONT	-
160	–	WB02X6755 GASKET (CUT TO SIZE)	-
161	–	WB02X6757 DUCT, REAR	-
162	–	WB02X6491 GASKET (CUT TO SIZE)	-
163	–	WB01X0586 SPEEDNUT MTG. STIRRER	-
163	–	WB01X5450 NUT, CAP MT. STIRRER	-
164	–	WB02X6479 STIRRER MODE	-
165	–	WB02X6480 GASKET	-
166	–	WB01X5497 SCR 10-16 AB IHW 1/2 S	-
166		WB26X5039 MOTOR STIRRER	-
167		WB1X536replaces WB01X0536 SCREW	$16.81 Parts Dr
167	–	WB02X6919 PAD (CUT TO SIZE)	-
167	–	WB49X5231 DUCT EXHAUST	-
169	–	WB49X5233 DUCT REAR	-
169		WB1X500Dreplaces WZ04X0304 SCREW DUCT	$7.64 RepairClinic
170	–	WB02X6614 PLATE TRIM, TOP	-
170		WZ4X345Dreplaces WZ04X0231 SCREW MTG. GUIDE	-
171	–	WB17X0160 SOCKET HOOD - OVEN	-
172		WB17X0145NLA TERMINAL FOR WB17X0147	Discontinued
173	–	WB17X0146 TERMINAL HOOD - OVEN	-
174	–	WB17X0159 SOCKET HOOD - OVEN	-
175	–	WB02X6659 PAD	-
175	–	WB02X6919 PAD (CUT TO SIZE)	-
175	–	WB49X5232 EXTENSION DUCT EXHAUST	-
