Model
GE JVM1190SY01
Microwave Or Advantium
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1190SY01Microwave Or Advantium
2 diagrams110 parts
Parts Sections (2)
Diagram

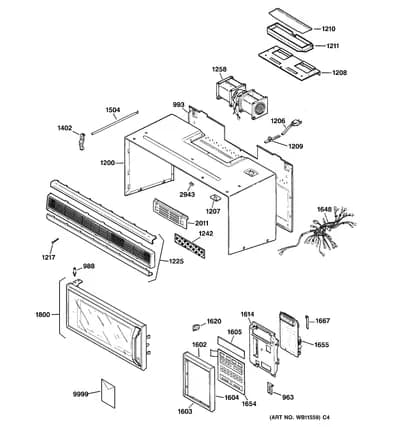

CONTROL PANEL , DOOR & CASE
Parts in CONTROL PANEL , DOOR & CASE
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 963 | – | WB14X0159 HINGE CONTROL BOX | - |
| 988 | – | WB01X1418 BOLT-HINGE | - |
| 993 |  | WB6X9replaces WB06X0009 MOUNTING KIT ASS'Y | - |
| 1200 | – | WB56X2051 CASE OUTER | - |
| 1206 | – | WB18X0345 POWER CORD ASS'Y | - |
| 1207 | – | WB02X4223 BRACKET-POWER CORD | - |
| 1208 | – | WB04X0126 BRACKET-ADJUSTABLE | - |
| 1209 | – | WB02X7677 BUSHING-POWER CORD | - |
| 1210 | – | WB02X4230 DAMPER DOOR | - |
| 1211 | – | WB02X9957 HOOD DAMPER | - |
| 1217 | | WB01X1463NLA SCREW-GRILLE MOUNTING | Discontinued |
| 1225 | – | WB07X10213 GRILLE ASSEMBLY | - |
| 1242 | | FILTER (CHARCOAL) | - |
| 1258 | – | WB26X0109 VENT MOTOR ASSEMBLY | - |
| 1402 | | WB02X4238NLA GUIDE MOUNTING SHAFT | Discontinued |
| 1504 | – | WB06X0030 SHAFT-MOUNTING | - |
| 1602 | | TRIM-CONTR PANEL,UPPER | - |
| 1603 | | TRIM CONTR PANEL,LOWER | - |
| 1604 | – | WB07X2043 CONTROL PANEL-BLACK | - |
| 1605 | – | WB36X0954 CRYSTAL | - |
| 1614 | – | WB06X0430 BRACKET-CONTROL PANEL | - |
| 1620 | – | WB04X0185 BRACKET-CONTROL BOX | - |
| 1648 | – | WB18X10064 WIRE HARNESS-A | - |
| 1654 | | KEY PANEL ASS'Y | - |
| 1655 | | SMARTBOARD | - |
| 1667 | | WB6X61replaces WB06X0061 SUPPORT-SMARTBOARD | - |
| 1800 | | ASSY-DOOR | - |
| 2011 | – | WB06X0031 BARRIER-FRONT | - |
| 2943 | | WB01X1502NLA RETAINER NUT | Discontinued |
| 9999 | – | 31-20907 MINI-MANUAL | - |
| 9999 | – | 49-40010 TEMPLATE REAR WALL | - |
| 9999 | – | 49-40036 INSTALLATION INSTRUCTION | - |
| 9999 | – | 49-40037 INSTALLATION TEMPLATE | - |
| 9999 | – | 49-40063 USE&CARE MANUAL | - |
| 9999 | – | 49-8637 COOKBOOK | - |
| 9999 | | INSTALLATION HARDWARE | - |
