Model
GE JVM1190WD001
Microwave Or Advantium
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1190WD001Microwave Or Advantium
1 diagram122 parts
Parts Sections (1)
Diagram

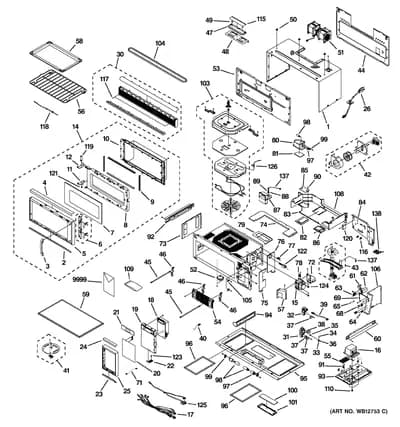

MICROWAVE
Parts in MICROWAVE
122 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB56X10142 CASE OUTER | - |
| 2 |  | WB15X10094NLA HANDLE | Discontinued |
| 3 | – | WB07X2056 TRIM DOOR,LOWER-WHT | - |
| 4 | – | WB55X10576 TRIM DOOR,UPPER-WHT | - |
| 5 | – | WB55X10577 DOOR-A | - |
| 6 | – | WB05X10008 KEY DOOR ASS'Y | - |
| 7 | – | WB36X10230 SCREEN-DOOR | - |
| 8 | – | WB55X10571 DOOR-E | - |
| 9 | – | WB02X10868 FERRITE-DOOR | - |
| 10 |  | DOOR-C | - |
| 11 | | HINGE-L ASS'Y | - |
| 12 | | HINGE UPPER ASS'Y | - |
| 14 | – | WB56X10365 DOOR ASM | - |
| 15 |  | MAGNETRON | $59.47 PartSelect |
| 16 | | TRANS-H.V. | - |
| 17 | – | WB18X10216 WIRE HARNESS-A | - |
| 18 | – | WB27X10663 SMARTBOARD | - |
| 19 | – | WB06X10472 BRACKET C/PANEL ASS'Y | - |
| 20 | | KEY PANEL-WHT | - |
| 21 | – | WB36X0954 CRYSTAL | - |
| 22 | – | WB14X0159 HINGE CONTROL BOX | - |
| 23 | – | WB07X2054 TRIM-CONTR PANEL,LWR-WHT | - |
| 24 | – | WB07X2053 TRIM-CONTR PANEL,UPR-WHT | - |
| 25 | – | WB07X2052 CONTROL PANEL-WHT | - |
| 26 | – | WB18X0345 POWER CORD ASS'Y | - |
| 30 | | WB7X2048replaces WB07X2048 GRILLE ASSEMBLY-WHT | - |
| 31 | | LATCH BODY-LOWER | - |
| 32 | – | WB06X0048 BODY-LATCH-U | - |
| 33 | – | WB02X4261 LEVER HOOK | - |
| 34 | – | WB09X0199 SPRING HOOK | - |
| 35 | | WB2X4260replaces WB02X4260 CAM | - |
| 36 | | WB01X0721NLA SCREW | Discontinued |
| 37 |  | WB24X829replaces WB24X0829 SWITCH-MICRO | $21.93 Part Advantage |
| 38 |  | WB24X830replaces WB24X0830 SWITCH-MICRO | $23.03 Part Advantage |
| 39 | – | WB18X10208 WIRE HARNESS-B | - |
| 40 | – | WB18X10217 WIRE HARNESS-E | - |
| 41 | – | WB06X0045 STIRRER ASM | - |
| 42 |  | MOTOR FAN ASS'Y | - |
| 43 | – | WB26X0129 MOTOR FAN ASS'Y | - |
| 44 | | WB6X9replaces WB06X0009 MOUNTING KIT ASS'Y | - |
| 45 | – | WB06X0030 SHAFT-MOUNTING | - |
| 46 | | WB02X4238NLA GUIDE MOUNTING SHAFT | Discontinued |
| 47 | – | WB02X9957 HOOD DAMPER | - |
| 48 | – | WB04X0126 BRACKET-ADJUSTABLE | - |
| 49 | – | WB06X10473 CUSHION-SPONGE | - |
| 50 | – | WB01X10066 ASM.- NUT HOLDER | - |
| 51 | – | WB26X10124 MOTOR- VENTILATION ASM | - |
| 52 | | WB26X154replaces WB26X0154 STIRRER MOTOR | - |
| 53 | – | WB56X10313 BACK PANEL ASS'Y | - |
| 54 | – | WB06X0031 BARRIER-FRONT | - |
| 55 | – | WB06X10474 BARRIER-HVT | - |
| 56 | | WB48X10027NLA RACK WIRE ASM | Discontinued |
| 57 | – | WB06X0053 DUCT-MGT | - |
| 58 | | WB49X664replaces WB49X0664 PAN-BROIL | - |
| 59 | – | WB39X0075 CERAMIC TRAY | - |
| 60 | – | WB06X0055 BRACKET-BRIDGE | - |
| 61 | – | WB06X0064 BRACKET-HVC | - |
| 62 |  | CAPACITOR 2100V/0.86 MICROF | $92.35 Parts Dr |
| 63 | – | WB06X10475 BARRIER-HVC | - |
| 64 | | THERMOSTAT | - |
| 65 |  | WB27X10597replaces WB27X10169 DIODE H V | $42.18 Part Advantage |
| 68 |  | FUSE 250V 15A | $14.51 Parts Dr |
| 69 | – | WB18X10218 LEAD WIRE-C | - |
| 71 | | WIRE HARNESS-H | - |
| 72 | – | WB06X0057 DUCT-AIR | - |
| 73 | – | WB06X0040 PLATE-HEATER-L | - |
| 74 | – | WB06X0016 PLATE-HEATER-U | - |
| 75 | – | WB06X10476 PANEL HEATER(A) ASS'Y | - |
| 76 | – | WB06X10477 PANEL HEATER(B) ASS'Y | - |
| 77 |  | WB27X10195replaces WB27X10665 THERMOSTAT | $41.34 RepairClinic |
| 78 | | WB21X0536NLA TCO - MAG | Discontinued |
| 79 | – | WB06X0056 SUPPORT-VENT | - |
| 80 | – | WB04X0128 COVER-OVEN LAMP-U | - |
| 81 | | WB6X37replaces WB06X0037 GLASS-LAMP | - |
| 82 | – | WB06X0014 DUCT-COVER | - |
| 83 | – | WB06X10478 DUCT-UPPER-B | - |
| 84 | – | WB06X10479 DUCT-UPPER-A | - |
| 85 | – | WB06X0308 COVER SENSOR | - |
| 86 | – | WB04X0129 HOLDER-LAMP | - |
| 87 | – | WB06X0034 DUCT-EXHAUST | - |
| 88 |  | WB24X799replaces WB24X0799 SENSOR-GAS | $126.78 Part Advantage |
| 89 | – | WB06X0309 HOLDER-SENSOR | - |
| 90 | – | WB01X1465 RIVET SENSOR | - |
| 91 |  | WB27X1127replaces WB21X0535 TCO -BOTTOM | $39.30 RepairClinic |
| 92 | – | WB06X10480 SUPPORTER-SIDE | - |
| 93 | | BASE PLATE ASS'Y | - |
| 94 | – | WB06X10481 ENCLOSURE-BOTTOM | - |
| 95 | | BASE BOTTOM ASS'Y | - |

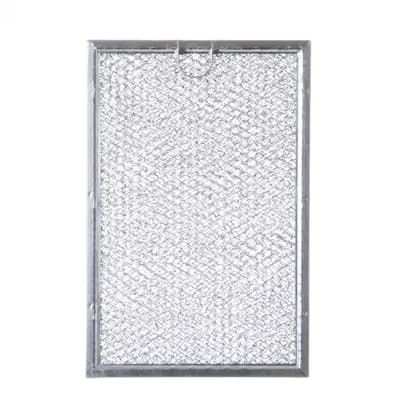

| 96 |  | WB6X60replaces WB06X10482 FILTER GREASE | $37.61 Part Advantage |
| 97 | – | WB08X0300 SOCKET-LAMP | - |
| 98 |  | LAMP-INCANDESCENT | $8.37 Part Advantage |
| 99 | – | WB08X0306 BRACKET SOCKET | - |
| 100 | – | WB36X0820 GLASS-COOKTOP LAMP | - |
| 101 | – | WB36X0829 BRACKET, COOKTOP GLASS | - |
| 103 | | CASE HEATER ASM | - |
| 104 | – | WB06X0063 BELT-RUBBER | - |
| 105 | – | WB04X0185 BRACKET-CONTROL BOX | - |
| 106 | – | WB06X10483 DUCT-SIDE | - |
| 108 | – | WB06X0012 DUCT-CENTER | - |
| 109 | | INSTALLATION HARDWARE | - |
| 110 | – | WB01X0858 MICRO SWITCH SCREW-PH 3X | - |
| 115 | – | WB02X4230 DAMPER DOOR | - |
| 116 | – | WB02X9330 WIRE-SADDLE | - |
| 117 | | WB01X1464NLA GRILLE-SCREW MOUNTING | Discontinued |
| 118 | – | WB20X0135 SENSOR-THERMISTOR | - |
| 119 | – | WB01X0715 BOLT HINGE | - |
| 120 |  | CAPACITOR- MOTOR | - |
| 121 | | BOLT-FLANGE | - |
| 122 | | WB08X0302NLA SOCKET-PROBE | Discontinued |
| 123 | | WB01X10063NLA SCREW-SPECIAL | Discontinued |
| 124 |  | NUT MAGNETRON | - |
| 125 | – | WB18X10210 WIRE HARNESS-C | - |
| 126 | – | WB27X0596 SENSOR-THERMISTOR | - |
| 137 |  | WB4X175replaces WB04X0175 SUPPORTER-PCB | $2.95 ApplianceParts Pro |
| 138 | – | WB06X10497 NOISE FILTER ASS'Y | - |
| 9999 | – | 31-20974 MINI-MANUAL | - |
| 9999 | – | 49-40008 INSTALLATION INSTRUCTION | - |
| 9999 | – | 49-40009 TEMPLATE TOP CAB | - |
| 9999 | – | 49-40010 TEMPLATE REAR WALL | - |
| 9999 | – | 49-40220F USE & CARE FRENCH | - |
| 9999 | – | 49-40221 USE & CARE ENGLISH | - |
| 9999 | – | 49-8845 COOKBOOK | - |
