Model
GE JVM1190WY004
Microwave Or Advantium
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1190WY004Microwave Or Advantium
2 diagrams118 parts

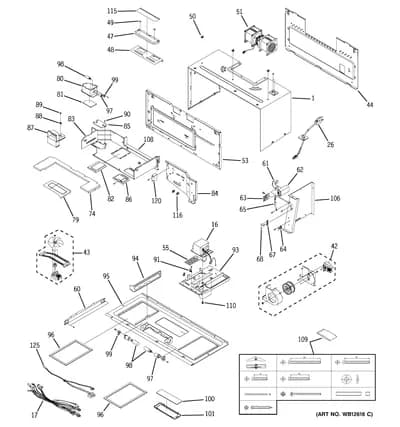

Parts Sections (2)
Diagram

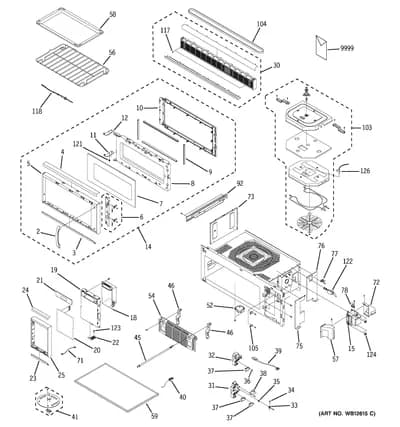

DOOR & CASE PARTS
Parts in DOOR & CASE PARTS
65 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | WB15X10094NLA HANDLE | Discontinued |
| 3 | – | WB07X2056 TRIM DOOR,LOWER-WHT | - |
| 4 | – | WB55X10576 TRIM DOOR,UPPER-WHT | - |
| 5 | – | WB55X10577 DOOR-A | - |
| 6 | – | WB05X10008 KEY DOOR ASS'Y | - |
| 7 | – | WB36X10230 SCREEN-DOOR | - |
| 8 | – | WB55X10571 DOOR-E | - |
| 9 | – | WB02X10868 FERRITE-DOOR | - |
| 10 |  | DOOR-C | - |
| 11 | | HINGE-L ASS'Y | - |
| 12 | | HINGE UPPER ASS'Y | - |
| 14 | | DOOR ASM | - |
| 15 |  | MAGNETRON | $59.47 PartSelect |
| 18 | – | WB27X10663 SMARTBOARD | - |
| 19 | – | WB06X10472 BRACKET C/PANEL ASS'Y | - |
| 20 | | KEY PANEL-WHT | - |
| 21 | – | WB36X0954 CRYSTAL | - |
| 22 | – | WB14X0159 HINGE CONTROL BOX | - |
| 23 | – | WB07X2054 TRIM-CONTR PANEL,LWR-WHT | - |
| 24 | – | WB07X2053 TRIM-CONTR PANEL,UPR-WHT | - |
| 25 | – | WB07X2052 CONTROL PANEL-WHT | - |
| 30 | | WB7X2048replaces WB07X2048 GRILLE ASSEMBLY-WHT | - |
| 31 | | LATCH BODY-LOWER | - |
| 32 | – | WB06X0048 BODY-LATCH-U | - |
| 33 | – | WB02X4261 LEVER HOOK | - |
| 34 | – | WB09X0199 SPRING HOOK | - |
| 35 | | WB2X4260replaces WB02X4260 CAM | - |
| 36 | | WB01X0721NLA SCREW | Discontinued |
| 37 |  | WB24X829replaces WB24X0829 SWITCH-MICRO | $21.93 Part Advantage |
| 38 |  | WB24X830replaces WB24X0830 SWITCH-MICRO | $23.03 Part Advantage |
| 39 | – | WB18X10208 WIRE HARNESS-B | - |
| 40 | – | WB18X10209 WIRE HARNESS-E | - |
| 41 | – | WB06X0045 STIRRER ASM | - |
| 45 | – | WB06X0030 SHAFT-MOUNTING | - |
| 46 | | WB02X4238NLA GUIDE MOUNTING SHAFT | Discontinued |
| 52 | | WB26X154replaces WB26X0154 STIRRER MOTOR | - |
| 54 | – | WB06X0031 BARRIER-FRONT | - |
| 56 | | WB48X10027NLA RACK WIRE ASM | Discontinued |
| 57 | – | WB06X0053 DUCT-MGT | - |
| 58 | | WB49X664replaces WB49X0664 PAN-BROIL | - |
| 59 | – | WB39X0075 CERAMIC TRAY | - |
| 71 | | WIRE HARNESS-H | - |
| 72 | – | WB06X0057 DUCT-AIR | - |
| 73 | – | WB06X0040 PLATE-HEATER-L | - |
| 75 | – | WB06X10476 PANEL HEATER(A) ASS'Y | - |
| 76 | – | WB06X10477 PANEL HEATER(B) ASS'Y | - |
| 77 |  | WB27X10195replaces WB27X10665 THERMOSTAT | $41.34 RepairClinic |
| 78 | | WB21X0536NLA TCO - MAG | Discontinued |
| 92 | – | WB06X10480 SUPPORTER-SIDE | - |
| 103 | | CASE HEATER ASM | - |
| 104 | – | WB06X0063 BELT-RUBBER | - |
| 105 | – | WB04X0185 BRACKET-CONTROL BOX | - |
| 117 | | WB01X1464NLA GRILLE-SCREW MOUNTING | Discontinued |
| 118 | – | WB20X0135 SENSOR-THERMISTOR | - |
| 121 | | BOLT-FLANGE | - |
| 122 | | WB08X0302NLA SOCKET-PROBE | Discontinued |
| 123 | | WB01X10063NLA SCREW-SPECIAL | Discontinued |
| 124 |  | NUT MAGNETRON | - |
| 126 | – | WB27X0596 SENSOR-THERMISTOR | - |
| 9999 | – | 31-20296 MINI-MANUAL & SCHEMATIC | - |
| 9999 | – | 49-40008 INSTALLATION INSTRUCTION | - |
| 9999 | – | 49-40009 TEMPLATE TOP CAB | - |
| 9999 | – | 49-40010 TEMPLATE REAR WALL | - |
| 9999 | – | 49-40063-2 USE & CARE | - |
| 9999 | – | 49-8845 COOKBOOK | - |
