Model
GE JVM130H03
Microwave Or Advantium
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM130H03Microwave Or Advantium
2 diagrams96 parts
Parts Sections (2)

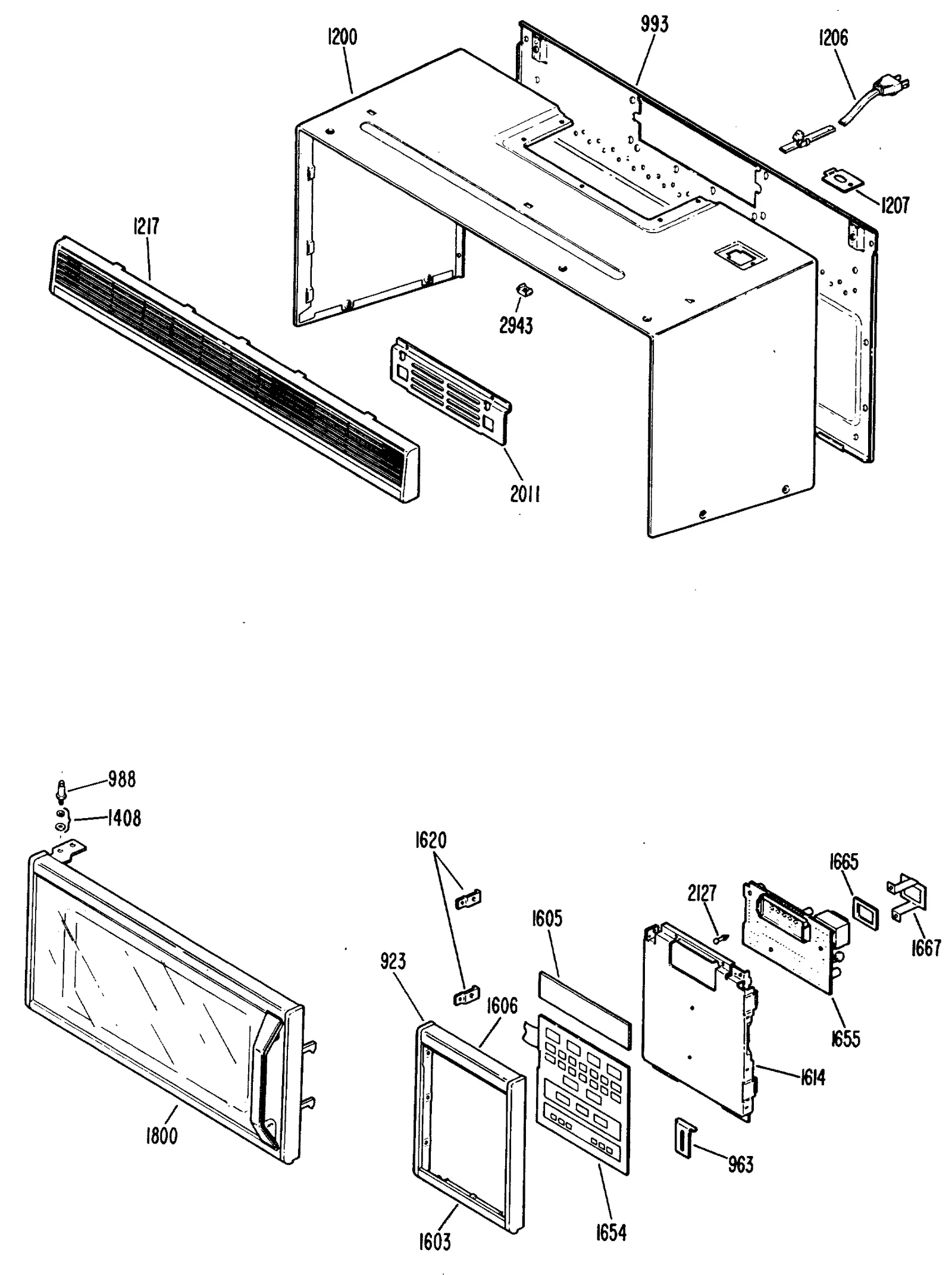

Diagram
Parts List
Parts in Parts List
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 923 | – | WB07X1779 CONTROL PANEL | - |
| 963 | – | WB14X0046 HINGE | - |
| 988 | – | WB02X9358 U-BOLT-HINGE | - |
| 993 | – | WB56X1946 PLATE-BACK | - |
| 1200 | – | WB56X1936 OUTER CASE | - |
| 1202 | – | WB56X2042 BASE PLATE | - |
| 1206 | – | WB18X0395 CORD-POWER SUPPLY | - |
| 1207 | – | WB02X9323 CABLE CLAMP | - |
| 1217 | – | WB07X1783 GRILLE ASSEMBLY | - |
| 1229 | – | WB02X4261 LEVER HOOK | - |
| 1408 |  | WB01X0655NLA WASHER-SMOOTH | Discontinued |
| 1408 | – | WB01X0838 WASHER-TOOTHED | - |
| 1422 | – | WB26X0074 BLOWER MOTOR ASSEMBLY | - |
| 1437 | – | WB02X9951 BRACKET-HV CAPACITOR | - |
| 1438 |  | WB27X10011replaces WB27X0585 CAPACITOR-HV | $73.56 Part Advantage |
| 1447 |  | WB24X829replaces WB24X0426 SWITCH-PRIMARY | $21.93 Part Advantage |
| 1527 | – | WB02X4594 BARRIER-HV CAPACITOR | - |
| 1603 | – | WB07X1422 TRIM-CONTROL PANEL-LOWER | - |
| 1605 | – | WB36X0794 CRYSTAL | - |
| 1606 | – | WB07X1421 TRIM-CONTROL PANEL-UPPER | - |
| 1614 | – | WB02X9930 BRACKET-CONTROL PANEL | - |
| 1620 | – | WB02X9936 BRACKET-FRONT PANEL | - |
| 1654 | – | WB27X0579 KEY PANEL ASSEMBLY | - |
| 1655 | – | WB27X0676 SMART BOARD ASSEMBLY | - |
| 1665 | – | WB02X9962 COVER-LV TRANSFORMER | - |
| 1667 | – | WB02X9932 BRACKET-LV TRANSFORMER | - |
| 1800 | – | WB55X0724 DOOR ASSEMBLY | - |
| 2011 | – | WB02X9954 BARRIER-FRONT | - |
| 2127 | – | WB02X9963 SUPPORT-PCB | - |
| 2943 | – | WB01X1398 HOLDER NUT ASSEMBLY | - |
| 32767 | – | 31-0688 UNDER CABINET TEMPLATE | - |
| 32767 | – | 31-0689 WALL MOUNT TEMPLATE | - |
| 32767 | – | 31-0864 INSTALLATION INSTRUCTION | - |
| 32767 | – | 49-8026 USE AND CARE BOOK | - |
| 32767 | | WB2X9339replaces WB02X9339 INSTALLATION HARDWARE | - |
| 32767 | | TOUCH UP-CAVITY (SPRAY) | - |
| 32767 | | TOUCH UP CAVITY (BRUSH) | - |
