Model
GE JVM131G01
Microwave Or Advantium
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM131G01Microwave Or Advantium
2 diagrams94 parts
Parts Sections (2)
Diagram

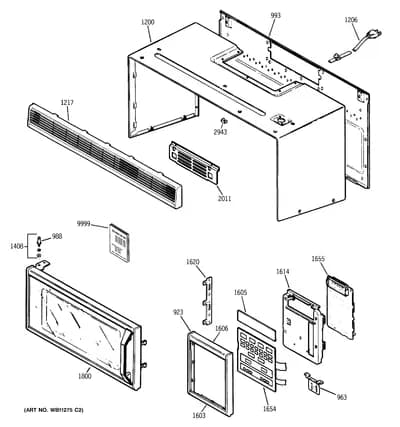

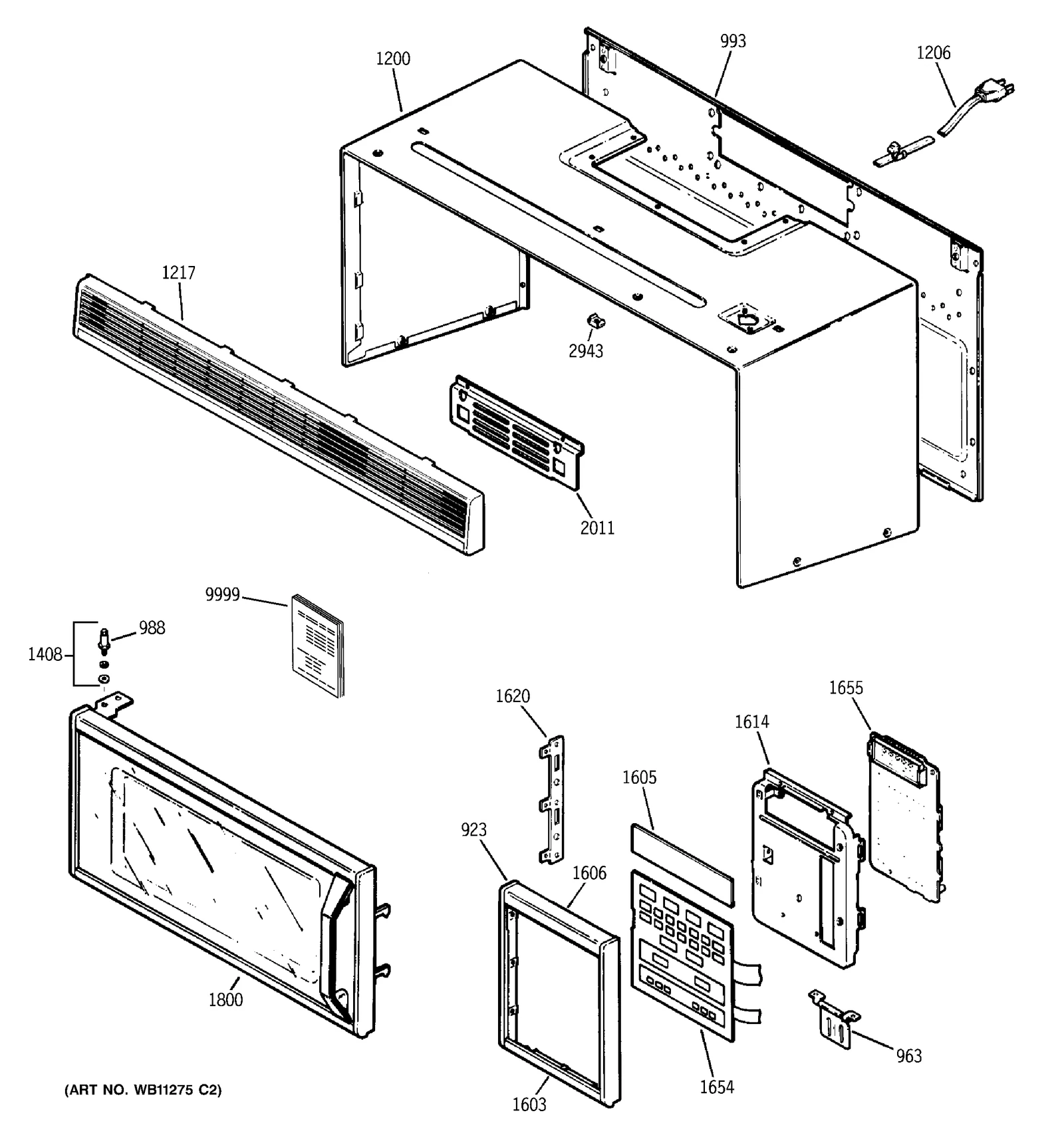

DOOR & CABINET
Parts in DOOR & CABINET
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 923 | – | WB07X1610 CONTROL PANEL | - |
| 963 | – | WB14X0124 HINGE ASSEMBLY | - |
| 988 | – | WB01X0715 BOLT HINGE | - |
| 993 | – | WB56X1946 PLATE-BACK | - |
| 1200 | – | WB56X1936 OUTER CASE | - |
| 1206 | – | WB18X0345 POWER CORD ASS'Y | - |
| 1217 | – | WB07X1368 GRILLE | - |
| 1408 |  | WB01X0655NLA WASHER-SMOOTH | Discontinued |
| 1408 | – | WB01X0838 WASHER-TOOTHED | - |
| 1603 | – | WB07X1422 TRIM-CONTROL PANEL-LOWER | - |
| 1605 | – | WB36X0676 CRYSTAL | - |
| 1606 | – | WB07X1421 TRIM-CONTROL PANEL-UPPER | - |
| 1614 | | WB2X9320replaces WB02X9320 BRACKET-CONTROL PANEL | - |
| 1620 | – | WB02X4264 BRACKET-FRONT PANEL | - |
| 1654 | – | WB27X0455 KEY PANEL ASM | - |
| 1655 | – | WB27X0451 SMART BOARD & DISPLAY | - |
| 1800 | – | WB55X0512 DOOR ASSEMBLY | - |
| 2011 | – | WB02X4266 BARRIER-FRONT | - |
| 2943 | – | WB01X0799 NUT HOLDER ASSEMBLY | - |
| 9999 | – | 49-4883 USE AND CARE BOOK | - |
