ModelGE
JVM1320BB01Microwave Or Advantium
2 diagrams84 parts
Parts Sections (2)
Diagram

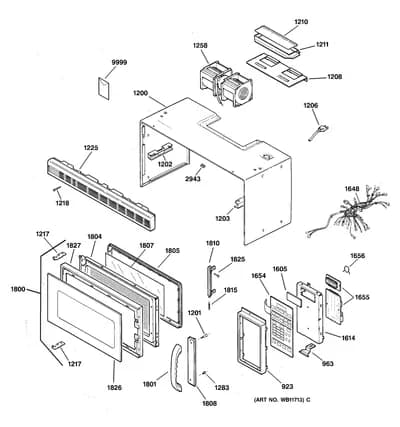

CASE, DOOR & CONTROLS
Parts in CASE, DOOR & CONTROLS
38 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 923 | – | WB07X2091 CONTROL-PANEL | - |
| 963 |  | WB14X204replaces WB14X0204 HINGE, CONTROL BOX | - |
| 1200 | – | WB56X2183 CASE, OUTER - BLK | - |
| 1201 | – | WB01X1525 SCREW-TAPPING | - |
| 1202 | – | WB06X0510 BRACKET, CASE - LEFT | - |
| 1203 | – | WB06X0511 BRACKET, CASE - RIGHT | - |
| 1206 | | WB18X10200replaces WB18X0566 POWER CORD | $43.95 ApplianceParts Pro |
| 1208 | – | WB06X0387 BRACKET MOTOR | - |
| 1210 |  | WB06X10436replaces WB06X0389 HOOD DAMPER | $33.72 Parts Dr |
| 1211 | | WB06X10436replaces WB06X0388 SUB HOOD DAMPER | $33.72 Parts Dr |
| 1217 | – | WB14X0203 HINGE-DOOR-UPPER | - |
| 1218 | | WB01X1463NLA SCREW-GRILLE MOUNTING | Discontinued |
| 1225 | – | WB07X2082 GRILLE - BLK | - |
| 1258 | – | WB26X0182 MOTOR-VENTILATION | - |
| 1283 |  | WE02X10086replaces WB01X0861 SCREW,DOOR BRKT-BOTTOM | - |
| 1605 | | WB36X10070replaces WB36X0944 CRYSTAL | - |
| 1614 | | BRKT C/PANEL ASS'Y | - |
| 1648 | – | WB18X10104 WIRE HARNESS-A | - |
| 1654 | | KEY PANEL ASS'Y | - |
| 1655 | – | WB27X10356 SMARTBOARD | - |
| 1656 | – | WB27X0956 VARISTOR | - |
| 1800 | | DOOR ASS'Y | - |
| 1801 | – | WB15X0337 HANDLE-DOOR | - |
| 1804 | – | WB55X10325 DOOR LINER & CHOKE | - |
| 1805 | – | WB55X0985 FRAME,INNER - DOOR - BLK | - |
| 1807 | | WB36X0943NLA FILM-DOOR | Discontinued |
| 1808 | – | WB06X0512 COVER-DOOR | - |
| 1810 | – | WB10X0301 LATCH DOOR | - |
| 1815 | – | WB09X0303 SPRING-LATCH DOOR | - |
| 1825 | – | WB06X0480 PIN, LATCH DOOR | - |
| 1826 | – | WB36X0940 OUTER GLASS, DOOR - BLK | - |
| 1827 | | DOOR-A | - |
| 2943 | | WB01X1502NLA RETAINER NUT | Discontinued |
| 9999 | – | 31-20931 MANUAL MINI | - |
| 9999 | – | 49-40037 INSTALLATION TEMPLATE | - |
| 9999 | – | 49-40091 MANUAL USE AND CARE | - |
| 9999 | – | 49-8699 INSTALLATION INSTRUCTION | - |
| 9999 | – | WB01X1526 HARD WARE ASS'Y | - |
