Model
GE JVM1320BD001
Microwave Or Advantium
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1320BD001Microwave Or Advantium
1 diagram90 parts
Parts Sections (1)
Diagram

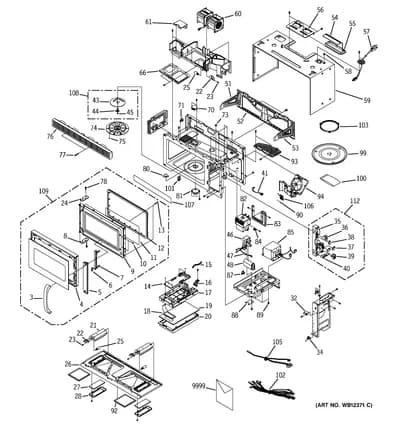

MICROWAVE
Parts in MICROWAVE
90 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 | – | WB15X0337 HANDLE-DOOR | - |
| 4 |  | DOOR-A | - |
| 5 | – | WB06X0512 COVER-DOOR | - |
| 6 | – | WB09X0303 SPRING-LATCH DOOR | - |
| 7 | – | WB10X0301 LATCH DOOR | - |
| 8 | – | WB14X10012 HINGE-DOOR-LOWER | - |
| 9 | – | WB55X10336 ASSY DOOR-E | - |
| 10 | – | WB06X10025 PIN-DOOR | - |
| 11 | | WB36X0943NLA FILM-DOOR | Discontinued |
| 12 | – | WB55X0985 FRAME,INNER - DOOR - BLK | - |
| 13 | – | WB01X1524 SCREW, TAPPING | - |
| 14 | | SMART BOARD | - |
| 15 | | WIRE GND PCB | - |
| 16 | | WB14X204replaces WB14X0204 HINGE, CONTROL BOX | - |
| 17 | | BRKT C/PANEL ASS'Y | - |
| 18 | | DISPLAY WINDOW | - |
| 19 | | KEY PANEL ASS'Y | - |
| 20 | – | WB07X2091 CONTROL-PANEL | - |
| 21 | | BRACKET-BOTTOM LAMP | - |
| 22 |  | WB08X10016replaces WB08X10011 SOCKET-LAMP | $20.52 Parts Dr |
| 23 | | WB01X10063NLA SCREW-SPECIAL | Discontinued |
| 24 | – | WB14X0203 HINGE-DOOR-UPPER | - |
| 25 |  | LAMP-INCANDESCENT | $8.37 Part Advantage |
| 26 | – | WB56X10170 BASE-BOTTOM | - |
| 27 |  | GLASS COOKTOP LAMP | $11.60 Part Advantage |
| 28 | | COVER LAMP | - |
| 32 |  | CAPACITOR- MOTOR | - |
| 34 |  | WB27X709replaces WB27X0709 THERMOSTAT | $24.09 Part Advantage |
| 35 | | WB06X0484NLA LATCH BODY | Discontinued |
| 36 | – | WB06X0489 LEVER SWITCH-UPPER | - |
| 37 |  | WB24X830replaces WB24X0830 SWITCH-MICRO | $23.03 Part Advantage |
| 38 |  | WB24X829replaces WB24X0829 SWITCH-MICRO | $21.93 Part Advantage |
| 39 | – | WB06X0490 CAM SWITCH | - |
| 40 | – | WB06X0491 LEVER SWITCH LOWER | - |
| 41 | – | WB18X10048 WIRE HARNESS "B" | - |
| 43 |  | WB06X10416replaces WB06X10172 BLADE-STIRRER | $27.37 ApplianceParts Pro |
| 44 | – | WB06X10123 HOLDER-STIRRER | - |
| 45 | – | WB06X10340 WB06X10124 | - |
| 46 | | BRACKET-H V C | - |
| 47 |  | DIODE ASSY | $79.64 Part Advantage |
| 48 | | WB27X10368NLA CAPACITOR H.V. | Discontinued |
| 51 | – | WB56X10167 SUPPORTER-GUIDE(L) | - |
| 52 | | WB56X2147replaces WB56X10168 SUPPORTER-MOUNTING | - |
| 53 | – | WB56X10166 SUPPORTER-GUIDE(R) | - |
| 54 |  | WB06X10436replaces WB06X10129 COVER-DAMPER | $33.72 Parts Dr |
| 55 | | WB06X10436replaces WB06X10133 DAMPER-MAIN | $33.72 Parts Dr |
| 56 | – | WB06X0387 BRACKET MOTOR | - |
| 57 | | WB18X10200replaces WB18X0566 POWER CORD | $43.95 ApplianceParts Pro |
| 58 | – | WB01X10066 ASM.- NUT HOLDER | - |
| 59 | – | WB56X10169 PANEL-OUTER | - |
| 60 | – | WB26X0182 MOTOR-VENTILATION | - |
| 61 | – | WB06X0492 COVER-OVEN LAMP | - |
| 66 | – | WB06X0493 BRACKET-UPPER DUCT | - |
| 70 | | WB26X154replaces WB26X0154 STIRRER MOTOR | - |
| 71 | | WB27X10167NLA THERMOSTAT 120/0 | Discontinued |
| 73 |  | NUT MAGNETRON | - |
| 74 | | WB06X10130NLA COVER-STIRRER | Discontinued |
| 75 | | WB06X10126NLA BUTTON-LOCK | Discontinued |
| 76 | – | WB07X2082 GRILLE - BLK | - |
| 77 | | WB01X10062NLA SCREW-TAP PH | Discontinued |
| 78 | | BOLT-FLANGE | - |
| 80 | | COUPLER | - |
| 81 | – | WB26X0181 MOTOR-SYNCHRONOUS | - |
| 82 |  | WB27X10735replaces WB27X10370 MAGNETRON ASM | $88.59 Parts Dr |
| 83 |  | BRACKET-MGT | - |
| 84 | – | WB24X0810 SWITCH THERMOSTAT | - |
| 85 | | TRANS-H.V | - |
| 87 |  | WB27X1127replaces WB21X0535 TCO -BOTTOM | $39.30 RepairClinic |
| 88 | | COVER TCO-BOTTOM | - |
| 89 |  | SCREW WASHER | $7.37 ApplianceParts Pro |
| 90 |  | WB27X10928replaces WB27X10474 FUSE | $5.85 Part Advantage |
| 92 |  | WB6X486replaces WB06X10125 FILTER-AIR | $61.31 Part Advantage |
| 93 | – | WB06X0495 COVER-FRONT | - |
| 94 | | FAN MOTOR ASS'Y | - |
| 99 |  | WB49X10097replaces WB39X0078 TRAY-COOKING | $88.95 ApplianceParts Pro |
| 100 | – | WB01X1526 HARD WARE ASS'Y | - |
| 101 | | WIRE SADDLE | - |
| 102 | – | WB18X10183 WIRE HARNESS-A | - |
| 103 | – | WB06X0487 ASSY-GUIDE ROLLER | - |
| 105 | | WIRE HARNESS-C | - |
| 106 | – | WB06X10164 NOISE FILTER ASS'Y | - |
| 107 | – | WB07X2087 COOKING GUIDE LABEL | - |
| 108 | – | WB06X0496 STIRRER ASS'Y | - |
| 109 | | DOOR ASS'Y | - |
| 112 | – | WB06X10412 BODY LATCH ASS'Y | - |
| 9999 | – | 31-20978 MINI-MANUAL | - |
| 9999 | – | 49-40228 USE & CARE | - |
| 9999 | – | 49-40233 COOKING GUIDE LABEL | - |
| 9999 | – | 49-8699-3 INSTALLATION INSTRUCTION | - |
| 9999 | – | 49-8729 TEMPLATE TOP CAB | - |
