Model
GE JVM132G01
Microwave Or Advantium
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM132G01Microwave Or Advantium
2 diagrams94 parts
Parts Sections (2)
Diagram

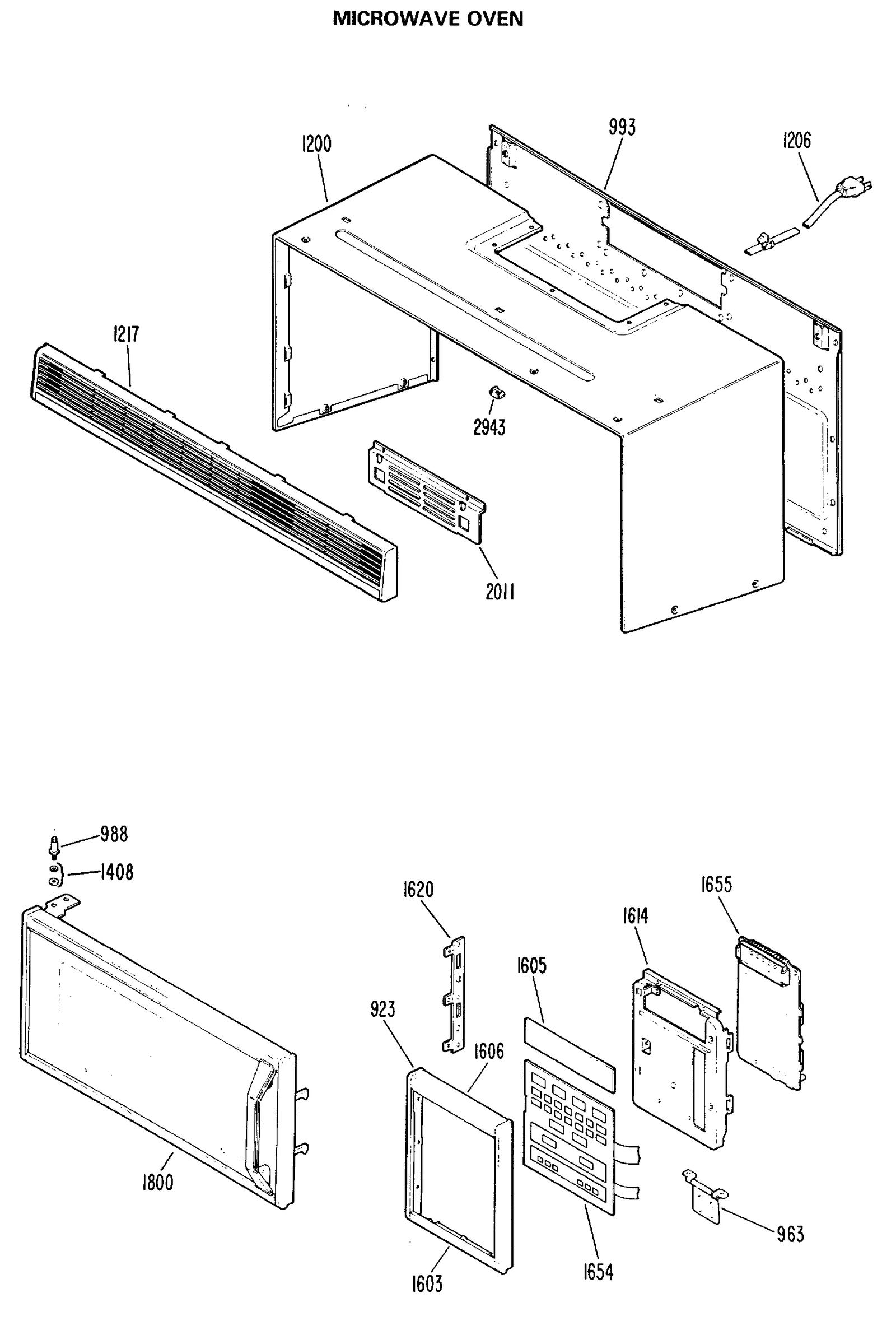

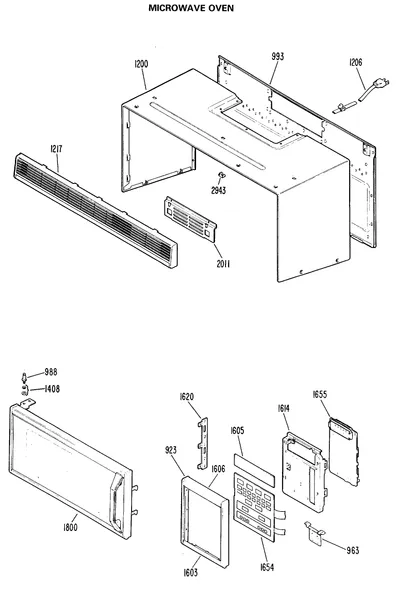

MICROWAVE OVEN
Parts in MICROWAVE OVEN
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 923 | – | WB07X1762 CONTROL PANEL | - |
| 963 | – | WB14X0124 HINGE ASSEMBLY | - |
| 993 | – | WB56X1946 PLATE-BACK | - |
| 1200 | – | WB56X2032 OUTER CASE-WHITE | - |
| 1206 | – | WB18X0345 POWER CORD ASS'Y | - |
| 1217 | – | WB07X1763 GRILLE ASSEMBLY-WHITE | - |
| 1408 |  | WB01X0655NLA WASHER-SMOOTH | Discontinued |
| 1408 | – | WB01X0838 WASHER-TOOTHED | - |
| 1603 | – | WB07X1761 TRIM CONTROL PANEL LOWER | - |
| 1605 | – | WB36X0761 CRYSTAL | - |
| 1606 | – | WB07X1760 TRIM CONTROL PANEL UPPER | - |
| 1614 | | WB2X9320replaces WB02X9320 BRACKET-CONTROL PANEL | - |
| 1620 | – | WB02X4264 BRACKET-FRONT PANEL | - |
| 1654 | – | WB27X0540 KEY PANEL ASSEMBLY | - |
| 1655 | – | WB27X0541 SMART BOARD & DISPLAY | - |
| 1800 | – | WB55X0718 DOOR ASSEMBLY | - |
| 2011 | – | WB02X4266 BARRIER-FRONT | - |
| 2943 | – | WB01X0799 NUT HOLDER ASSEMBLY | - |
| 32767 | – | 31-0687 INSTALLATION INSTRUCTION | - |
| 32767 | – | 31-0688 UNDER CABINET TEMPLATE | - |
| 32767 | – | 31-0689 WALL MOUNT TEMPLATE | - |
| 32767 | – | 49-8014 USE AND CARE/COOKBOOK | - |
| 32767 | | WB2X9339replaces WB02X9339 INSTALLATION HARDWARE | - |
| 32767 | | TOUCH UP-CAVITY (SPRAY) | - |
| 32767 | | TOUCH UP CAVITY (BRUSH) | - |
