Model
GE JVM132H01
Microwave Or Advantium
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM132H01Microwave Or Advantium
2 diagrams99 parts
Parts Sections (2)

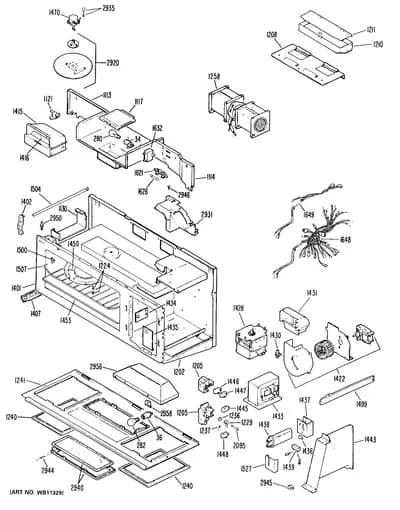

Diagram
Parts List

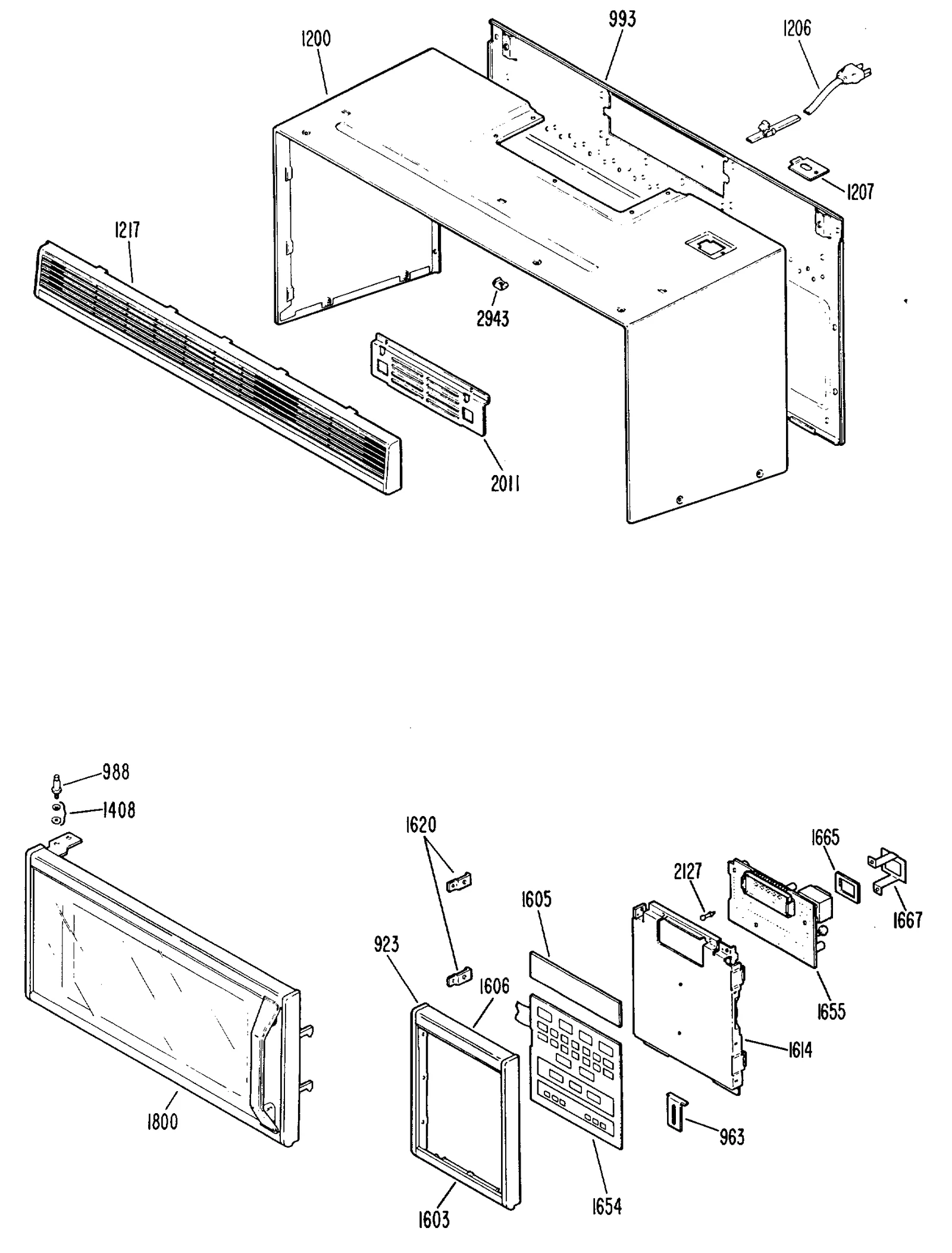

Parts in Parts List
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 34 | – | WB08X0299 RECEPTACLE-OVEN LAMP | - |
| 923 | – | WB07X1780 CONTROL PANEL | - |
| 963 | – | WB14X0046 HINGE | - |
| 988 | – | WB02X9358 U-BOLT-HINGE | - |
| 993 | – | WB56X1946 PLATE-BACK | - |
| 1117 | – | WB02X9944 COVER LAMP | - |
| 1200 | – | WB56X2058 OUTER CASE-WHITE | - |
| 1206 | – | WB18X0395 CORD-POWER SUPPLY | - |
| 1207 | – | WB02X9323 CABLE CLAMP | - |
| 1217 | – | WB07X1819 GRILLE ASSEMBLY | - |
| 1240 |  | FILTER CH 11 1/8 X 6 1/8 | - |
| 1408 | | WB01X0655NLA WASHER-SMOOTH | Discontinued |
| 1408 | – | WB01X0838 WASHER-TOOTHED | - |
| 1452 | | WB27X10178replaces WB20X0079 PROBE | - |
| 1454 | – | WB08X0288 SOCKET-PROBE | - |
| 1516 | – | WB07X1425 LABEL-MENU CODE | - |
| 1603 | – | WB07X1761 TRIM CONTROL PANEL LOWER | - |
| 1605 | – | WB36X0795 CRYSTAL | - |
| 1606 | – | WB07X1760 TRIM CONTROL PANEL UPPER | - |
| 1614 | – | WB02X9930 BRACKET-CONTROL PANEL | - |
| 1620 | – | WB02X9936 BRACKET-FRONT PANEL | - |
| 1654 | – | WB27X0607 KEY PANEL ASSEMBLY | - |
| 1655 | – | WB27X0606 SMART BOARD AND DISPLAY | - |
| 1665 | – | WB02X9962 COVER-LV TRANSFORMER | - |
| 1667 | – | WB02X9932 BRACKET-LV TRANSFORMER | - |
| 1800 | – | WB55X0682 DOOR ASSEMBLY | - |
| 2011 | – | WB02X9954 BARRIER-FRONT | - |
| 2127 | – | WB02X9963 SUPPORT-PCB | - |
| 2943 | – | WB01X1398 HOLDER NUT ASSEMBLY | - |
| 32767 | – | 31-0688 UNDER CABINET TEMPLATE | - |
| 32767 | – | 31-0689 WALL MOUNT TEMPLATE | - |
| 32767 | – | 31-0864 INSTALLATION INSTRUCTION | - |
| 32767 | – | 49-8028 USE AND CARE BOOK | - |
| 32767 | | WB2X9339replaces WB02X9339 INSTALLATION HARDWARE | - |
| 32767 | | TOUCH UP-CAVITY (SPRAY) | - |
| 32767 | | TOUCH UP CAVITY (BRUSH) | - |
