Model
GE JVM133J02
Microwave Or Advantium
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM133J02Microwave Or Advantium

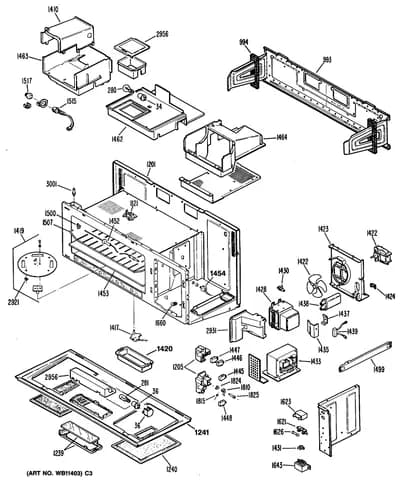

2 diagrams101 parts
Parts Sections (2)
Diagram
Parts List
Parts in Parts List
53 parts

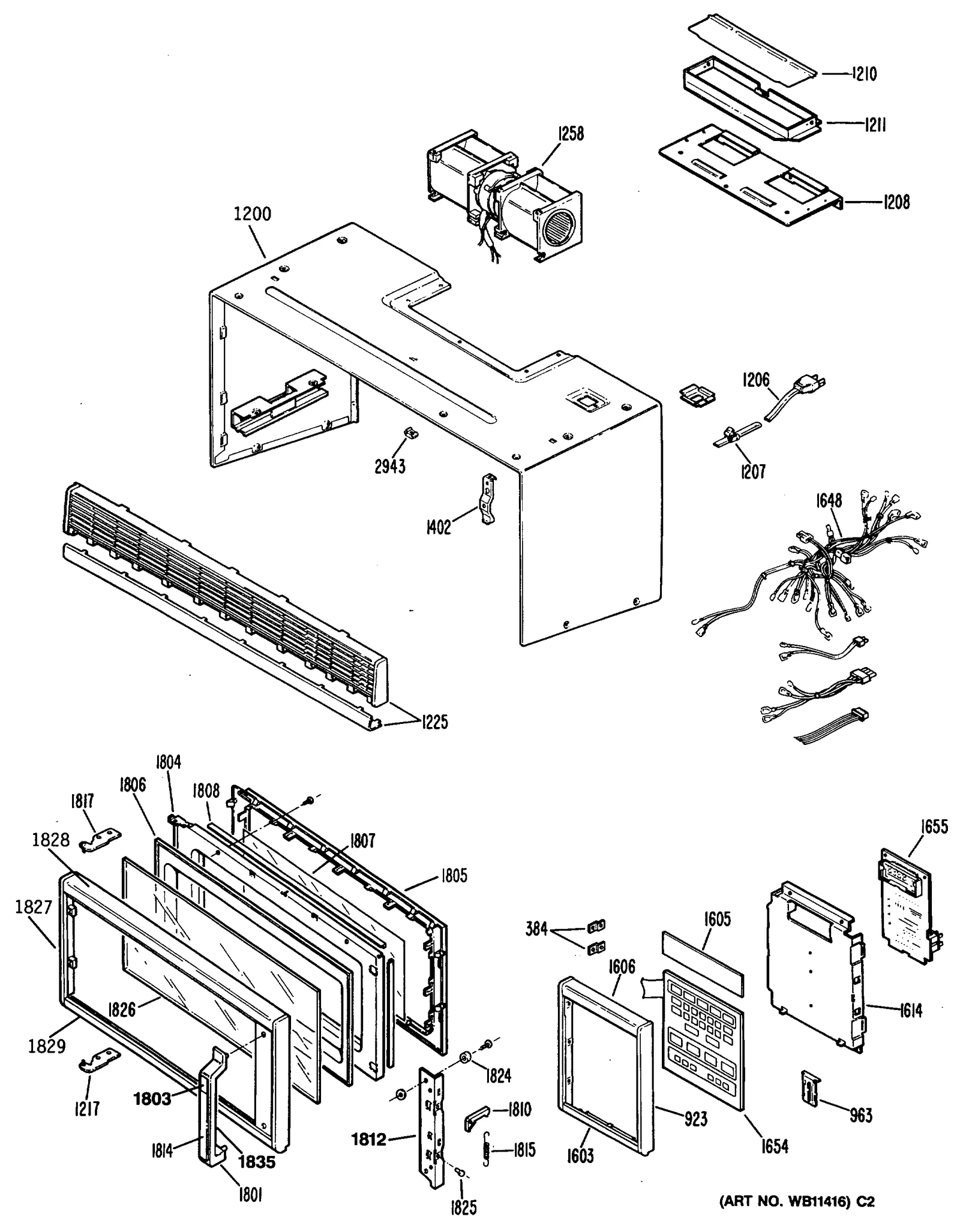

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 384 | – | WB06X0183 BRACKET CONTROL BOX | - |
| 923 | – | WB07X1900 CONTROL PANEL | - |
| 963 | – | WB14X0159 HINGE CONTROL BOX | - |
| 1200 | – | WB56X2087 OUTER CASE | - |
| 1206 | – | WB18X0435 POWER CORD | - |
| 1207 | – | WB06X0179 BRACKET POWER CORD | - |
| 1208 | – | WB02X9958 MOTOR BRACKET | - |
| 1210 | – | WB02X9957 HOOD DAMPER | - |
| 1211 | – | WB02X4230 DAMPER DOOR | - |
| 1217 | – | WB14X0162 HINGE, LOWER | - |
| 1225 | – | WB07X1899 GRILLE ASSEMBLY | - |
| 1238 | – | WB36X0829 BRACKET, COOKTOP GLASS | - |
| 1258 | – | WB26X0141 MOTOR VENTILATION | - |
| 1401 | – | NOT AVAIL CAVITY | - |
| 1402 |  | WB02X4238NLA GUIDE MOUNTING SHAFT | Discontinued |
| 1455 | – | WB06X0182 AIR GUIDE | - |
| 1603 | – | WB07X1895 TRIM CONTROL PANEL LOWER | - |
| 1605 | – | WB36X0816 CRYSTAL | - |
| 1606 | – | WB07X1896 TRIM CONTROL PANEL UPPER | - |
| 1614 | – | WB06X0173 BRACKET CONTROL PANEL | - |
| 1648 | | WB18X436replaces WB18X0436 WIRE HARNESS | - |
| 1654 | – | WB27X0723 KEY PANEL ASSEMBLY | - |
| 1655 | – | WB27X0722 SMART BOARD | - |
| 1801 | | WB15X310replaces WB15X0301 HANDLE (WHITE) | - |
| 1803 | | WB04X0123NLA NAME PLATE | Discontinued |
| 1804 | – | WB55X0777 DOOR LINER & CHOKE | - |
| 1805 | – | WB55X0776 INNER DOOR FRAME (WHITE) | - |
| 1806 | – | WB55X0778 DOOR FRAME | - |
| 1807 | – | WB36X0819 FILM DOOR | - |
| 1808 | | WB6X176replaces WB06X0176 FERRITE, DOOR | - |
| 1810 | – | WB10X0279 LATCH DOOR | - |
| 1812 | – | WB06X0300 BRACKET KEY DOOR | - |
| 1814 | – | WB07X1897 HANDLE DECO (WHITE) | - |
| 1815 | | WB9X282replaces WB09X0282 SPRING LATCH DOOR | - |
| 1817 | – | WB14X0161 HINGE, UPPER | - |
| 1824 | – | WB06X0175 SUPPORT RING | - |
| 1825 | – | WB06X0174 PIN LATCH DOOR | - |
| 1826 | – | WB36X0825 OUTER GLASS, DOOR | - |
| 1827 | | WB55X772replaces WB55X0772 OUTER DOOR FRAME | - |
| 1828 | – | WB07X1893 TRIM DOOR UPPER | - |
| 1829 | – | WB07X1894 TRIM DOOR LOWER | - |
| 1835 | | WB15X310replaces WB07X1898 COVER HANDLE (WHITE) | - |
| 2943 | – | WB01X1398 HOLDER NUT ASSEMBLY | - |
| 3005 | – | WB01X1435 INSTALLATION HARDWARE | - |
| 3010 | | WB01X0894NLA SCREW SPECIAL | Discontinued |
| 7128 | – | WB01X1460 SCREW TRUSS HD. 4X12MM | - |
| 7138 | | WB1X1459replaces WB01X1459 SCREW OVAL HD. 4X10MM | - |
| 9999 | – | 31-0798 MINI MANUAL | - |
| 9999 | – | 31-0893 INSTALLATION INSTRUCTION | - |
| 9999 | – | 31-0897 TOP CABINET TEMPLATE | - |
| 9999 | – | 49-8078 COOKBOOK | - |
| 9999 | – | 49-8098 USE & CARE BOOK | - |
| 9999 |  | WB64X97replaces WB64X0097 PAINT (WHITE) | - |
