Model
GE JVM1341WW03
Microwave Or Advantium
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1341WW03Microwave Or Advantium
2 diagrams90 parts
Parts Sections (2)
Diagram

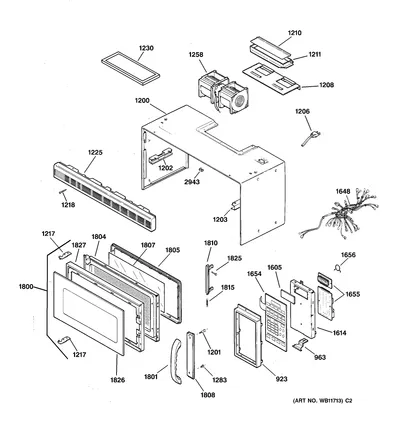

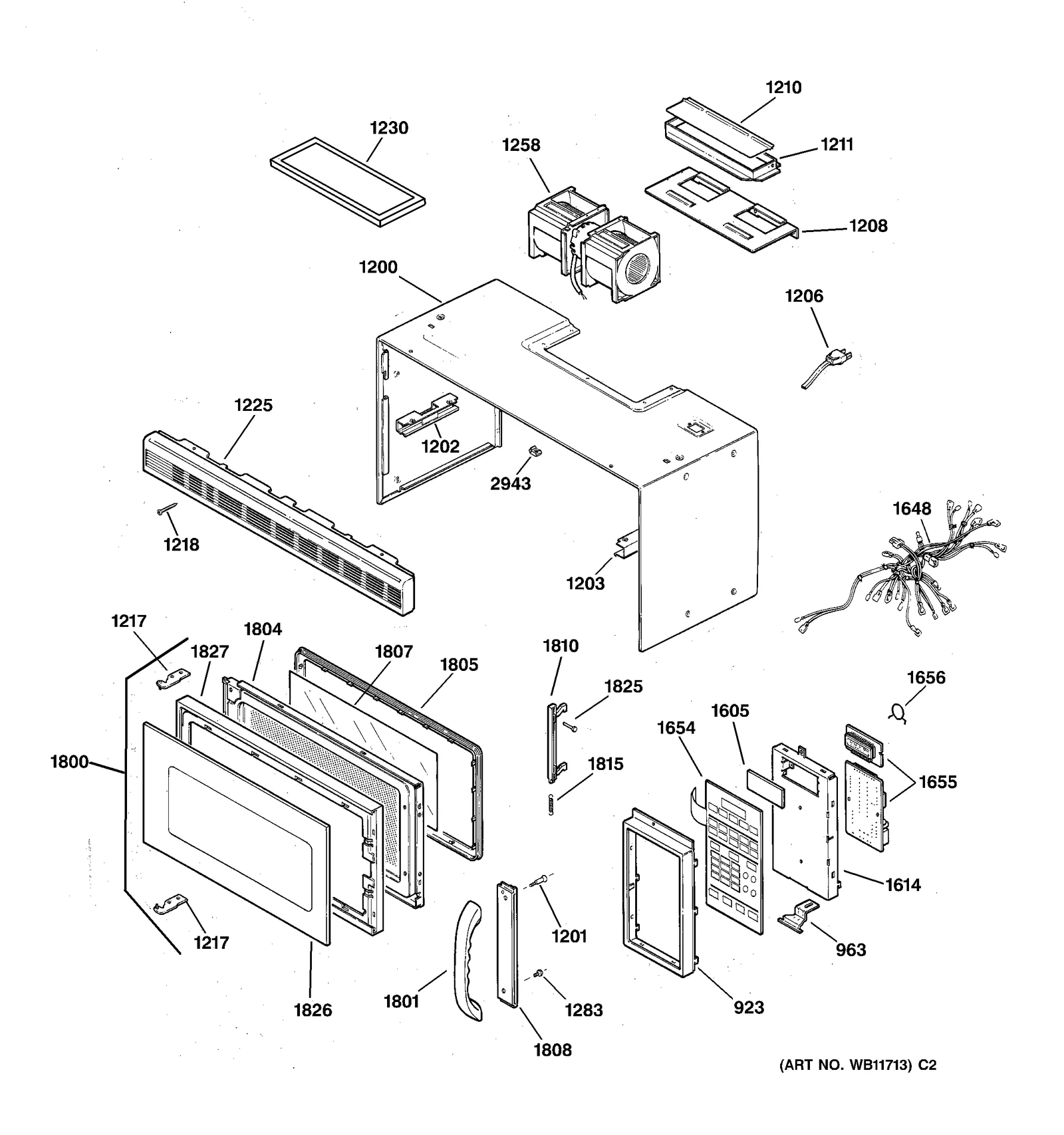

DOOR, CONTROL, GRILL & CASE
Parts in DOOR, CONTROL, GRILL & CASE
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 923 |  | WB7X2080replaces WB07X2080 CONTROL PANEL - WHT | - |
| 963 | | WB14X204replaces WB14X0204 HINGE, CONTROL BOX | - |
| 1200 | | CASE, OUTER - WHT | - |
| 1201 | – | WB01X1524 SCREW, TAPPING | - |
| 1202 | – | WB06X0510 BRACKET, CASE - LEFT | - |
| 1203 | – | WB06X0511 BRACKET, CASE - RIGHT | - |
| 1206 | | WB18X10200replaces WB18X0566 POWER CORD | $43.95 ApplianceParts Pro |
| 1208 | – | WB06X0387 BRACKET MOTOR | - |
| 1210 |  | WB06X10436replaces WB06X0389 HOOD DAMPER | $33.72 Parts Dr |
| 1211 | | WB06X10436replaces WB06X0388 SUB HOOD DAMPER | $33.72 Parts Dr |
| 1217 | – | WB14X0203 HINGE-DOOR-UPPER | - |
| 1218 | | WB01X1464NLA GRILLE-SCREW MOUNTING | Discontinued |
| 1225 | – | WB07X2083 GRILLE - WHT | - |
| 1230 | | WB06X0186NLA CHARCOAL FILTER | Discontinued |
| 1258 | – | WB26X0182 MOTOR-VENTILATION | - |
| 1283 |  | WE02X10086replaces WB01X0861 SCREW,DOOR BRKT-BOTTOM | - |
| 1605 | | WB36X10070replaces WB36X0944 CRYSTAL | - |
| 1614 | – | WB06X10097 BRACKET, CONTROL PANEL | - |
| 1648 | – | WB18X10045 WIRE HARNESS "A" | - |
| 1654 | | WB27X1121NLA KEY PANEL ASM - WHT | Discontinued |
| 1655 | | SMART BOARD | - |
| 1656 | – | WB27X0956 VARISTOR | - |
| 1800 | – | WB55X0992 DOOR ASM - WHT | - |
| 1801 | – | WB15X0335 HANDLE ASM - WHT | - |
| 1804 | – | WB55X0983 DOOR LINER AND CHOKE-WHT | - |
| 1805 | – | WB55X0986 FRAME-INNER DOOR | - |
| 1807 | | WB36X0943NLA FILM-DOOR | Discontinued |
| 1808 | – | WB06X0498 BRACKET - DOOR - WHT | - |
| 1810 | – | WB10X0301 LATCH DOOR | - |
| 1815 | – | WB09X0303 SPRING-LATCH DOOR | - |
| 1825 | – | WB06X0480 PIN, LATCH DOOR | - |
| 1826 | – | WB36X0941 OUTER GLASS, DOOR - WHT | - |
| 1827 | – | WB55X0980 FRAME - OUTER,DOOR - WHT | - |
| 2943 | | WB01X1502NLA RETAINER NUT | Discontinued |
