Model
GE JVM139J03
Microwave Or Advantium
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM139J03Microwave Or Advantium
2 diagrams105 parts
Parts Sections (2)
Diagram

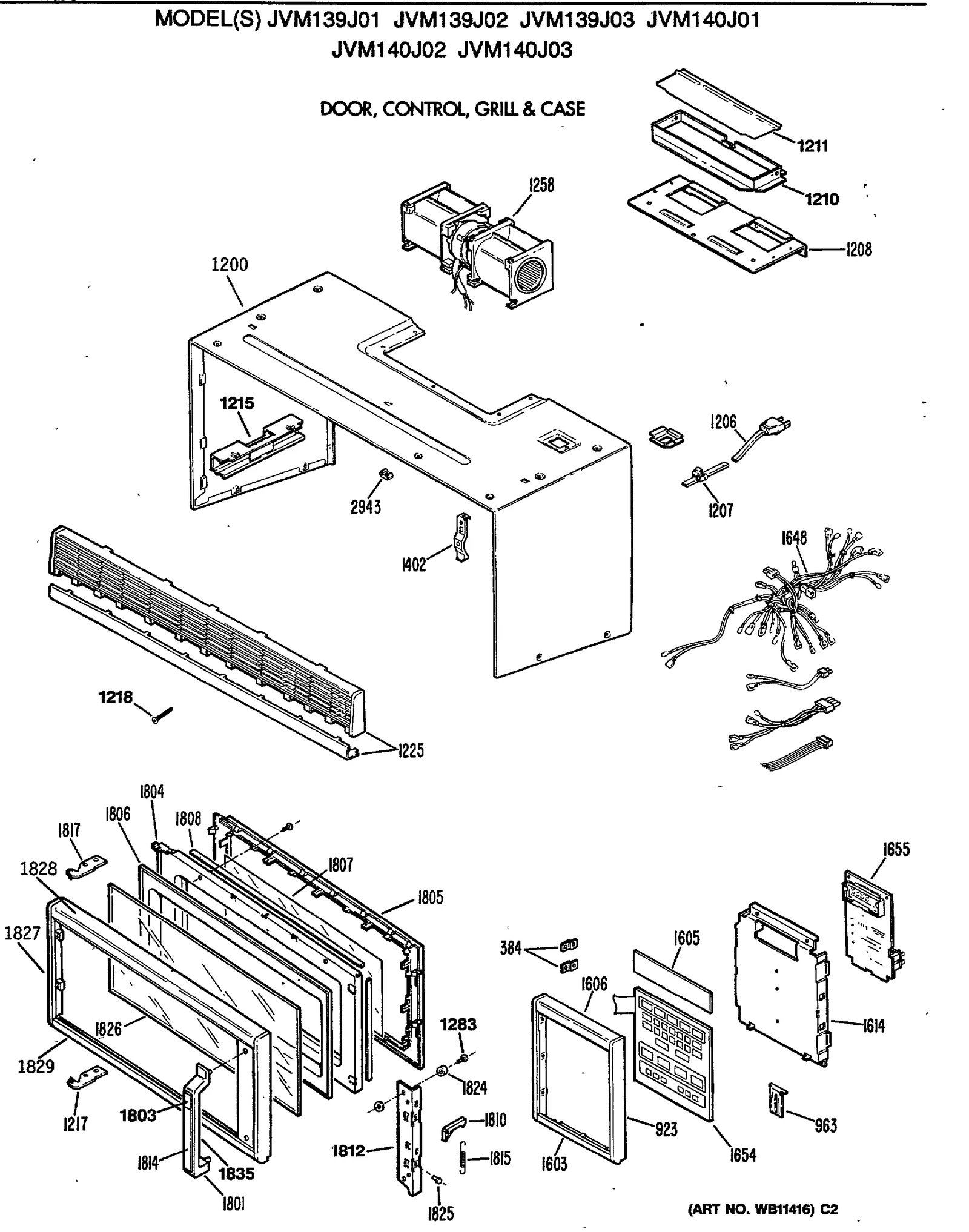

DOOR, CONTROL, GRILL & CASE
Parts in DOOR, CONTROL, GRILL & CASE
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 384 | – | WB06X0183 BRACKET CONTROL BOX | - |
| 923 | – | WB07X1882 CONTROL PANEL | - |
| 963 | – | WB14X0159 HINGE CONTROL BOX | - |
| 1200 | – | WB56X2080 OUTER CASE | - |
| 1206 | – | WB18X0435 POWER CORD | - |
| 1207 | – | WB06X0179 BRACKET POWER CORD | - |
| 1208 | – | WB02X9958 MOTOR BRACKET | - |
| 1210 | – | WB02X9957 HOOD DAMPER | - |
| 1211 | – | WB02X4230 DAMPER DOOR | - |
| 1215 | – | WB06X0304 BRACKET CASE | - |
| 1217 | – | WB14X0162 HINGE, LOWER | - |
| 1218 |  | WB01X1463NLA SCREW-GRILLE MOUNTING | Discontinued |
| 1225 | – | WB07X1887 GRILLE ASSEMBLY | - |
| 1258 | – | WB26X0141 MOTOR VENTILATION | - |
| 1402 | | WB02X4238NLA GUIDE MOUNTING SHAFT | Discontinued |
| 1603 | | WB7X1881replaces WB07X1881 TRIM CONTROL PANEL LOWER | - |
| 1605 | – | WB36X0816 CRYSTAL | - |
| 1606 | – | WB07X1880 TRIM CONTROL PANEL UPPER | - |
| 1614 | – | WB06X0173 BRACKET CONTROL PANEL | - |
| 1648 | | WB18X436replaces WB18X0436 WIRE HARNESS | - |
| 1654 | – | WB27X0736 KEY PANEL ASSEMBLY | - |
| 1655 | – | WB27X0700 SMART BOARD | - |
| 1801 | | WB15X0300NLA HANDLE (BLACK) | Discontinued |
| 1803 | | WB04X0123NLA NAME PLATE | Discontinued |
| 1804 | | WB55X764replaces WB55X0764 DOOR LINER & CHOKE | - |
| 1805 | – | WB55X0765 INNER DOOR FRAME | - |
| 1806 | – | WB55X0763 DOOR FRAME | - |
| 1807 | – | WB36X0819 FILM DOOR | - |
| 1808 | | WB6X176replaces WB06X0176 FERRITE, DOOR | - |
| 1810 | – | WB10X0279 LATCH DOOR | - |
| 1812 | – | WB06X0300 BRACKET KEY DOOR | - |
| 1814 | – | WB07X1889 TRIM-HANDLE | - |
| 1815 | | WB9X282replaces WB09X0282 SPRING LATCH DOOR | - |
| 1817 | – | WB14X0161 HINGE, UPPER | - |
| 1824 | – | WB06X0175 SUPPORT RING | - |
| 1825 | – | WB06X0174 PIN LATCH DOOR | - |
| 1826 | – | WB36X0817 OUTER GLASS, DOOR | - |
| 1827 | | WB55X771replaces WB55X0771 OUTER DOOR(BLK) | - |
| 1828 | – | WB07X1885 TRIM DOOR UPPER | - |
| 1829 | – | WB07X1886 TRIM DOOR LOWER | - |
| 1835 | | WB07X1892NLA COVER HANDLE (BLACK) | Discontinued |
| 2943 | – | WB01X1398 HOLDER NUT ASSEMBLY | - |
