Model
GE JVM1440BH04
Microwave Or Advantium
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1440BH04Microwave Or Advantium
1 diagram79 parts
Parts Sections (1)

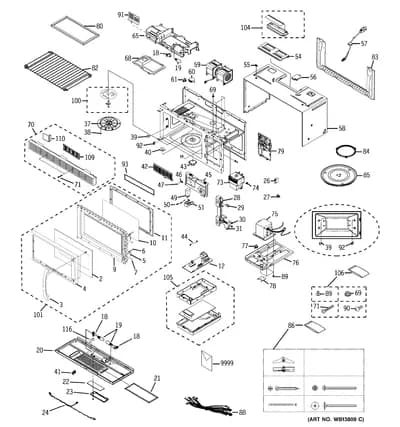

Diagram
MICROWAVE
Parts in MICROWAVE
79 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | SCREEN-DOOR(B) | - |
| 3 | | WB15X10022NLA HANDLE ASSY | Discontinued |
| 4 | | WB55X10530NLA DOOR OUTER FRAME | Discontinued |
| 5 | | SPRING-KEY | - |
| 6 | | WB05X10007NLA LATCH PAWL | Discontinued |
| 7 |  | PIN-HINGE | - |
| 9 | | DOOR MAIN ASM | - |
| 10 | | WB36X10068NLA FILM DOOR | Discontinued |
| 11 | | DOOR C | - |
| 12 | | SMART BOARD | - |
| 18 |  | SOCKET LAMP | $20.52 Parts Dr |
| 19 |  | LAMP-INCANDESCENT | $8.37 Part Advantage |
| 20 | | BASE-BOTTOM | - |
| 21 |  | FILTER-AIR | $42.78 Part Advantage |
| 22 |  | GLASS COOKTOP LAMP | $11.60 Part Advantage |
| 23 |  | COVER-GLASS | $22.95 ApplianceParts Pro |
| 24 | | WIRE HARNESS-D | - |
| 26 |  | CAPACITOR- MOTOR | - |
| 27 | | WB27X10194NLA TCO HOOD | Discontinued |
| 28 | | LATCH-BODY | - |
| 29 |  | WB24X829replaces WB24X10038 SWITCH | $21.93 Part Advantage |
| 30 |  | WB24X830replaces WB24X10075 SWITCH-MICRO | $23.03 Part Advantage |
| 31 |  | LEVER-S/W | $11.95 ApplianceParts Pro |
| 37 | | WB06X10130NLA COVER-STIRRER | Discontinued |
| 38 | | WB06X10126NLA BUTTON-LOCK | Discontinued |
| 39 | | WB06X10223NLA RACK HOLDER LF/RR | Discontinued |
| 40 |  | COUPLER TT | $6.78 Parts Dr |
| 41 | | WIRE SADDLE | - |
| 42 | | WB06X10132NLA COVER-FRONT | Discontinued |
| 43 |  | MOTOR-SYNCHRONOUS | $16.41 Part Advantage |
| 44 | | WIRE GND PCB | - |
| 45 | | BRACKET-AIR GUIDE "A" | - |
| 46 | | WB06X10050NLA FUSE-HOLDER | Discontinued |
| 47 |  | WB27X10928replaces WB27X10474 FUSE | $5.85 Part Advantage |
| 49 |  | CAPACITOR 2100V/0.86 MICROF | $92.35 Parts Dr |
| 50 |  | DIODE ASSY | $79.64 Part Advantage |
| 51 | | BRACKET-H V C | - |
| 54 | | BRACKET-V/T MOTOR | - |
| 55 |  | NUT TOP MOUNTING | $7.08 Part Advantage |
| 56 | | BRACKET-POWER CORD | - |
| 57 | | POWER CORD ASS'Y | - |
| 58 | | CASE OUTER | - |
| 59 | | WB26X10042NLA MOTOR-VENTILATION | Discontinued |
| 60 |  | MOTOR-DRIVE | $16.49 Parts Dr |
| 61 |  | S/W THERMO | $41.34 RepairClinic |
| 65 | | WB27X10422NLA UPPER DUCT ASSY | Discontinued |
| 68 | | BRACKET-DUCT UPPER ASSY | - |
| 69 |  | NUT MAGNETRON | - |
| 70 |  | GRILLE | $124.97 RepairClinic |
| 71 | | WB01X10062NLA SCREW-TAP PH | Discontinued |
| 73 |  | WB27X10735replaces WB27X10475 ASSY-MAGNETRON | $88.59 Parts Dr |
| 74 | | WB27X10166NLA THERMOSTAT | Discontinued |
| 75 |  | H.V. TRANSFORMER | $246.76 ApplianceParts Pro |
| 76 | | BASE-PLATE | - |
| 77 |  | WB27X1127replaces WB21X0535 TCO -BOTTOM | $39.30 RepairClinic |
| 78 | | COVER TCO-BOTTOM | - |
| 79 |  | MOTOR MAG FAN ASSY | $125.51 Parts Dr |
| 80 | | WB06X10137NLA WB2X9883 | Discontinued |
| 82 | | RACK WIRE ASM | - |
| 83 | | WB56X10260NLA MOUNTING PLATE | Discontinued |
| 84 |  | ROLLER GUIDE RING | $58.93 RepairClinic |
| 85 |  | WB39X10003replaces WB49X10002 COOKING-TRAY | $85.90 Parts Dr |
| 86 | | WB01X10181NLA MOUNTING HARDWARE ASM | Discontinued |
| 88 | | WIRE HARNESS-A | - |
| 89 |  | SCREW WASHER | $7.37 ApplianceParts Pro |
| 90 | | WB01X10063NLA SCREW-SPECIAL | Discontinued |
| 91 | – | WB06X10434 BRACKET-BARRIER | - |
| 92 | | HOLDER-RACK-B | - |
| 93 | – | 49-40217 LABEL-COOKING GUIDE | - |
| 100 |  | STIRRER ASSY | $27.37 ApplianceParts Pro |
| 101 |  | DOOR ASM | - |
| 104 |  | HOOD DAMPER ASSY | $33.72 Parts Dr |
| 105 | | ASM-CONTOL PANEL | - |
| 106 | | WB06X10435NLA HARDWARE BAG ASS'Y | Discontinued |
| 109 | | BKT-GRILLE | - |
| 110 | – | WB06X10439 BRACKET-LEFT | - |
| 116 | | BRACKET LAMP | - |
| 9999 | – | 31-40048 MINI MANUAL | - |
| 9999 | – | 49-40366-1 OWNERS MANUAL | - |
