Model
GE JVM1440WA01
Microwave Or Advantium
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1440WA01Microwave Or Advantium
1 diagram72 parts
Parts Sections (1)

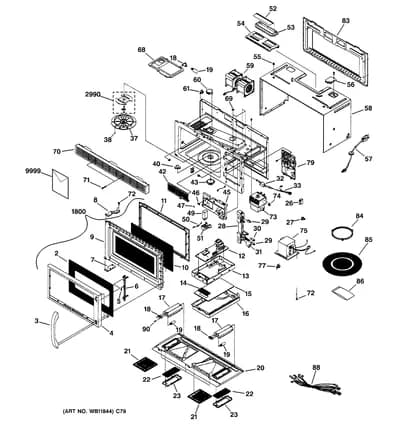

Diagram
MICROWAVE
Parts in MICROWAVE
72 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | WB36X10072NLA OUTER GLASS,DOOR,WHITE | Discontinued |
| 3 |  | HANDLE | $55.10 Part Advantage |
| 4 | | WB55X10142NLA DOOR A | Discontinued |
| 5 | | SPRING, LATCH DOOR | - |
| 6 | | DOOR KEY | - |
| 7 | | HINGE- LOWER | - |
| 8 | | HINGE- UPPER | - |
| 9 | | DOOR LINER & CHOKE WH | - |
| 10 | | WB36X10068NLA FILM DOOR | Discontinued |
| 11 | | DOOR -C | - |
| 12 | | WB27X10292NLA ASSY PCB-MAIN | Discontinued |
| 13 | | BRACKET,CONTROL PANEL | - |
| 14 | | DISPLAY WINDOW | - |
| 15 | | KEY PANEL | - |
| 16 | | CONTROL PANEL | $38.81 Parts Dr |
| 17 | | BRACKET-BOTTOM LAMP | - |
| 18 |  | WB08X10016replaces WB08X10011 SOCKET-LAMP | $20.52 Parts Dr |
| 19 |  | LAMP-INCANDESCENT | $8.37 Part Advantage |
| 20 | | BASE-BOTTOM | - |
| 21 |  | WB6X486replaces WB06X10125 FILTER-AIR | $61.31 Part Advantage |
| 22 |  | GLASS COOKTOP LAMP | $11.60 Part Advantage |
| 23 |  | COVER LAMP | - |
| 26 |  | CAPACITOR- MOTOR | - |
| 27 | | THERMOSTAT-40/70 | - |
| 28 | | LATCH-BODY | - |
| 29 |  | WB24X829replaces WB24X0829 SWITCH-MICRO | $21.93 Part Advantage |
| 30 |  | WB24X830replaces WB24X0830 SWITCH-MICRO | $23.03 Part Advantage |
| 31 |  | LEVER-S/W | $11.95 ApplianceParts Pro |
| 32 | | SOCKET-PROBE | - |
| 33 | | WIRE HARNESS-B | - |
| 37 | | WB06X10130NLA COVER-STIRRER | Discontinued |
| 38 | | WB06X10126NLA BUTTON-LOCK | Discontinued |
| 40 | | COUPLER | - |
| 42 | | WB06X10132NLA COVER-FRONT | Discontinued |
| 43 |  | MOTOR-SYNCHRONOUS | $16.41 Part Advantage |
| 45 | | WB06X10147replaces WB06X10119 BRACKET-AIR GUIDE | - |
| 46 | | HOLDER-FUSE | - |
| 47 |  | WB27X10928replaces WB27X1159 FUSE | $5.85 Part Advantage |
| 49 | | CAPACITOR | - |
| 50 |  | WB27X10597replaces WB27X10169 DIODE H V | $42.18 Part Advantage |
| 51 | | BRACKET-H V C | - |
| 52 |  | WB06X10436replaces WB06X10129 COVER-DAMPER | $33.72 Parts Dr |
| 53 | | WB06X10436replaces WB06X10133 DAMPER-MAIN | $33.72 Parts Dr |
| 54 | – | WB06X10120 BRACKET-V/T MOTOR | - |
| 55 | – | WB01X10066 ASM.- NUT HOLDER | - |
| 56 | | BRACKET-POWER CORD | - |
| 57 | | POWER CORD ASS'Y | - |
| 58 | – | WB56X10086 CASE, OUTER-WHITE | - |
| 59 | | WB26X10042NLA MOTOR-VENTILATION | Discontinued |
| 60 |  | MOTOR-DRIVE | $16.49 Parts Dr |
| 61 | | WB27X10167NLA THERMOSTAT 120/0 | Discontinued |
| 68 | | WB06X10148replaces WB06X10121 WB06X10148 | - |
| 69 |  | NUT MAGNETRON | - |
| 70 | | GRILLE | - |
| 71 | | SCREW-TAP PH | - |
| 72 | | BOLT-FLANGE | - |
| 73 |  | WB27X10735replaces WB27X10017 MAGNETRON | $88.59 Parts Dr |
| 74 | | WB27X10166NLA THERMOSTAT | Discontinued |
| 75 | | TRANS-H.V | - |
| 77 |  | WB27X1127replaces WB21X0535 TCO -BOTTOM | $39.30 RepairClinic |
| 79 | – | WB26X10043 ASSY,MOTOR-FAN | - |
| 83 | | WB56X10084NLA PLATE-MOUNTING | Discontinued |
| 84 |  | ROLLER GUIDE RING | $58.93 RepairClinic |
| 85 |  | WB39X10003replaces WB39X10002 COOKING TRAY | $85.90 Parts Dr |
| 86 | | HARD WARE ASS'Y | - |
| 88 | – | WB18X10056 WIRE HARNESS "A" | - |
| 90 | | WB01X10063NLA SCREW-SPECIAL | Discontinued |
| 1800 | | DOOR ASM -WHITE | - |
| 2990 | | STIRRER ASM | - |
| 9999 | – | 31-20905 MINI MANUAL | - |
| 9999 | – | 49-40037 INSTALLATION TEMPLATE | - |
| 9999 | – | 49-40041 USE&CARE MANUAL | - |
