Model
GE JVM1441BD002
Microwave Or Advantium
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1441BD002Microwave Or Advantium
1 diagram83 parts
Parts Sections (1)
Diagram

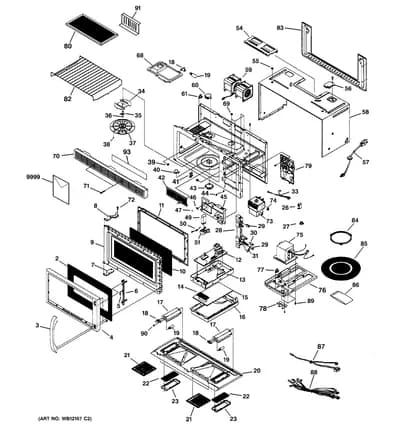

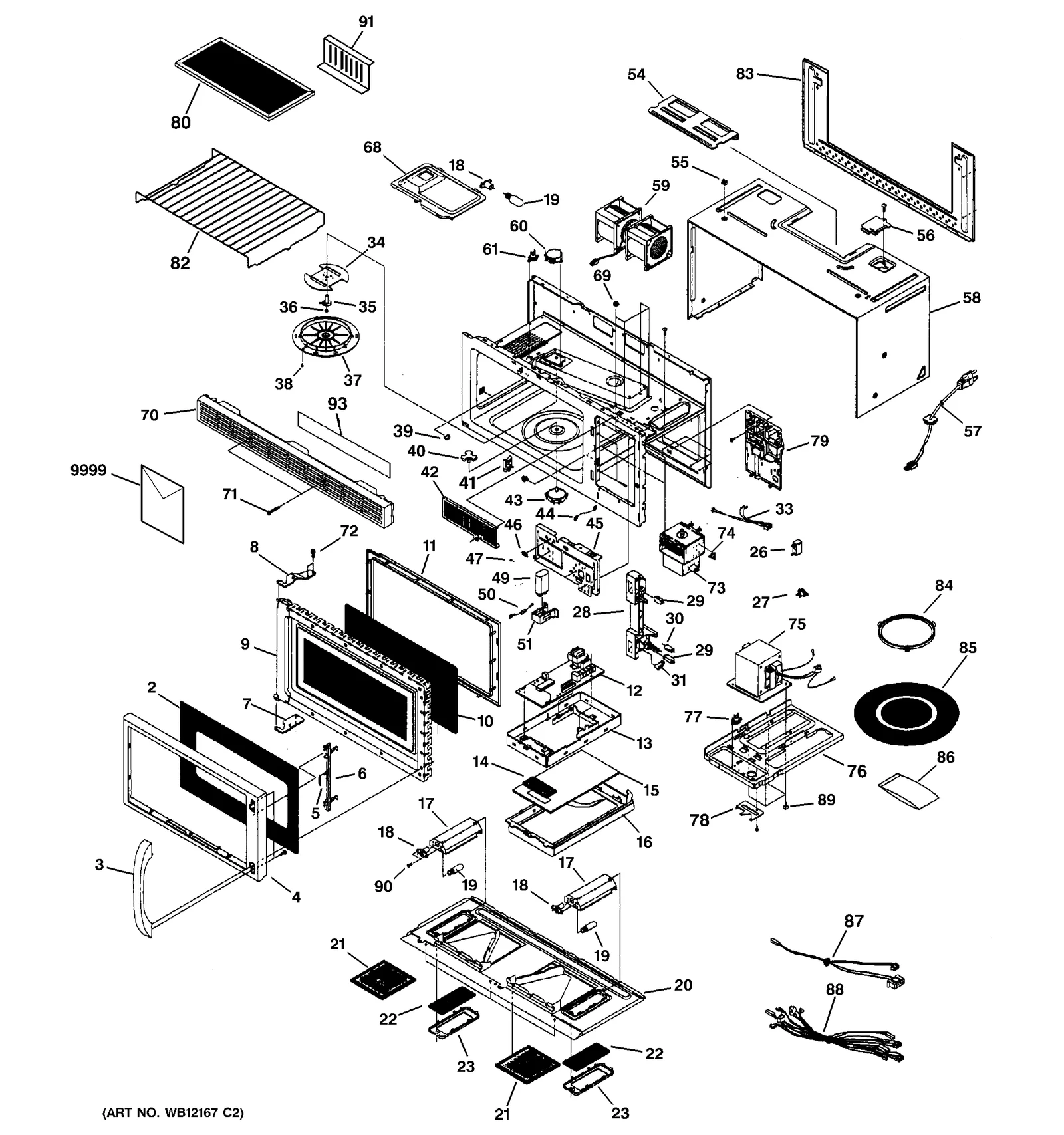

MICROWAVE
Parts in MICROWAVE
83 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | OUTER GLASS, DOOR, BLACK | - |
| 3 | | WB15X10022NLA HANDLE ASSY | Discontinued |
| 4 | | WB55X10138NLA DOOR - A | Discontinued |
| 5 | | SPRING-KEY | - |
| 6 | | WB10X10012NLA DOOR KEY | Discontinued |
| 7 | | HINGE- LOWER | - |
| 8 | | HINGE- UPPER | - |
| 9 | | DOOR MAIN ASM | - |
| 10 | | WB36X10068NLA FILM DOOR | Discontinued |
| 11 | | DOOR-C | - |
| 12 | | PCB PARTS ASS'Y | - |
| 13 | | BRACKET,CONTROL PANEL | - |
| 14 | | DISPLAY WINDOW | - |
| 15 | | SWITCH MEMBRANE | - |
| 16 | | CONTROL PANEL ASS'Y | - |
| 17 | | BRACKET-BOTTOM LAMP | - |
| 18 |  | WB08X10016replaces WB08X10011 SOCKET-LAMP | $20.52 Parts Dr |
| 19 |  | LAMP-INCANDESCENT | $8.37 Part Advantage |
| 20 | – | WB56X10087 BASE-BOTTOM | - |
| 21 |  | WB6X486replaces WB06X10125 FILTER-AIR | $61.31 Part Advantage |
| 22 |  | GLASS COOKTOP LAMP | $11.60 Part Advantage |
| 23 | | COVER LAMP | - |
| 26 |  | CAPACITOR- MOTOR | - |
| 27 | | WB27X10194NLA TCO HOOD | Discontinued |
| 28 | | LATCH-BODY | - |
| 29 |  | WB24X829replaces WB24X0829 SWITCH-MICRO | $21.93 Part Advantage |
| 30 |  | WB24X830replaces WB24X0830 SWITCH-MICRO | $23.03 Part Advantage |
| 31 |  | LEVER-S/W | $11.95 ApplianceParts Pro |
| 33 | | WIRE HARNESS-B | - |
| 34 | | BLADE-STIRRER | - |
| 35 |  | WB06X10416replaces WB06X10173 HOLDER-STIRRER | $27.37 ApplianceParts Pro |
| 36 | – | WB06X10340 WB06X10124 | - |
| 37 | | WB06X10130NLA COVER-STIRRER | Discontinued |
| 38 | | WB06X10126NLA BUTTON-LOCK | Discontinued |
| 39 | | HOLDER-RACK | - |
| 40 | | COUPLER | - |
| 41 |  | WIRE SADDLE | - |
| 42 | | WB06X10132NLA COVER-FRONT | Discontinued |
| 43 |  | MOTOR-SYNCHRONOUS | $16.41 Part Advantage |
| 44 |  | WIRE GND PCB | - |
| 45 | | BRACKET-AIR GUIDE "A" | - |
| 46 | | WB06X10050NLA FUSE-HOLDER | Discontinued |
| 47 |  | WB27X10928replaces WB27X10474 FUSE | $5.85 Part Advantage |
| 49 |  | CAPACITOR 2100V/0.91 MICROF | $73.56 Part Advantage |
| 50 |  | DIODE ASSY | $79.64 Part Advantage |
| 51 | | BRACKET-H V C | - |
| 54 | | BRACKET-V/T MOTOR | - |
| 55 |  | NUT TOP MOUNTING | $7.08 Part Advantage |
| 56 | | BRACKET-POWER CORD | - |
| 57 | | POWER CORD ASS'Y | - |
| 58 | | CASE OUTER | - |
| 59 | | WB26X10042NLA MOTOR-VENTILATION | Discontinued |
| 60 |  | MOTOR-DRIVE | $16.49 Parts Dr |
| 61 |  | S/W THERMO | $41.34 RepairClinic |
| 68 | | BRACKET-DUCT UPPER ASSY | - |
| 69 |  | NUT MAGNETRON | - |
| 70 |  | GRILLE | Discontinued |
| 71 | | WB01X10062NLA SCREW-TAP PH | Discontinued |
| 72 | | BOLT-FLANGE | - |
| 73 |  | WB27X10735replaces WB27X10475 ASSY-MAGNETRON | $88.59 Parts Dr |
| 74 | | WB27X10166NLA THERMOSTAT | Discontinued |
| 75 | | TRANS-H.V | - |
| 76 | – | WB56X10228 BASE-PLATE | - |
| 77 |  | WB27X1127replaces WB21X0535 TCO -BOTTOM | $39.30 RepairClinic |
| 78 | | COVER TCO-BOTTOM | - |
| 79 | | MOTOR MAG FAN ASM | - |
| 80 | | WB06X10137NLA WB2X9883 | Discontinued |
| 82 | | RACK WIRE ASS'Y | - |
| 83 | | WB56X10260NLA MOUNTING PLATE | Discontinued |
| 84 |  | ROLLER GUIDE RING | $58.93 RepairClinic |
| 85 |  | TRAY-COOKING | $85.90 Parts Dr |
| 86 | | HARD WARE ASS'Y | - |
| 87 | | WIRE HARNESS-C | - |
| 88 | | WIRE HARNESS-A | - |
| 89 |  | SCREW WASHER | $7.37 ApplianceParts Pro |
| 90 | | WB01X10063NLA SCREW-SPECIAL | Discontinued |
| 91 | | BRACKET-FILTER | - |
| 93 | – | 49-40217 LABEL-COOKING GUIDE | - |
| 9999 | – | 31-20905 MINI MANUAL | - |
| 9999 | – | 49-40134-1 INSTALLATION INSTRUCTION | - |
| 9999 | – | 49-40135-1 TEMPLATE | - |
| 9999 | – | 49-40136-1 USE & CARE MANUAL | - |
| 9999 | – | 49-40151-1 FILLER PANEL KIT INSTALL | - |
