Model
GE JVM1490WD003
Microwave Or Advantium
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
JVM1490WD003Microwave Or Advantium
2 diagrams61 parts
Parts Sections (2)
Diagram

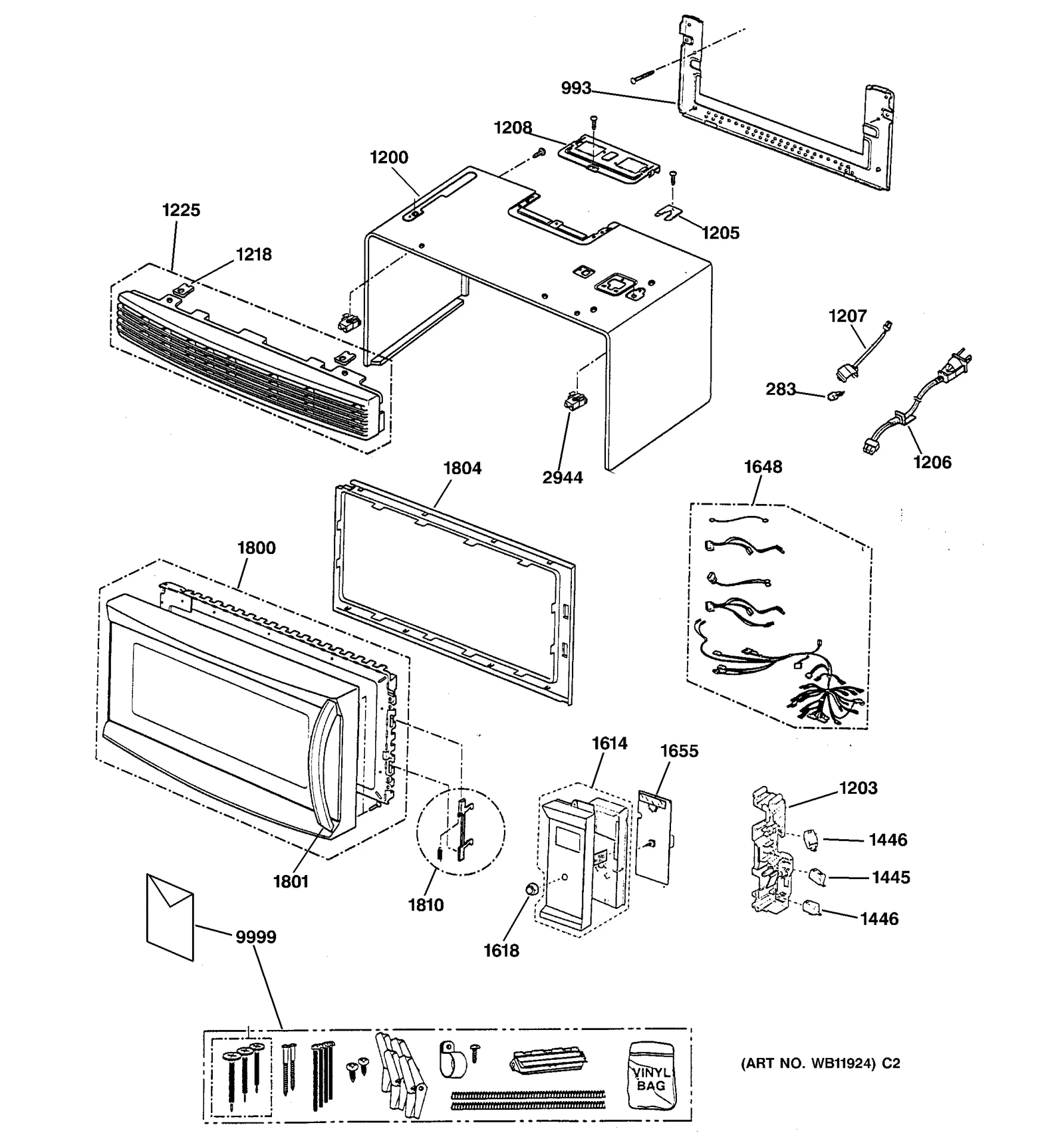

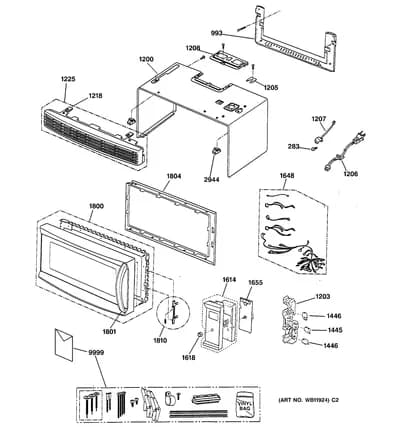

CONTROL PANEL, DOOR, GRILLE & CASE
Parts in CONTROL PANEL, DOOR, GRILLE & CASE
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 283 |  | WB36X10163replaces WB36X10177 LAMP HALOGEN 10W | - |
| 993 |  | WB56X35363replaces WB56X10204 MOUNTING PLATE ASSY | $9.42 Part Advantage |
| 1200 |  | OUTER CASE WHITE | - |
| 1203 | | WB06X10216NLA LATCH BRACKET | Discontinued |
| 1205 |  | COVER POWER CORD | - |
| 1206 | | POWER CORD ASSY | - |
| 1207 | | LAMP REFLECTOR ASSY | - |
| 1208 |  | WB02X32725replaces WB06X10313 MOUNT VENT MOTOR COVER | - |
| 1218 | | GRILLE CLIPS | - |
| 1225 | | VENT GRILLE ASSY | - |
| 1445 |  | WB24X25397replaces WB24X0817 SWITCH MICRO | $18.38 Part Advantage |
| 1446 |  | SW PRIM INTERLOCK & DOOR | $25.95 Part Advantage |
| 1614 | | CONTROL PANEL ASSY | - |
| 1618 | | WB03X10126NLA KNOB | Discontinued |
| 1648 | | LEAD ASSY | - |
| 1655 | | WB27X10466NLA PCB CONTROL ASSY | Discontinued |
| 1800 | | DOOR - SUB ASSY | - |
| 1801 | | WB15X10070NLA HANDLE DOOR WHITE | Discontinued |
| 1804 | | CHOKE COVER | - |
| 1810 |  | LATCH PAWL | $14.76 Parts Dr |
| 2944 |  | NUT ASSY | $15.09 Parts Dr |
| 9999 | – | 31-20958 MINI MANUAL | - |
| 9999 | – | 49-40144 USE & CARE MANUAL | - |
| 9999 | – | 49-40157 MANUAL,INSTALLATION | - |
| 9999 | – | 49-40160 COOK BOOK | - |
| 9999 | | WB64X10003NLA INSTALLATION KIT ASSY | Discontinued |
